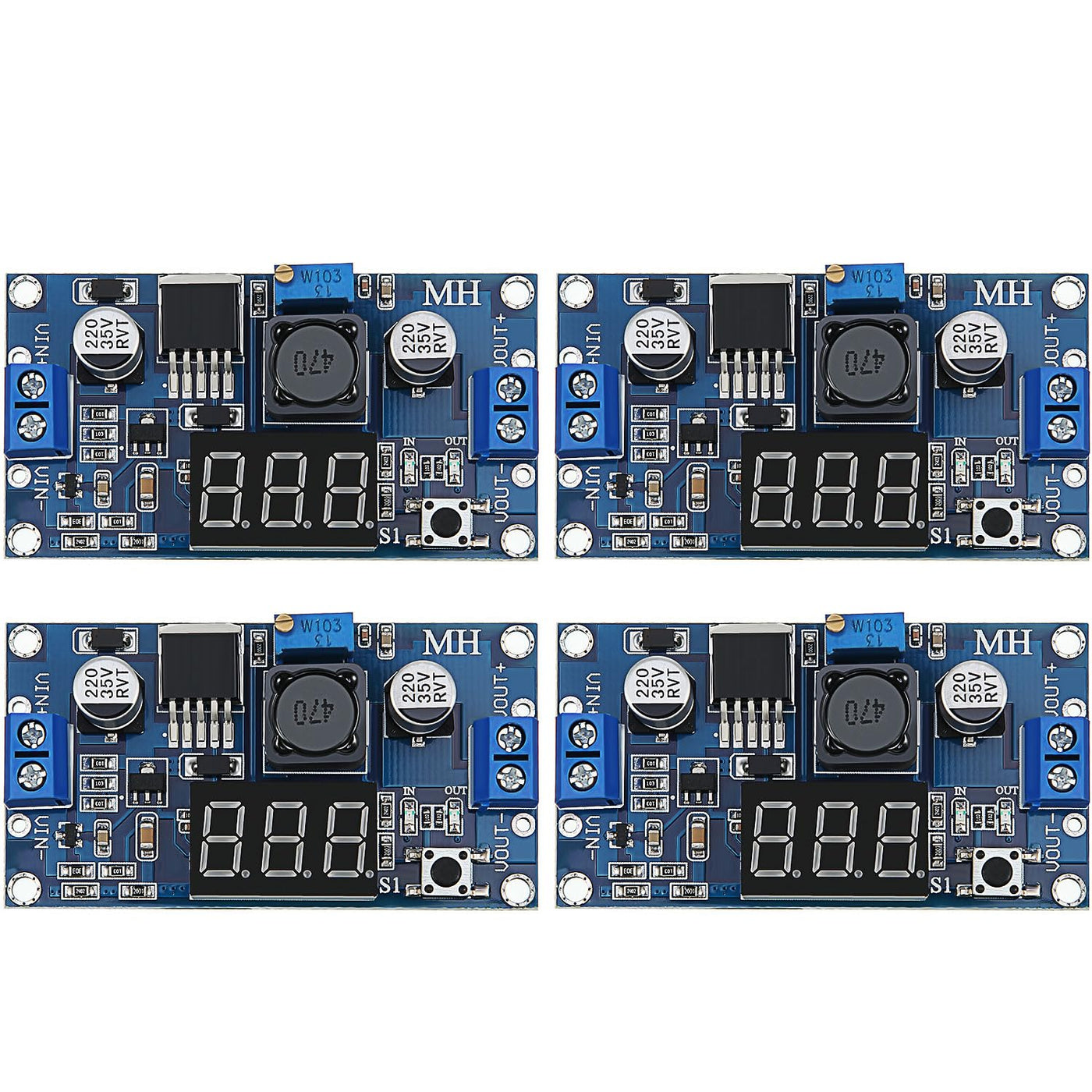

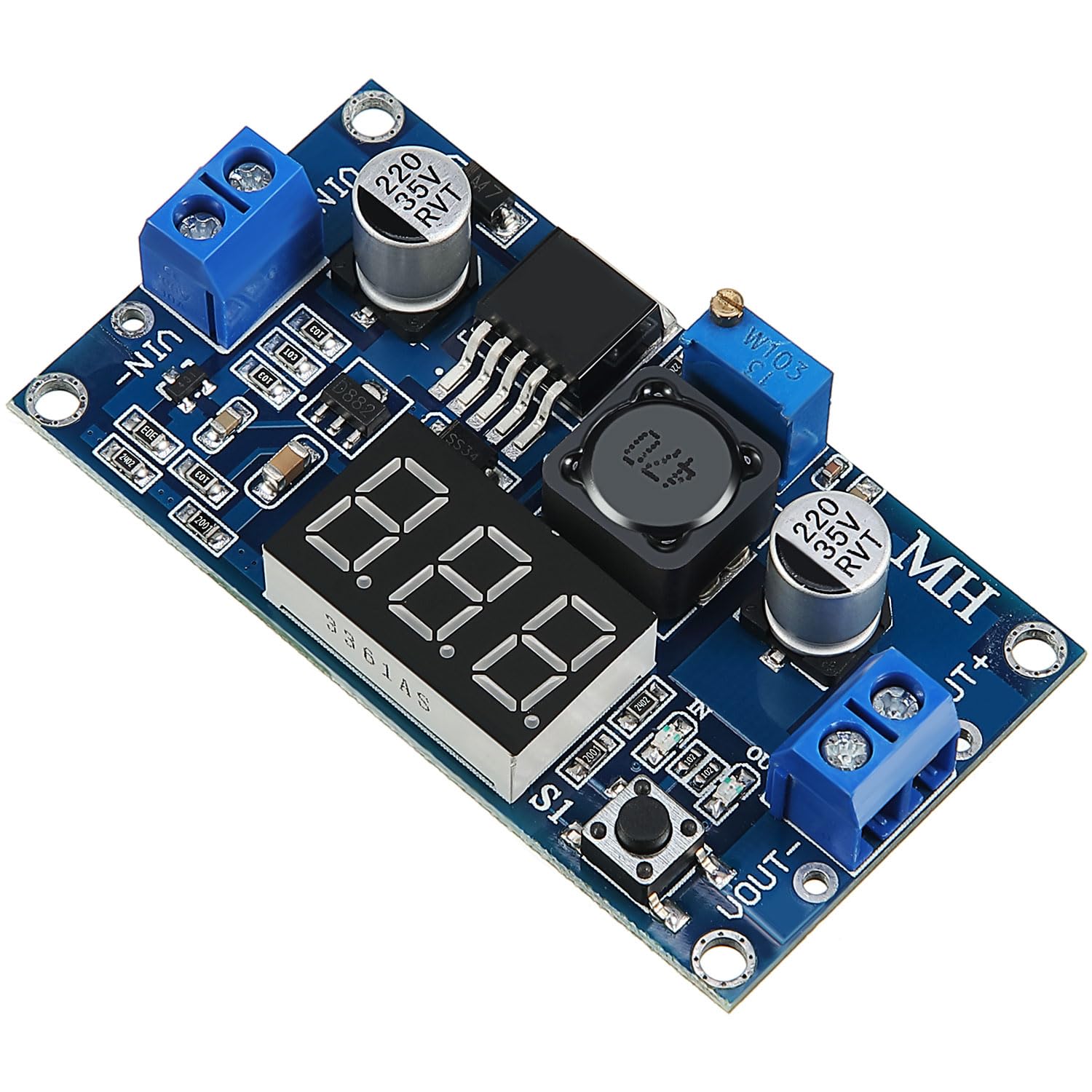

4 Pieces Adjustable Lm2596S Dc Dc Buck Converter Reduced Voltage Regulator Power Module 36V 24V 12V To 5V 2A Voltage Stabilizer

Frequently Asked Questions

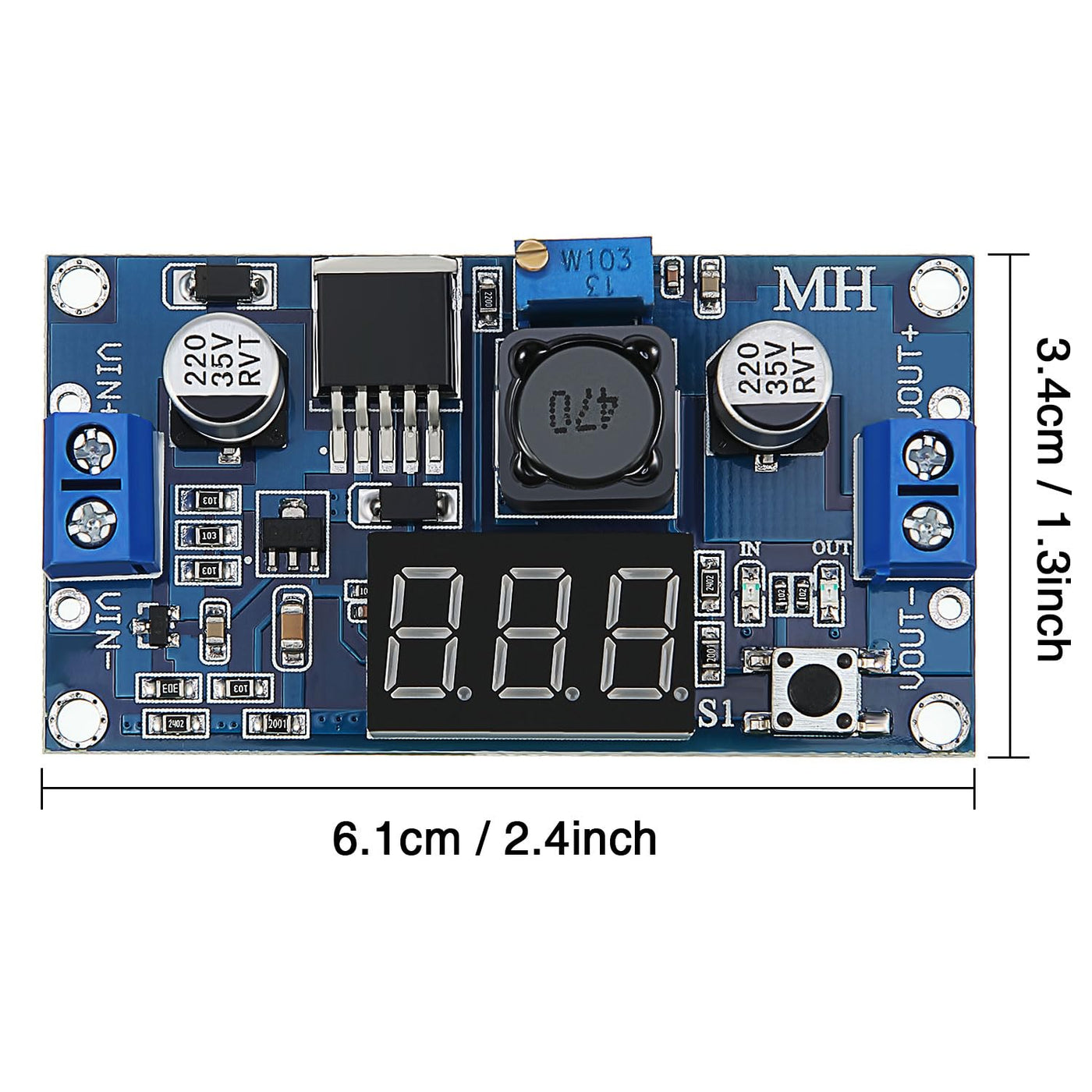

• Q: What are the dimensions of the LM2596S DC-DC Buck Converter? A: The dimensions are approximately two point six inches by one point five inches by zero point seven inches.

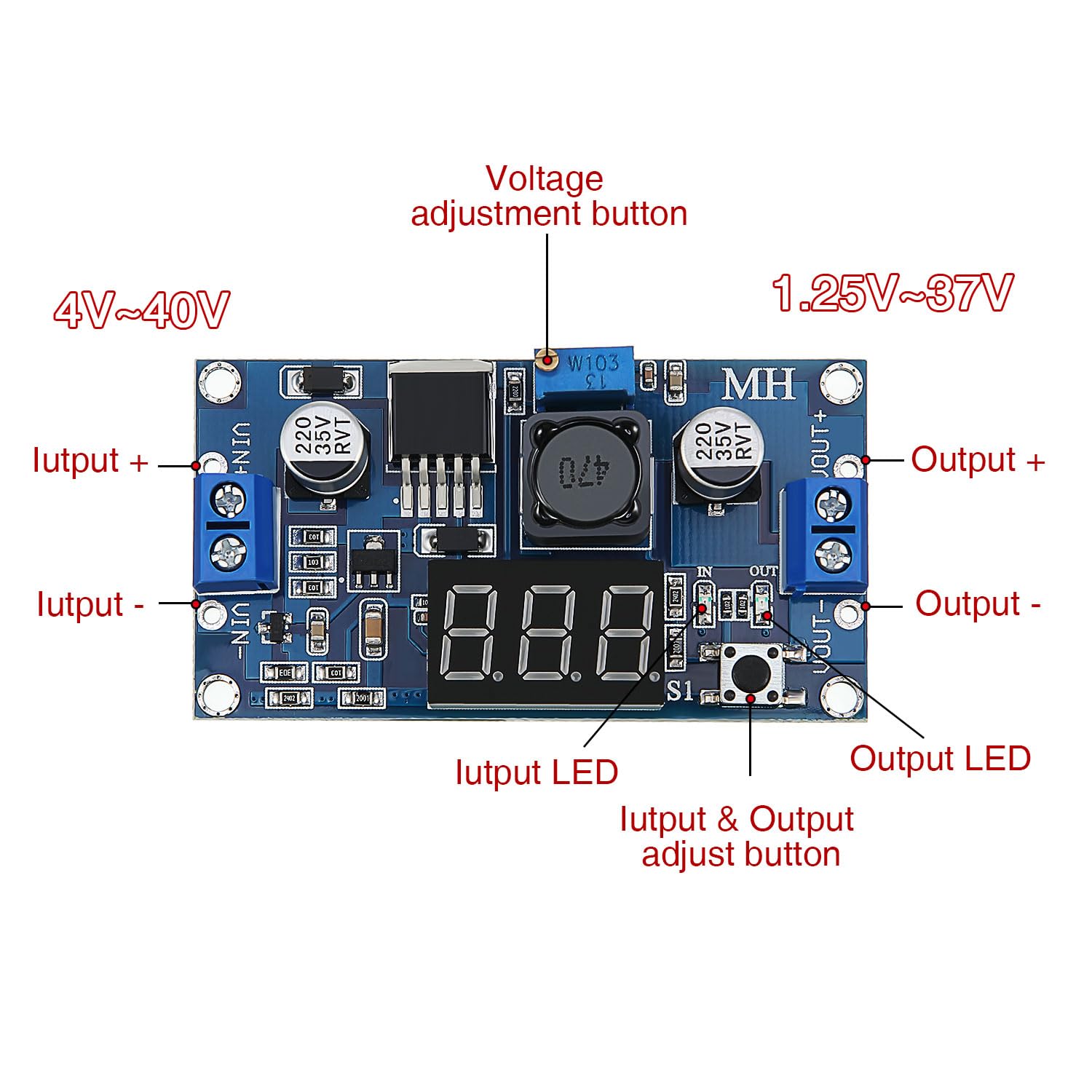

• Q: What is the input voltage range for this converter? A: The input voltage range is four volts to forty volts.
• Q: What is the maximum output current of the LM2596S? A: The maximum output current can reach three amps, with a recommended working current of about two amps.
• Q: How do I operate the voltmeter on this power module? A: To operate the voltmeter, press the button for one second to toggle between input and output voltage displays.
• Q: How can I adjust the output voltage? A: Rotate the top screw of the potentiometer clockwise to increase the output voltage, and counterclockwise to decrease it.
• Q: Can I calibrate the input and output voltage? A: Yes, you can calibrate the input and output voltage by entering calibration mode through a long press of the button.
• Q: Does this converter have any safety features? A: Yes, it includes built-in over-temperature protection, current limit function, and output short-circuit protection.
• Q: How should I store the LM2596S Buck Converter? A: Store it in a cool, dry place away from moisture and heat sources to maintain its functionality.
• Q: What is the operating temperature range for this device? A: The operating temperature range is from negative forty-five degrees Celsius to eighty-five degrees Celsius.
• Q: Is this product suitable for beginners? A: Yes, this device is designed to be simple to operate, making it suitable for beginners as well as experienced users.

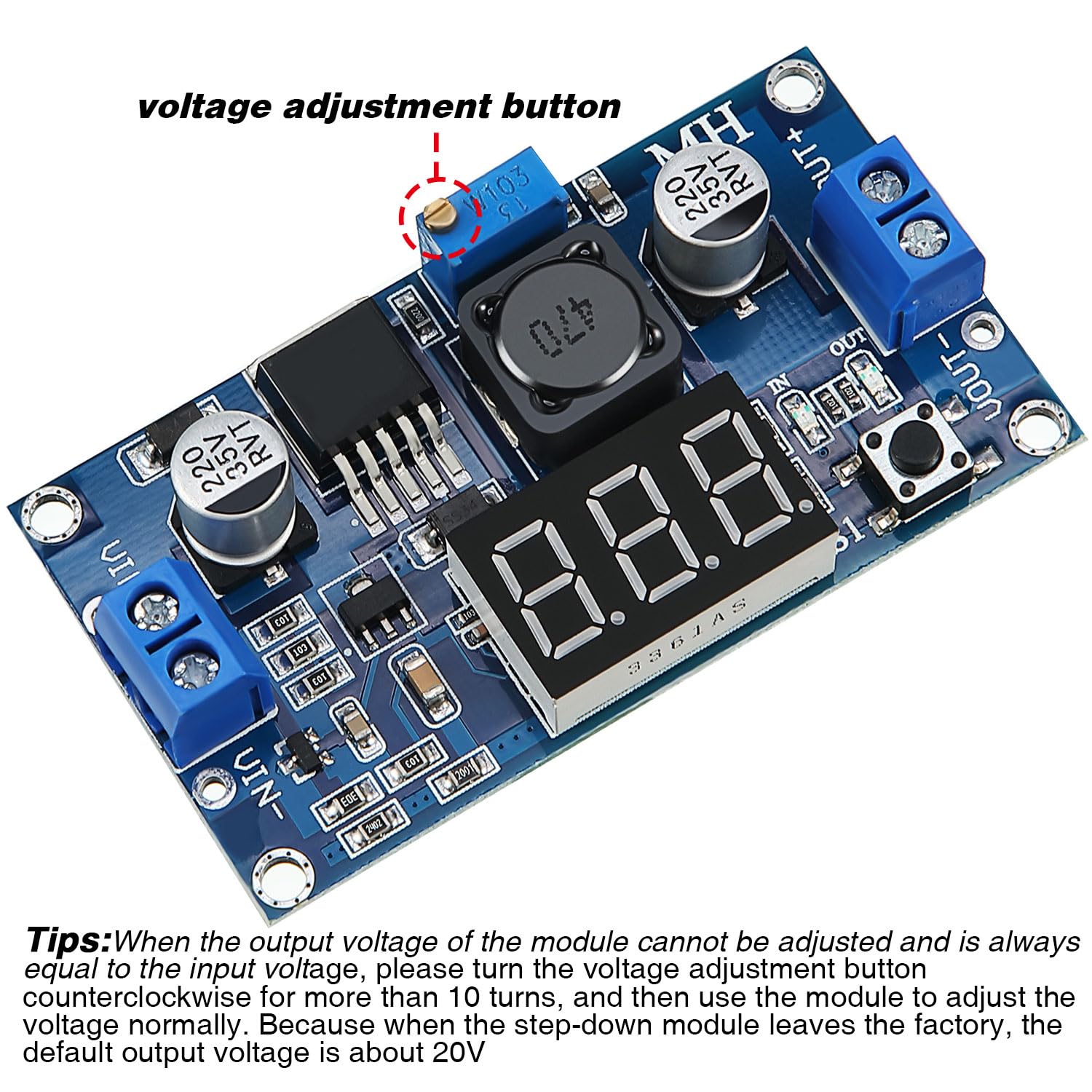

• Q: What should I do if my converter does not adjust the voltage? A: If it does not adjust, turn the potentiometer counterclockwise for more than ten turns before attempting to adjust the voltage.
• Q: Can I return the product if it arrives damaged? A: Yes, you can return the product; please refer to the return policy for specific instructions.
• Q: What if the voltmeter display is not functioning? A: If the voltmeter does not function, ensure the input voltage is higher than the output voltage by at least one volt.
• Q: How many pieces are included in the package? A: The package includes four pieces of the LM2596S Buck Converter.
• Q: Is the voltmeter display adjustable? A: Yes, the voltmeter display can be turned off by long pressing the button for between one and four seconds.
