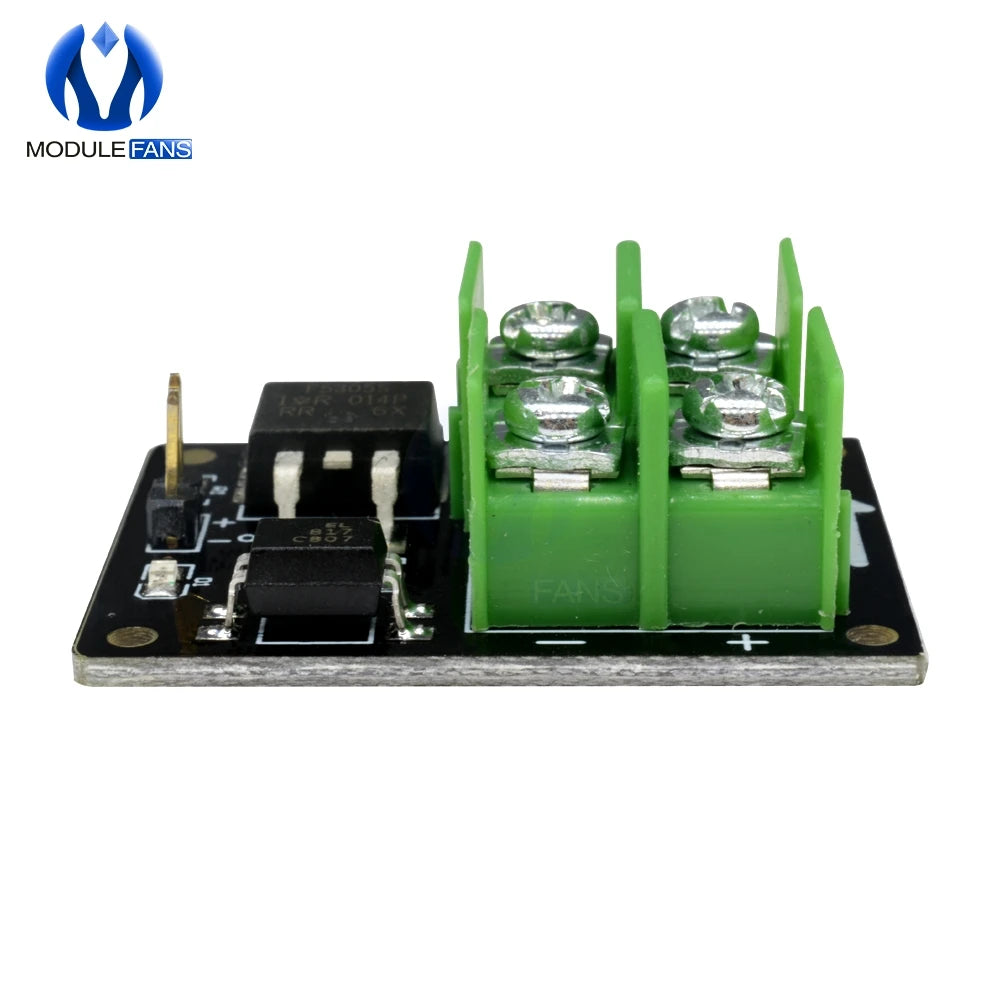

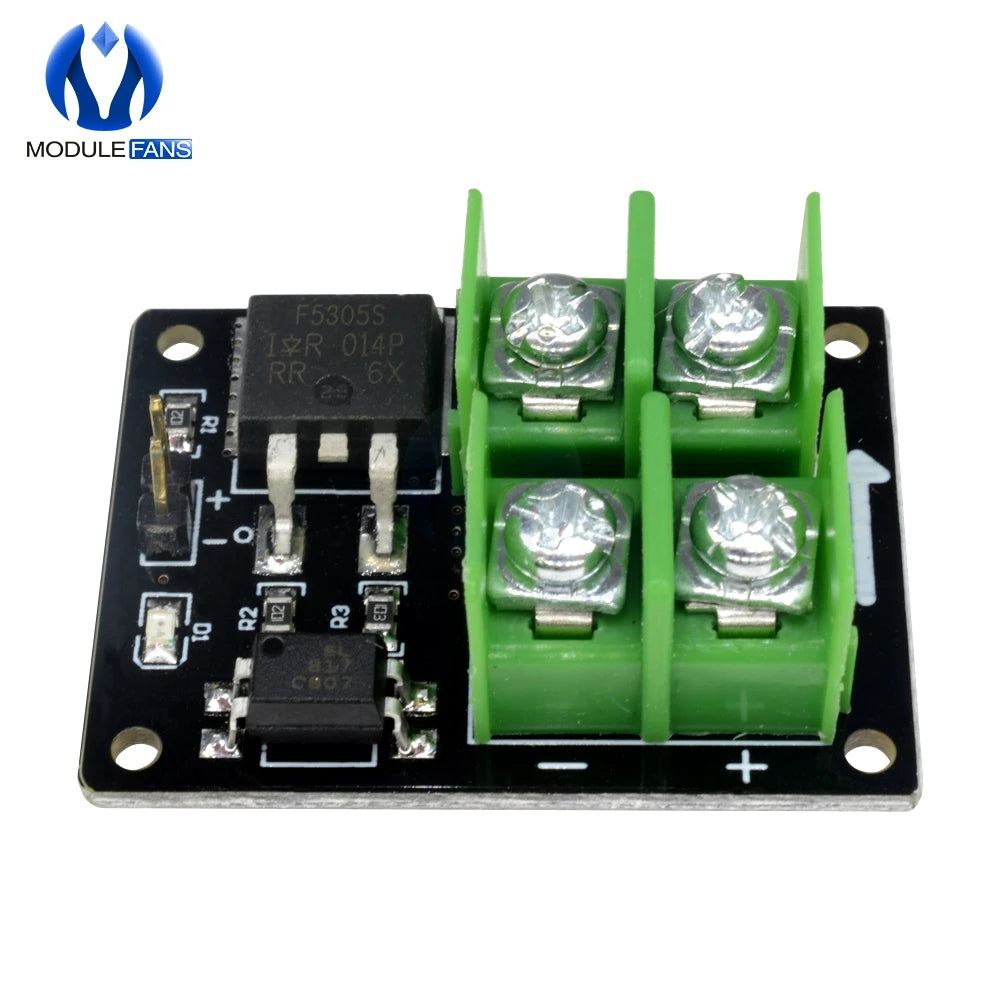

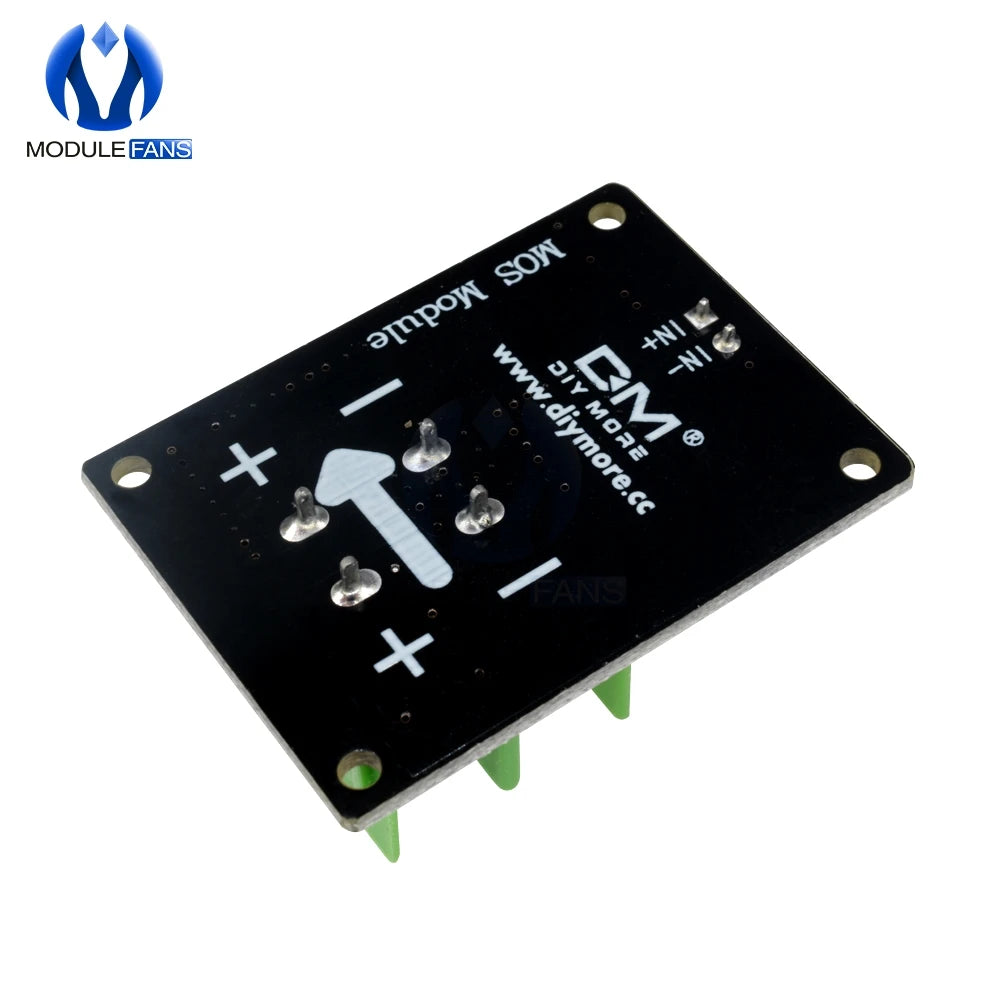

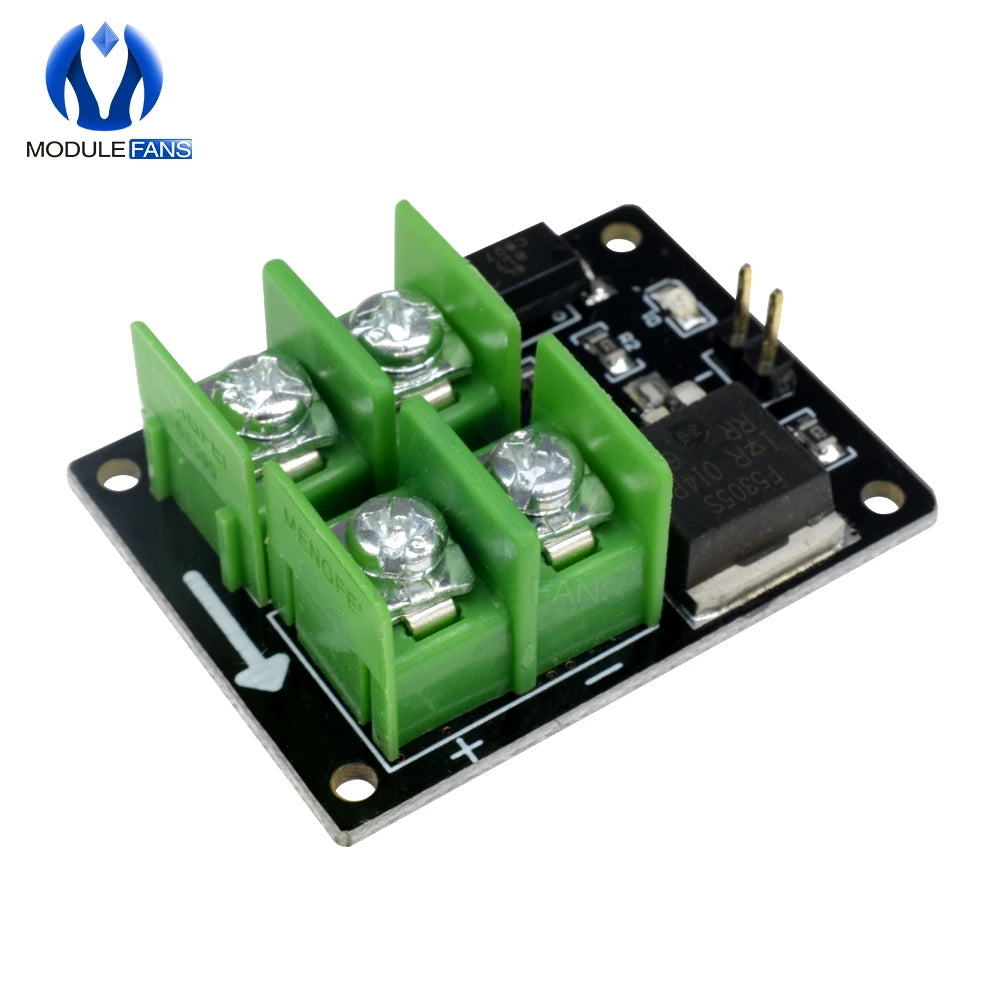

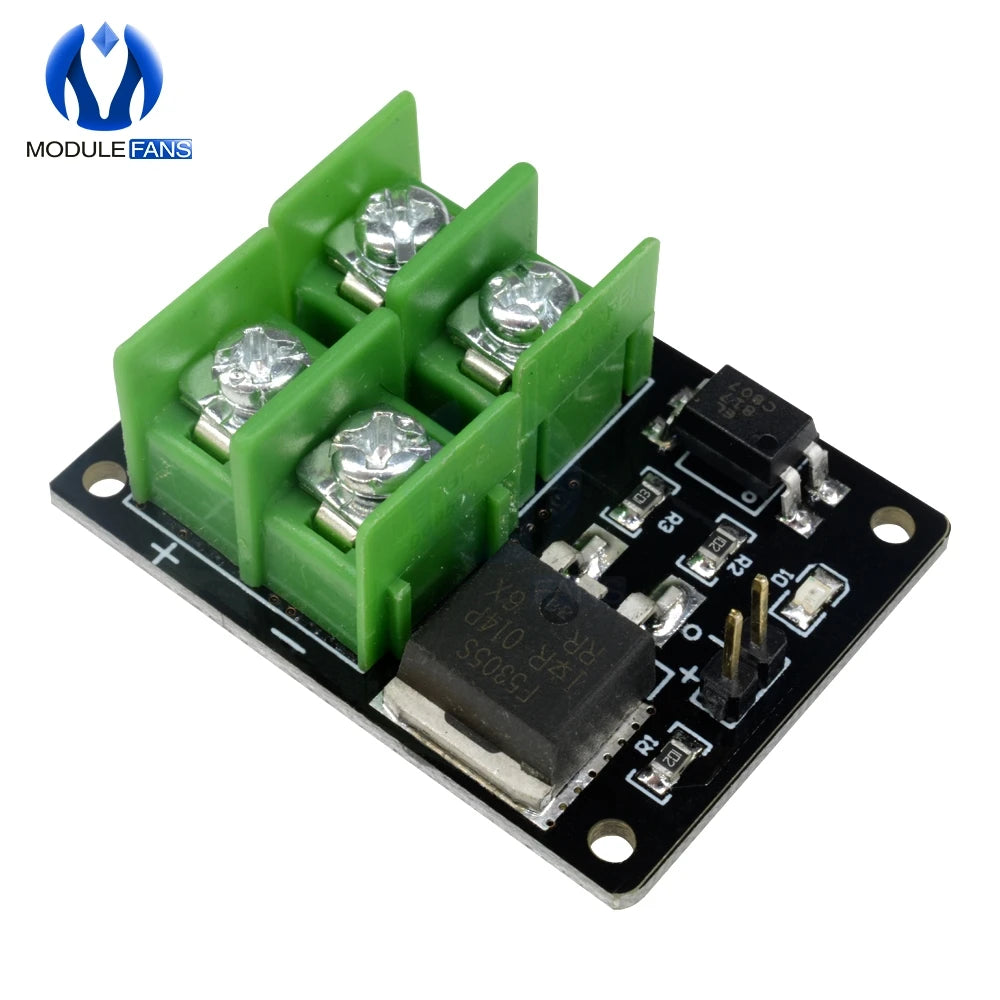

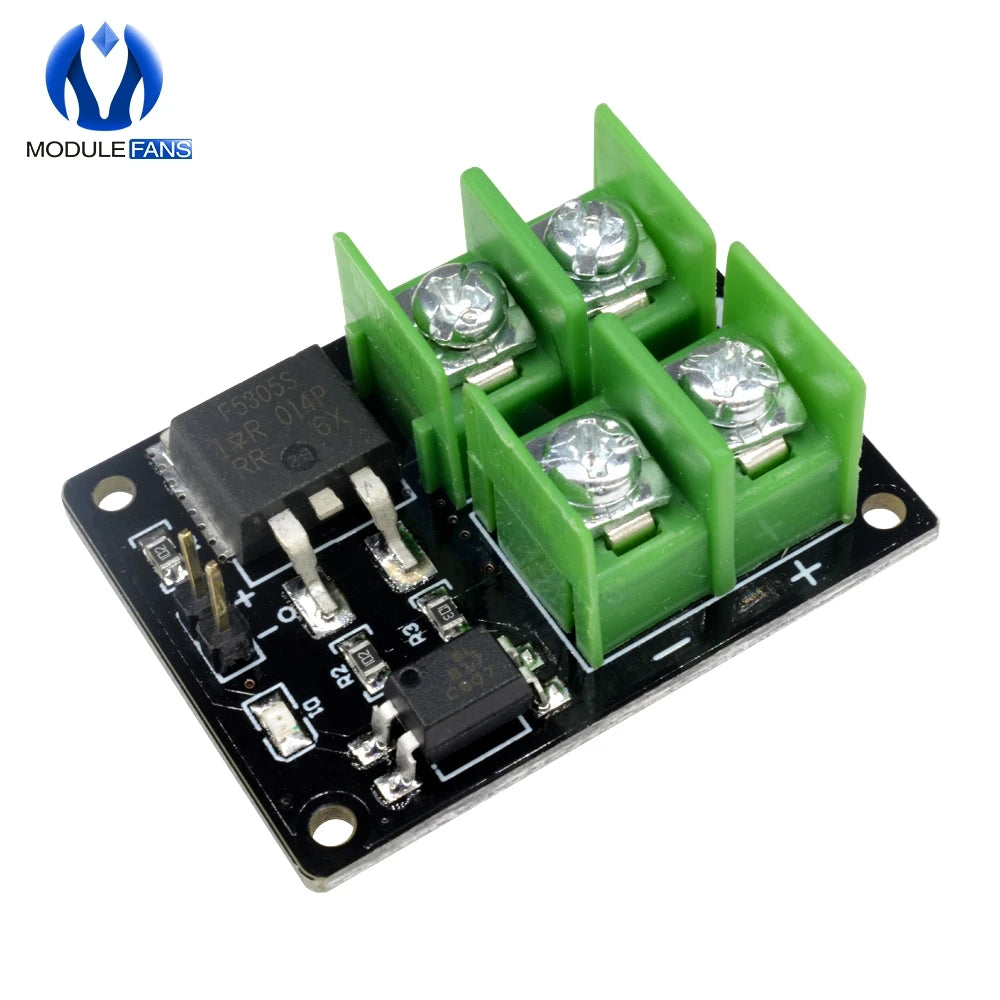

3V 5V Low Control High Voltage 12V 24V 36V switch Mosfet Module for Arduino Connect IO MCU PWM Control Motor Speed 22A
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $0.00
3V 5V Low Control High Voltage 12V 24V 36V switch Mosfet Module for Arduino Connect IO MCU PWM Control Motor Speed 22A - Default Title
Default Title
Default Title
$2.21
Add to Cart
SPECIFICATIONS Application : Low voltage MOSFET switch module
Brand Name : diymore
Choice : yes
Condition : New
Dissipation Power : 0.5W-5W
High-concerned chemical : none
Operating Temperature : -40°C-70°C
Origin : Mainland China
Package : SOP
Quantity : 1
Supply Voltage : 5-36V
Type : Module
is_customized : Yes
semi_Choice : yes
Input control voltage :3.3V-12V
Output charged voltage: 5-36V Board use of opto isolated, completely separated from the 2-terminal voltage. Input is controlled by a 2 pin control ,a ground control can be directly connected to the control switch. Control current 1-5MA control voltage is different, the current difference is mainly the loss on the LED. Charged with maximum current: 22A ,more than 5A need to add a heat sink. Board with LED lights Host input and output screw terminal block Control terminal using 2.54MM pin, easy wiring. Control can be directly connected microcontroller IO. MCU can For ARDUINO PWM control motor speed,
the brightness of lights and so on. Note that large current need to add additional heat sink Board size: 4.2 X 2.6 cm
Package Included:
1 x 3V 5V Low Control High Voltage 12V 24V 36V E-switch Mosfet Module For Arduino
