300A Heavy Duty Module Bus Bar 12V 24V 48V Dc Power Distribution Block With 4 X 5/16'' (M8) Studs, Gift 12Pcs Cable Lugs And 20P

Frequently Asked Questions

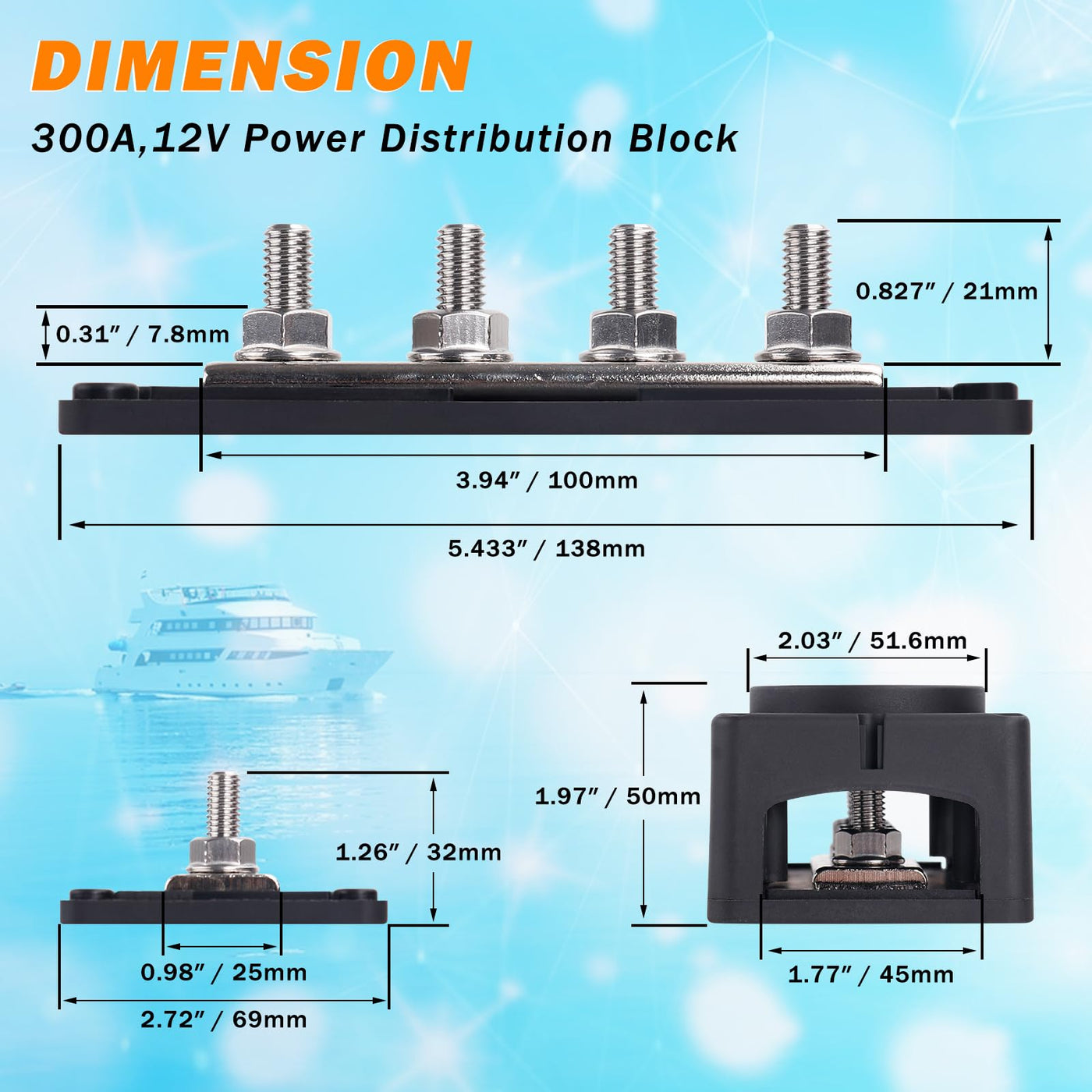

• Q: What are the dimensions of the bus bar? A: The bus bar measures five point forty-seven inches in length, two point seventy-two inches in width, and one point forty inches in height.
• Q: What material is the bus bar made of? A: The bus bar is made of brass that is nickel-plated for enhanced electrical conductivity and rust resistance.
• Q: What is the maximum current rating for this bus bar? A: The bus bar can handle a maximum current rating of three hundred amperes.
• Q: What voltage systems is this bus bar compatible with? A: This bus bar is compatible with twelve volt, twenty-four volt, and forty-eight volt direct current power systems.

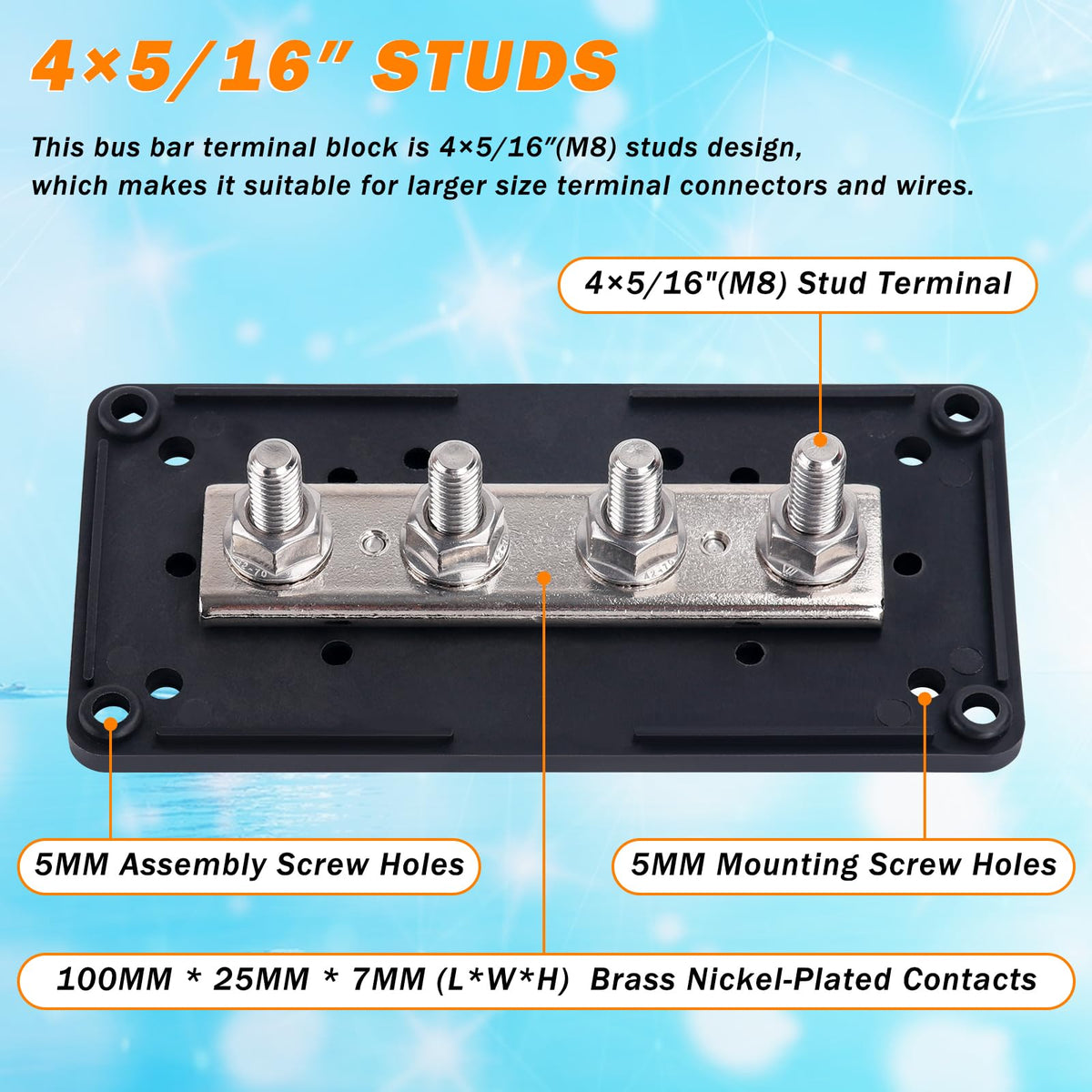

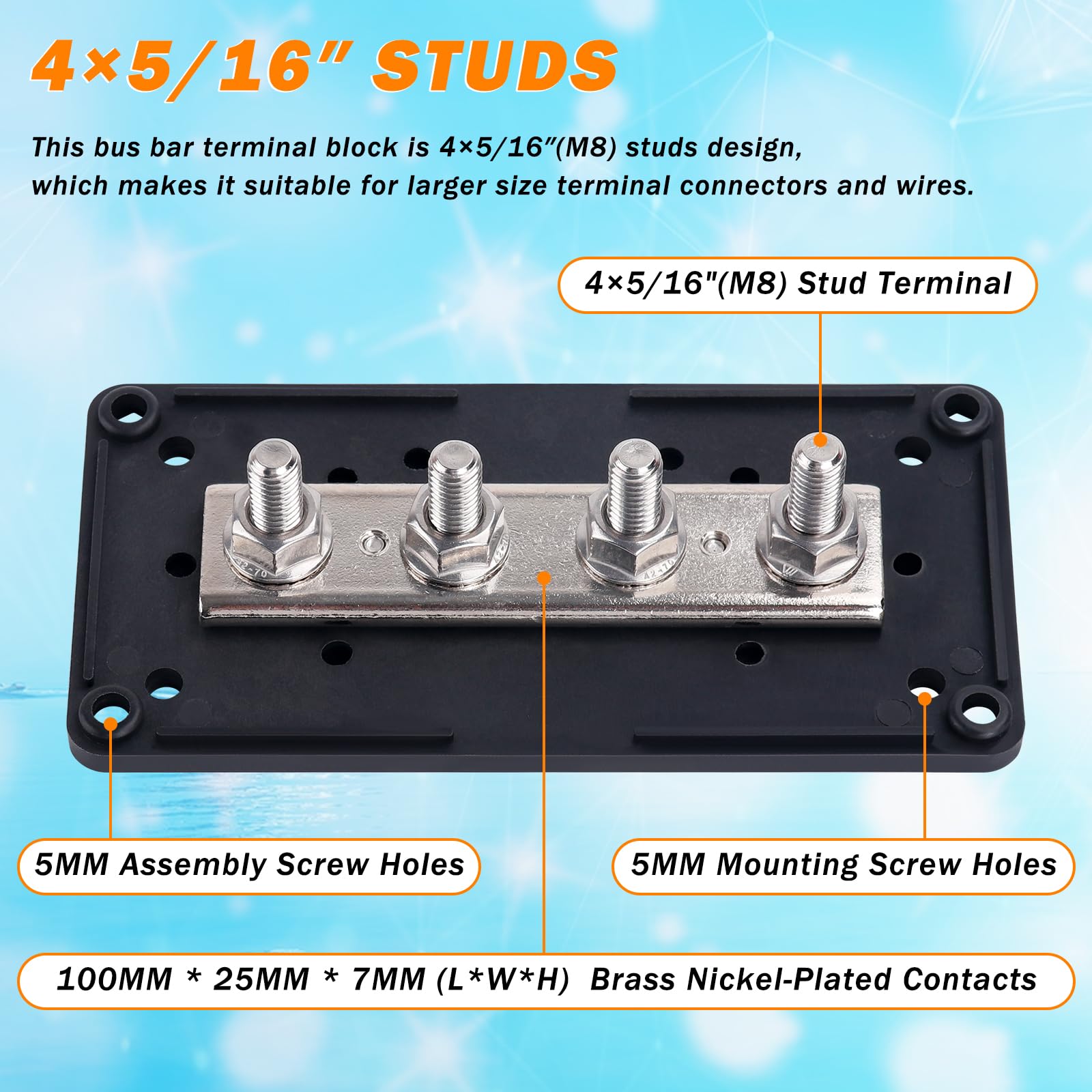

• Q: How many M8 studs does the bus bar have? A: The bus bar features four M8 studs for secure wire connections.
• Q: How do I install the bus bar? A: To install the bus bar, mount it using screws on any surface, utilizing four available mounting holes.
• Q: Can I use this bus bar in a marine environment? A: Yes, the bus bar is designed for marine environments, resisting rain, dust, air, and seawater.

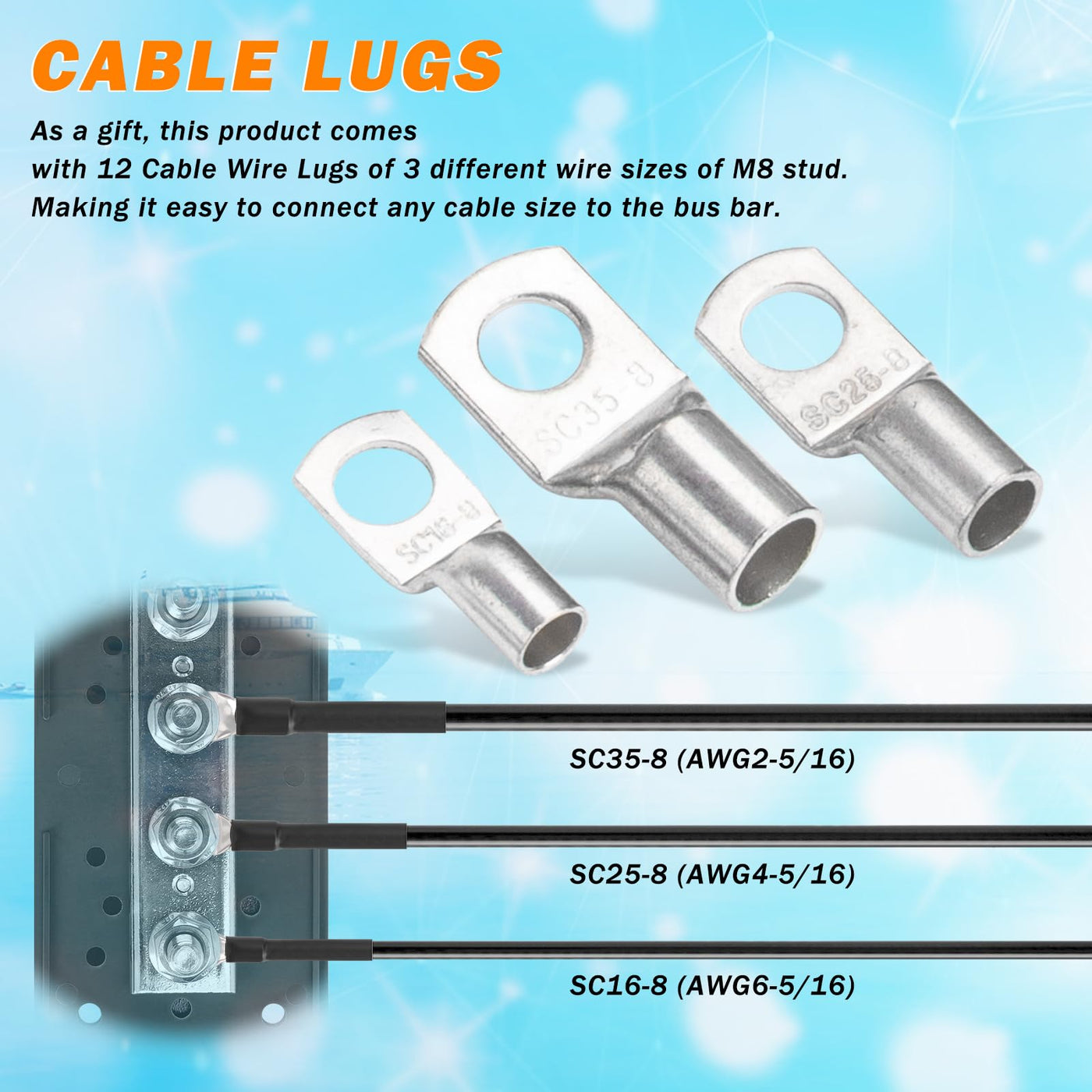

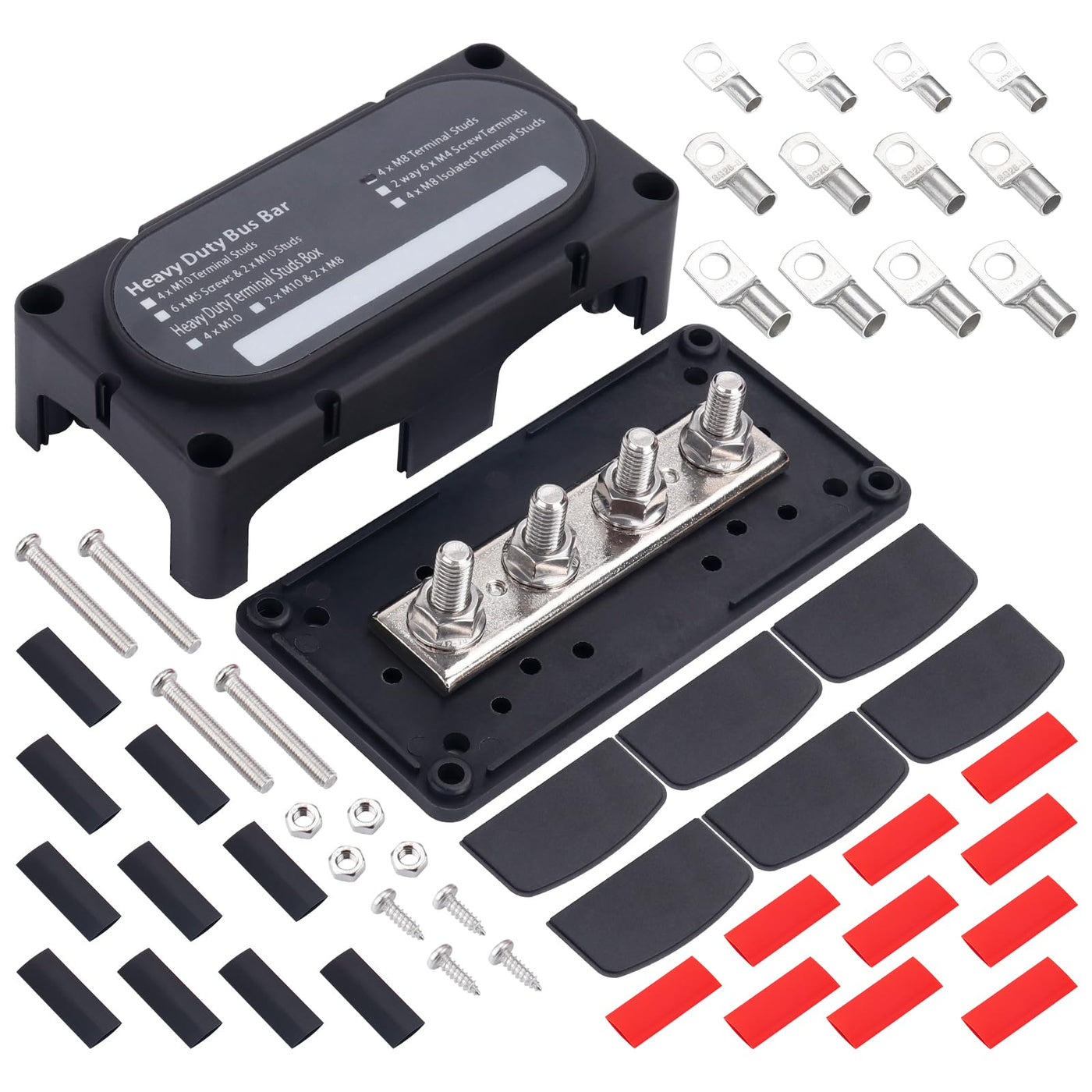

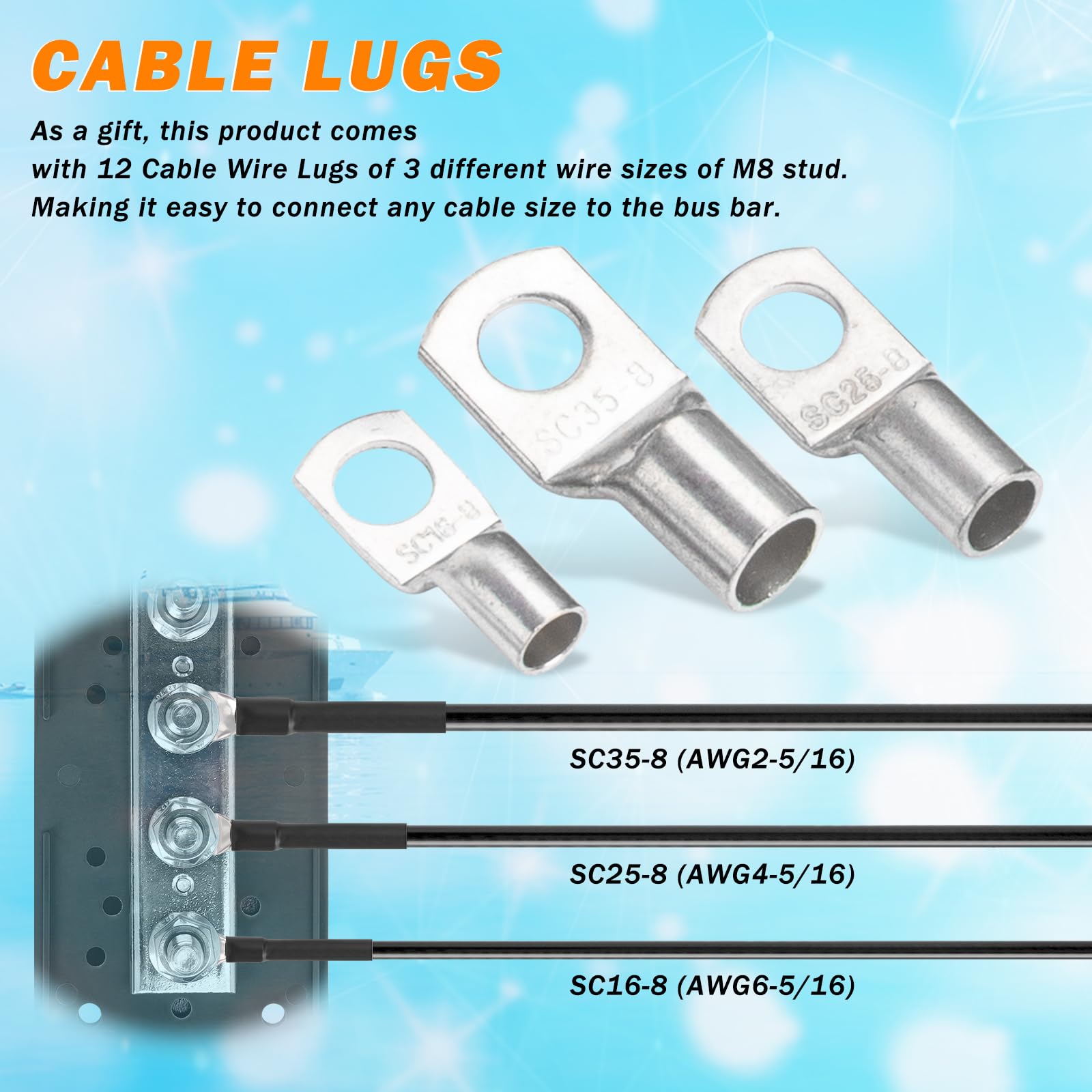

• Q: What accessories come with the bus bar? A: The bus bar includes twelve cable wire lugs of three different sizes and twenty heat shrink tubing pieces.
• Q: Is the bus bar safe for electrical use? A: Yes, the bus bar has a base made from flame-retardant plastic for safety protection.
• Q: How do I maintain this bus bar? A: To maintain the bus bar, ensure it is kept dry and clean from dust and debris to preserve its longevity.
• Q: What types of vehicles can use this bus bar? A: This bus bar is suitable for use in cars, RVs, trucks, boats, and solar energy applications.

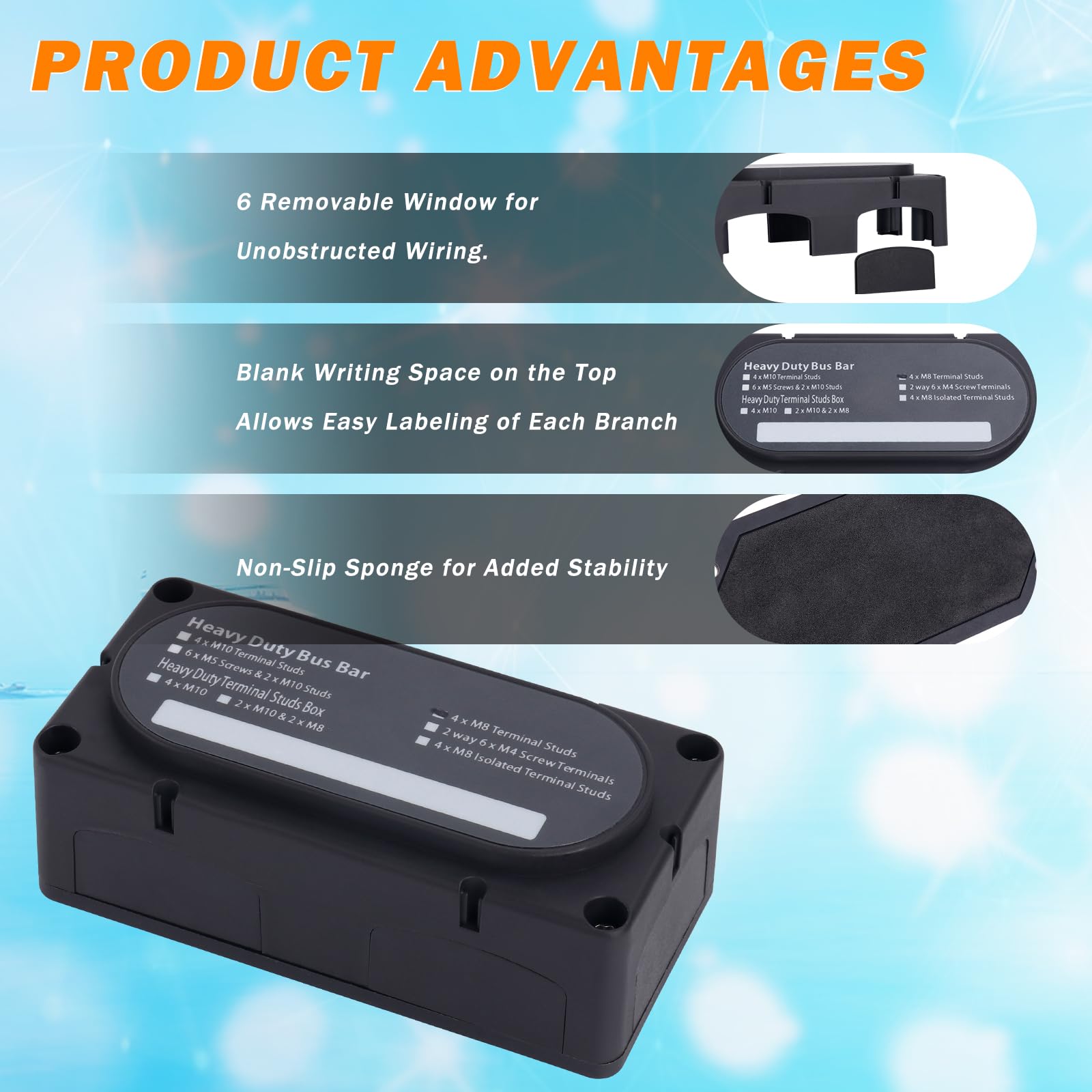

• Q: Can I label the connections on the bus bar? A: Yes, the bus bar has a blank writing space on top for easy labeling of each branch.
• Q: What is the weight of the bus bar? A: The weight of the bus bar is not specified, but it is designed for robust and durable usage.
• Q: Does the bus bar come with a warranty? A: Warranty details are typically provided by the manufacturer; check with HaSaoMoi for specific terms.
• Q: What if I have a problem with my bus bar? A: If you encounter any issues with the bus bar, contact the seller or manufacturer for support and troubleshooting assistance.
