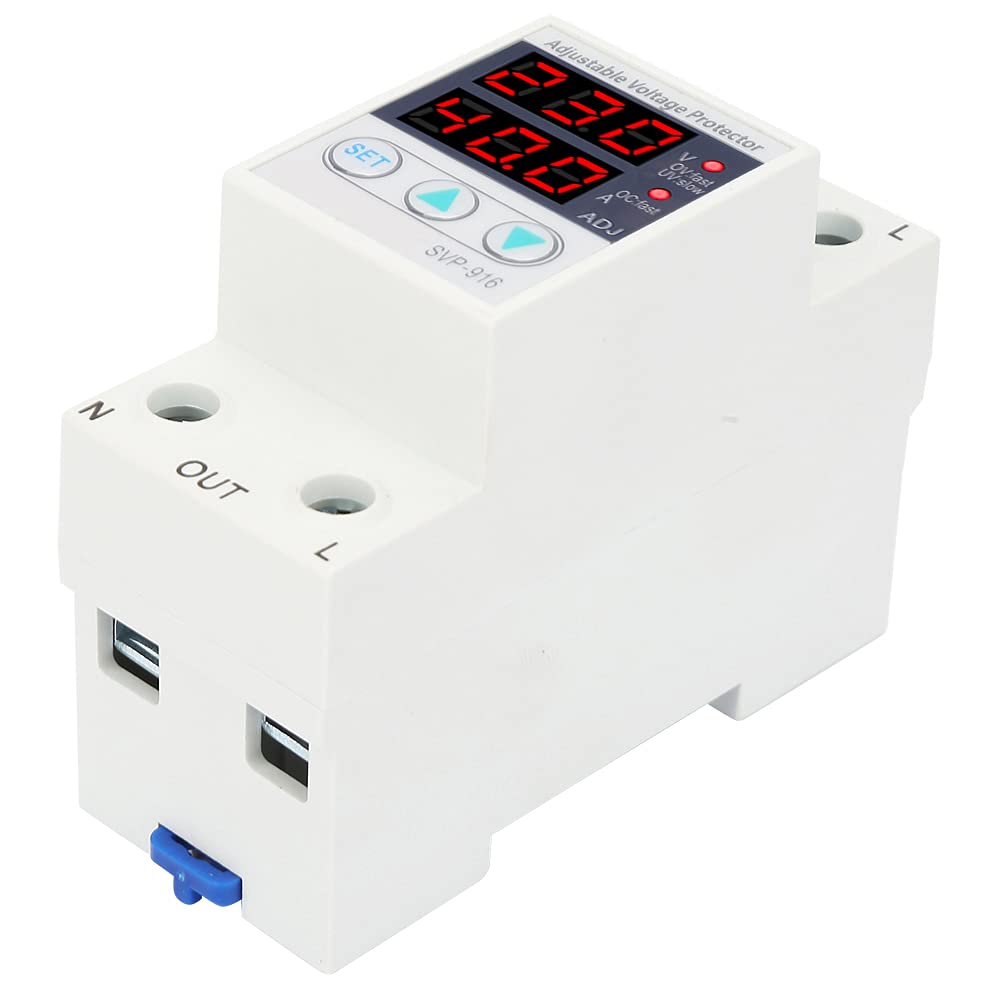

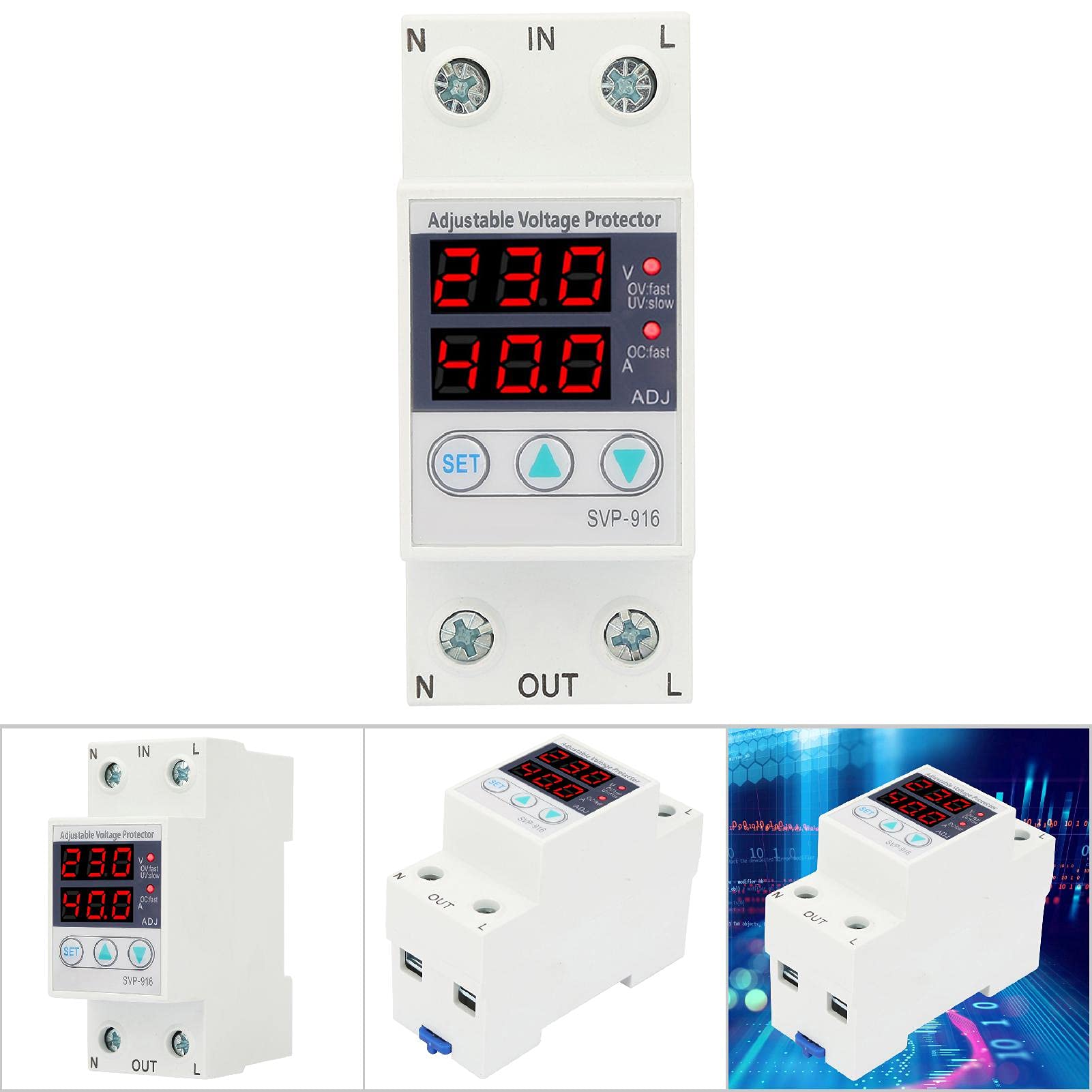

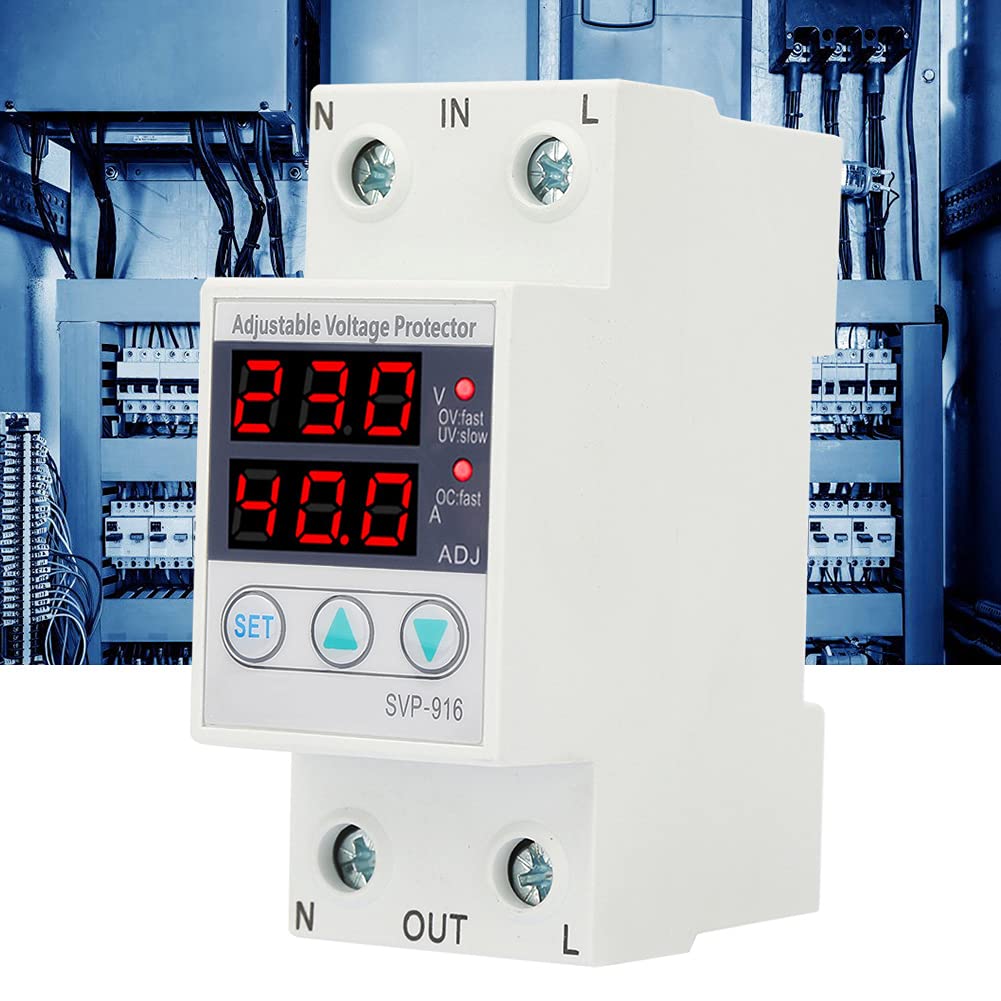

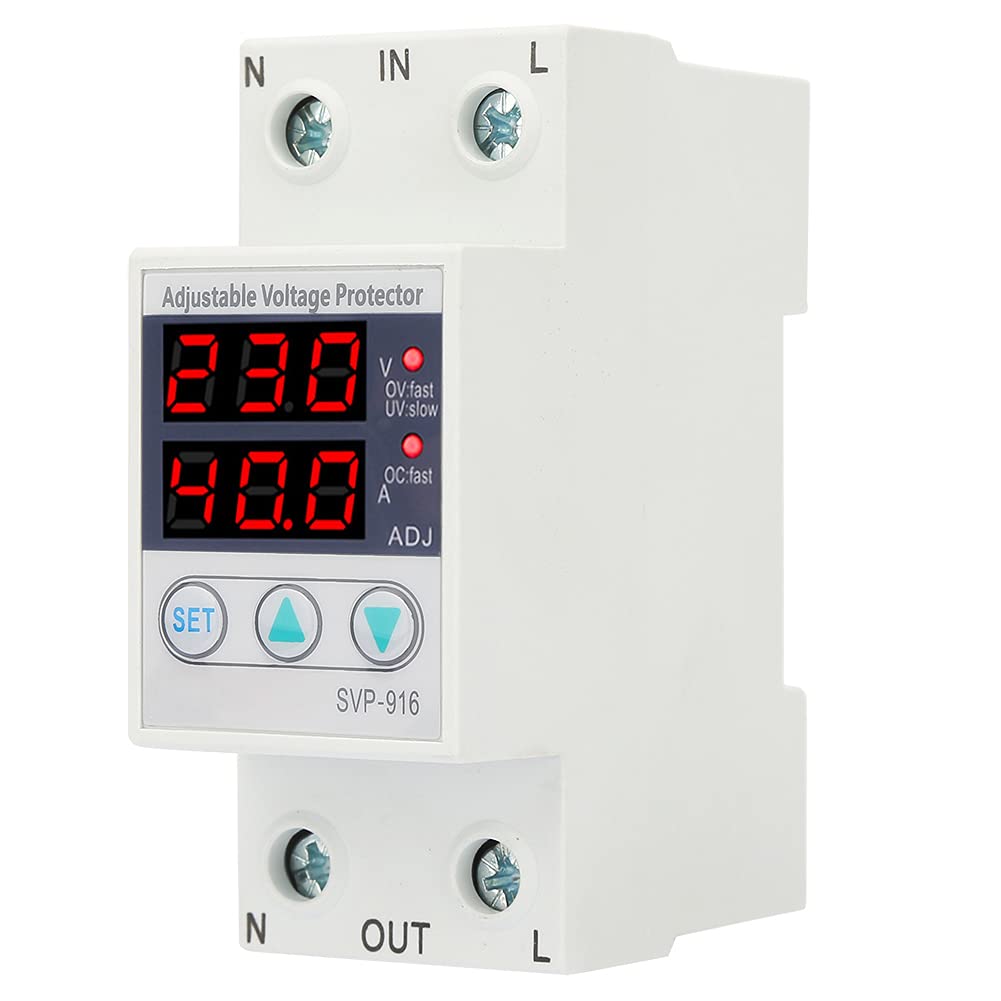

230V Ac Current Protector 63A, Intelligent Single Phase Adjustable Over Voltage Under Voltage Current Protective Device
$26.83
Sold Out
Specification: Rated Voltage 230Vac 50/60Hz Rated Voltage 1-63A Adjustable(Default 63A)/1-40A Adjustable(Default40A) Overvoltage Protection Value Range 221V-300V-Off Adjustable(Default 280V) Overvoltage Recovery Voltage Mediation Range &Nbsp;220V-299V(Default Value 250V) Overvoltage Protection Action Time 0.1S - 10S (Default 0.1 Seconds) Undervoltage Protection Value Range 219V-150V-Off Adjustable(Default 160V) Undervoltage Recovery Voltage Mediation Range 151V-220V( Default Value 180V) Undervoltage Protection Action Time 0.1S - 10S (Default 0.1 Seconds) Overcurrent Regulation Range 1-63A (Default 63A)/1-40A(Default40A) Overcurrent Action Range 0.1S -512S (Default5.0 Seconds) Failure Recovery Delay Time 2S - 512S (Default 60 Seconds) Power-On Delay Time 2S - 255S (Default 2 Seconds) Power Consumption 2W Electrical Mechanical Life 4000 Times Installation Method Din Rail Working Environment Temperature:-25 ~+40 Humidity:≪90% Altitude: No More Than 2000M Size: Approx. 81 X 36 X 60Mm / 3.2 X 1.4 X 2.4In Optional Style: 40A, 63A Package List: 1 X Protector Note: The Neutral Line N Cannot Be Connected Incorrectly And Needs To Be Secure. The Zero Line N Of The Protector Is Directly Connected, And There Is No Disconnect Function. Please Note! When The Undervoltage Breaking Time Is Greater Than 0.3 Seconds, The Protector Does Not Open After The Power Failure. (The Power Failure Of The Mcu Does Not Work After 0.3 Seconds Of Power Failure)&Nbsp;
