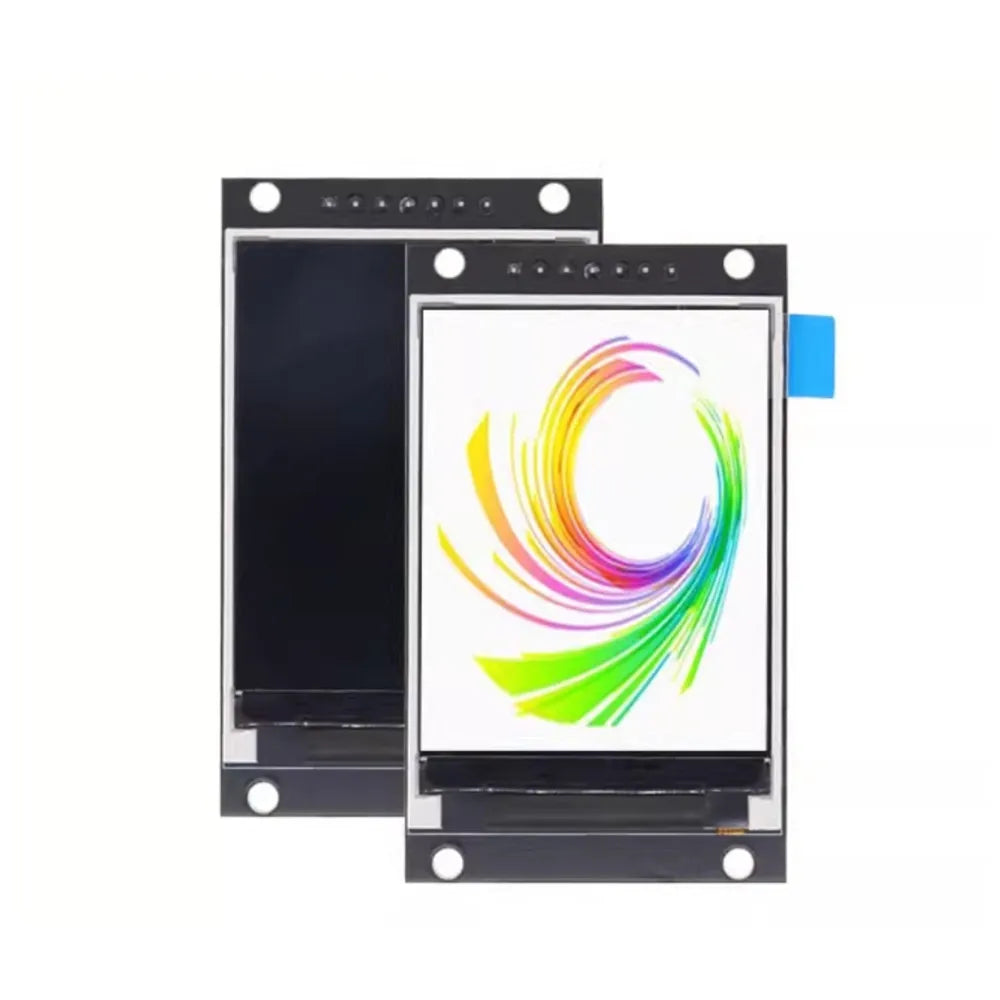

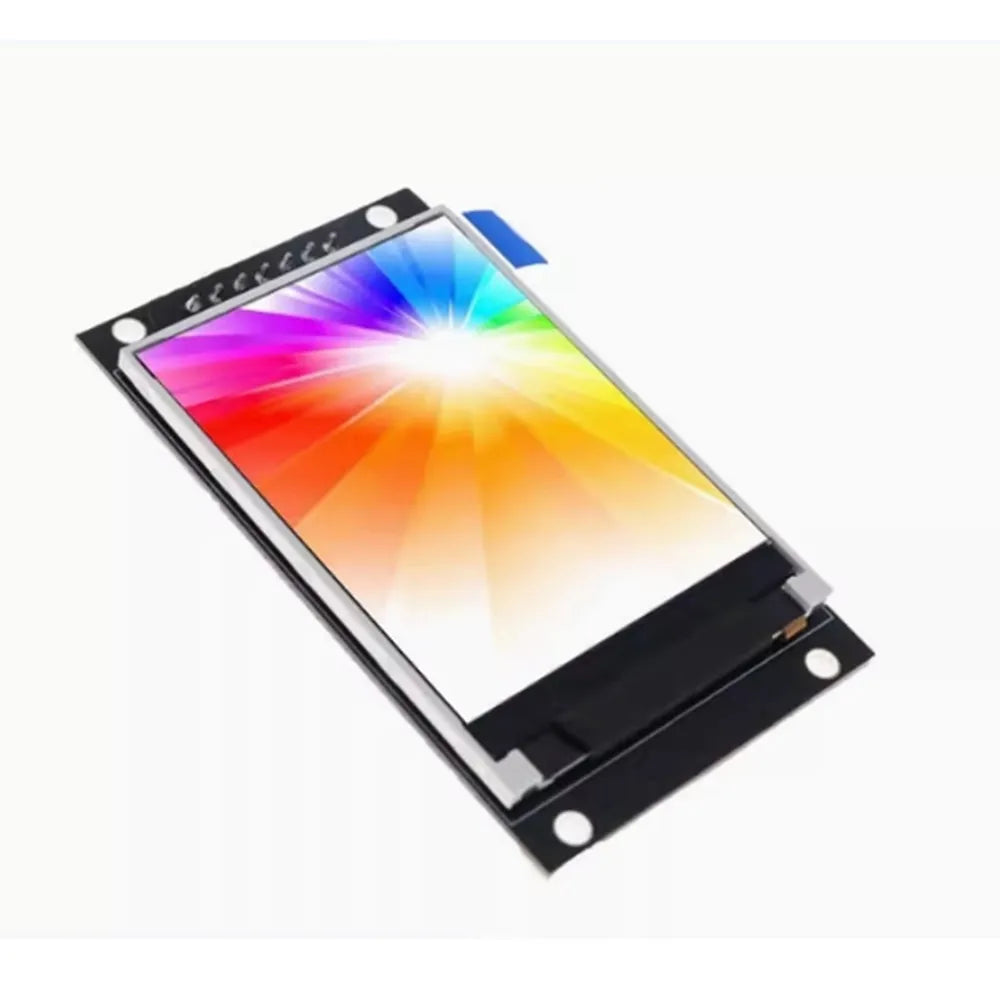

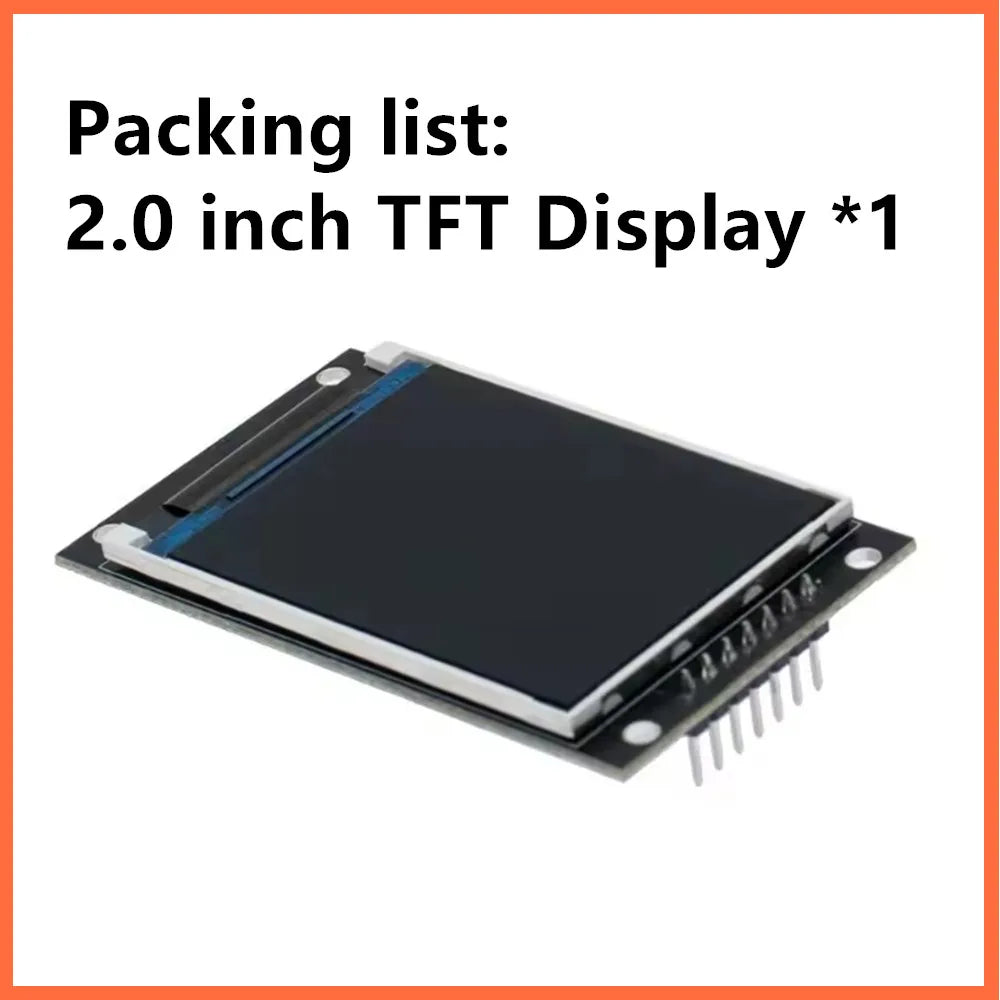

2.0 inch TFT Display OLED LCD Drive IC ST7789V 240RGBx320 Dot-Matrix SPI Interface for Arduio Full Color LCD Display Module
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $0.00
2.0 inch TFT Display OLED LCD Drive IC ST7789V 240RGBx320 Dot-Matrix SPI Interface for Arduio Full Color LCD Display Module - Default Title
Default Title
Default Title
$6.56
Add to Cart
SPECIFICATIONS Brand Name : DIY LEARNER
Choice : yes
Display Mode : 2.0
High-concerned chemical : none
Model Number : 2.0 inch TFT module
Origin : Mainland China
Resolution : 320x240
Type : TFT
is_customized : Yes
Diagonal Screen Size
2.0inch
Color
262K
Resolutions
240X320

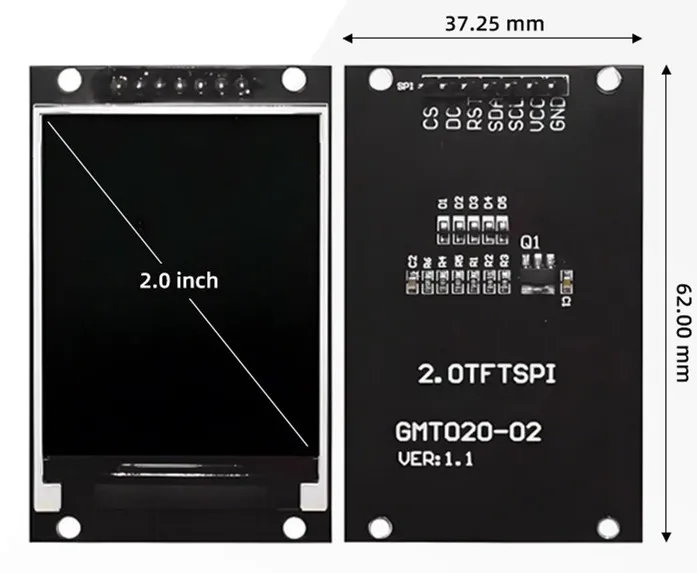

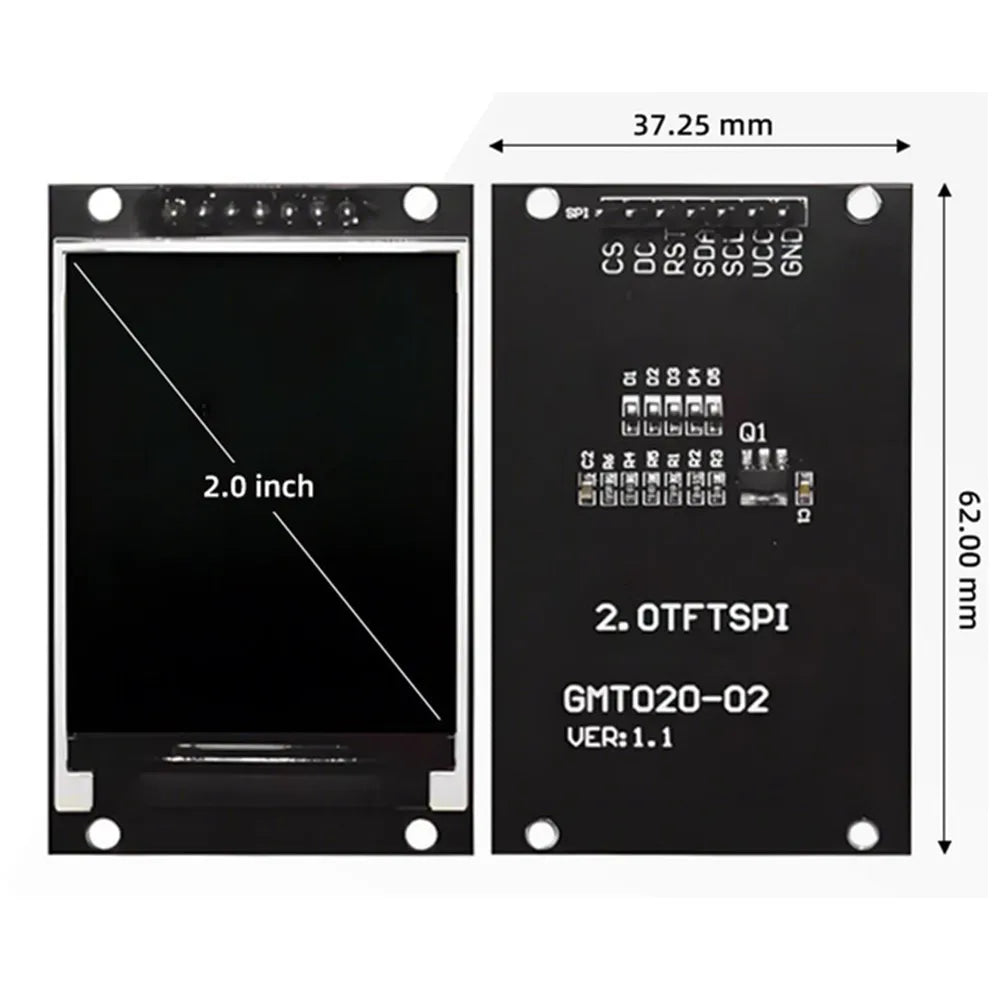

Outline dimension
37.25mm×62.00mm×12.10mm
Active area
30.60mm×40.80mm
Pixel pitch
0.1275mm×0.1275mm
Pixel size
0.1175mm×0.1175mm
Driver IC
ST7789
Voltage
3V-5V
Interface
4 Line SPI
Operating temperature
-20℃~70℃
Storge Temperature
-30℃~80℃
Assemble
Soldering

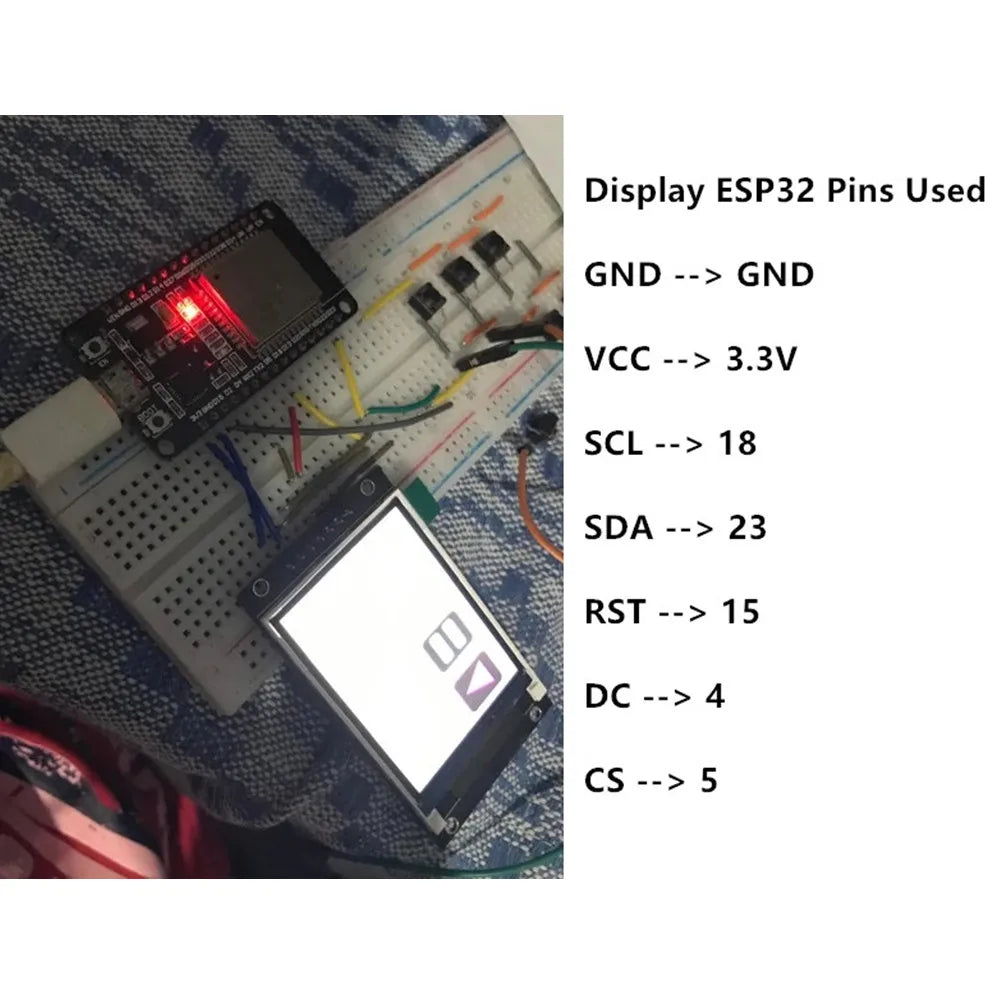

Pins
7P
