1pcs/5pcs/10pcs PAM8403 Audio 2x3W Mini Digital Power Amplifier Board for Class D Stereo Audio Amplifier Module 5V Power
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $0.00
1pcs/5pcs/10pcs PAM8403 Audio 2x3W Mini Digital Power Amplifier Board for Class D Stereo Audio Amplifier Module 5V Power - 1PCS
$2.00
Add to Cart
SPECIFICATIONS Application : Computer
Brand Name : STJF
Choice : yes
Condition : New
Dissipation Power : 1
High-concerned chemical : none
Origin : Mainland China
Package : DIP
Supply Voltage : 1
Type : Voltage Regulator
is_customized : Yes
semi_Choice : yes
PAM8403 Audio 2x3W Mini Digital Power Amplifier Board for Class D Stereo Audio Amplifier Module 5V Power
?
Description:

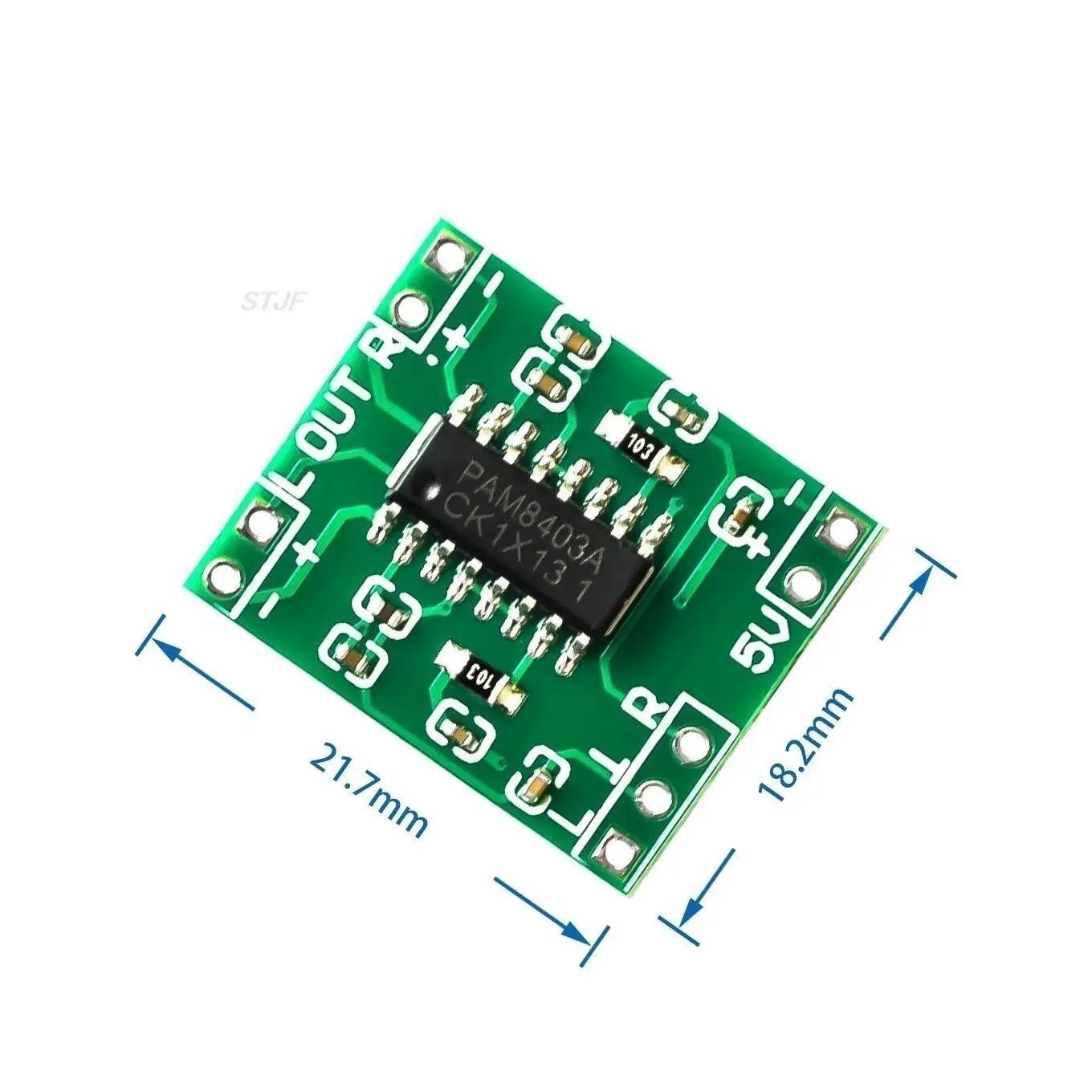

1. Dimension:1.85*2.15cm
2. Work Voltage:2.5V-5V, Limit Voltage: 5.5V
3. Excellent noise suppression
4. Large output power, good sound quality

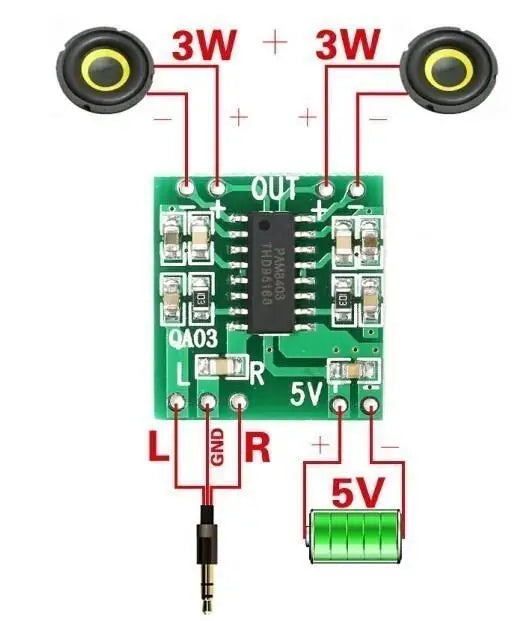

5. Double channel stereo, 5V power supply and can output 3W+3W power, and can directly drive 4 ohm & 8 ohm speakers
6. Class D digital power board without LC filter, could be powered by computer USB
7. Dual panel wiring, wiring properly solve the crosstalk caused by ground potential balance and inter channel
8. Miniature design, can be easily placed into a variety of digital products
?
?
Note:
The left and right channel output of the "negative" can not be connected in parallel, otherwise it will burn out IC,and before electrification should be first connect the speaker (load).
?
?
?
