SPECIFICATIONS Brand Name : NONE
High-concerned chemical : none
Item Type : Antenna
Model Number : CB-150PA
Origin : Mainland China
10Meter 11Meter 25-30MHz CB Walkie Talkie Power Amplifier 1-5W Input 80-150W Output SSB/FM AM CW CB-150PA
CB-150PA is a low cost solution which is without protection of overpower, overvoltage, over-standing wave.It cant adjust the automatic antenna tuner on lines(except BYPASS), please use under illustration.
CB-150PA is designed specially for amplifying the low output CB radio. For considering effectively expanding the output power and cut the cost, we choose simple & easy to buy MOS tubein the market. Welcome to operate under illustration.

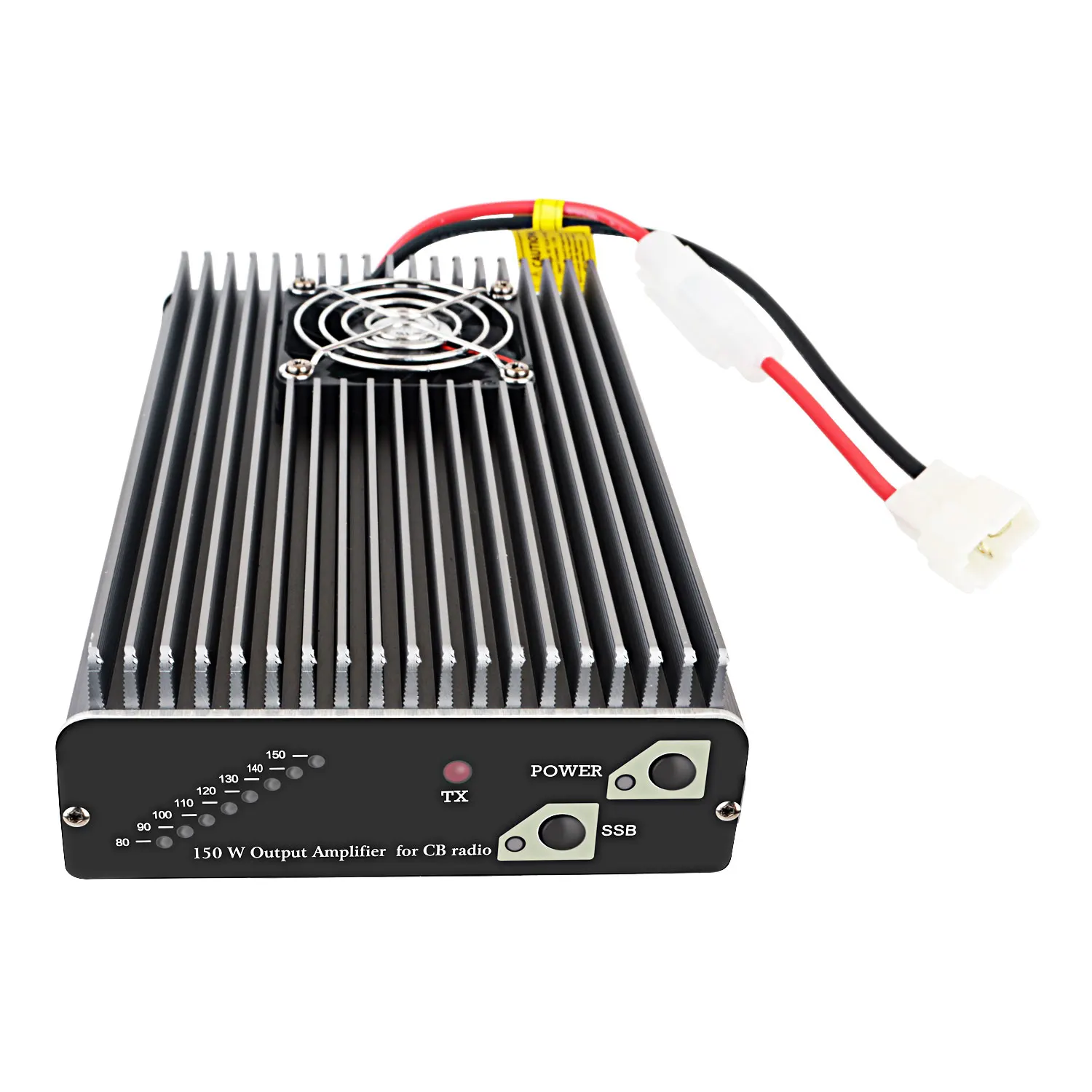

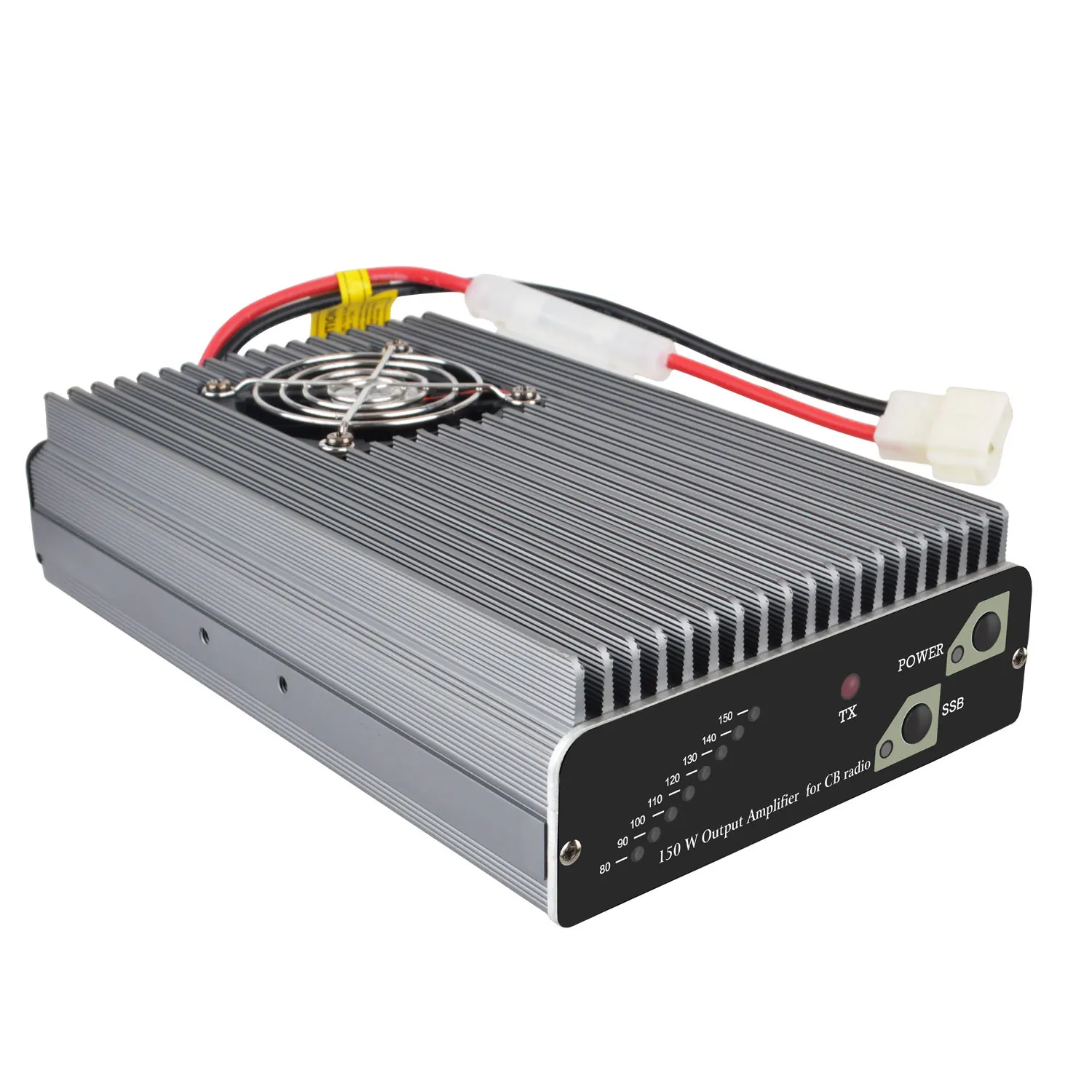

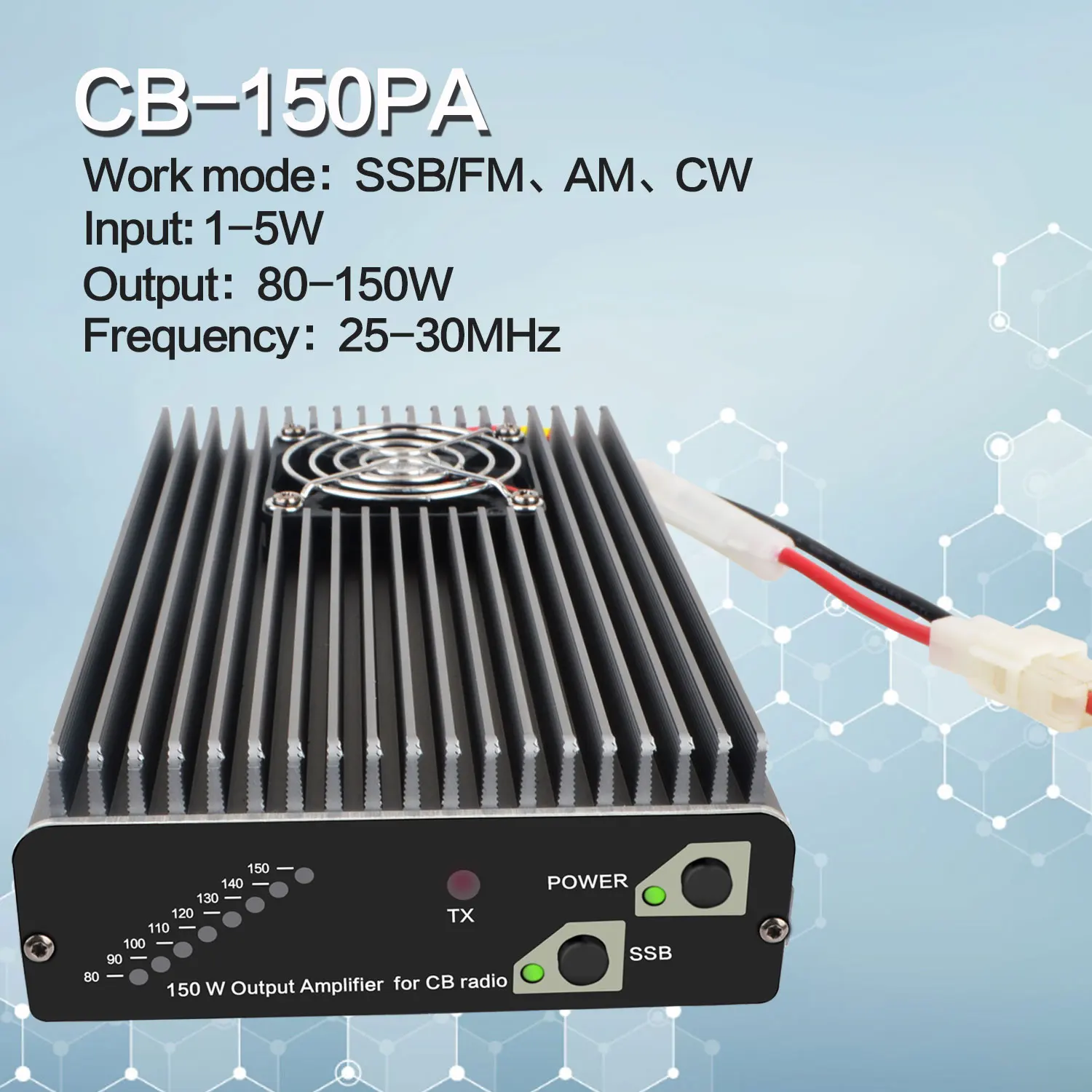

Photos:
Specification
Frequency:25-30MHz
Input:1-5W
Output:80-150W
Magnify Circuit:AB type
Harmonic suppression:-40dB
Drive way:RF Trigger
Input voltage:12-14.5V/DC
Typical voltage:13.8V/DC
Input current:≥22A
Work mode:SSB/FM , AM , CW
Input/out slot:SAM
Exchange time of receiving & transferring:≈15ms
Input SWR:≤1.5
Output SWR:≤1.8
No protection for over standing wave
No protection for over voltage,over current
No protection for overheated
Input/output impedance:50Ω
Net Weight: 1.15Kg
Troubleshooting
NOT power on
check the lines of the amplifier are in good connection or not and the fuse has burnt or not
Low power
Check the output of CB radio is ordinary or not, check whether the antenna is well connected to the ANT interface, check that frequency is in range or not.
There is “KaKa”of the amplifier when the CB radio transmit.
The SWR of antenna is too high
Package Contents of Each Unit:
1× CB-150PA CB Power amplifier
1× 2 Meter Power Cord
