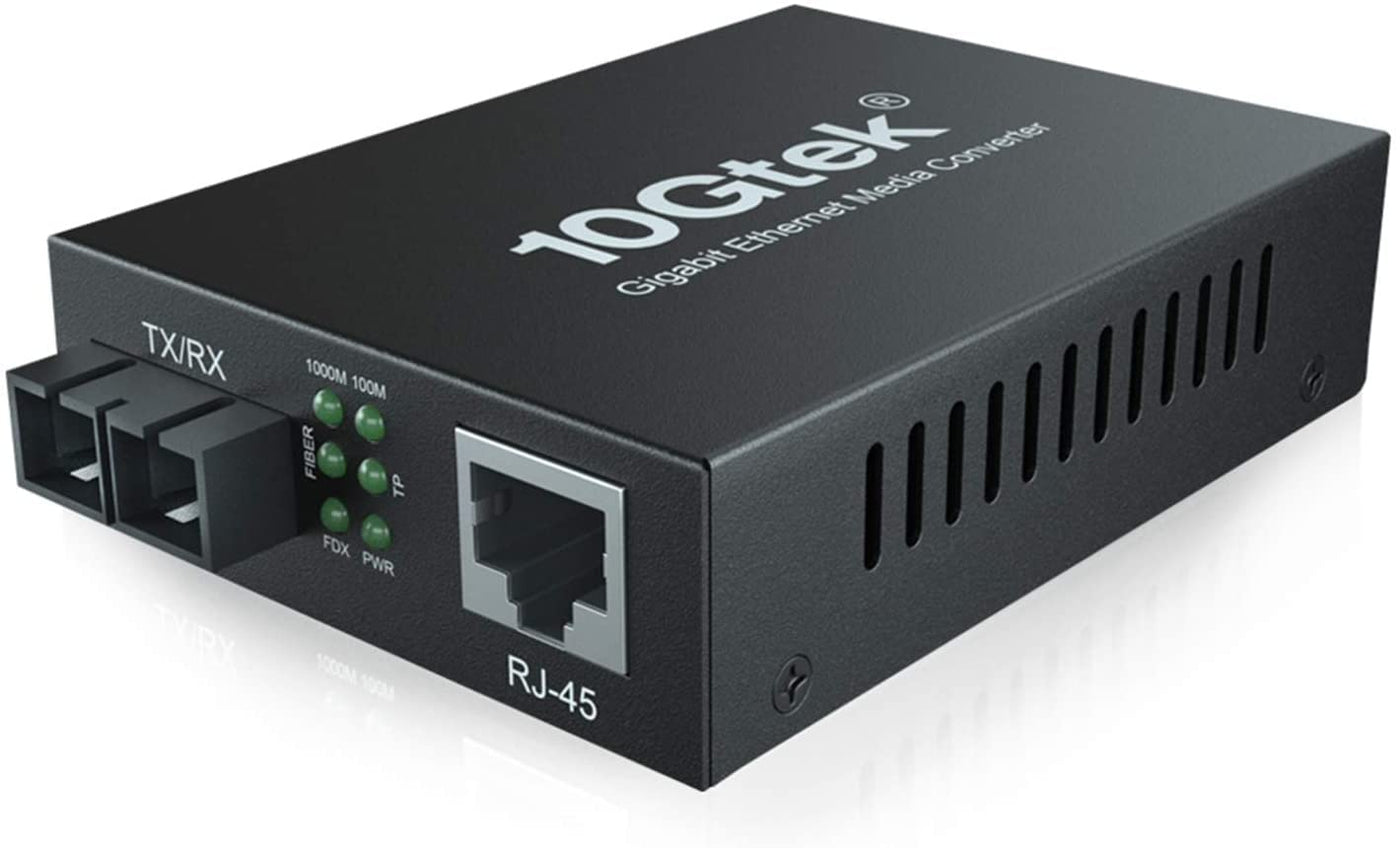

10Gtek Gigabit Singlemode Fiber To Ethernet Media Converter, Dual Sc Fiber, 1000Base Lx To 10/100/1000Base Tx Gigabit Smf Fiber
$30.85
Regular price
$44.07
-29%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
10Gtek'S A7S2 Series Media Converter Is Use To Expanding Existing Gigabit Ethernet Networks. The Easy Implementation And Expansion Of 1000Base-Tx/Fx Networks Can Be Further Assured With This Converter. The Converter Is Completely Transparent When Connected So The Network Performs Exactly The Way It Did Before - Only Now, It Allows The Co-Existence Of Both Copper And Fiber Mediums. Main Features: Complies With Ieee 802.3, Ieee 802.3U, Ieee802.3Z, Ieee802.3Ab, Ieee 802.3X Auto Negotiation Function Allows Utp Port To Auto Select 10M, 100M Or 1000M Ethernet Port Supports Mdi/Mdi-X Auto Crossover Extends Distances Up To 20Km (Single Mode Fiber) Auto Mdi/Mdi-X Support On Rj-45 Port Support Full Duplex And Half Duplex Status Led'S For Tx,Fx Link/Act, Power,Fdx To Easily Monitor Network Status 1Mbit Ram For Data Buffer Supports Jumbo Frame Size 9K Bytes Optical Port: 1310Nm Single Mode Connectors: Sc Connector Ethernet Port: Connectors: Rj-45 Connector Led Indicators: Fx, Tx, Link/Act(Left/Right), Fdx, Pwr Fx: Light On When Fiber Speed Is 1000Mbps, Else Light Off Tx: Light On When Tp Speed Is 1000Mbps,Else Light Off Link/Act: Left Side Is Indicate For Fiber Port Link/Act And Right Side For Tp,Light Flashing When Data Transmitting And Receiving Fdx: Light On When Tp Full-Duplex Mode Is Active,Light Off When Tp Half-Duplex Mode Is Active Pwr: Light On When Dc Power On, Else Light Off Specifications: Output Voltage: 5Vdc 1.0A Power Dissipation: =3 Watts Housing: Metal Enclosure Dimensions: 93 X 71 X 27Mm(D X W X H) Weight: 0.5Kg Operating Temperature: 0C To 60C Storage Temperature: -20C To 70C Warranty: 1-Year
Related products
Frequently Asked Questions
Q: What is the maximum distance this media converter can extend a network connection?A: The 10Gtek Gigabit SingleMode Fiber to Ethernet Media Converter can extend network connections up to 20 kilometers using single mode fiber.
Q: Is this media converter compatible with both copper and fiber connections?A: Yes, this media converter allows the co-existence of both copper and fiber mediums, making it compatible with Ethernet networks that utilize both types of connections.
Q: What types of Ethernet speeds does this converter support?A: The converter supports Ethernet speeds of 10M, 100M, and 1000M through its RJ-45 port, with auto-negotiation functionality for seamless integration.
Q: Can I use this media converter in outdoor environments?A: The 10Gtek media converter is designed for indoor use, with an operating temperature range of 0°C to 60°C. For outdoor applications, additional protective housing may be required.
Q: What are the LED indicators on this media converter used for?A: The LED indicators on the converter provide real-time status updates: FX indicates fiber port activity, TX indicates twisted pair activity, Link/Act shows connection status, FDX indicates full-duplex mode, and PWR shows power status.
