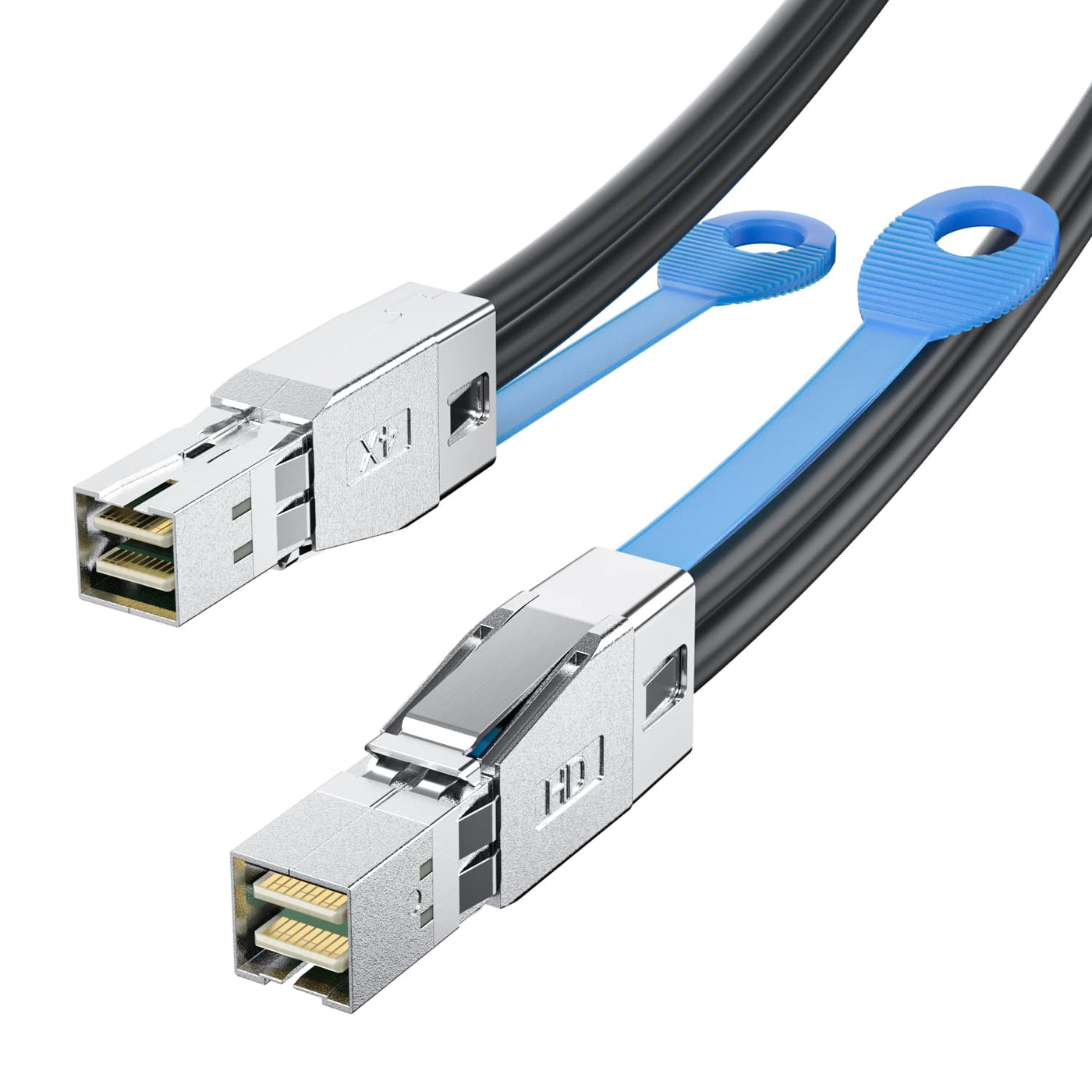

10Gtek# 12G External Mini Sas Hd Sff 8644 To Sff 8644 Cable, 1 M(3.3Ft)
$29.63
Regular price
$42.33
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Product Description: Mini Sas Hd Receptacle Assembly Is The Next-Generation Sas High-Density High-Speed I/O Interface. This Interface Was Adopted For The Sas 2.1 Standard And Proposed For Sas 3.0 Standard, And Is Designed To Support 6G And Future 12G Sas Applications. The Assembly Is Offered In 4X, 8X, And 16X Versions. The Reduced Size Of The Mini Sas Hd System Provides Additional Space For System Designers. While A Low Profile Pcie Card Can Accept Four 4X Mini Sas Connectors, It Can Only Accept Two Of Mini Sas Connectors. The Passive Mini Sas Hd Copper Cable Assembly Is Up To 12Gbps Data Rates Per Channel. The Eeprom Signature Enables The Host To Identify What Type And Length Of Cable Is Connected To Its Port, And Can Be Customized For Any Application. An Improved Latch Design Reduces The Insertion Force And Increases The Retention Force. Features: Connector A: Sff-8644 (4X Hd Mini Sas) Connector B: Sff-8644 (4X Hd Mini Sas) Data Rate: 12Gbps Per Channel Awg30 Twinaxial 8-Pair High-Bandwidth Low-Skew Wire Impedance = 100 Ohms Fully Compliant To The Latest Sas 2.1 And Sas 3.0 Interface Specifications Excellent Emi Performance Wide Operating Temperature Range: Standard: 0C To +70C Industrial: -40C To +85C Applications: Data Center Servers, Storage Racks, Raid Systems External Storage Systems Sas/Sata Hba Interfaces Direct-Attached Storage (Das) Switches
Related products
Frequently Asked Questions
Q: What is the maximum data rate supported by the 10GTEK Mini SAS HD SFF-8644 cable?A: The 10GTEK Mini SAS HD SFF-8644 cable supports data rates of up to 12Gbps per channel, making it suitable for high-speed data transfer in advanced storage solutions.
Q: Is this cable compatible with both SAS 2.1 and SAS 3.0 interfaces?A: Yes, the 10GTEK Mini SAS HD SFF-8644 cable is fully compliant with the latest SAS 2.1 and SAS 3.0 interface specifications, ensuring broad compatibility with various devices.
Q: What applications are ideal for using this Mini SAS HD cable?A: This Mini SAS HD cable is ideal for data centers, servers, storage racks, RAID systems, external storage systems, SAS/SATA HBA interfaces, direct-attached storage (DAS), and switches.
Q: What type of wire is used in the 10GTEK Mini SAS HD cable?A: The cable features AWG30 twinaxial 8-pair high-bandwidth low-skew wire, which provides excellent performance and reliability for high-speed data transmission.
Q: What is the operating temperature range for this cable?A: The 10GTEK Mini SAS HD SFF-8644 cable operates within a wide temperature range: from 0ºC to +70ºC for standard applications and from -40ºC to +85ºC for industrial applications.
