100Balance Hardware 1A Active Balancer 4S Equalizer For Lifepo4 Or Li-Ion Lithium Battery Group Bms Energy Transfer Board With B

Frequently Asked Questions

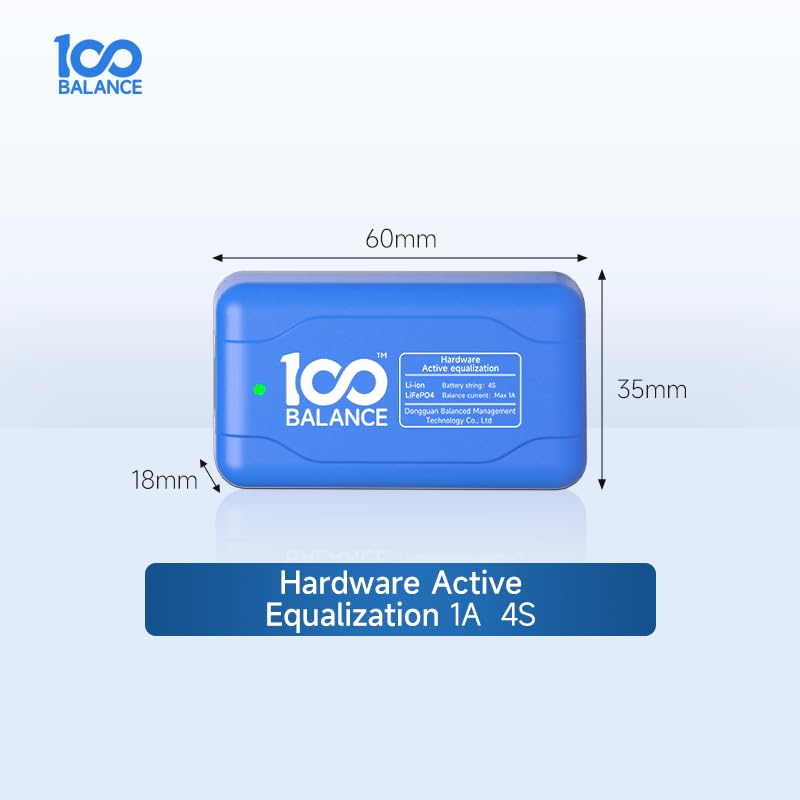

• Q: What are the dimensions of the 100Balance 1A Active Balancer? A: The dimensions vary by model: for three to four cell strings, it measures sixty millimeters in length, thirty-five millimeters in width, and eighteen millimeters in thickness.
• Q: What is the weight of the 100Balance 1A Active Balancer? A: The weight depends on the model: the three to four cell version weighs twenty-seven grams, while the five to ten cell version is fifty-three grams.

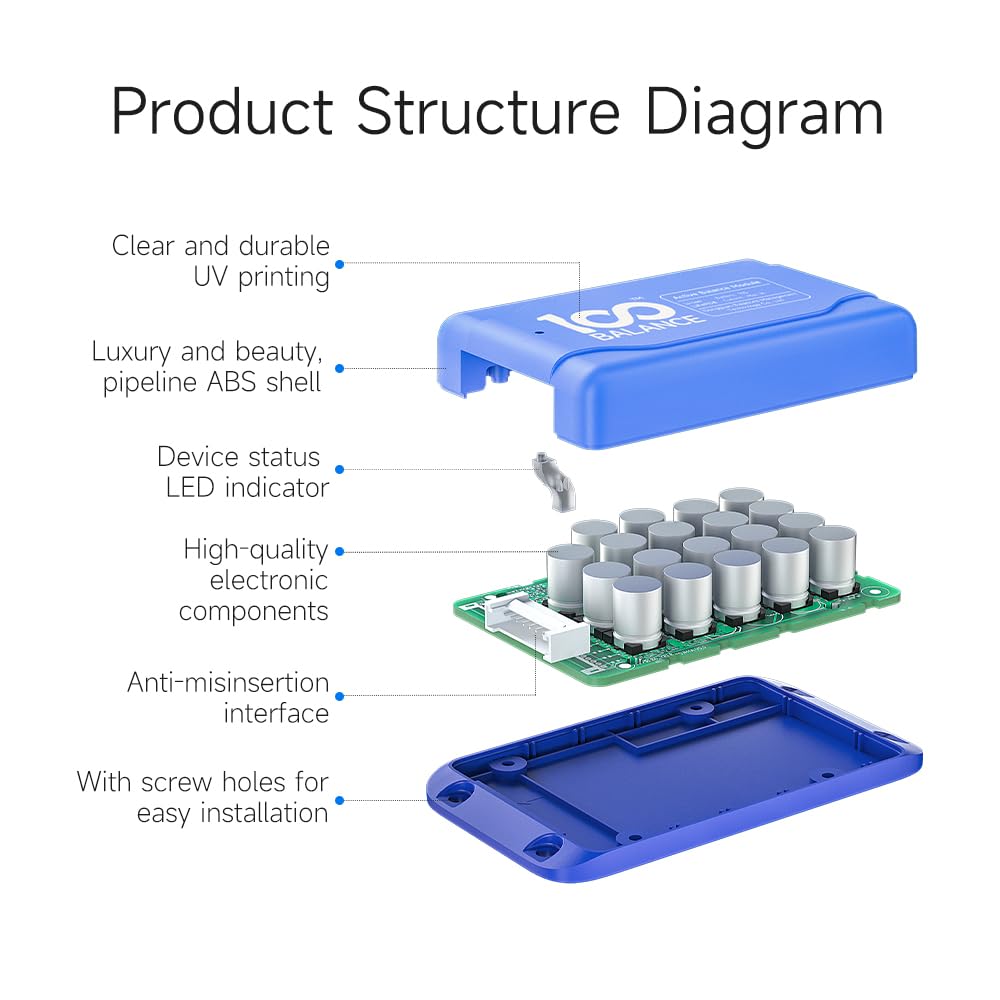

• Q: What material is the 100Balance 1A Active Balancer made from? A: The active balancer is constructed from Acrylonitrile Butadiene Styrene, a durable and lightweight plastic suitable for electronic components.
• Q: What is the equalization mode of the 100Balance 1A Active Balancer? A: It operates using capacitive active equalization for lithium battery packs, ensuring efficient energy transfer and battery life extension.
• Q: How do I use the 100Balance 1A Active Balancer? A: To use it, connect it to a lithium battery pack, ensuring the first string voltage is above three point one volts to activate the equalization process.
• Q: Is the 100Balance 1A Active Balancer suitable for all battery types? A: No, it is designed specifically for Li-ion and LiFePO4 battery packs and is not compatible with Lithium Titanate batteries.
• Q: How do I install the 100Balance 1A Active Balancer? A: Simply connect the active balancer to the battery pack's terminals according to the provided user manual and ensure all connections are secure.
• Q: Can I use the 100Balance 1A Active Balancer with multiple battery strings? A: No, it is only compatible with battery packs that have four cells connected in series.
• Q: What is the working temperature range for the 100Balance 1A Active Balancer? A: The operating temperature range is from minus twenty degrees Celsius to plus sixty degrees Celsius.
• Q: How should I care for the 100Balance 1A Active Balancer? A: To maintain it, ensure that all wiring connections are correct before use and avoid exposing it to extreme temperatures.
• Q: What is the sleep current of the 100Balance 1A Active Balancer? A: The sleep current is less than five microamperes, making it energy-efficient when not actively equalizing.
• Q: How do I store the 100Balance 1A Active Balancer? A: Store it in a cool, dry place, away from moisture and extreme temperatures to prevent damage.
• Q: What should I do if the green LED indicator is off? A: If the green LED is off, it may indicate that equalization is complete or that there is a malfunction in the device.
• Q: Is there a warranty for the 100Balance 1A Active Balancer? A: Yes, there is a one-year warranty provided with the product, along with twenty-four-seven online customer support.
• Q: What energy applications can the 100Balance 1A Active Balancer be used for? A: It can be utilized in power batteries for electric vehicles, forklifts, cleaning vehicles, and in energy storage systems like RVs and home energy setups.
