10 Pieces 5V Regulator Module Mini Voltage Reducer Dc 4.5 24V 12V 24V To 5V 3A Volt Buck Converter Power Supply Transformer Modu

Frequently Asked Questions

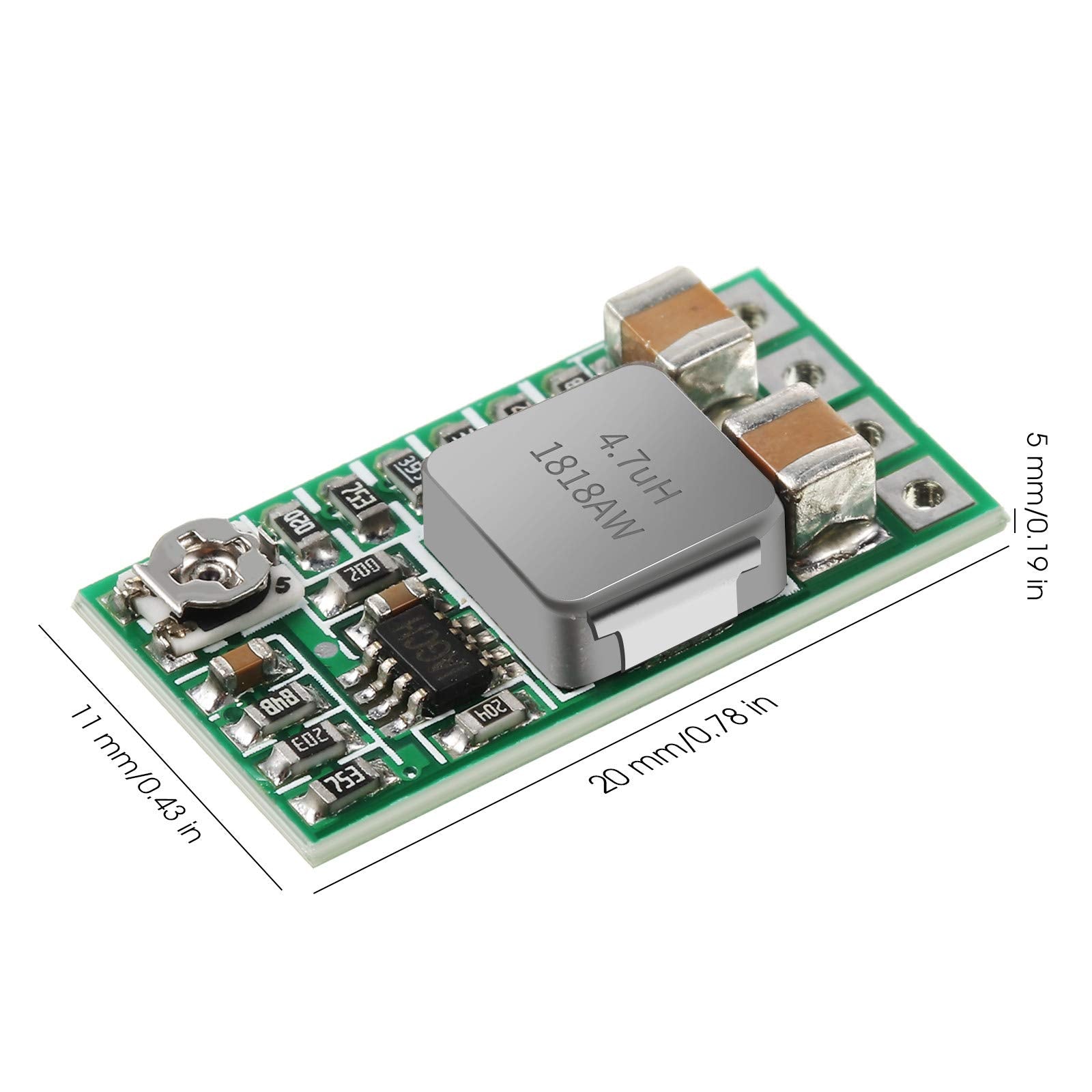

• Q: What are the dimensions of the voltage regulator module? A: The voltage regulator module measures twenty millimeters by eleven millimeters by five millimeters. This compact size makes it easy to fit into various applications.
• Q: What is the input voltage range for this power supply module? A: The input voltage range is DC four point five to twenty-four volts. This allows for versatile use in different electronic projects.

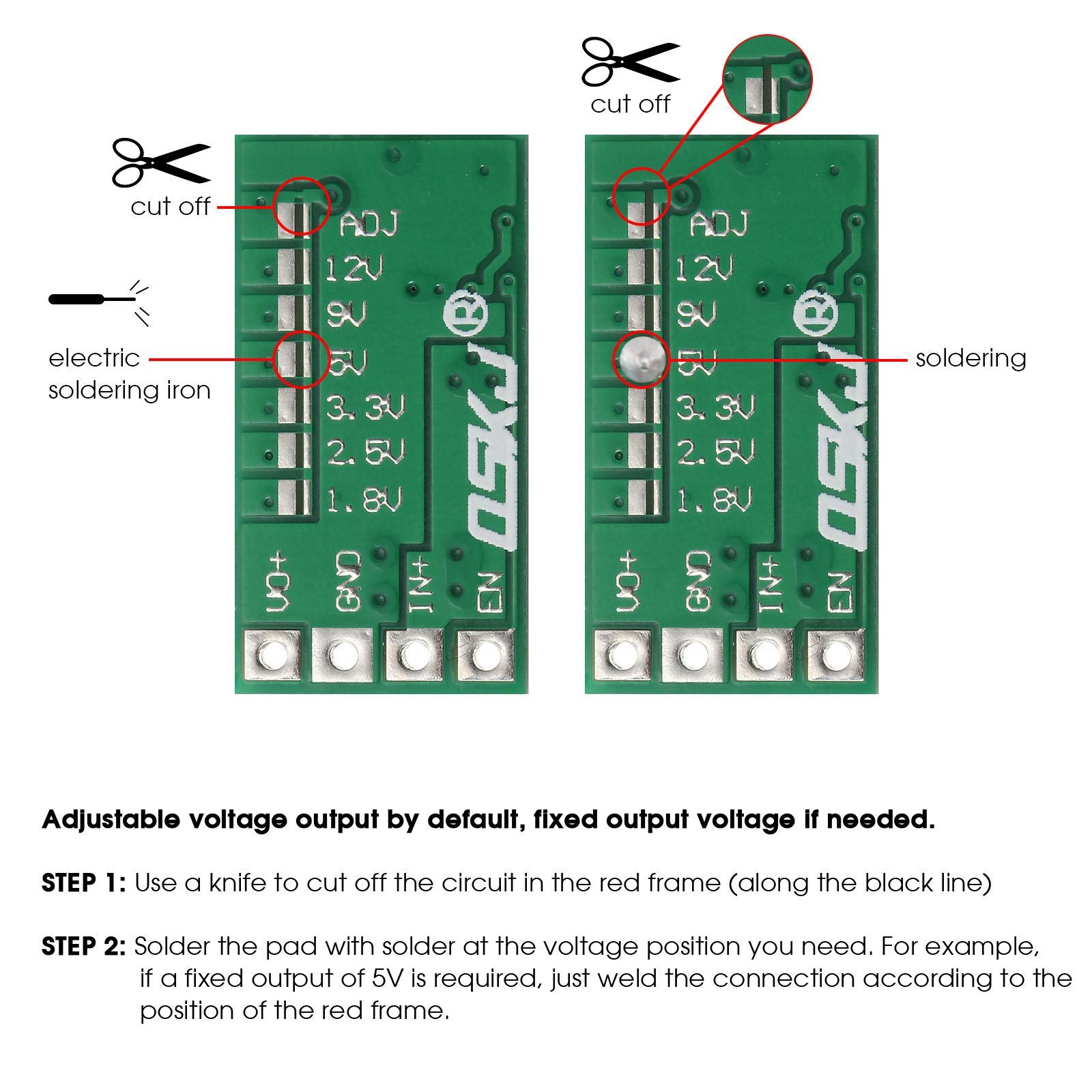

• Q: What kind of output voltages can I get from this module? A: You can achieve adjustable output voltages from zero point eight to seventeen volts. Fixed output options include one point eight volts, two point five volts, three point three volts, five volts, nine volts, and twelve volts.
• Q: How much output current can this regulator supply? A: The module can supply a maximum output current of three amps. It's important to ensure adequate cooling when operating at full load.

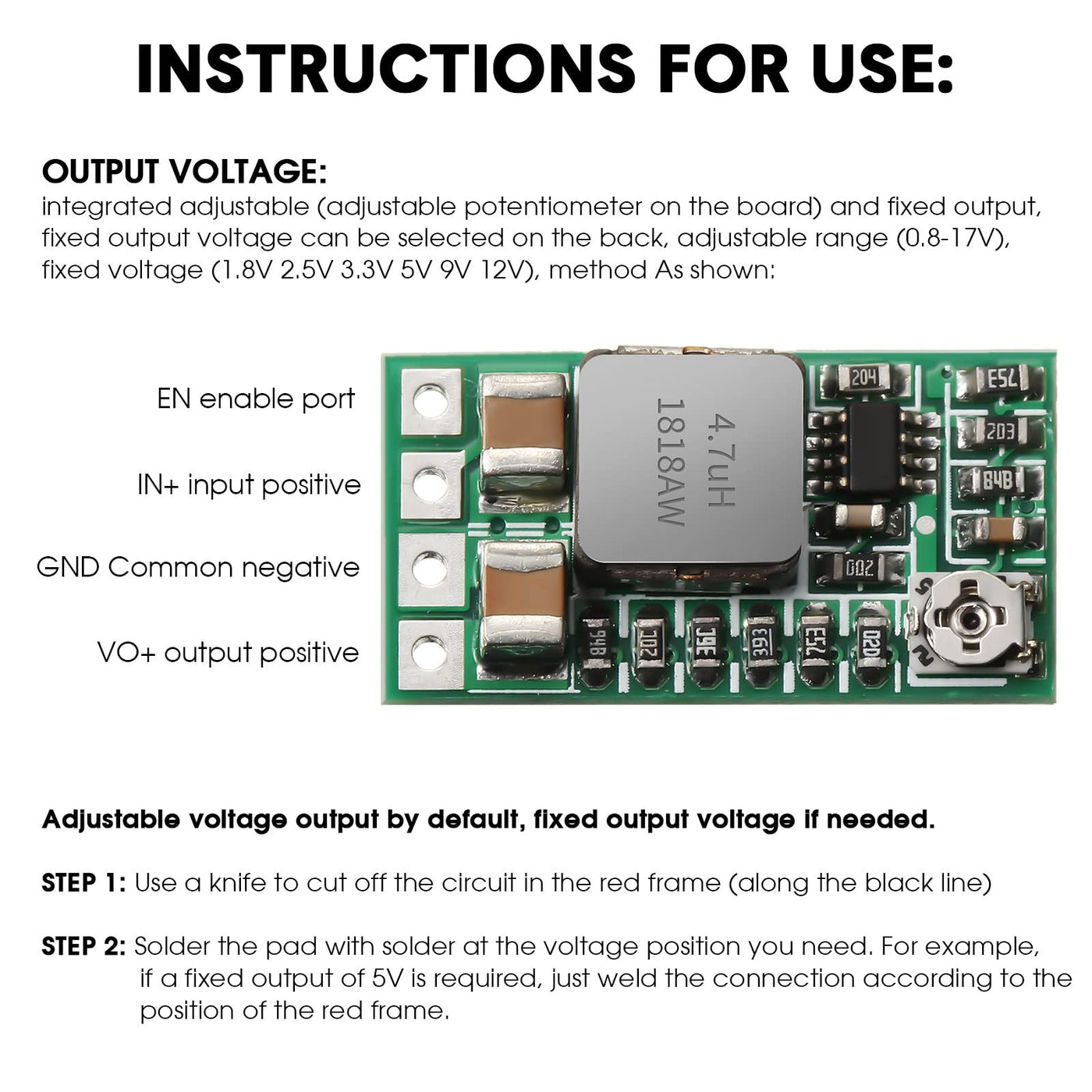

• Q: How do I connect this voltage regulator module? A: You can connect the module using soldering or pins. Detailed instructions are usually provided in the product documentation.
• Q: Can I adjust the output voltage on this module? A: Yes, the output voltage is adjustable. You can change it by using a potentiometer on the board.
• Q: What is the operating temperature range for this module? A: The operating temperature range is from negative forty degrees Celsius to positive eighty-five degrees Celsius. This wide range makes it suitable for industrial applications.
• Q: Is there any protection against output short circuits? A: Yes, the module includes output short-circuit protection. However, it's advised not to keep it under continuous short-circuit conditions.
• Q: How should I store the voltage regulator module? A: Store the module in a dry and cool environment to prevent damage. Avoid exposing it to extreme temperatures or humidity.
• Q: What happens if the module is exposed to high temperatures? A: If exposed to high temperatures, the output power may decrease. The module is designed to operate optimally within specified temperature limits.
• Q: Can I use this module for automotive applications? A: Yes, this module is suitable for automotive applications, as it can be connected directly to a car battery.
• Q: What should I do if the module arrives damaged? A: If the module arrives damaged, contact customer support for assistance with returns or replacements. They can guide you through the process.
• Q: Is this voltage regulator suitable for beginners? A: Yes, this voltage regulator is suitable for beginners. Its simple design and adjustable features make it user-friendly.
• Q: What is the conversion efficiency of this module? A: The conversion efficiency of the module is ninety-seven point five percent. This high efficiency minimizes energy loss during operation.
• Q: Does this module have an enable function? A: Yes, the module features an enable function. It can stop working when a low electric level is detected.
