1.73 Inch Round AMOLED Display Module 466x466 Resolution QSPI Interface Driver IC CO5300 Color Screen LCD Module for Smart Watch
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $14.30
1.73 Inch Round AMOLED Display Module 466x466 Resolution QSPI Interface Driver IC CO5300 Color Screen LCD Module for Smart Watch - Touch Screen
Color
Touch Screen

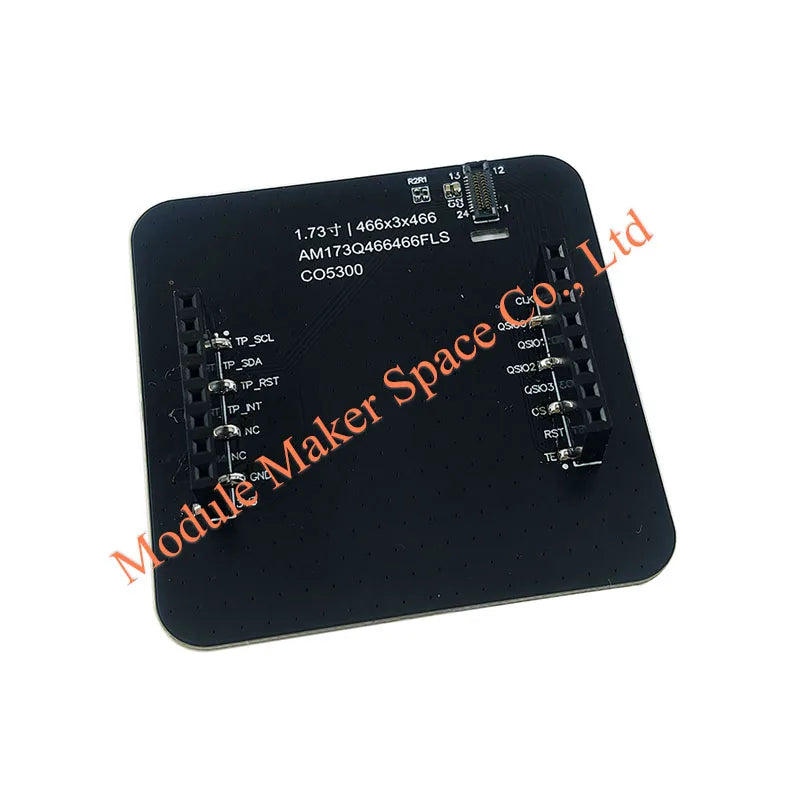

Adapter Board

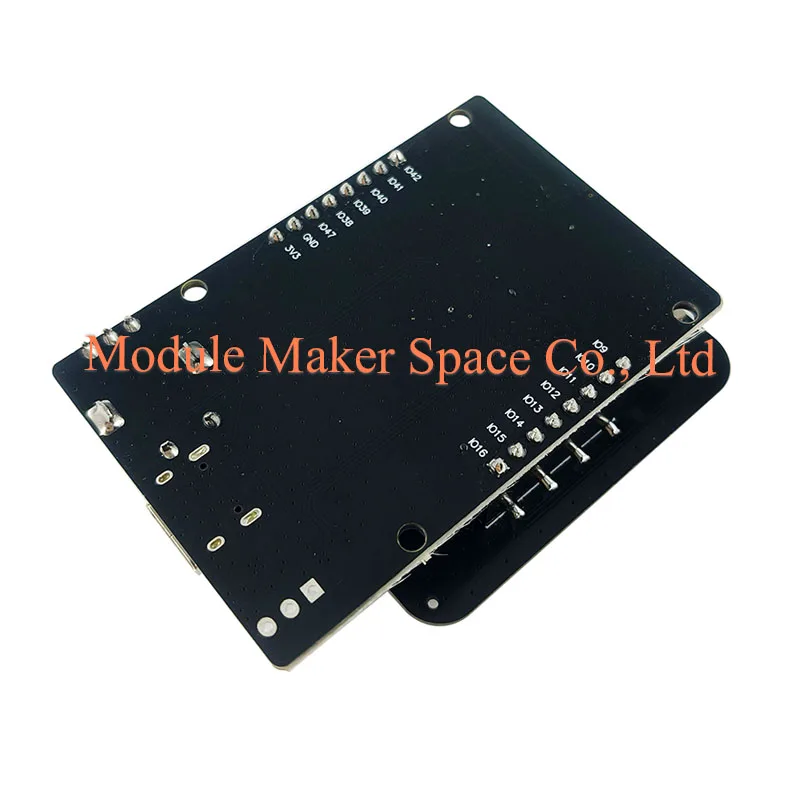

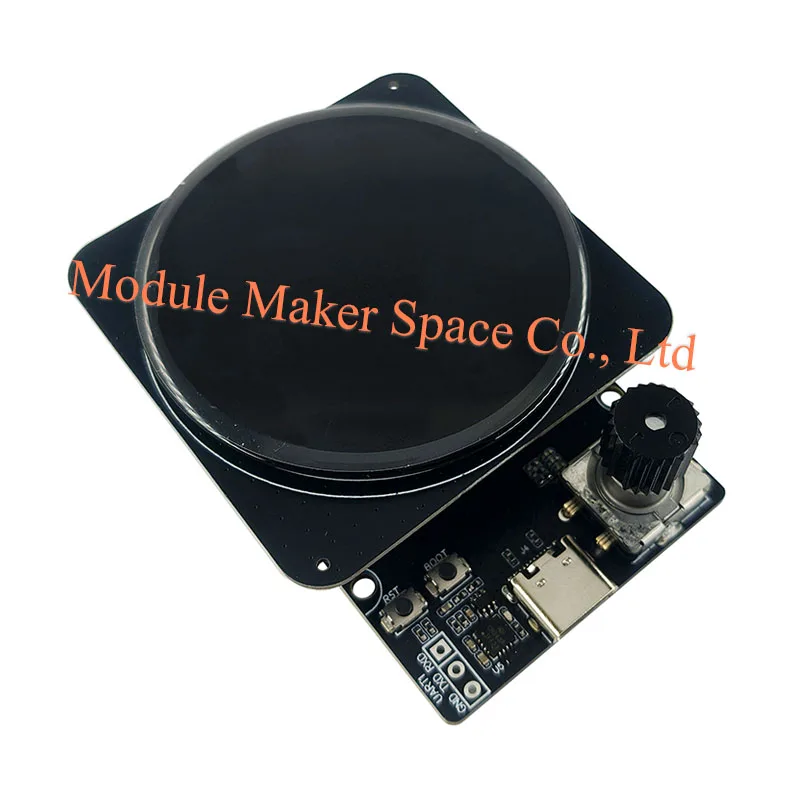

Test Kit

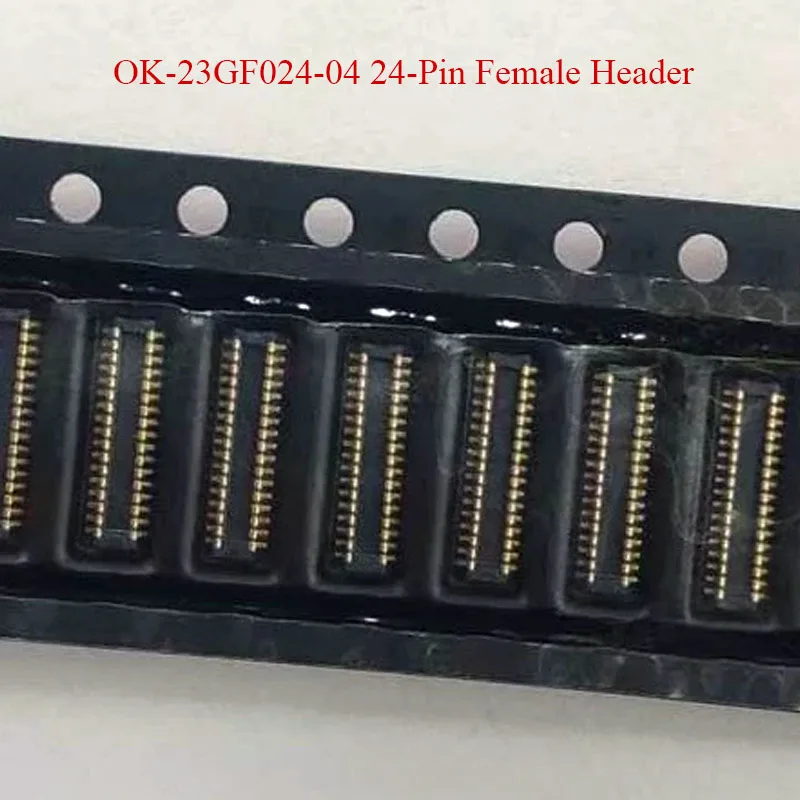

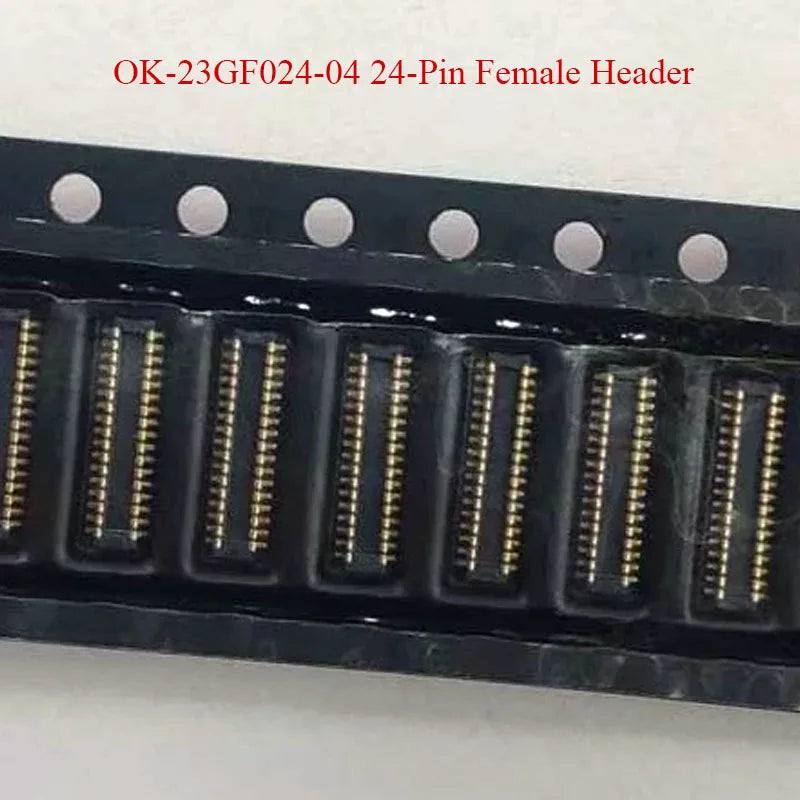

24-Pin Female Header
$13.04
Add to Cart
SPECIFICATIONS Brand Name : NONE
Display Mode : 10000:1
High-concerned chemical : none
Model Number : CO5300
Origin : Mainland China
Resolution : 480x480
Type : OLED
1.73 Inch Round AMOLED Display Module 466x466 Resolution QSPI Interface Driver IC CO5300 Color Screen LCD Module for Smart Watch
Product Introduction:
Engineered for high-performance applications, this 1.73-inch full-circle AMOLED delivers exceptional image quality with a native resolution of 466 × 466 pixels. The display offers a crisp pixel density of 326 PPI with a pixel pitch of 78 × 78 μm, ensuring sharp rendering of graphics and text within the active circular area (Φ43.76 mm).
The module incorporates a CO5300 display driver and integrates the CST820 touch controller, supporting responsive touch functionality. Communication is handled via a high-speed QSPI interface, optimized for low-latency data transfer.

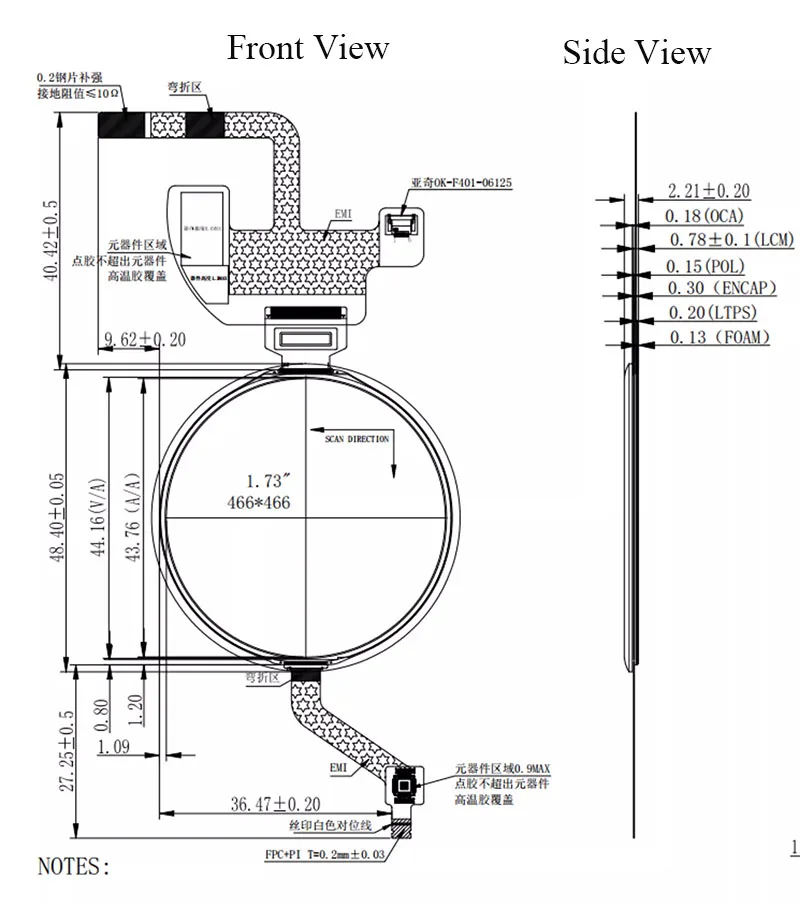

Housed in a compact mechanical package (48.50 mm × 48.50 mm × 2.21 mm), this display is designed for space-constrained designs such as wearable technology and portable medical devices. It maintains stable operation across an industrial temperature range of -10 °C to +60 °C, with storage conditions rated from -20 °C to +70 °C.
Features:
1.73-inch True-Circle AMOLED Active Matrix
466 × 466 Full Color Resolution
CO5300 Display Driver + CST820 Touch Controller
High-Speed QSPI Interface
Ultra-Compact Form Factor
Industrial Operating Temperature Range

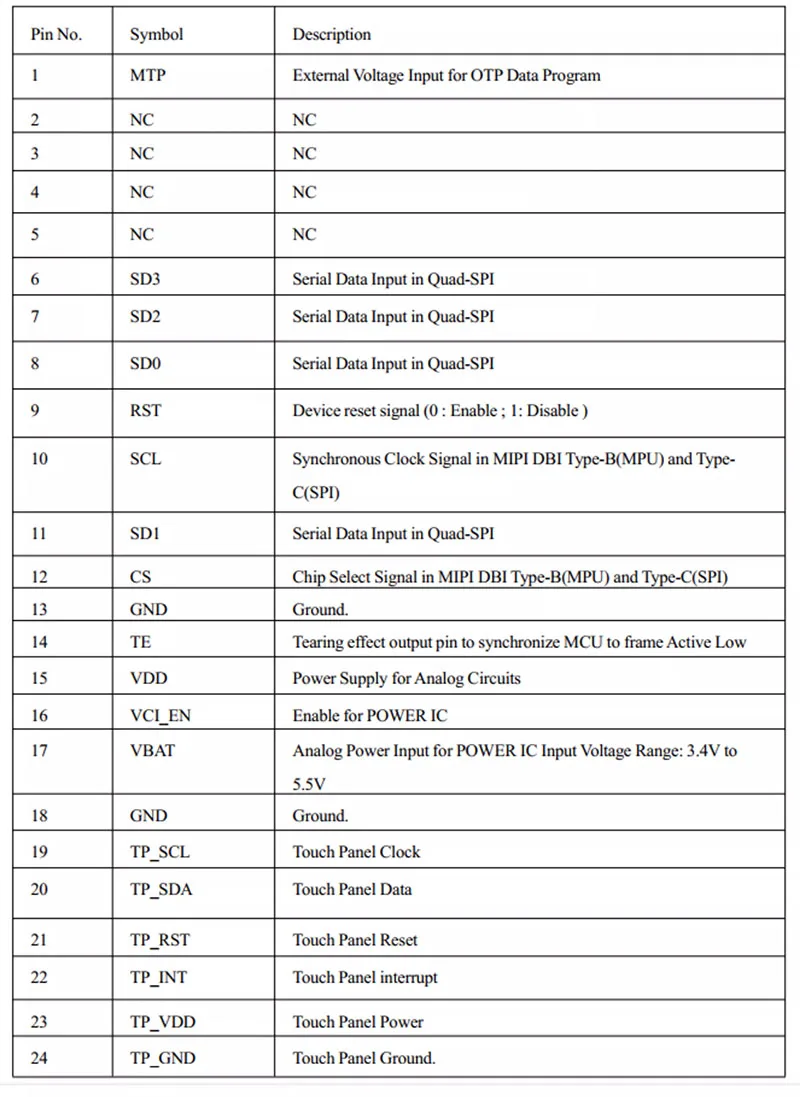

Pin definition
Schematic Showcase
