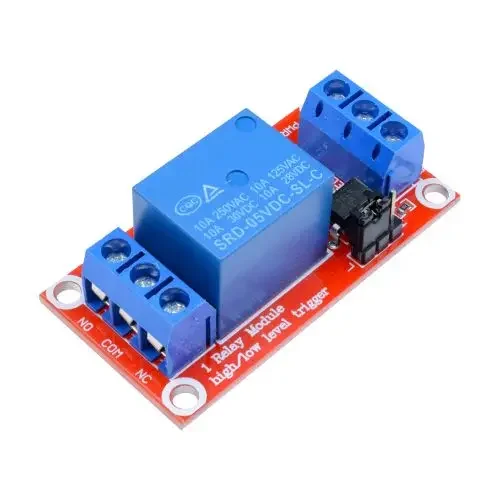

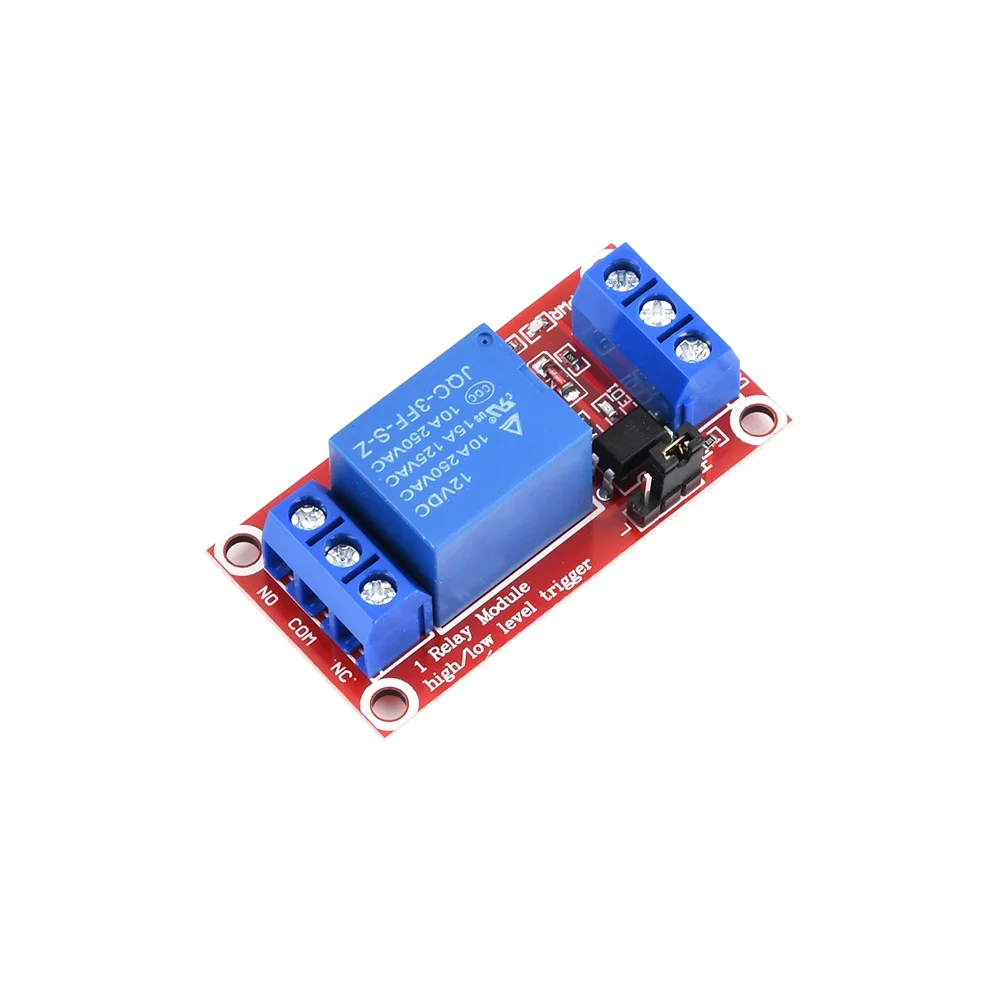

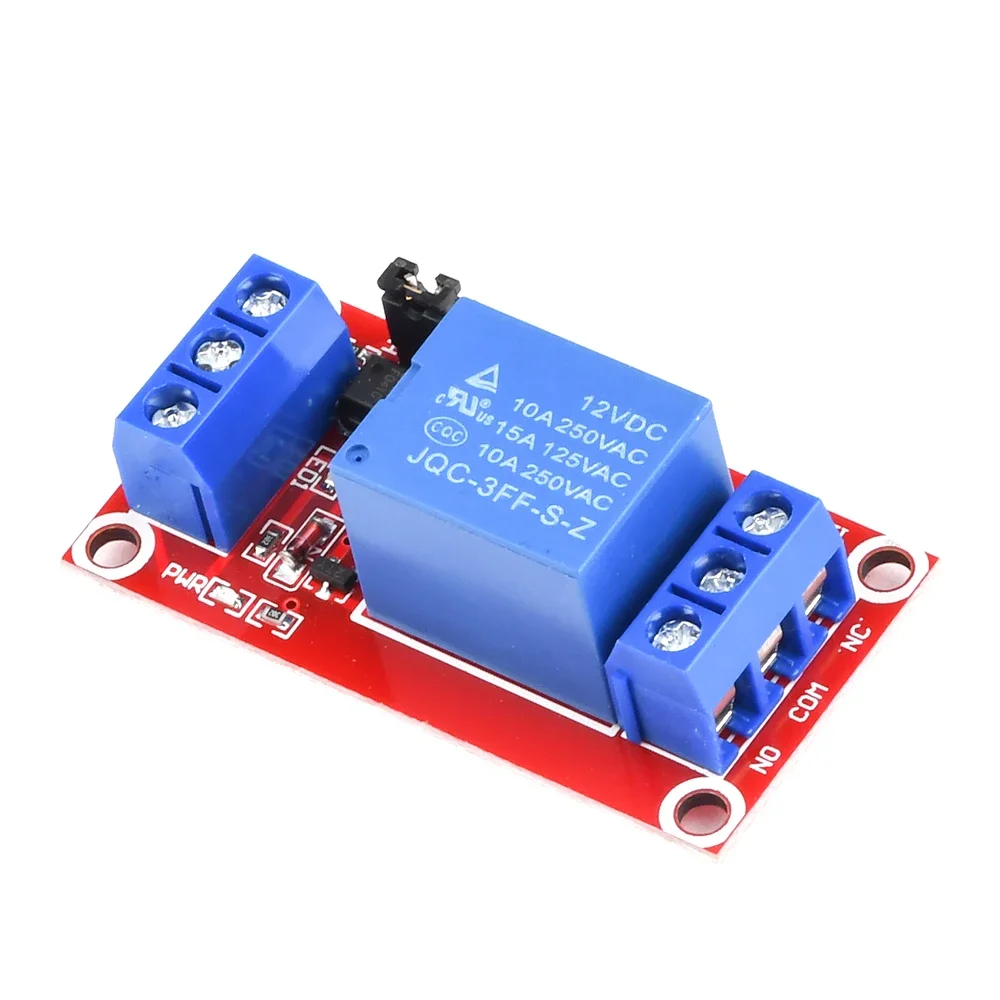

1-5Pcs DC 5V 9V 12V 24V 1 Channel Relay Module With Optocoupler Shield Board High Low Level Trigger Power Supply Module Arduino
Free Standard Shipping Across USA
Vendor: Electroeshop
Type:
Sku: 14:173#12V 1 channel 2pcs
Availability: In Stock
Couldn't load pickup availability
Guarantee safe checkout
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Shipping Information
- Free Standard Shipping — United States only
- Processing Time: 3–5 business days
- Estimated Delivery: 6–10 business days after dispatch
- Double-boxed, fully insured & discreetly packaged
- Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
All returns require a Return Authorization (RA) number before sending.
View Full Return & Refund Policy

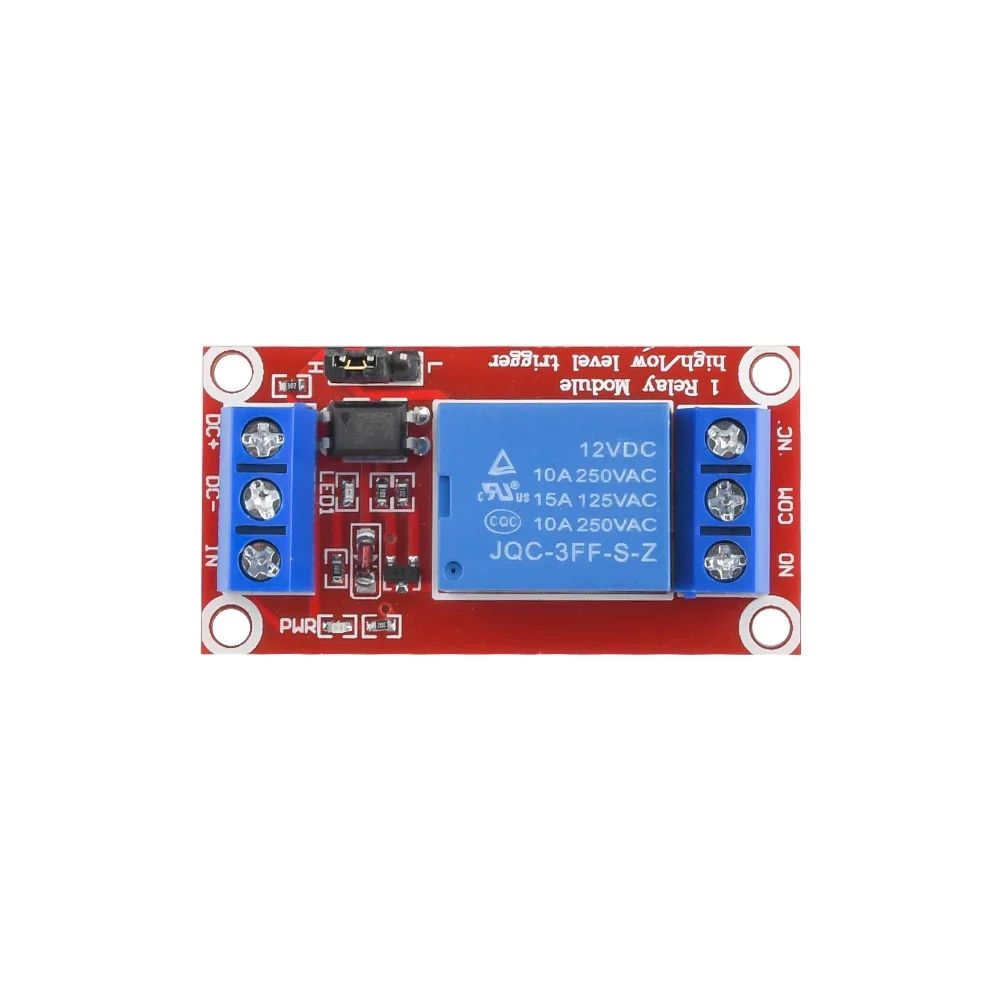

1-5Pcs DC 5V 9V 12V 24V 1 Channel Relay Module With Optocoupler Shield Board High Low Level Trigger Power Supply Module Arduino - 12V 1 channel 2pcs
$3.25
SPECIFICATIONS
Brand Name: occkic,NONE
Camera Equipped: No
Certification: NONE
Choice: yes
Communication method: Other
Compatibility: others
Condition: New
High-concerned chemical: none
Model Number: 1 channel relay
Origin: Mainland China,Mainland China
Specifications: CN Plug
State of Assembly: Ready-to-Go
Type: Terminal Block
semi_Choice: yes

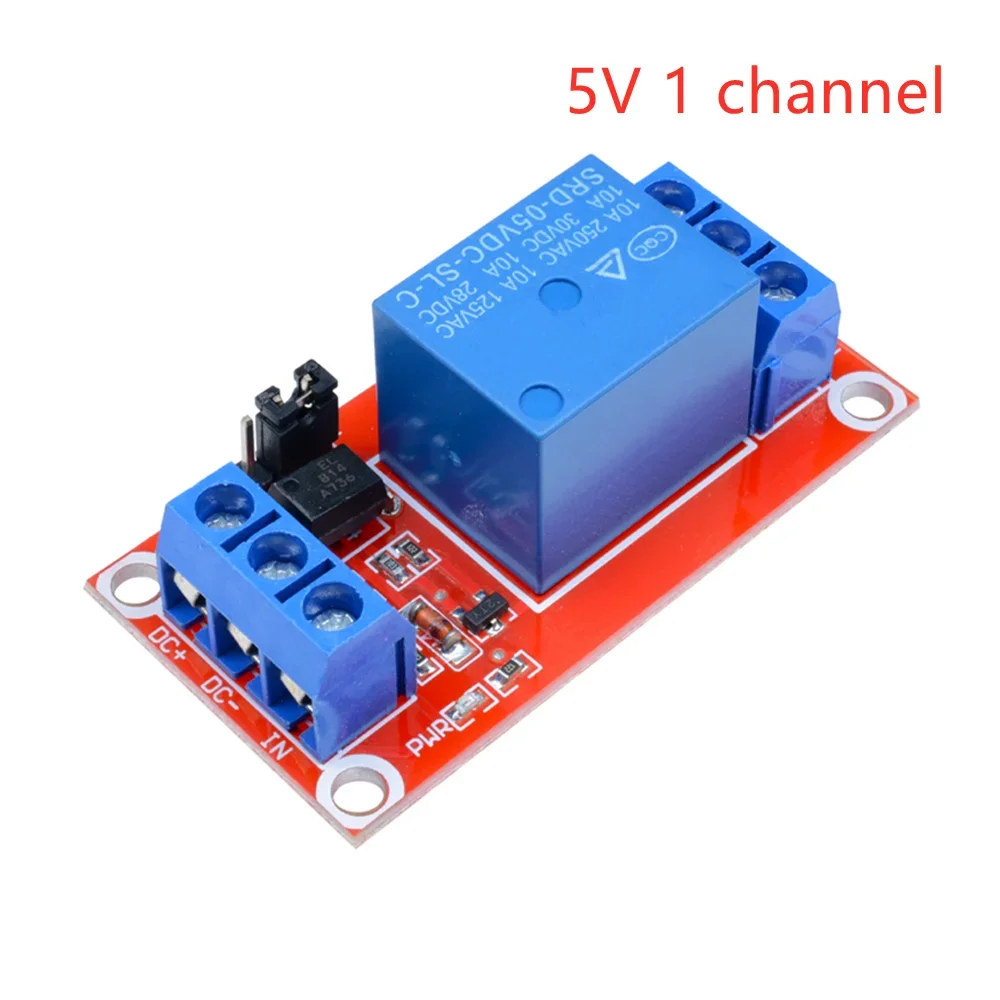

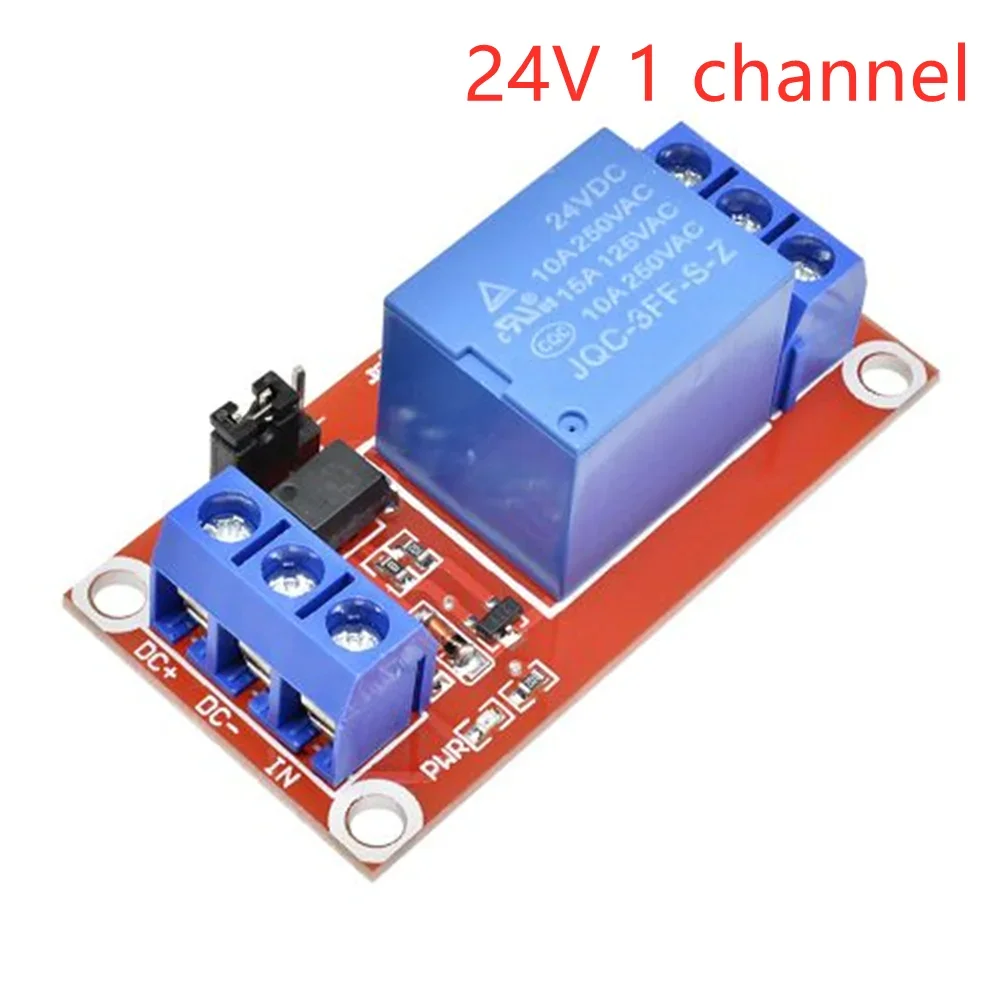

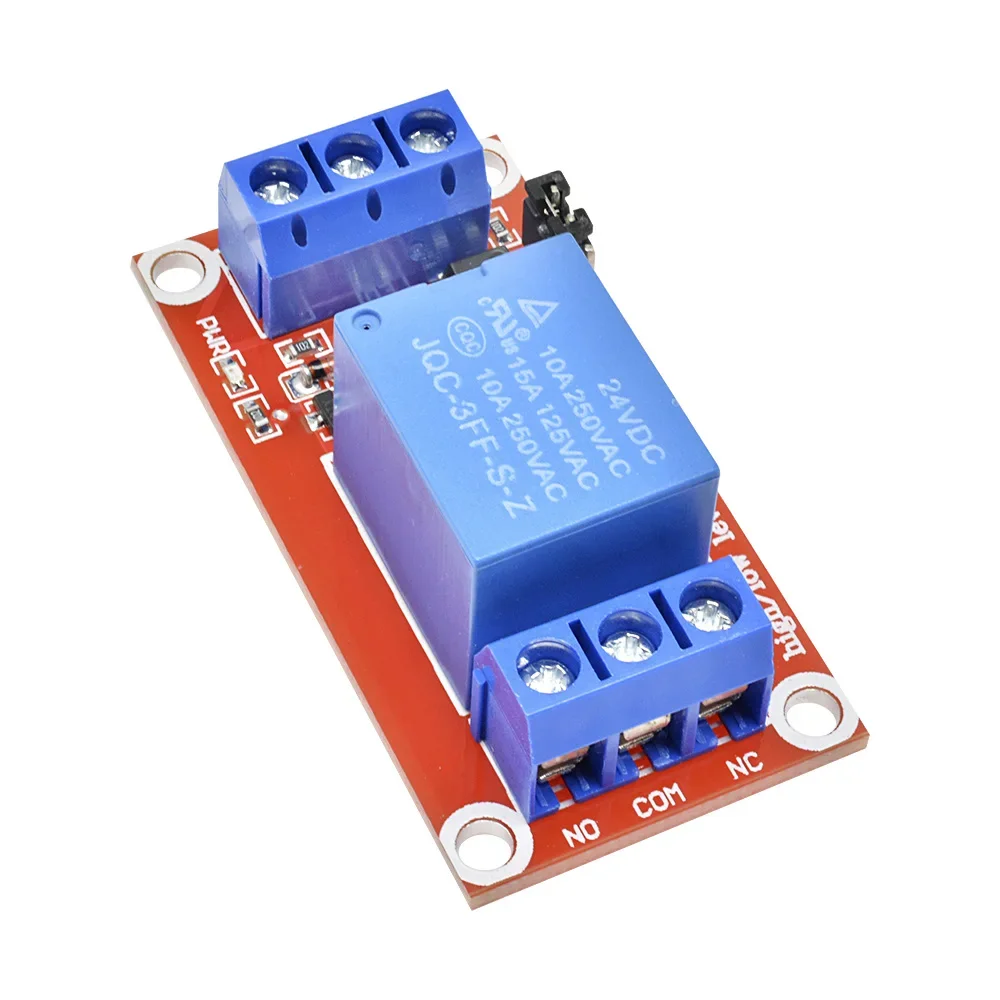

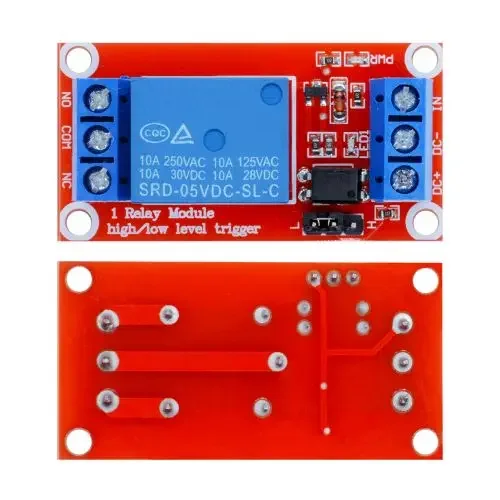

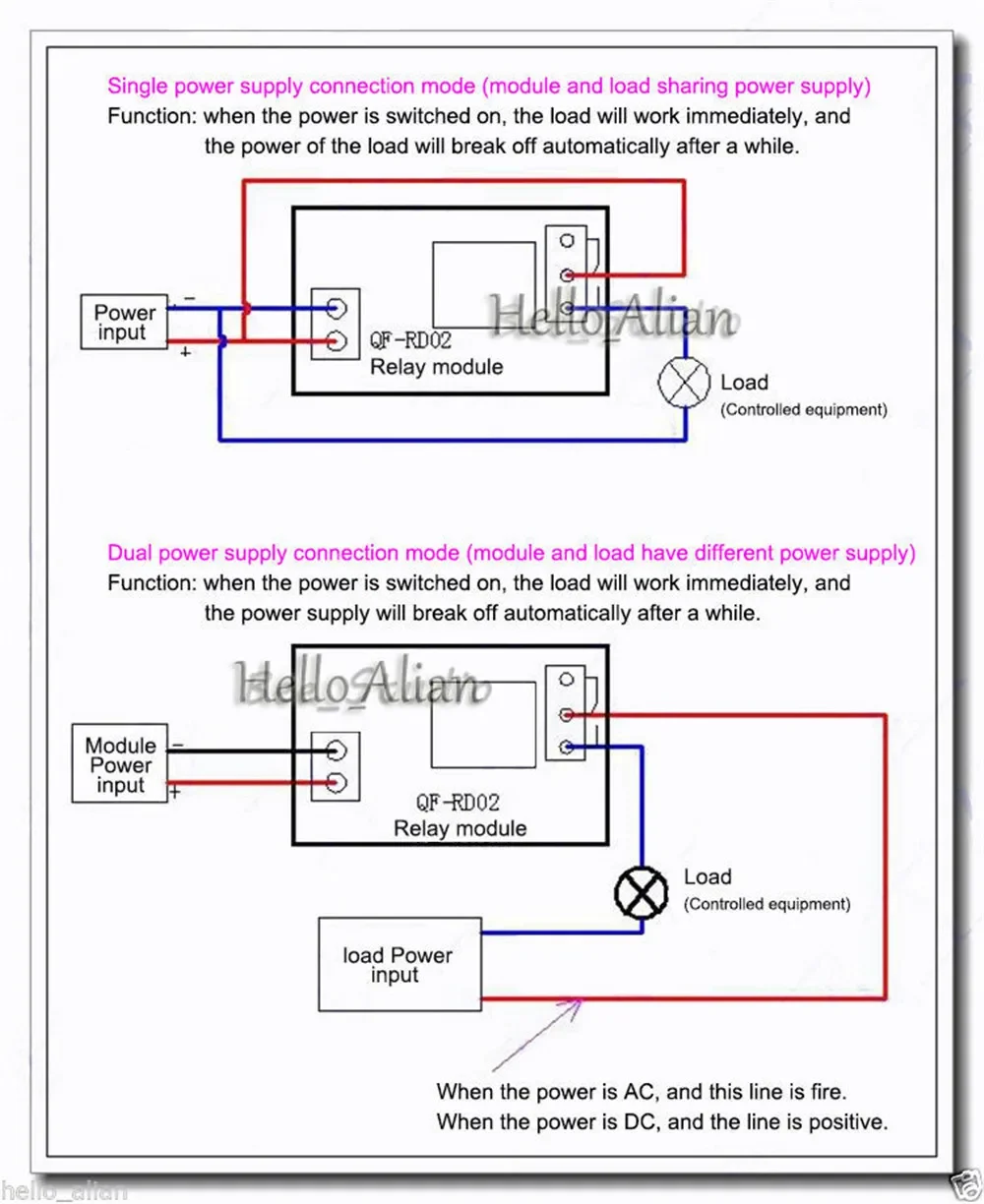

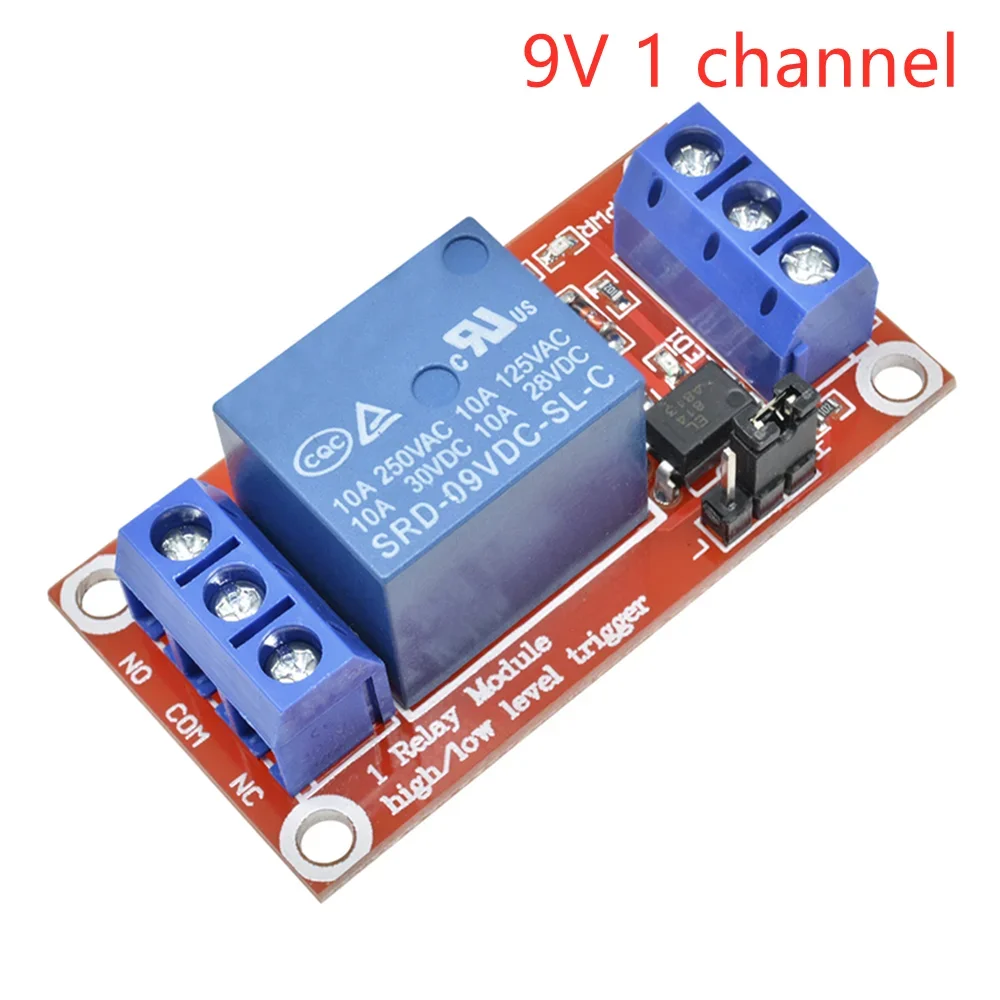

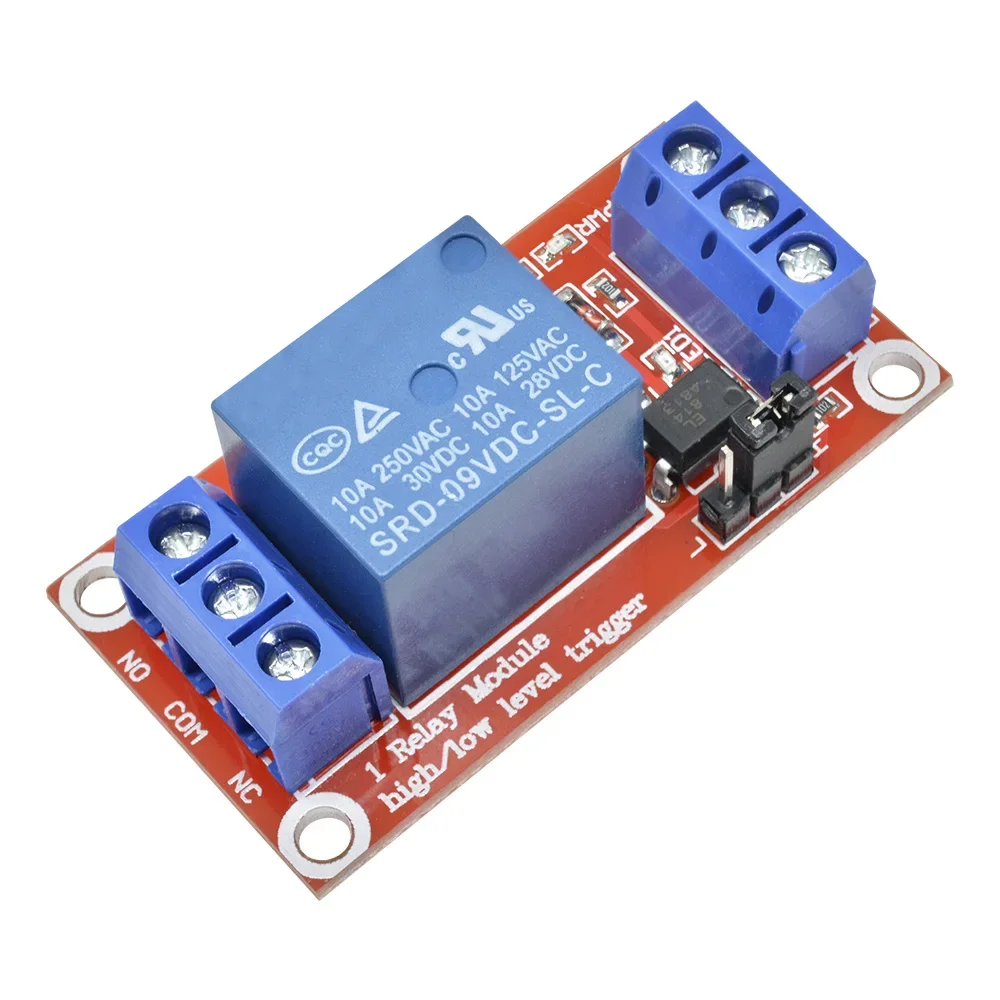

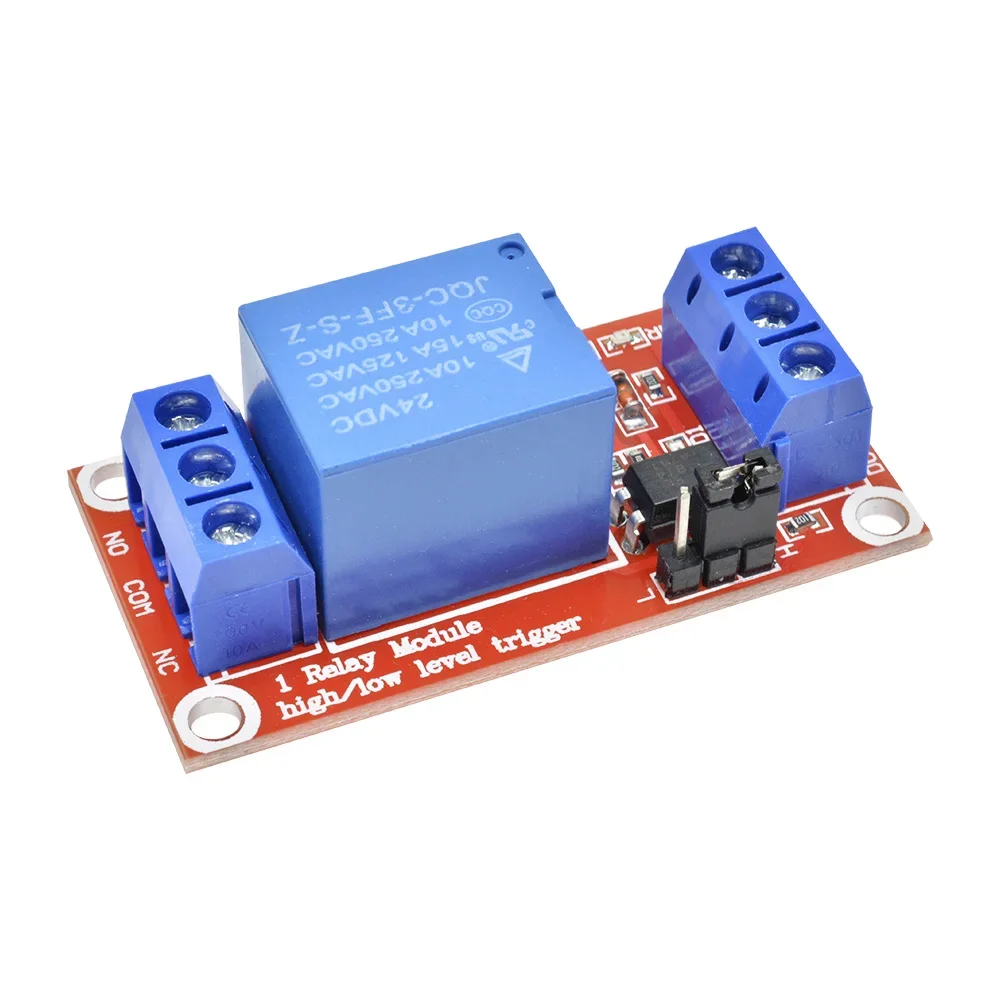

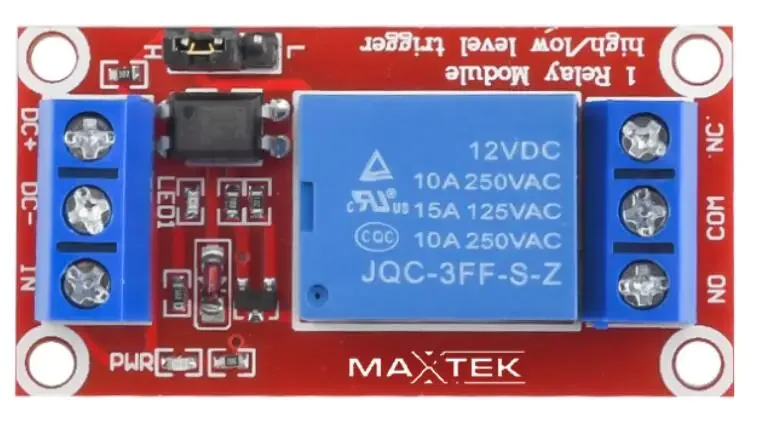

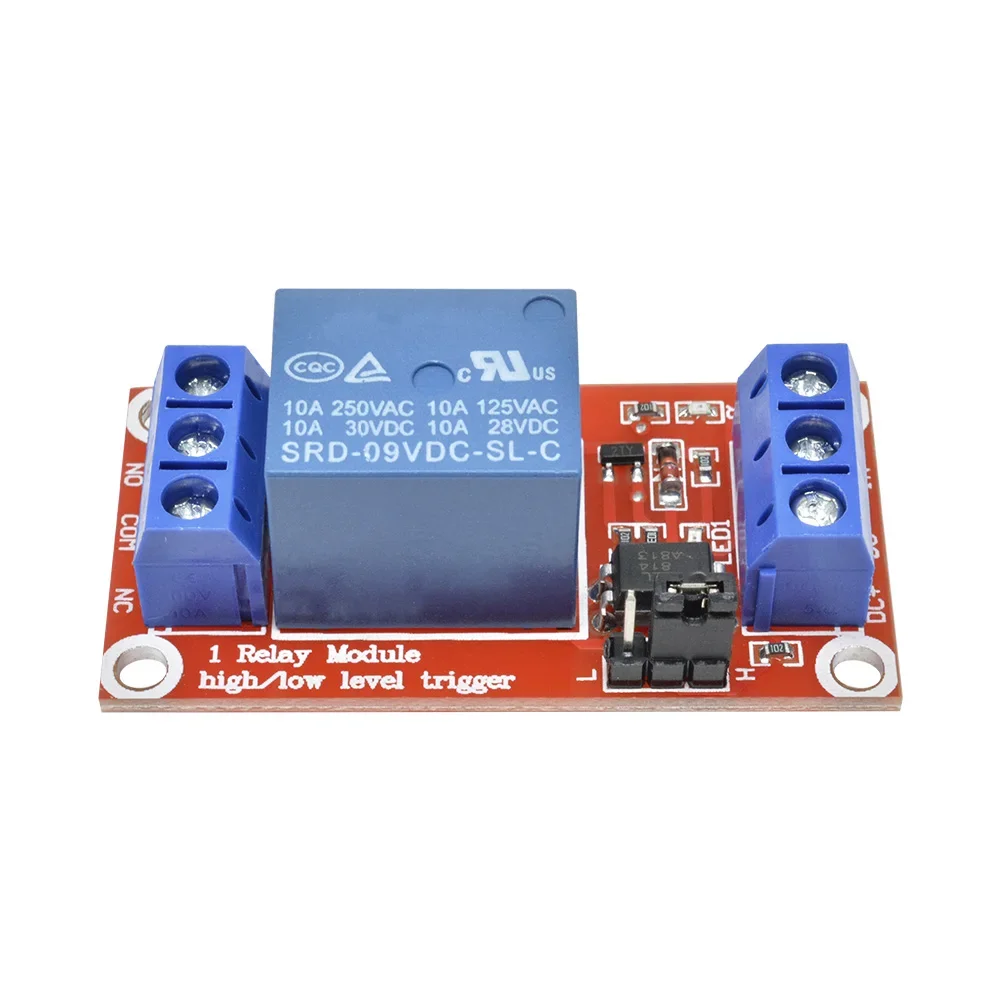

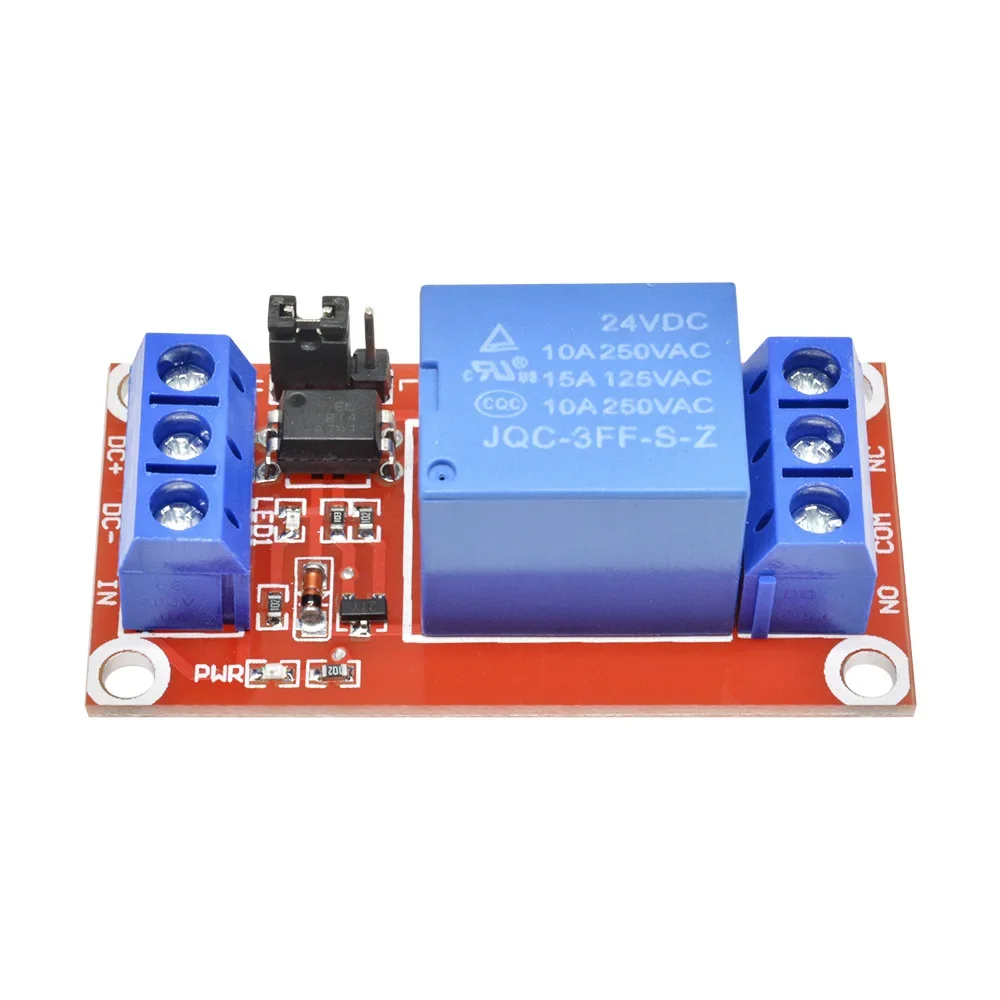

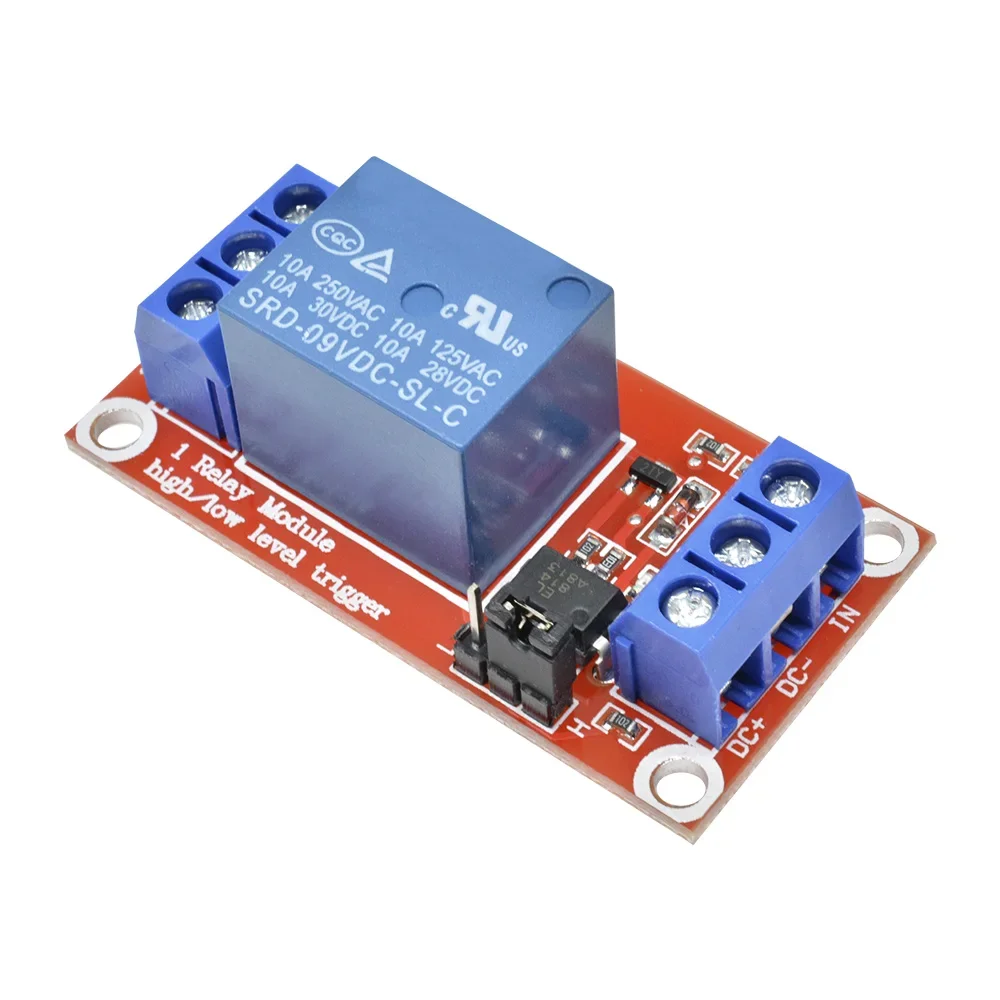

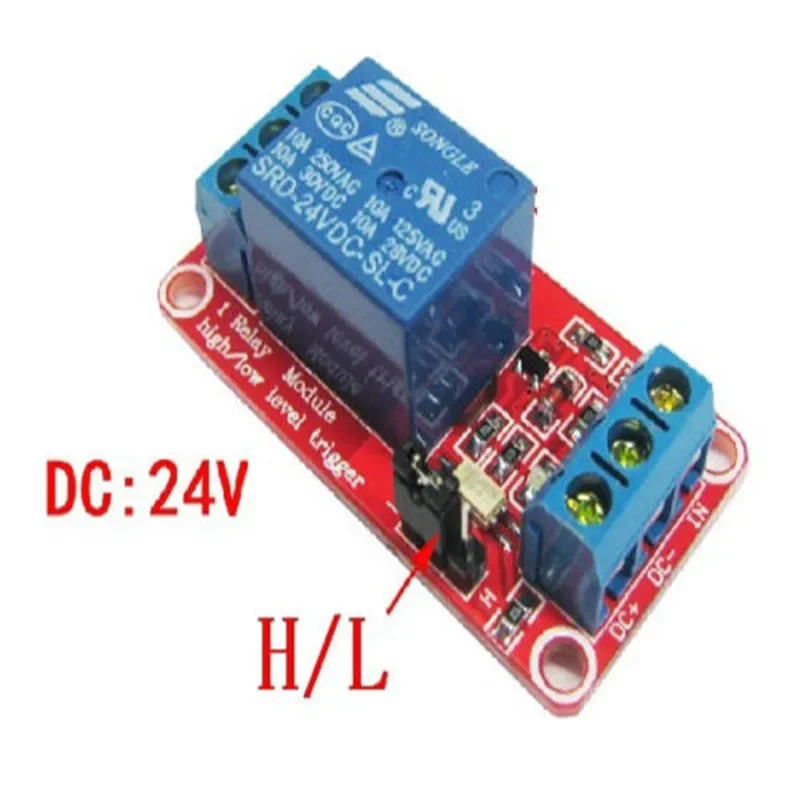

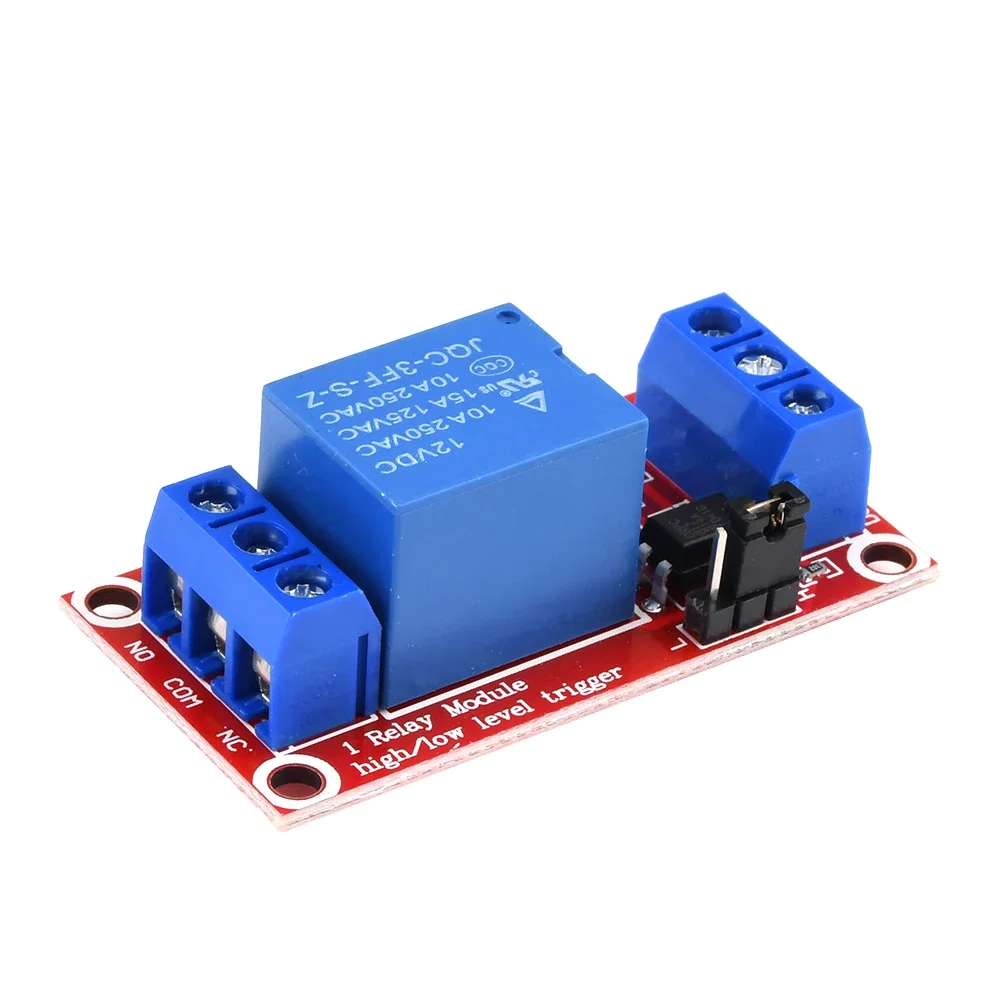

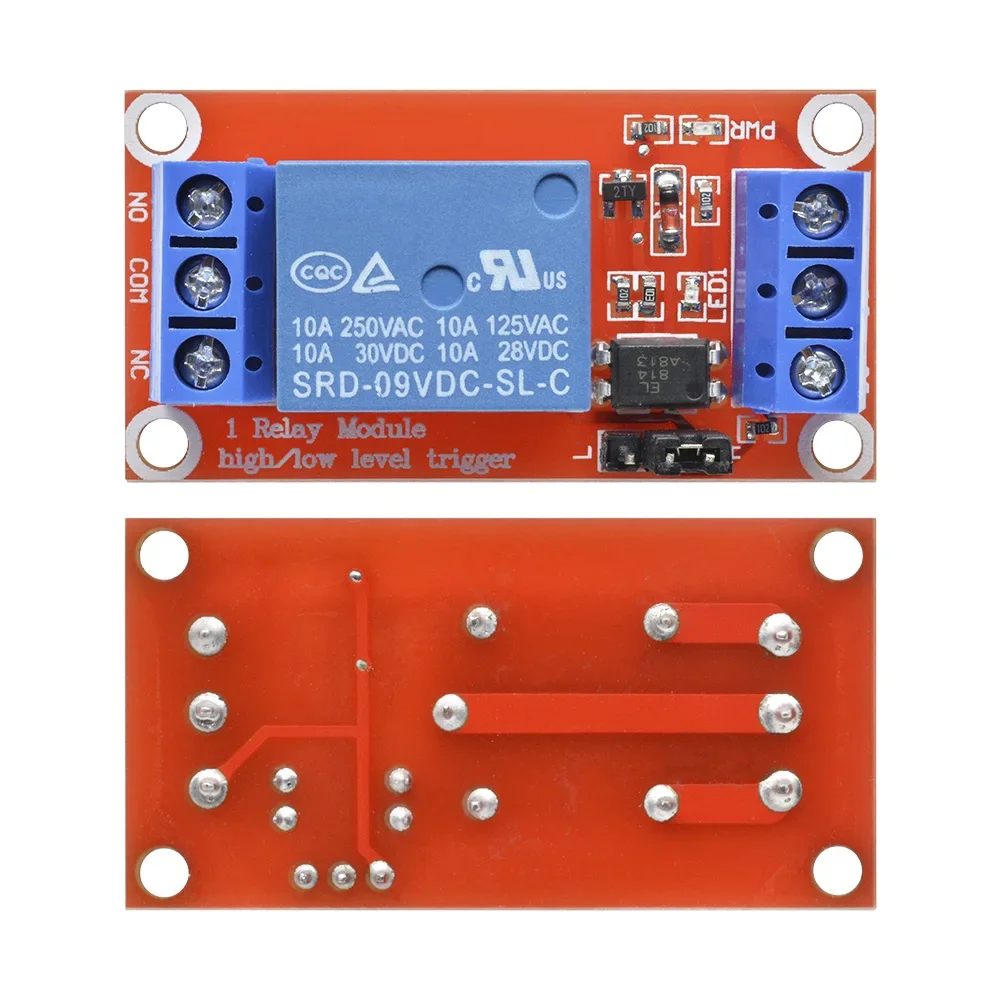

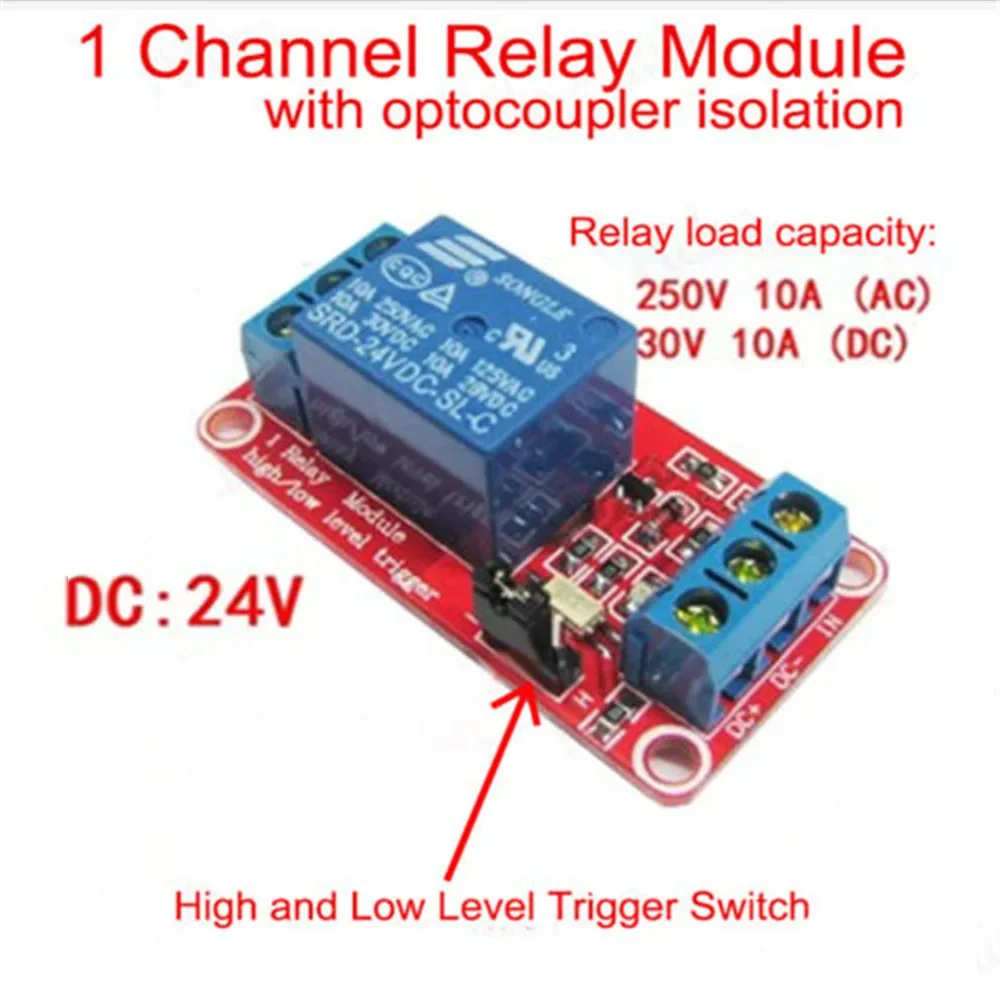

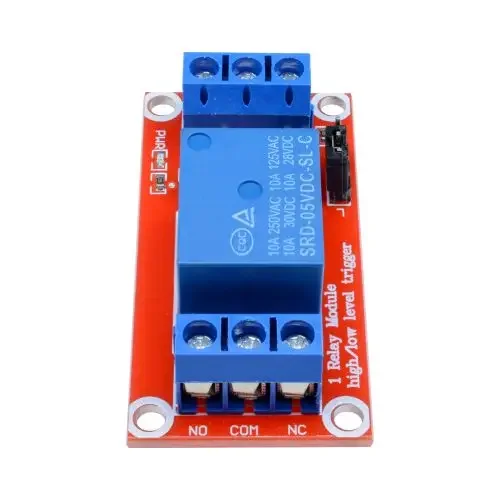

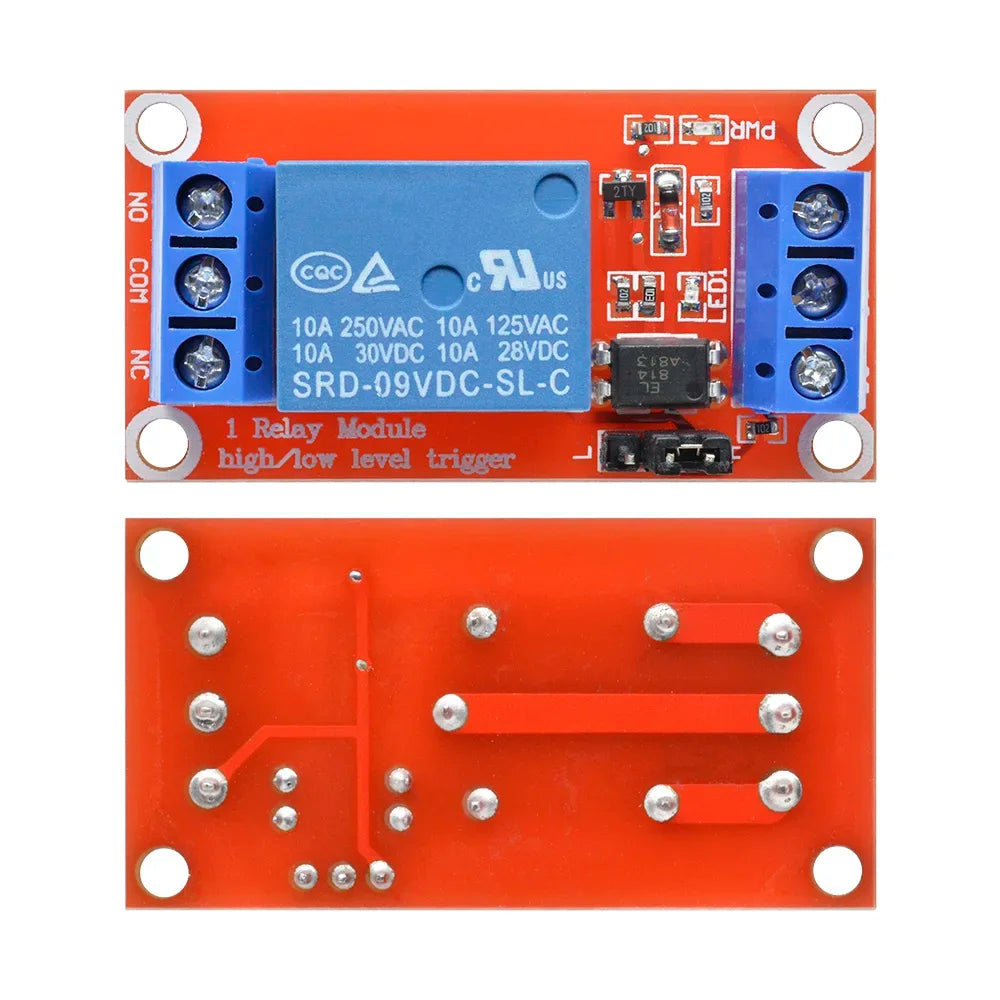

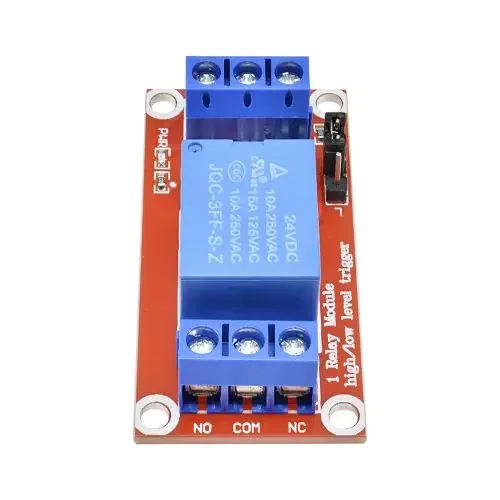

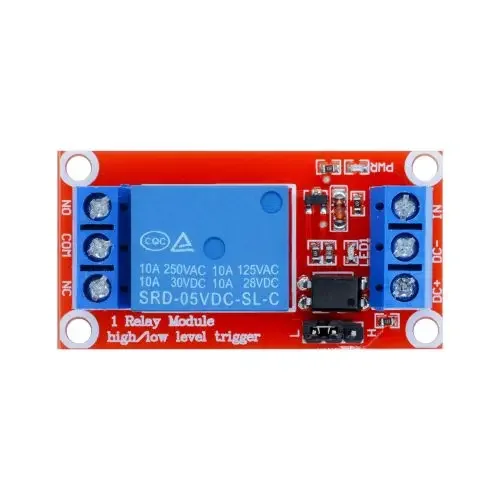

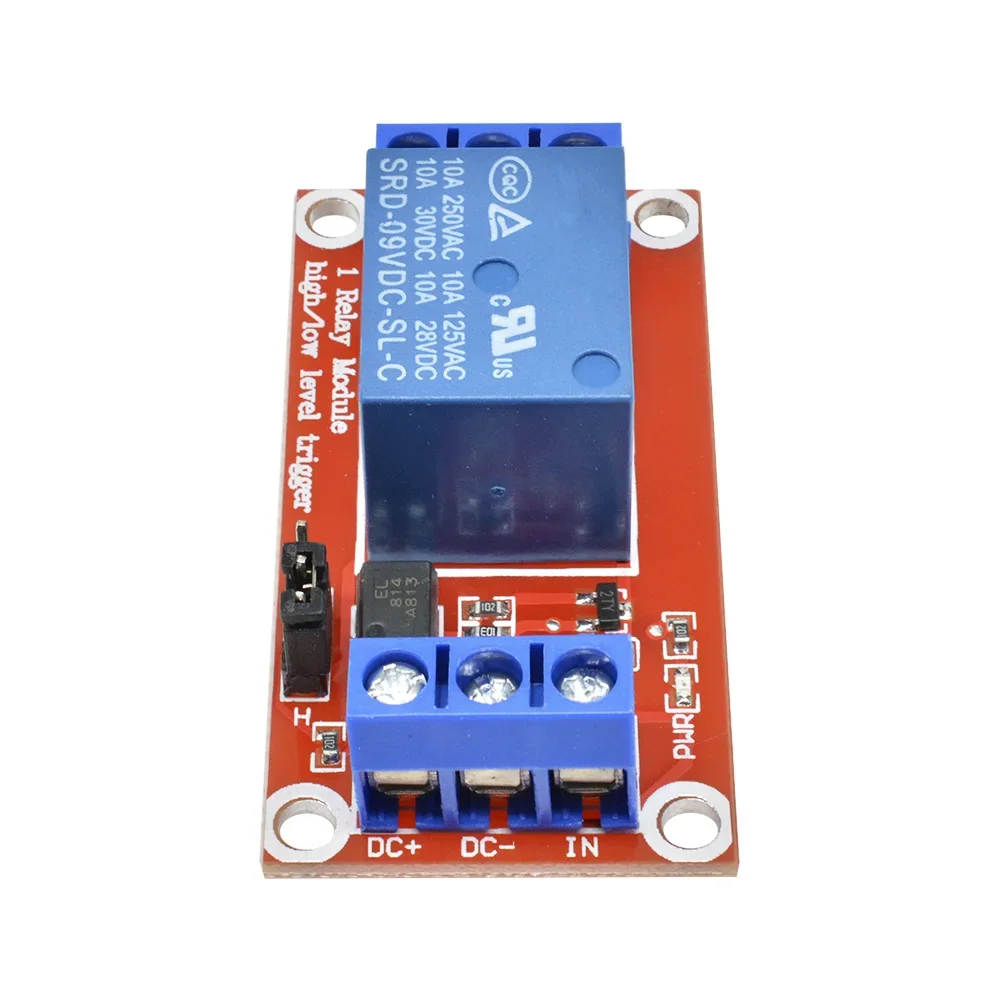

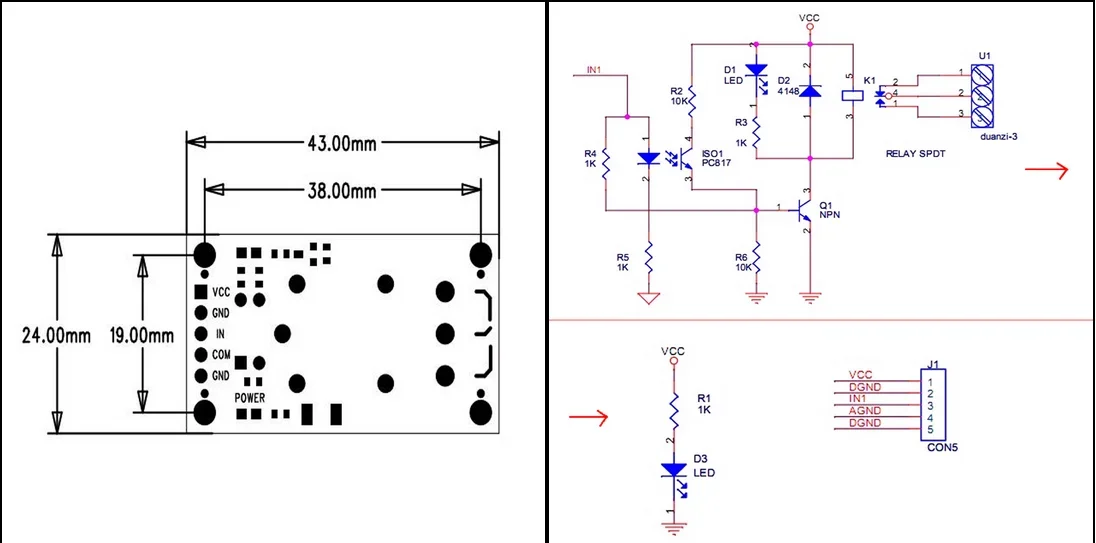

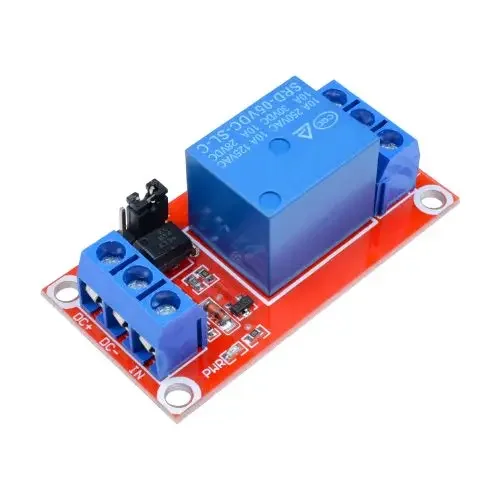

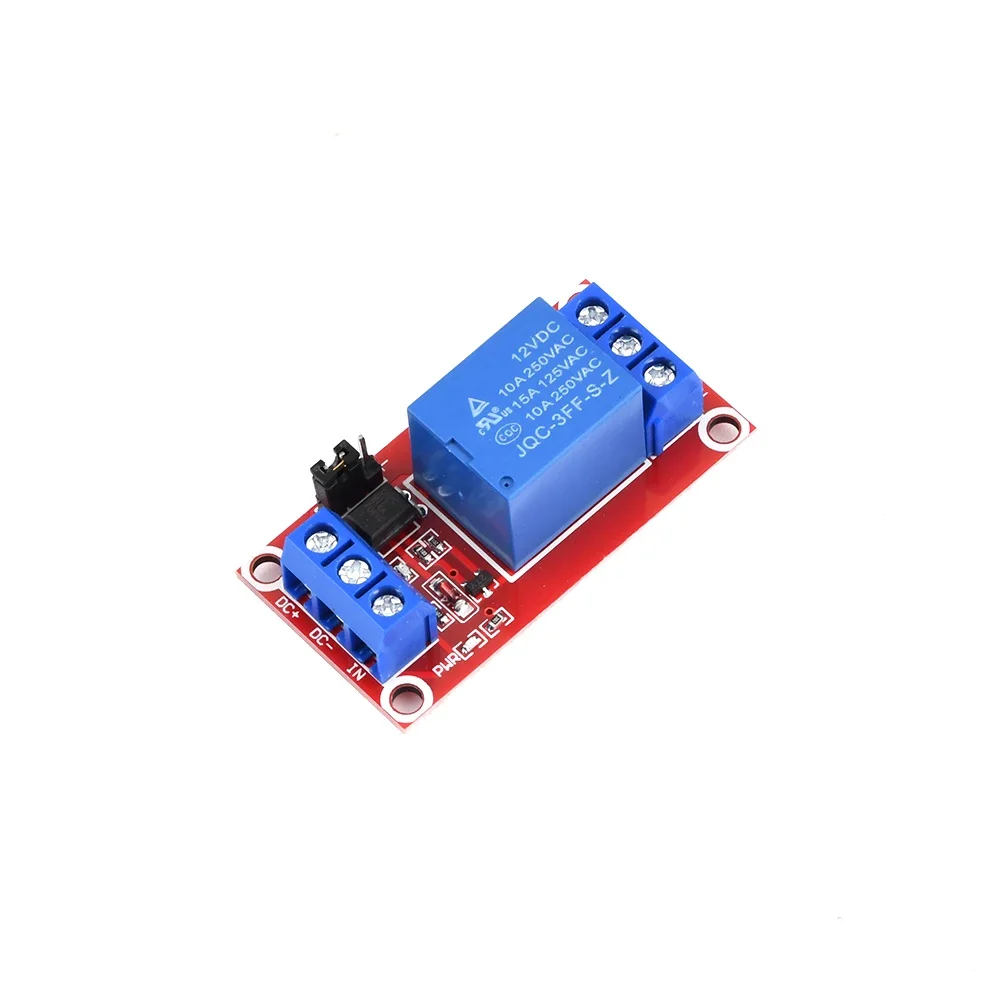

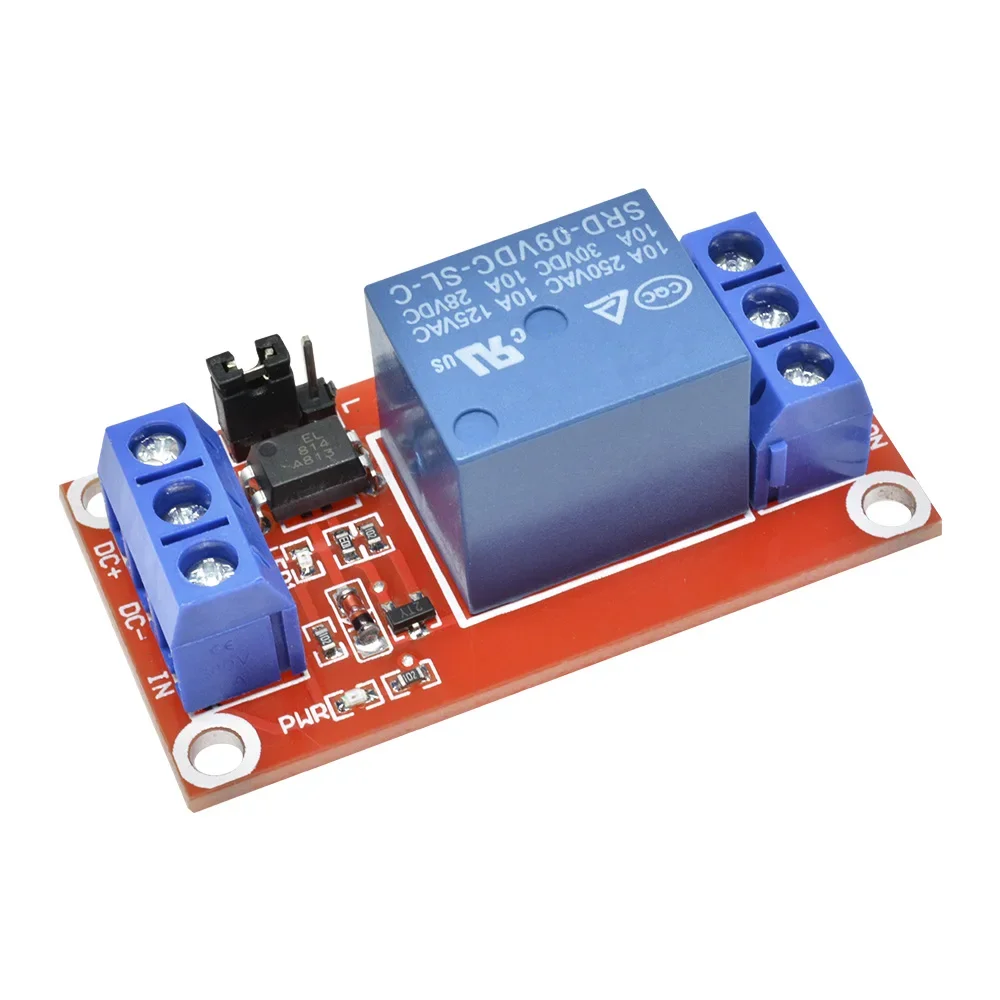

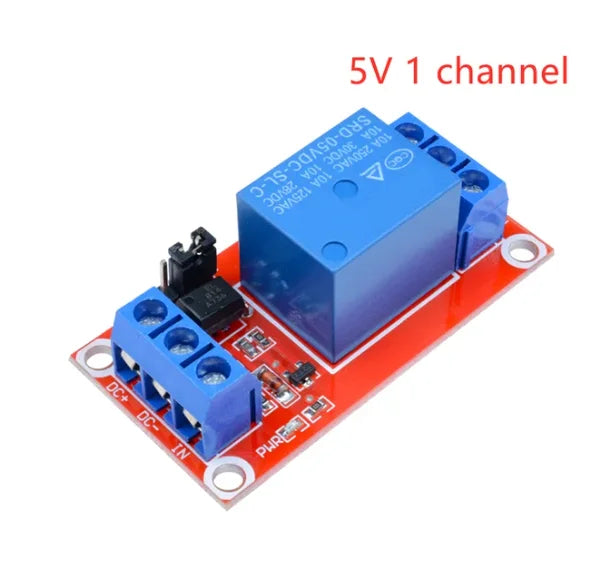

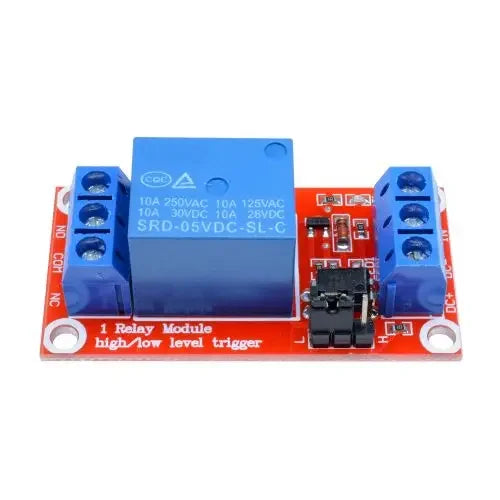

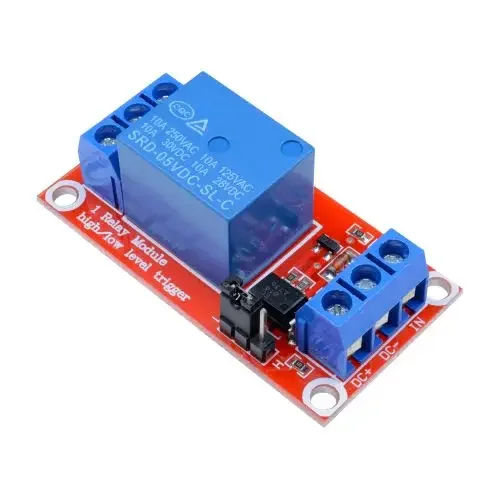

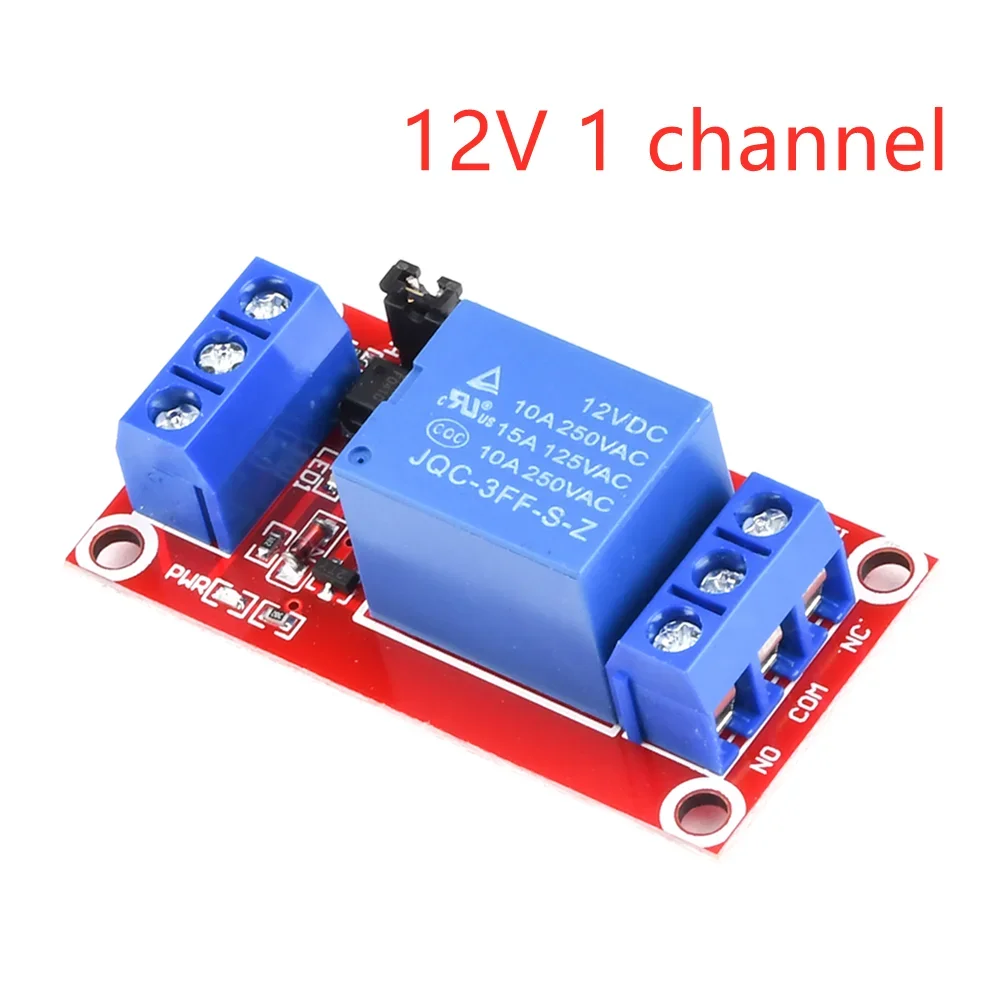

Features: 1.Adopting bidirectional optocoupler isolation, with strong driving ability and stable performance. 2.The module can be triggered at high or low levels through jumper settings. 3.Equipped with 4 fixing bolt holes. 4.With power indicator light (red). 5.The interface design is user-friendly, and all interfaces can be directly connected and led out through wiring terminals. Parameters: 5V 1 channel Working voltage: 5V Maximum load: AC 250V/10A, DC 30V/10A 9V 1 channel Parameters: Maximum load: AC 250V/10A, DC 30V/10A Trigger current: 5mA Working voltage: 9V Module size: 50 × twenty-six × 18.5 mm (length x width x height) Four fixing bolt holes with a diameter of 3.1 millimeters 12V 1 channel Trigger current: 5mA Module working voltage: DC12V Load current: 2A Module size: 50 * 26 mm * 18.5 mm (L * W * H) There are four fixed bolt holes, with a spacing of 3.1mm and 44.5mm * 20.5mm 24V 1 channel Drive current: 5mA Power supply voltage:+24VDC Equipped with 4 positioning holes with a diameter of 3.1mm for easy bolt fixation Module Interface DC+: Connected to the positive pole of the power supply (voltage according to relay requirements) DC -: Connected to the negative pole of the power supply IN: The relay can be controlled to engage at high or low levelsRelay output terminal: NO: Normally open interface of the relay, suspended before the relay is pulled in, and short circuited to COM after pulling in COM: Relay Common Interface NC: Normally closed interface of the relay, short circuited to COM before relay engagement, suspended after engagement High and low level trigger selection terminal 1. When the jumper is shorted to LOW, it is triggered at a low level; When the jumper is short circuited to high, it is triggered at a high level.
Package include: Relay module * 1（5V 9V 12V 24V optional）
