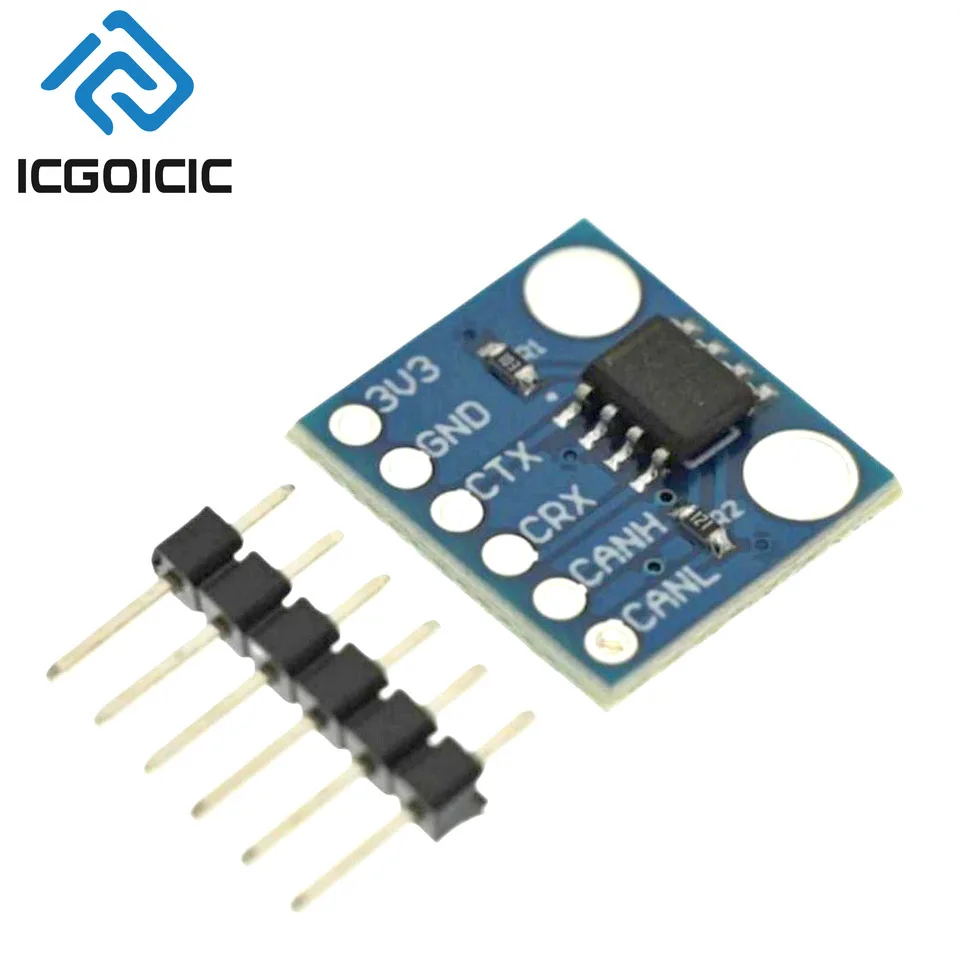

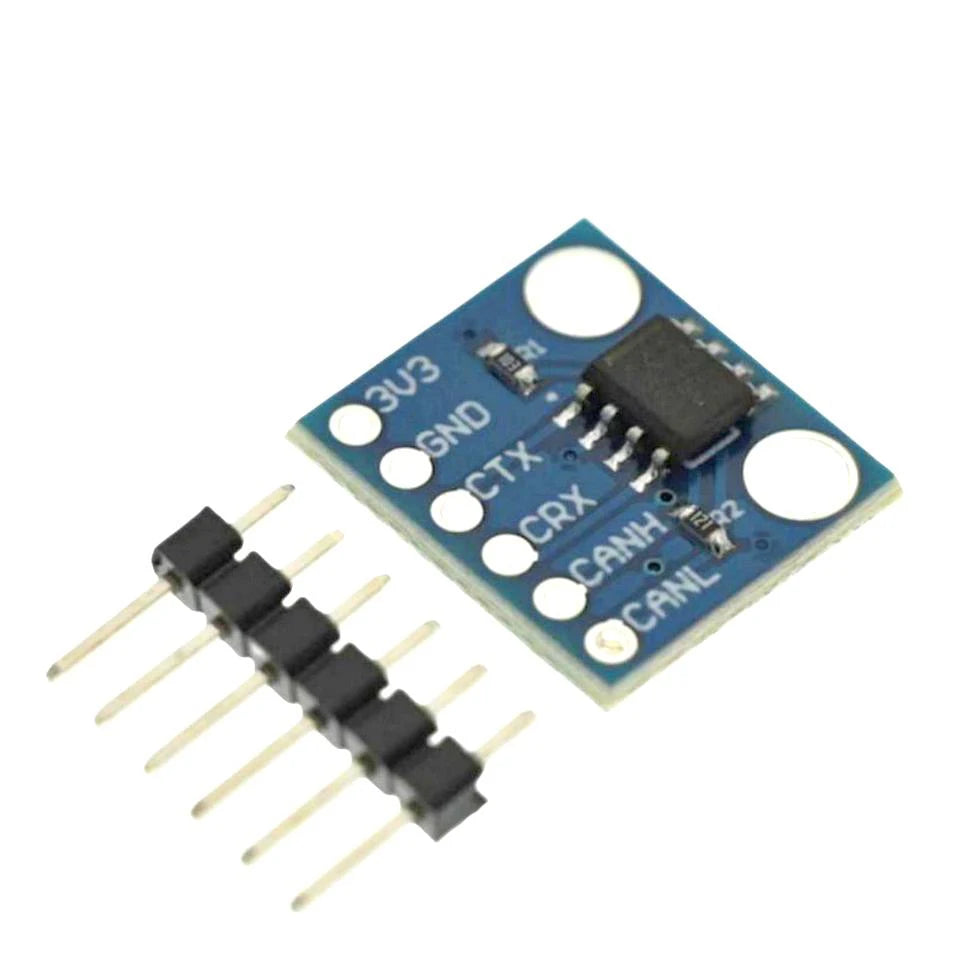

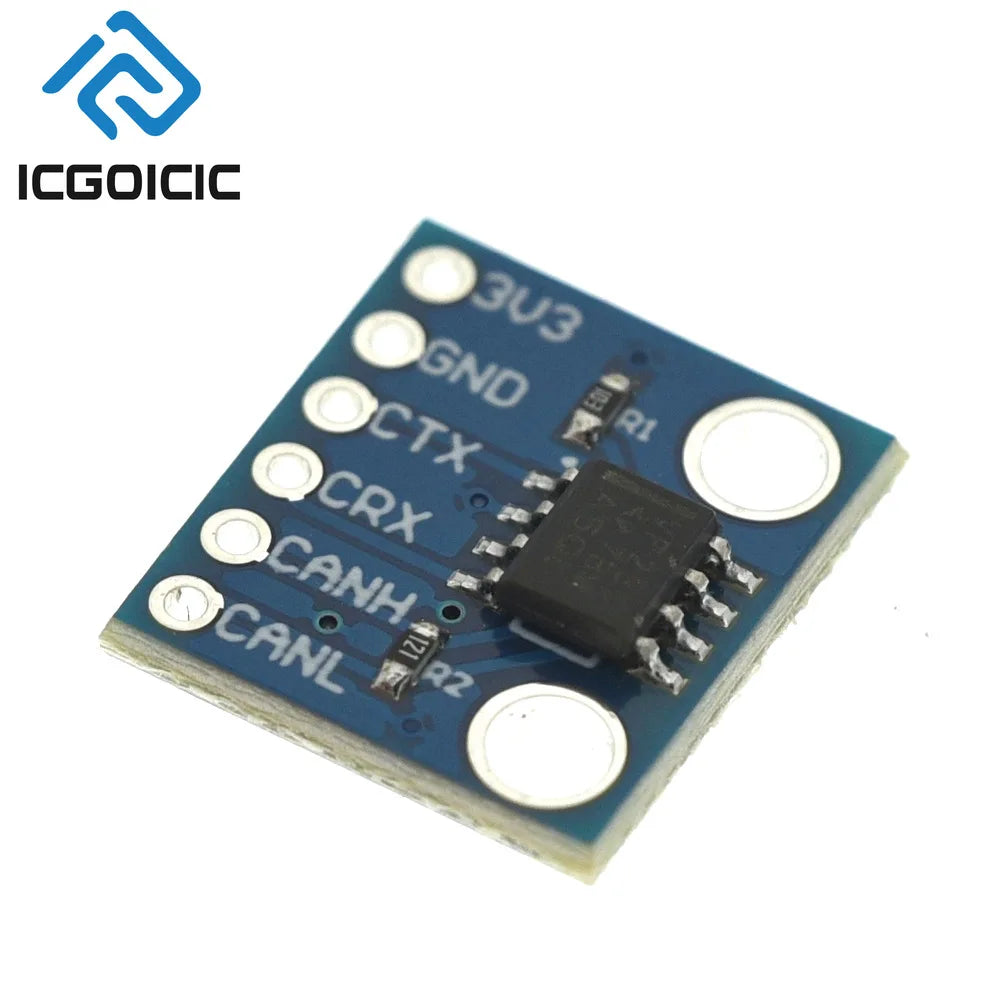

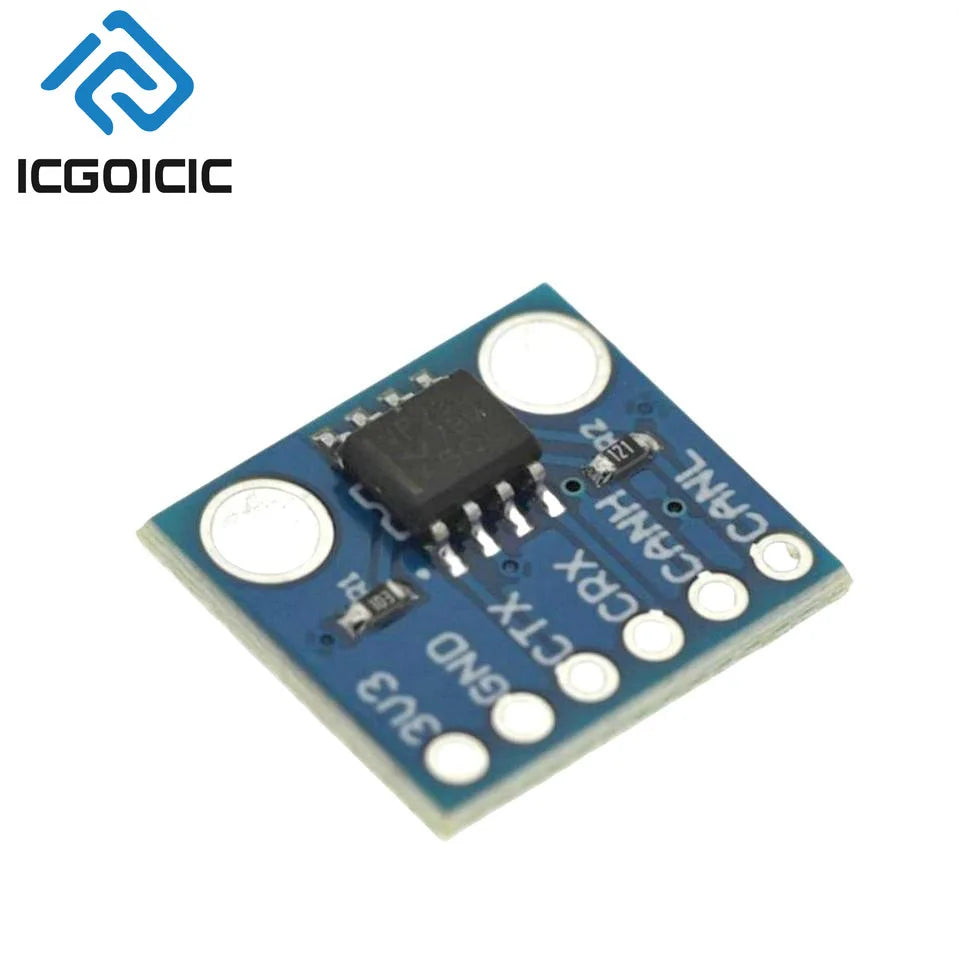

MCU-230 bus transceiver SN65HVD230 CAN communication module
Download
Main features and pin functions The SN65HVD230 can be used in higher interference environments. The device has good transceiving capability at different rates, and its main features are as follows: Fully compatible with the ISO11898 standard; High input impedance, allowing 120 nodes; Low current standby mode with a typical current of 370μA; Signal transmission rate up to 1Mb/s; With thermal protection, open circuit failure protection; It has the function of resisting instantaneous interference and protecting the bus; Slope control to reduce radio frequency interference (RFI); Differential receiver with wide-range common-mode interference and electromagnetic interference (EMI) capability.
