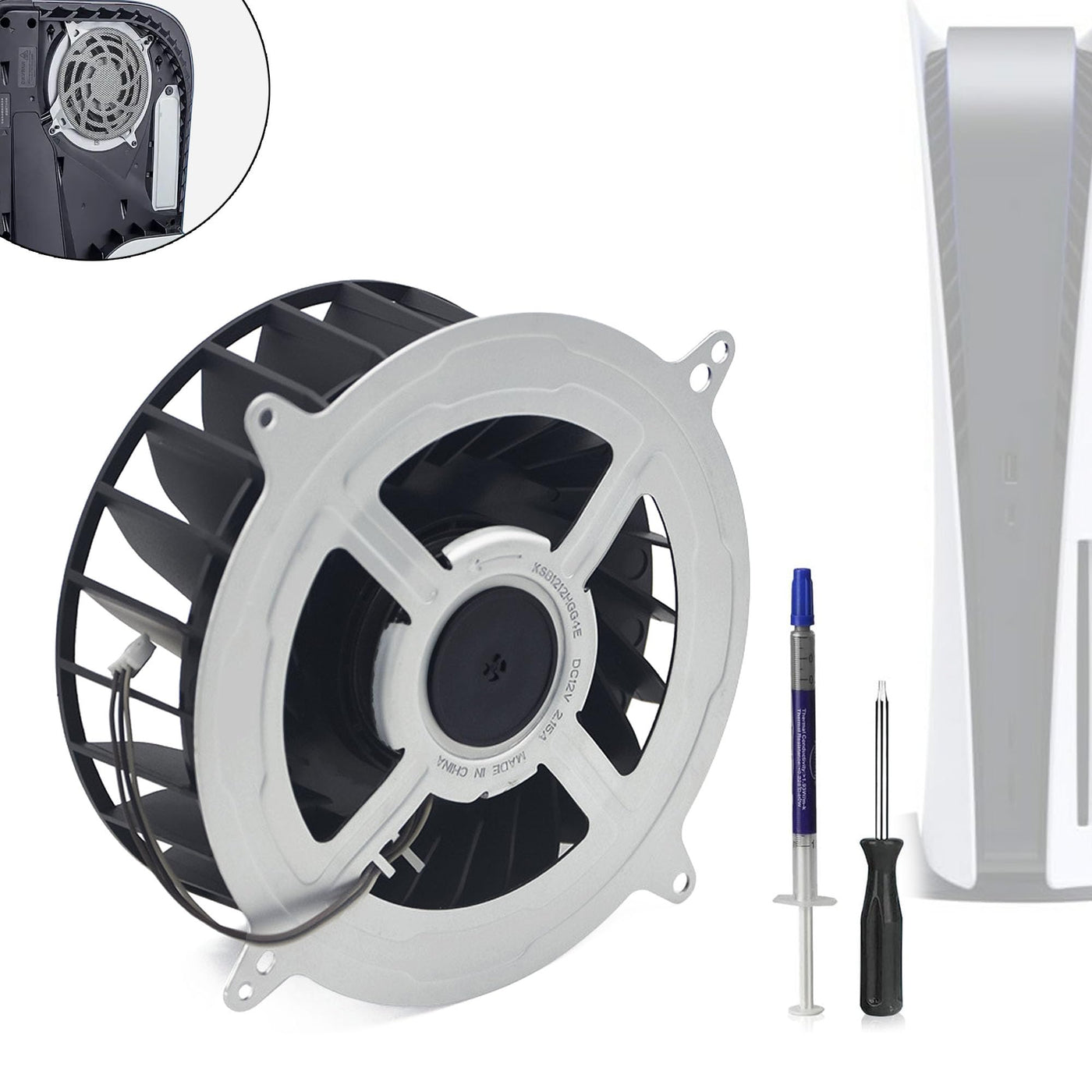

Megatta Mps560 Replacement Of Internal Cooling Fan For Sony Ps5 Cooling Fan Playstation 5 Ps5 Series 23 Blades 12V 2.15A Silence
$33.32
Regular price
$47.60
-30%
Will be in stock after
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Ps5 Internal Cooling Fan, 12V 2.4A, 23 Blades, 90Mm Wire Length Rated Voltage : 12 Vdc Operation Voltaage : 11.4 - 12.6 Vdc Minimun Start Duty : 17% @ 25Khz, 25?, 3.3Vdc Operation Duty Range : 10% - 100% @ 25Khz, 25?, 3.3Vdc Input Current : 1.60 (Max. 1.90) A Rms Current At Duty Cycle 10% : Max. 0.06 A Rms Current At Duty Cycle 17% : 0.08 (Max. 0.12) A Rms Current At Duty Cycle 100% : 1.90 (Max. 2.15) A Peak Current : 3.30 (Max. 3.60) A Standby Current : Max. 0.5 Ma Input Power : 19.2 (Max. 22.8) W Speed At Duty 10% : Max. 750 R.P.M. Speed At Duty 17% : 750300 R.P.M. Speed At Duty 100% : 2500 R.P.M. Max. Air Flow At Duty Cycle 100% (At Zero Static Pressure): 3.405 (Min. 2.826) M3/Min. At 12.0 Vdc, 25? Max. Air Pressure At Duty Cycle 100% (At Zero Airflow) : 180.0 (Min. 124.0) Pa At 12.0 Vdc, 25? Max. Air Flow At Duty Cycle 17%(At Zero Static Pressure) : 1.000 M3/Min. (Ref.) At 12.0 Vdc, 25? Acoustical Noise At Duty Cycle 17% (Avg. At 0.25 Meter): 42.0 (Max. 50.0) Db-A At 12.0 Vdc, 25? Acoustical Noise (Avg. At 0.25 Meter): 71.0 (Max. 75.0) Db-A At 12.0 Vdc, 25? Unbalance : 300.8 Mg-Cm Insulation Type : Ul: Class A Insulation Strength : 10 Meg Ohm Min. At 500 Vdc (Between Frame And (+) Terminal) Dielectric Strength : 5 Ma Max. At 500 Vac 50/60 Hz One Minute, (Between Frame And (+) Terminal) Life Expectance : 20,000 Hours Continuous Operation Rotation : Counterclockwise Direction From Name Plate Side
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Related products
Frequently Asked Questions
Q: Is the MEGAttA MPS560 cooling fan compatible with all PS5 models?A: Yes, the MEGAttA MPS560 replacement cooling fan is specifically designed to be fully compatible with all Sony PlayStation 5 models, including CFI-1015A, CFI-1015B, CFI-1002A/B, CFI-1016A/B, and CFI-1018A/B.
Q: How does the MEGAttA MPS560 fan help prevent overheating in the PS5?A: The MEGAttA MPS560 fan features a pressure-optimized 23-blade design that effectively increases airflow, providing up to 120 CFM. This helps lower the PS5 temperature by 20-30°C, preventing overheating and enhancing overall performance.
Q: What is the lifespan of the MEGAttA MPS560 cooling fan?A: The MEGAttA MPS560 cooling fan is built for durability, with an expected lifespan of over 10 years thanks to its impact-resistant and fireproof ABS material, along with dual metal ball bearings.

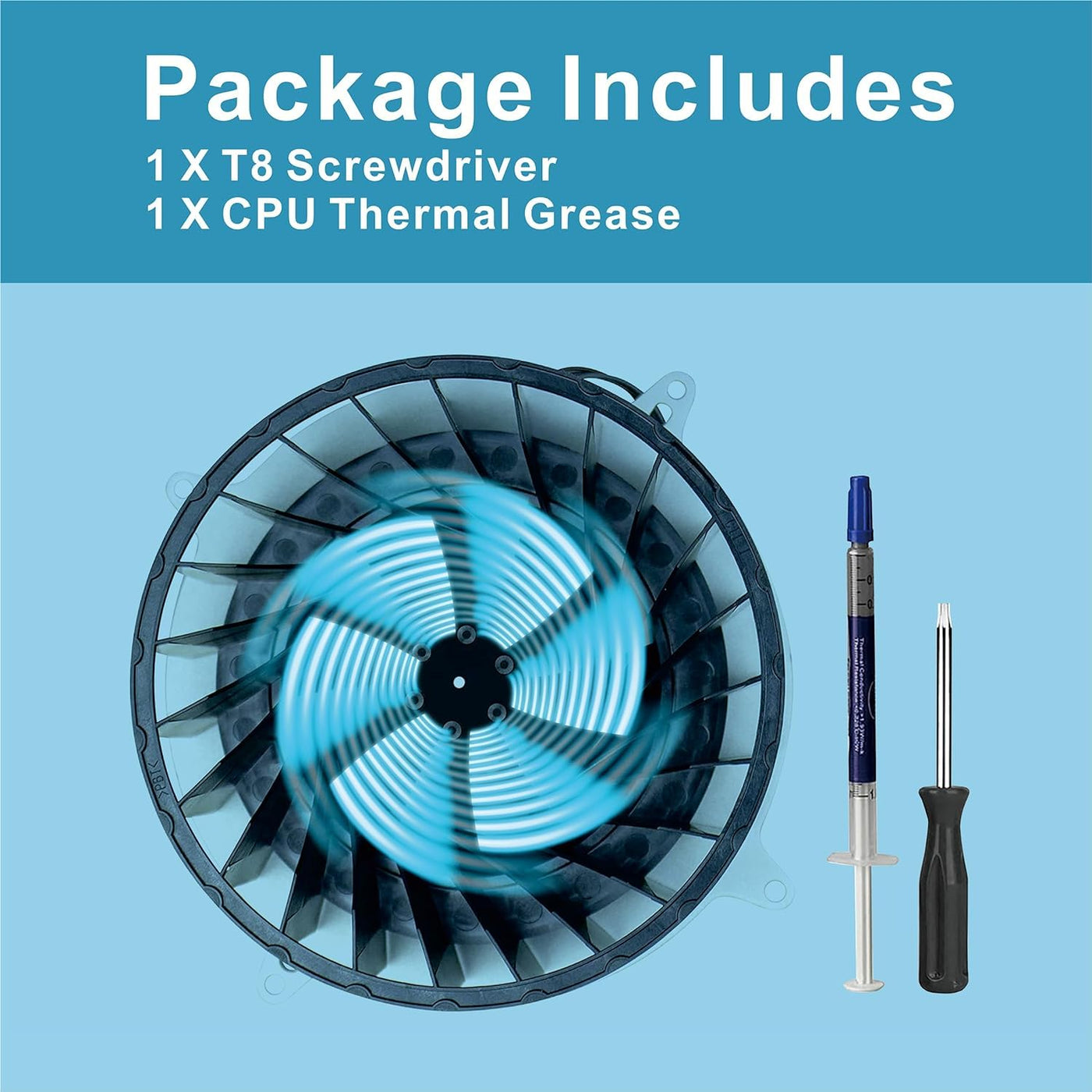

Q: Can I install the MEGAttA MPS560 fan myself, and what tools are included?A: Yes, the MEGAttA MPS560 fan comes with professional tools to assist in the installation, including a T8 screwdriver and heatsink paste, making it easy for you to replace the fan without needing extensive expertise.
Q: What noise levels can I expect from the MEGAttA MPS560 cooling fan during operation?A: The MEGAttA MPS560 fan is engineered to strike a balance between airflow and noise, operating at a maximum of 42 dB-A at 17% duty cycle, ensuring a quiet experience while maintaining effective cooling.
