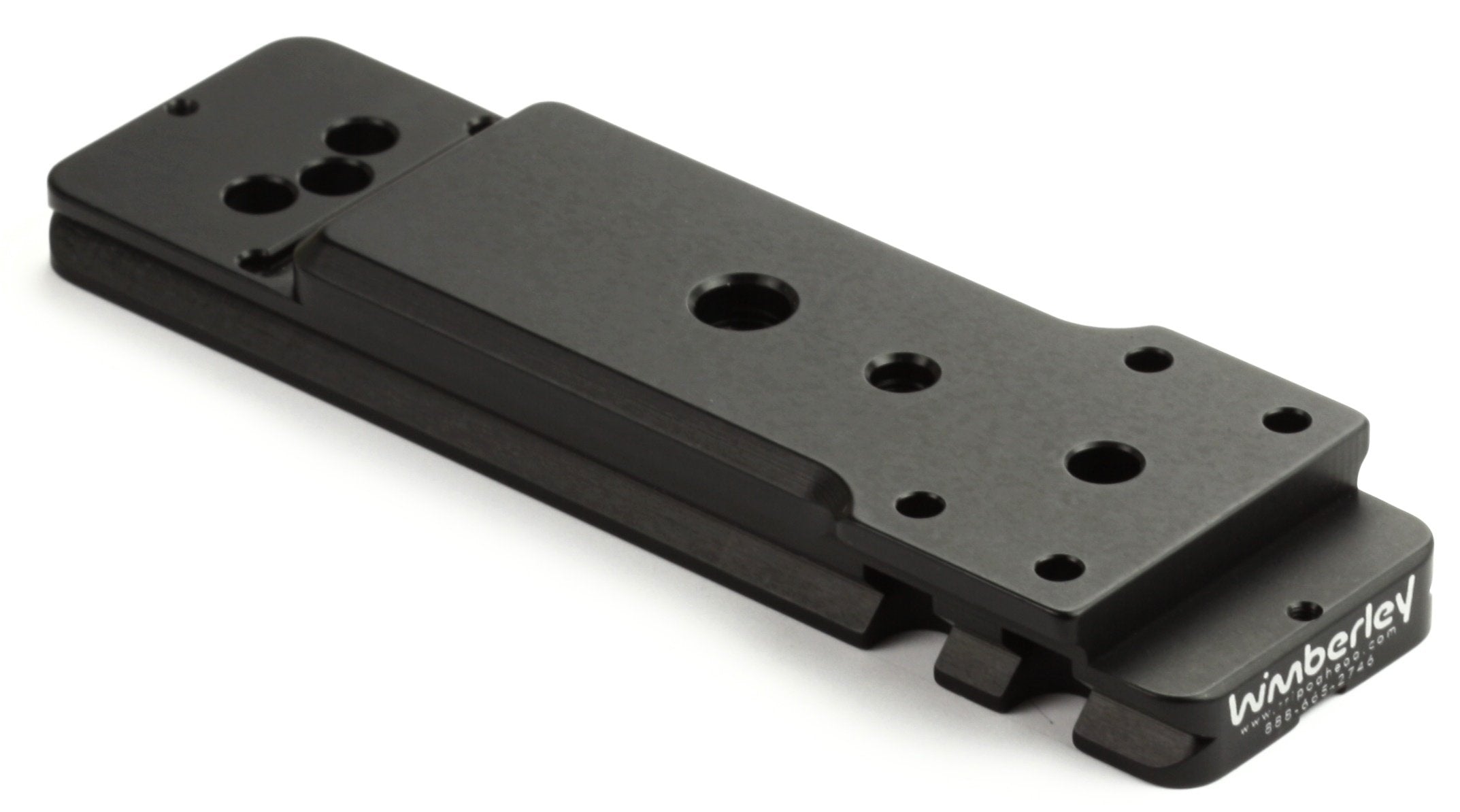

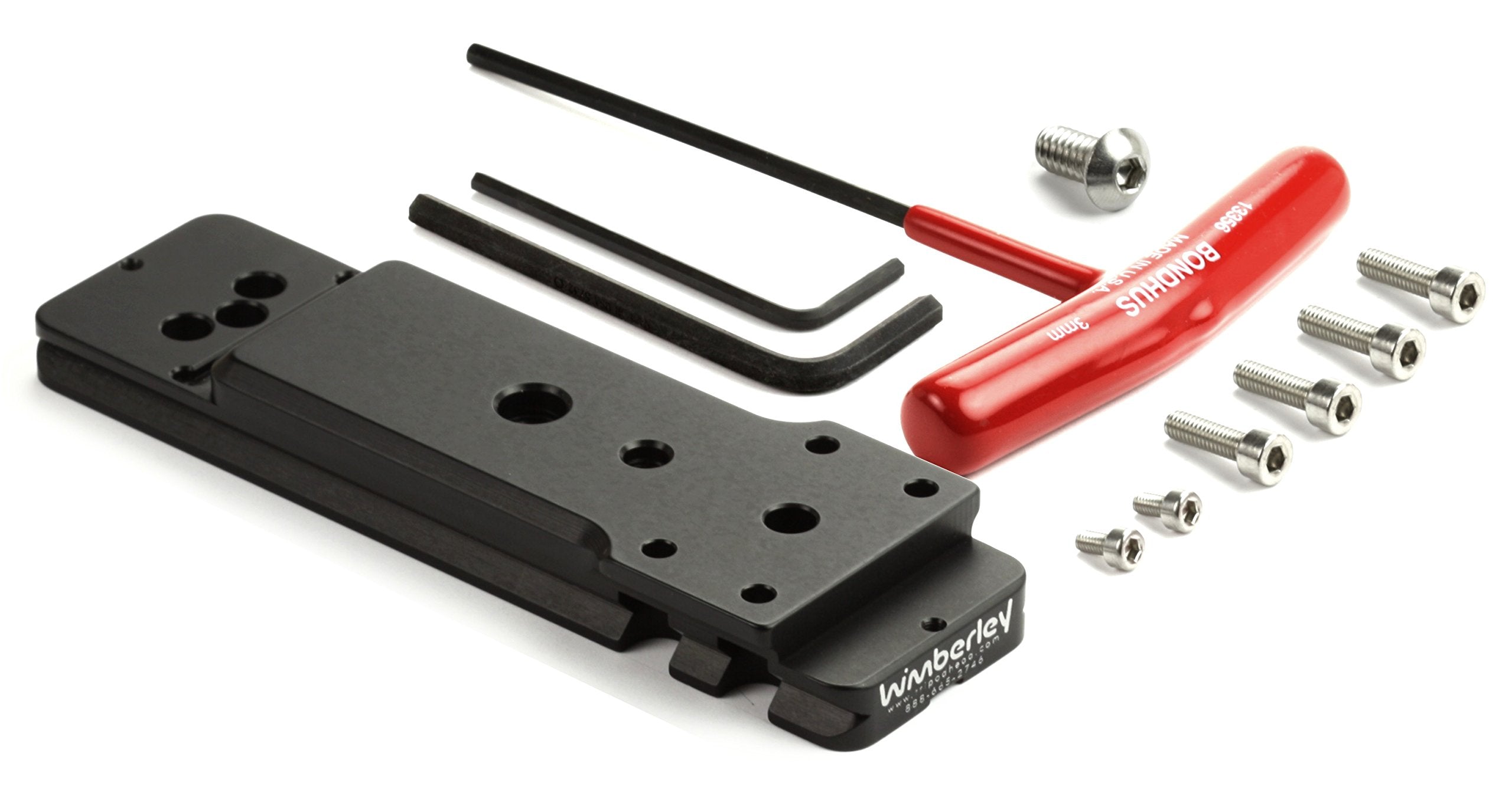

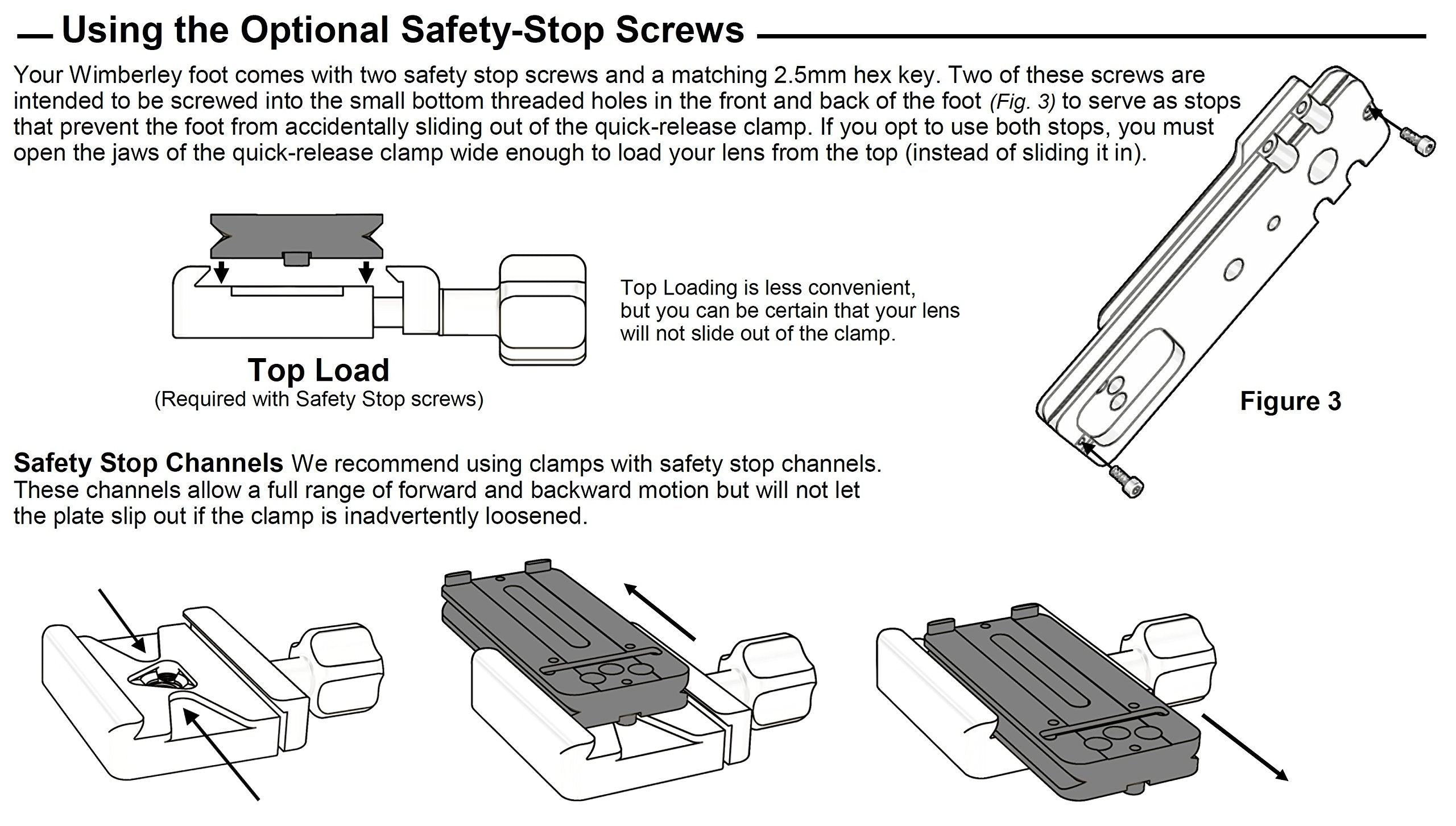

About The Ap-652 Replacement Lens Footthe Ap-652 Replaces The Stock Foot On The Nikon 600 F/4 Af-S Version I Lens (Version Ii Uses The Ap-452). When Installed This Support Lowers The Overall Height Of The Lens By About 1''. The Ap-652 Is Precision Machined To Slide Right Into An Arca-Swiss Style Quick-Release Clamp. It Also Has 1/4'' And 3/8'' Tapped Holes For Mounting To Non-Quick-Release Tripod Heads And Monopods. All Replacement Feet Feature The Same Dual Safety Stops And Flash Bracket Compatibility As Our Lens Plates. For Use On The Following Lensnikon 600 F/4 Af-S Version I Lenses (Version Ii Uses The Ap-452)What'S Includedap-652 Arca-Swiss Style Replacement Lens Foot (Qty 1)Mounting Screws - M4 X 14Mm Socket Head Cap Screw (Qty 4)Mounting Screw - Button Head Cap Screw (Qty 1)Safety Stop Screws - M3 X 6Mm Socket Head Cap Screw (Qty 2)Hex Key - 2.5Mm (Qty 1)Hex Key - 3Mm T-Handle (Qty 1)Hex Key - 5/32 (Qty 1)5 Year Warranty On All Products From Wimberleyabout Wimberley Replacement Feetwe Use Finite Element Analysis Validated By Empirical Data When We Design Our Feet. This Process Allows Us To Optimize The Weight To Stiffness Ratio. Other Manufacturers Often Reduce Weight By Removing Material In Ways That Are Convenient For The Machining Process Or Aesthetic Design While Ignoring Stiffness Performance Resulting In Rigidity Below Our Quality Standards.Not Compatible With Most Manfrotto Or Gitzo Clamps
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What is the size of the Wimberley AP-652 Replacement Lens Foot?A: The size is five point five one inches long, one point five inches wide, and zero point six three inches high.
Q: What materials are used in the AP-652 lens foot?A: The lens foot is made from anodized six zero six one aluminum and features stainless steel fasteners.

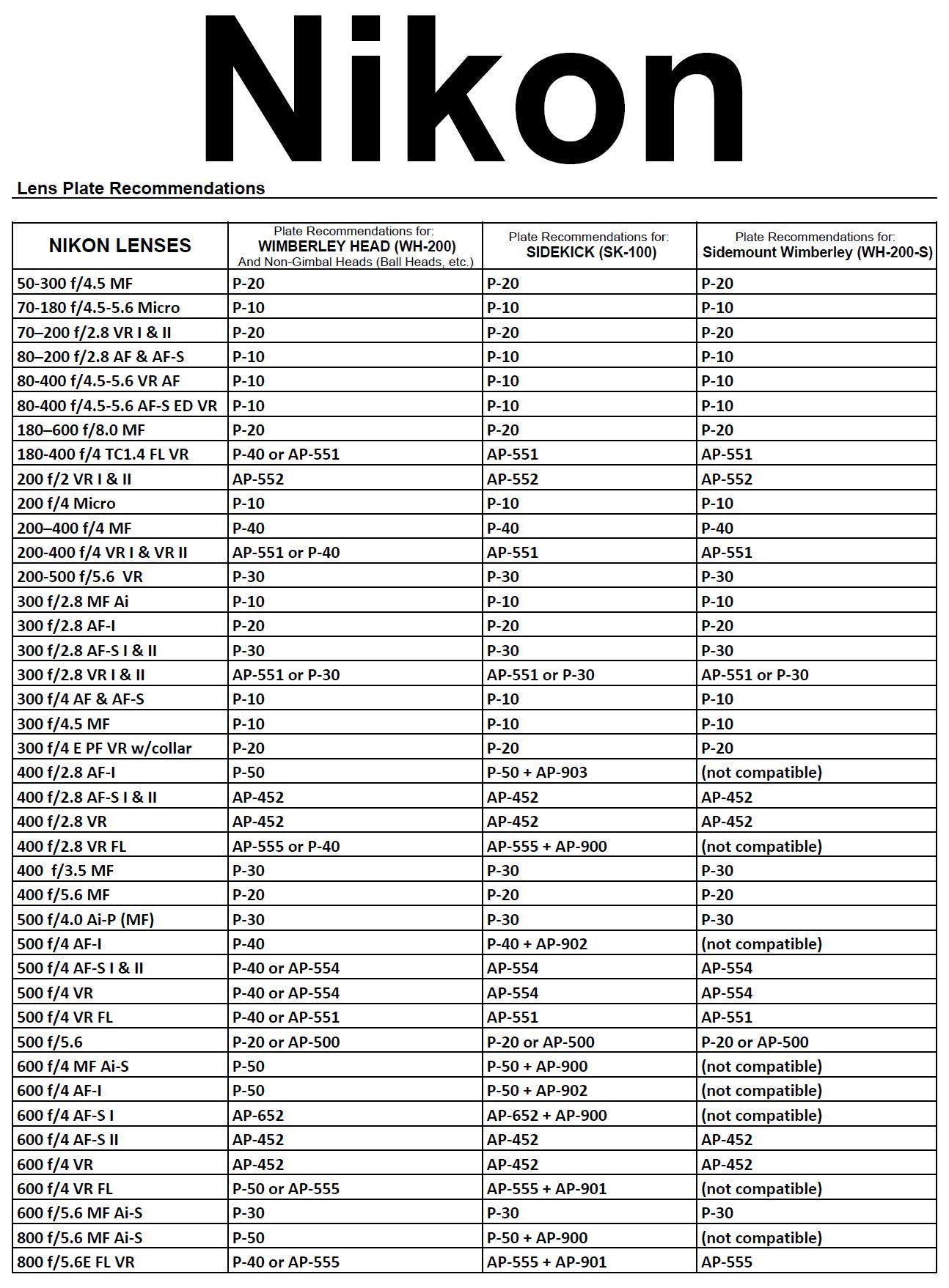

Q: Is the AP-652 compatible with other lens models?A: No, it is specifically designed for Nikon six hundred f/4 AF-S Version I lenses; Version II requires the AP-452.

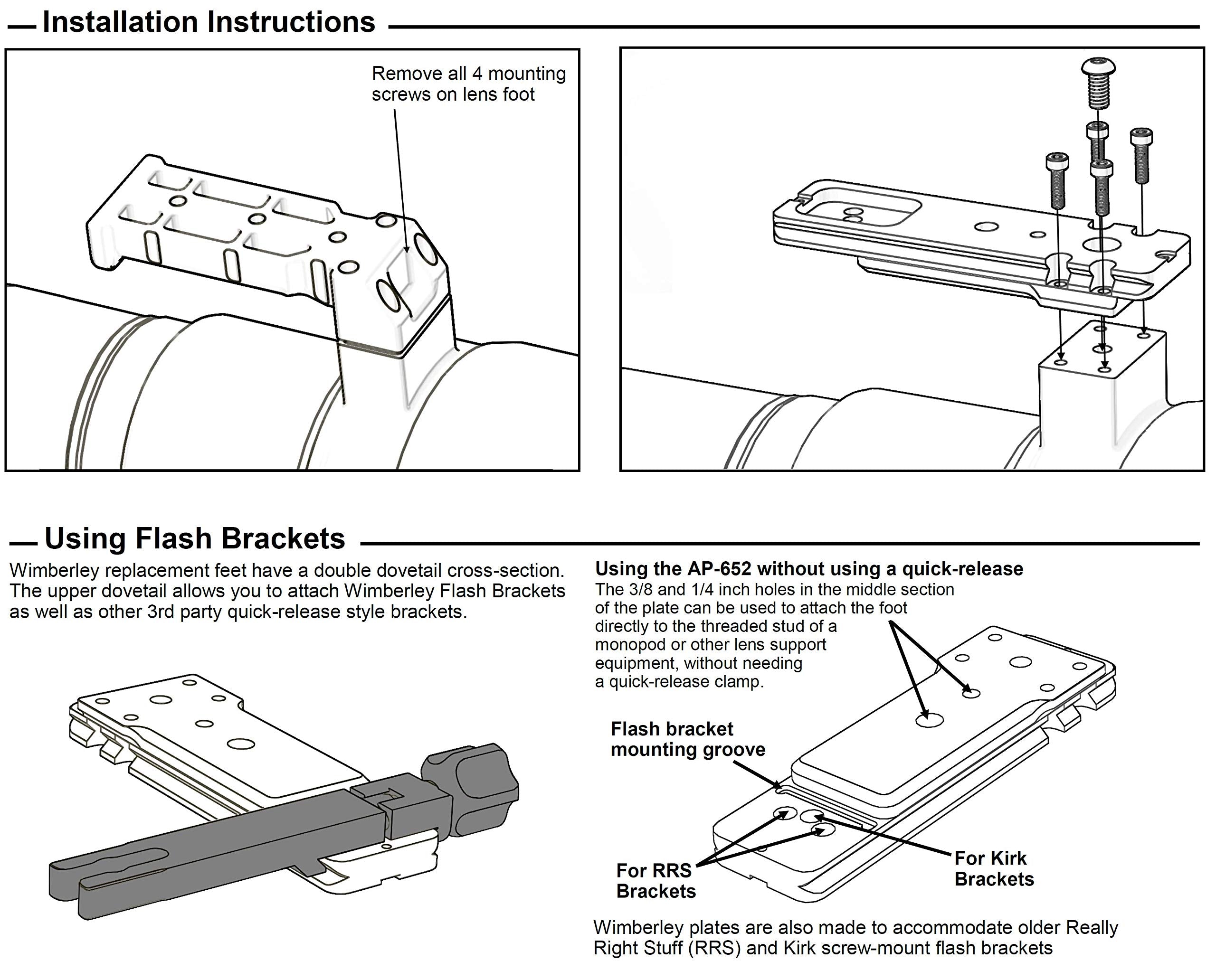

Q: How do I install the Wimberley AP-652 Replacement Lens Foot?A: To install, remove the factory foot and replace it with the AP-652 using the included mounting screws.
Q: Can I use the AP-652 with a tripod?A: Yes, the AP-652 has one quarter inch and three eighths inch tapped holes for mounting on tripod heads and monopods.
Q: How does the AP-652 improve lens balance?A: It lowers the center of gravity by approximately one inch, enhancing stability while shooting.
Q: What cleaning method should I use for the AP-652 lens foot?A: Use a soft, damp cloth to clean the lens foot and avoid abrasive cleaners to maintain the anodized finish.
Q: Is the Wimberley AP-652 waterproof?A: No, it is not waterproof; avoid exposing it to heavy rain or submerging it in water.
Q: What warranty does the AP-652 lens foot have?A: It comes with a five-year warranty covering manufacturing defects.
Q: How does the AP-652 compare to the factory lens foot?A: The AP-652 replaces the factory foot, providing improved balance and compatibility with Arca-Swiss style quick-release clamps.
Q: Is the AP-652 easy to use for beginners?A: Yes, the installation process is straightforward and suitable for users of all experience levels.
Q: What should I do if the AP-652 arrives damaged?A: Contact Wimberley's customer support for assistance with returns or replacements if the product is damaged upon arrival.
Q: Can I use the AP-652 with Manfrotto or Gitzo clamps?A: No, it is not compatible with most Manfrotto or Gitzo clamps.
Q: What is the weight of the Wimberley AP-652 lens foot?A: The weight of the AP-652 is approximately ten ounces.
Q: Is the Wimberley AP-652 made in the USA?A: Yes, the AP-652 lens foot is proudly made in the USA.
