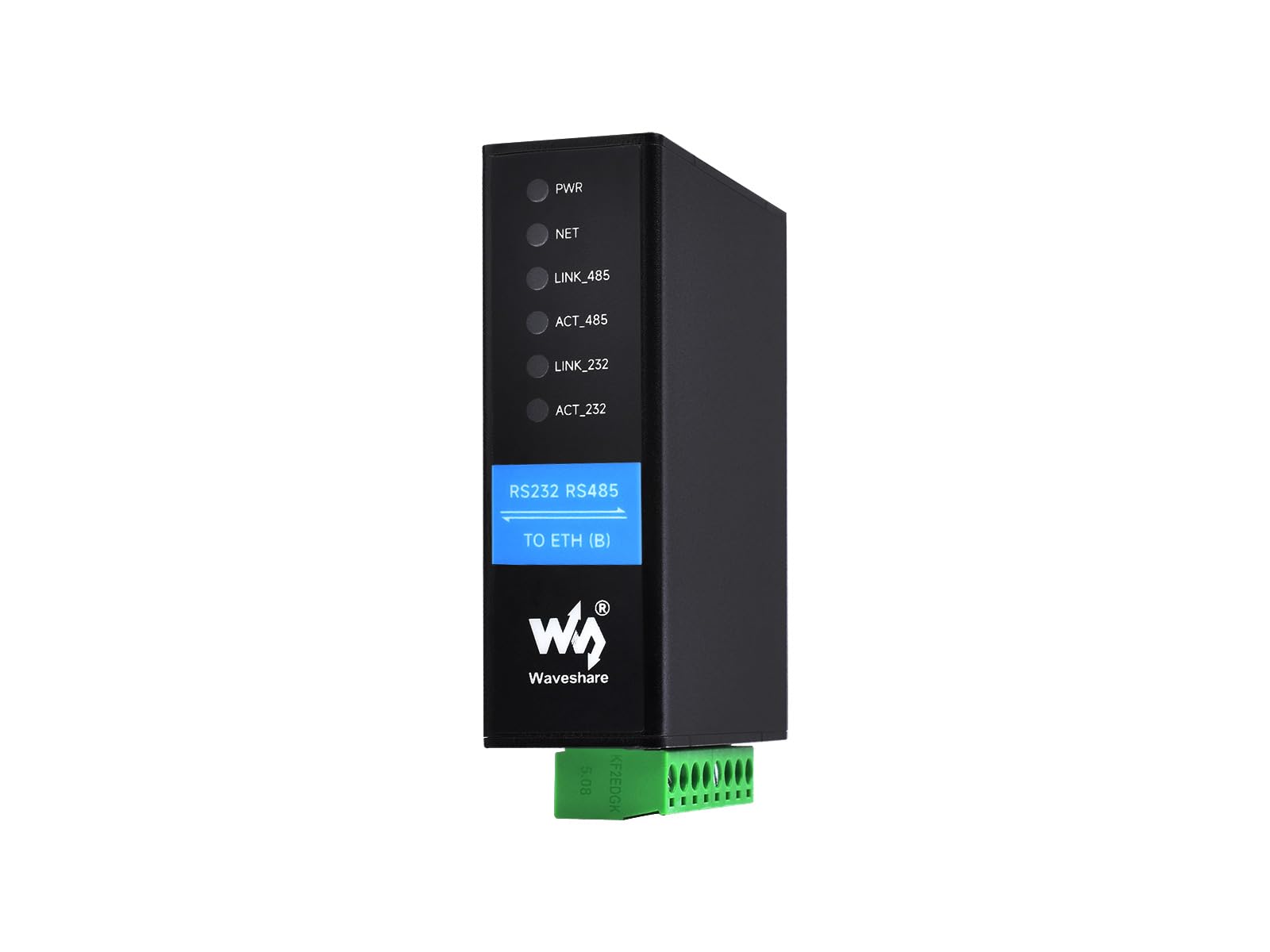

Waveshare Rs232 Rs485 To Rj45 Ethernet Serial Server, Rs232 And Rs485 Dual Channels Independent Operation, Dual Ethernet Ports,
$46.90
Regular price
$67.00
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Overview This Is A Dual Serial Ports Device Data Acquisitor / Iot Gateway Designed For The Industrial Environment, 1-Ch Rs232 And 1-Ch Rs485 Can Work Simultaneously Without Interfering With Each Other Using One Ethernet Cable. Provides Two Power Supply Methods: Dc Port (Outer Diameter: 5.5Mm, Inner Diameter: 2.1Mm) And Screw Terminal. It Is Suitable For Applications Like Data Acquisition, Iot Gateway, Safety & Security Iot, And Intelligent Instrument Monitoring. Specifications 1. Basic Introduction Item: Dual Serial Ports + Common Network Port + Electrical Isolation Product Type: Serial Server, Modbus Gateway, Mqtt Gateway Basic Function : Bi-Directional Transparent Data Transmission Between Rs232 And Rs485 To Ethernet Communication Interface: Rs232 Port X 1, Rs485 Port X 1, Ethernet Port X 2 Power Supply: Dc 5.5 Power Port, 6 ~ 45V Dc Screw Terminal Isolation Protection: Power Isolation, Signal Isolation 2. Communication Ethernet: Rj45, 10 / 100M Auto-Negotiation Rj45 Connector, 2 Kv Surge Protection Serial Port : Isolated Rs232 And Rs485 (The 2 Channels Can Receive And Transmit Independently At The Same Time) 3. Serial Specification Baudrate: 300 ~ 115200 Bps Parity Bit: None, Odd, Even, Mark, Space Data Bit: 5 ~ 9 Bits 4. Software Protocol: Ethernet, Ip, Tcp, Udp, Http, Arp, Icmp, Dhcp, Dns Configuration: Host, Web Browser, Device Management Functions Library Communication Method: Tcp/Ip Direct Communication, Vcom Operating Mode: Tcp Server, Tcp Client (Coexisting With Tcp Server), Udp, Udp Multicast 5. Environment Requirement Operating Temperature: -40? ~ 85? Humidity Range : 5% ~ 95% Relative Humidity Dimensions: L W H: 78.0 72.5 24.2 Mm Online Tutorial/Online Document: N9.Cl/Tv910 Package Content Rs232 Rs485 To Eth (B) X1
