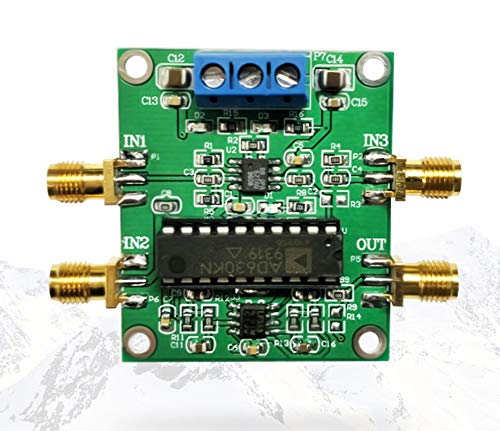

Taidacent Lock In Amplifier Ad630 Module Minimum System Phase Sensitive Detection Weak Signal Conditioning Balanced Modulation
$153.32
Sold Out
This Ad630 Lock-In Amplifier Is An Integrated Opa627 Preamplifier And 4Th-Order Ultra Low-Pass Butterworth Filter, Forming A Set Of Lock-In Amplification Of The Smallest System That Can Detect And Extract Weak Signals, But Also Available Modulation Function To Ad630. | The Ad630 Is A High-Precision Balanced Modulator With A Flexible Commutation Structure And Offers Laser Laser Wafer-Adjusted Thin Film Resistors With Excellent Accuracy And Temperature Stability. | Its Signal Processing Applications Include: Balanced Modulation And Demodulation, Synchronous Detection, Phase Detection, Quadrature Detection, Phase Sensitive Detection, Lock Amplification, And Square Wave Multiplication. | In The Lock-In Amplifier Circuit, When It Is Used As A Synchronous Demodulator, It Can Recover Weak Signals In A 100 Db Noise Background. The Ad630'S Optimal Operating Frequency Is At 1 Khz. | Chip Features (1) The Signal Can Be Recovered From 100 Db Noise (2) Channel Bandwidth: 2 Mhz (3) Slew Rate: 45V/Us (4) Crosstalk: -120 Db (1 Khz) (5) Pin-Programmable, Closed-Loop Gain: �1 And �2 (6) Closed-Loop Gain Accuracy And Matching: 0.05% (7) Channel Offset Voltage: 100 Uv (Ad630Bd) (8) 350 Khz Full Power Bandwidth
⚠️ WARNING (California Proposition 65):www.P65Warnings.ca.gov .
Frequently Asked Questions
Q: What is the model of the lock-in amplifier?
A: The model of the lock-in amplifier is AD630. This amplifier is designed for high-precision applications, making it suitable for detecting weak signals.
Q: What is the frequency range of the AD630?
A: The optimal operating frequency of the AD630 is one kilohertz. This frequency is ideal for synchronous detection and lock amplification.
Q: What is the channel bandwidth of the AD630?
A: The channel bandwidth of the AD630 is two megahertz. This wide bandwidth allows for effective signal processing applications.
Q: What is the slew rate of the AD630?
A: The slew rate of the AD630 is forty-five volts per microsecond. This rapid response time is crucial for handling fast signal changes.
Q: What types of modulation does the AD630 support?
A: The AD630 supports balanced modulation and demodulation. It is also capable of synchronous detection, phase detection, and quadrature detection.
Q: How do I use the AD630 lock-in amplifier?
A: To use the AD630, connect your input signal and configure the gain settings. The device can recover weak signals from a noisy background effectively.
Q: Is the AD630 suitable for beginners?
A: Yes, the AD630 is suitable for beginners with some technical knowledge. It provides clear input for basic signal processing tasks.
Q: What kind of applications can I use the AD630 for?
A: You can use the AD630 for applications such as weak signal detection and phase sensitive detection. It is ideal for scientific experiments and research.
Q: How do I maintain the AD630 amplifier?
A: To maintain the AD630, ensure it is stored in a dry environment and avoid exposure to excessive heat. Regularly check connections for wear.
Q: What safety measures should I take when using the AD630?
A: Always ensure proper grounding when using the AD630 to prevent electrical shocks. Follow the manufacturer’s guidelines for safe operation.
Q: Can the AD630 be used in noisy environments?
A: Yes, the AD630 can recover signals from a background noise level of one hundred decibels. This feature makes it suitable for challenging environments.
Q: What happens if the AD630 arrives damaged?
A: If the AD630 arrives damaged, you should contact customer support for a return or exchange. Keep the original packaging for the return process.
Q: Does the AD630 come with a warranty?
A: Yes, the AD630 typically comes with a warranty. Check with the manufacturer for specific warranty details.
Q: What is the crosstalk specification for the AD630?
A: The crosstalk specification for the AD630 is minus one hundred twenty decibels at one kilohertz. This low crosstalk ensures better signal integrity.
Q: How should I store the AD630 when not in use?
A: Store the AD630 in its original packaging or a protective case to prevent damage. Keep it in a cool, dry place.
