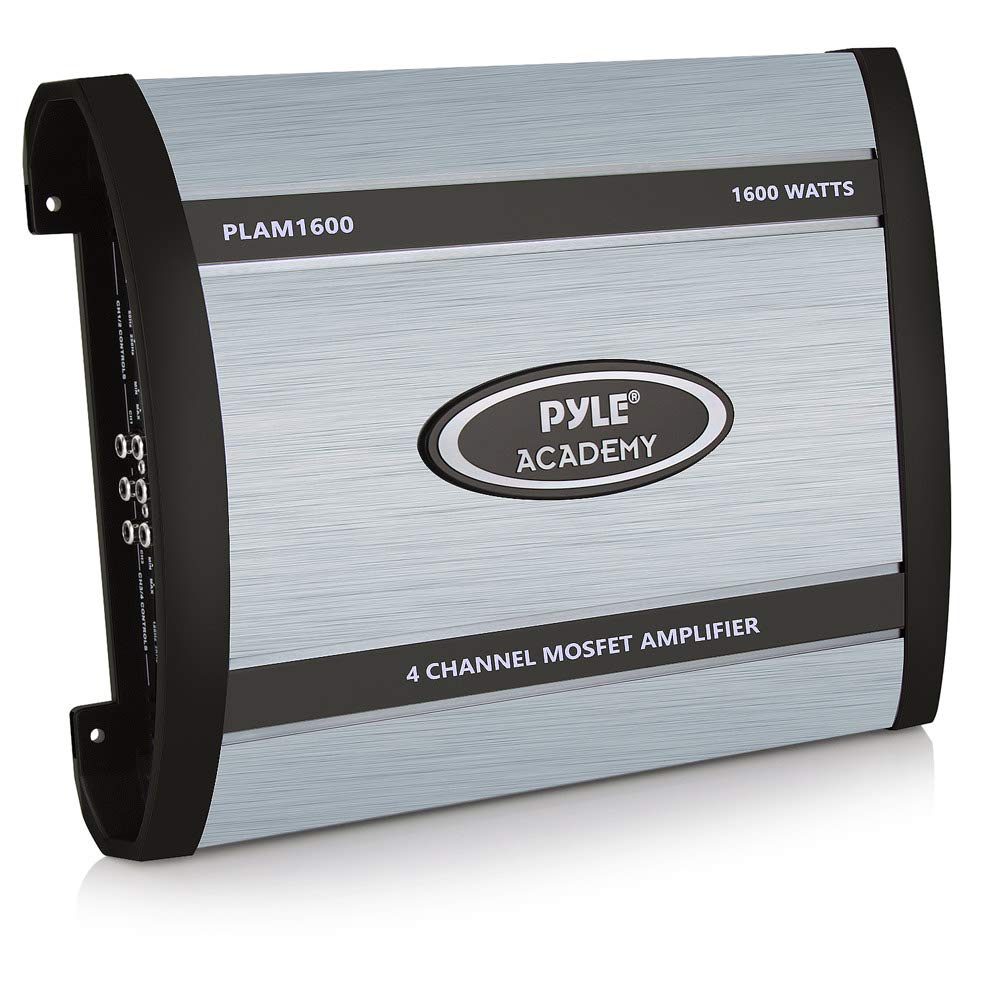

Pyle 4 Channel Car Stereo Amplifier 1600W Bridgeable High Power Mosfet Audio Sound Auto Small Speaker Amp Box W/ Crossover, Ba

From The Manufacturerbridgeable Connection View Larger Academy Series Amplifiers View Larger System Application Diagram View Larger Smart Sound And Style Mosfet Power Supply View Larger Power Connection Diagram View Larger Versatile Hybrid Amplifiersthe Pyle Academy Series Amplifiers Will Provide Your Audio Setup With Sophisticated New Sound And Serious Power. Add Performance And Quality Enhancement To Your Music When You Upgrade Your Audio System With These Rugged And High-Efficiency Amps. Enjoy Tomorrows Advanced Sound Technology That Outperforms All Other Amps In Its Class.This Lineup Of Pyle Academy Amps Will Educate Your Audience With The Knowledge Of True Sound Quality. These Amps Will Give You That Sound Youve Been Looking For With Crisp Music Reproduction In The Mobile Environment. Sound Specializationthese High-Efficiency Class-D Amplifiers Host An Impressive Power Output And Are Where Form And Function Meet. Configurable For Bridgeable And Tri-Way Applications, Built-In Variable Subwoofer Crossovers, Mosfet Pulse Width Modulated Power Supply, High Level Low Impedance Molex Input Connector, Strong Frequency Response Rates Along With Plenty Of More Features That Make The Pyle Academy Series Amplifiers Smarter Than The Competition. Intelligent Designsafety Features Include Power And Protection Led Indicators; Soft Turn-On/Off, Thermal, Overload And Speaker-Short Protection. The Built-In Air-Induction Fan Cooling System Acts As Another Line Of Safety Keeping You And Your Equipment Safe. Status Led Diagnostic Condition Indicators Show When The Amplifier Is Powered Up Normally And When Your System Is Experiencing A Protection Fault. Pump It Uptake Advantage Of The Bass Eq Boost To Add Massive Quality Sound And Performance. Make Adjustments To The Bass Eq Settings Until You Achieve That Extra Amount Of Kick Youve Been Waiting For. Intelligent Sound - Intelligent Stylethe Smooth-Edged And Rounded Design Leaves A Blue-Pearl Gloss Finish On The Fortified Aluminum Heat-Sink. The Stream-Lined And High-Tech Appearance Will Definitely Add Some Attention To Your Audio. Total Audio Controlonce You Are Connected, Customize And Adjust Your Listening Experience To Your Liking With The Amplifiers Control Center. You Can Personalize And Fine-Tune Settings Like: High-Pass Filter - When Crossover Mode Is In High-Pass Mode, This Control Limits The Frequencies Which Will Be Distributed To The Speakers Crossover Switch - Routes Output Of The Low Pass (Lp), Or The Output Of The High Pass (Hp) Filters, Or Full To The Internal Power Amplifier. Low-Pass Filter - When Crossover Mode Selector Is In Low-Pass Mode, This Control Limits The Frequencies Which Will Be Distributed To The Speakers. Line Input - Accepts Line Level (Rca) Inputs From 0.2 To 5-Volt. High-In - Accepts Speaker Level Inputs From Radios That Do Not Line Level (Rca) Outputs. Bass Eq - Gives You Manual Control Over Bass Boost Decibel Adjustments.*Please Refer To Table Below For Amplifier Specific Information And Adjustment Options. Input Connectionsturn The Volume Control On The Amplifier To Minimum Initially. Once The Initial Power Sequence Has Been Performed, Set The Volume Control To Roughly 80% Of Full Power. Play Some Audio And Slowly Turn Up The Amplifier Volume Control Until You Hear Some Distortion, And Then Back It Off For The Sharpest Sound Setting. This Amplifier Has Rca Connections For Low Level Inputs. Low Level Signal Is Carried Through Rca Cables. It Is Preferred To Use Low Level Inputs To The Amplifier If The Headunit Is Equipped With Matching Outputs. Speaker Output Connectionsconnect Right And Left Speaker Wire To Corresponding Speaker Output Terminals Of The Terminals. Be Sure To Have The Positive Wire From The Speaker To The Positive Speaker Terminal Of The Amplifier And The Negative Wire From The Speaker Must Connect With The Speaker Terminal Of The Amplifier. Reversing Any Of These Connections Will Result In The Speaker Cones Moving Out Of Pha
