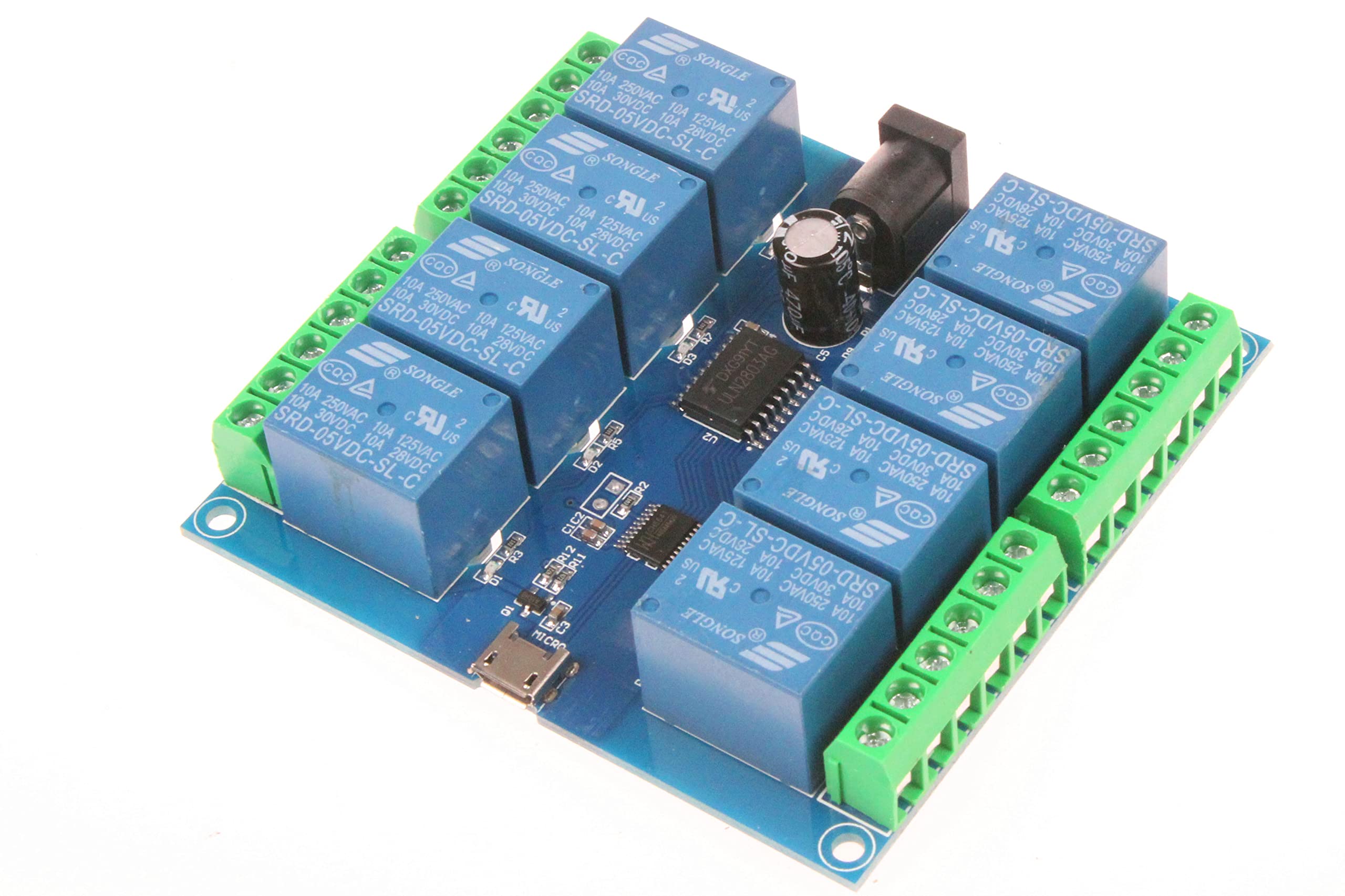

Noyito Hid Drive Free Usb Computer Control Switch Relay Module Usb Smart Switch Control Plug And Play (8 Channel Micro Usb)
$19.74
Regular price
$28.20
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Features: 1.Working Temperature: -20C To +70C 2. Board Size And Weight: 1-Channel Module : 61X16 X 17 Mm(Lwh) / 15 Grams 2-Channel Module : 47 X 33 X17 Mm(Lwh) / 25 Grams 4-Channel Module : 65 X 47 X 17 Mm (Lwh) / 50 Grams 8-Channel Module : 80 X 75 X17 Mm (Lwh) / 98.5 Grams Hardware Introduction And Description Board Interface Description: Com1: 1-Channel Common Port; Nc1: 1-Channel Normally Closed Port; No1: 1-Channel Normally Open Port . .... Com8: 8-Channel Common Port; Nc8: 8-Channel Normally Closed Port; No8: 8-Channel Normally Open Port . Vid And Pid Number Of The Relay'S Module: Vid: 5131 Pid: 2007 Generally, It Is A Fixed Value And Does Not Need To Be Changed. Communication Protocol Description: Default Communication Baud Rate: 9600Bps Turn On The 1-Channel Relay Switch: A0 01 01 A2 Turn Off The 1-Channel Relay Switch: A0 01 00 A1 Turn On The 2-Channel Relay Switch: A0 02 01 A3 Turn Off The 2-Channel Relay Switch: A0 02 00 A2 Turn On The 3-Channel Relay Switch: A0 03 01 A4 Turn Off The 3-Channel Relay Switch: A0 03 00 A3 ...... Turn On The 8-Channel Relay Switch: A0 08 01 A9 Turn Off The 8-Channel Relay Switch: A0 08 00 A8 This Series Of Hid Relay Devices Cannot Query The Relay Status By Entering The Code ''0Xff''. Usb Switch Communication Protocol Data (1) --- Start Flag (Default Is 0Xa0) Data (2) --- Switch Address Codes (0X01 And 0X02 Represent The First And Second Switches, Respectively) Data (3) --- Operating Data (0X00 Is ''Off'', 0X01 Is ''On'') Data (4) --- Check Code Package Included: 1Pcs Noyito Hid Drive-Free Usb Computer Control Switch Relay Module
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Related products
Frequently Asked Questions
Q: What is the working temperature range for the NOYITO USB Relay Module?A: The NOYITO HID Drive-Free USB Relay Module operates within a temperature range of -20°C to +70°C, making it suitable for various environments.
Q: How do I control the relays on the NOYITO USB Relay Module?A: You can control the relays using HID debugging software by sending specific commands through your computer. For example, to turn on the first relay, you would send the command 'A0 01 01 A2'.
Q: Is the NOYITO USB Relay Module compatible with my computer?A: Yes, the NOYITO USB Relay Module is compatible with computers that support USB connections. Ensure to use the module with an external power supply of at least 5V1A for optimal performance.
Q: What should I do if I want to use multiple NOYITO modules on the same computer?A: When using multiple NOYITO modules, you must unplug the previously used module and close the control software before connecting a new one. This allows the software to automatically recognize the new module.
Q: What is the maximum current rating for the relays in the NOYITO USB Relay Module?A: The onboard relays can handle a maximum of 10A for both AC and DC applications, ensuring they can control a wide range of devices effectively.
