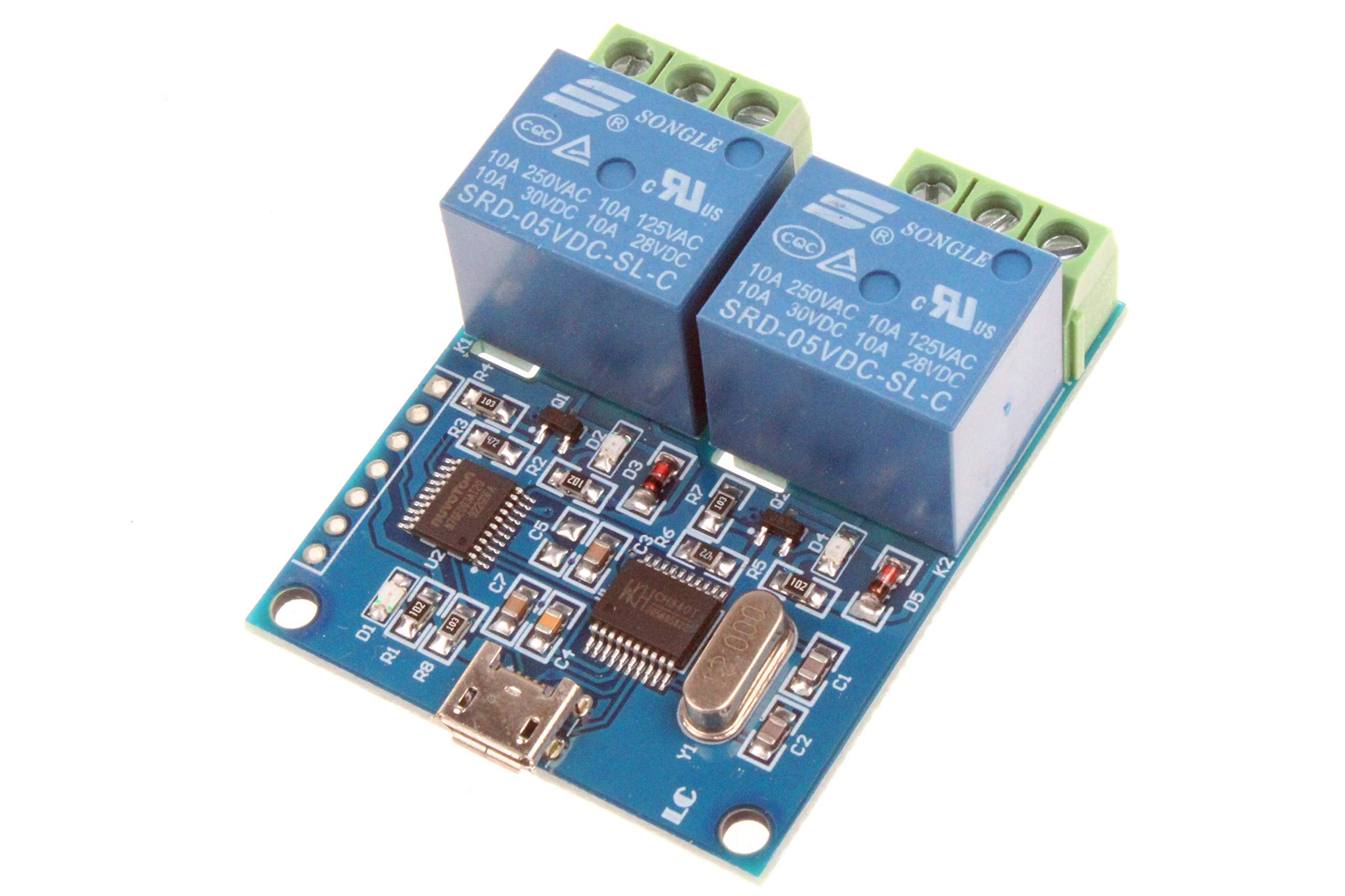

Noyito 2 Channel Micro Usb Relay Module Usb Smart Control Switch Usb Intelligent Control Switch (2 Channel Micro Usb)
$17.27
Regular price
$24.67
-29%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Features: 1. Onboard High-Performance Microcontrollers Chip; 2. Onboard Ch340 Usb Control Chip; 3. Onboard Power Led And Relay Status Led; 4. Onboard 2-Way 5V, 10A / 250Vac, 10A / 30Vdc Relays, Relay Life Can Be A Continuous Pull 10 Million Times; 5. Module With Overcurrent Protection And Relay Diode Freewheeling Protection; Hardware Introduction And Description Board Size: 50 X 40Mm Board Interface Description: Com1: Common; Nc1: Normally Closed; No1: Normally Open. Com2: Common; Nc2: Normally Closed; No2: Normally Open. Communication Protocol Description: Lc Usb Switch Default Communication Baud Rate: 9600Bps Open The First Usb Switch: A0 01 01 A2 Turn Off The First Usb Switch: A0 01 00 A1 Open The Second Usb Switch: A0 02 01 A3 Turn Off The Second Usb Switch: A0 02 00 A2 Usb Switch Communication Protocol Data (1) --- Start Flag (Default Is 0Xa0) Data (2) --- Switch Address Codes (0X01 And 0X02 Represent The First And Second Switches, Respectively) Data (3) --- Operating Data (0X00 Is ''Off'', 0X01 Is ''On'') Data (4) --- Check Code Relay Status Query Command: Send ''Ff'' As Hexadecimal (Hex) To Query. For Example, If Relays 1 And 2 Are On, And Relays 3 And 4 Are Off, Sending The Relay Query Command ''Ff''Will Return: ''Ch1:On R Nch2:On R Nch3: Off R Nch4:Off R N'' (Each Channel Relay Is To Return 10 Byte Sequence Information) Usage Description: 1. Connect The Usb Relay Module To The Computer And Install The Ch340 Usb To Serial Chip Driver 2. Open The Stc-Isp, Sscom32 Such Serial Debugging Software, Select The Baud Rate Of 9600, In Hexadecimal (Hex) Form Send A0 01 01 A2 And A0 02 01 A3 Can Be Opened The First And Second Relay ; Send In Hexadecimal (Hex) A0 01 00 A1 And A0 02 00 A2 Can Be Turned Off The First And Second Relay, Respectively. Package Included: 1Pcs Noyito 5V2-Channel Micro Usb Relay Module
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Related products
Frequently Asked Questions
Q: What is the maximum load capacity of the NOYITO 2-Channel Micro USB Relay Module?A: The NOYITO 2-Channel Micro USB Relay Module can handle a maximum load of 10A at 250VAC or 10A at 30VDC per channel.
Q: How do I install the CH340 USB driver for this relay module?A: To install the CH340 USB driver, connect the NOYITO relay module to your computer via USB. The driver can be downloaded from the manufacturer's website or other trusted sources. Follow the installation instructions provided with the driver.
Q: What software can I use to control the NOYITO relay module?A: You can use serial debugging software such as STC-ISP or SSCOM32 to control the NOYITO 2-Channel Micro USB Relay Module. Set the baud rate to 9600 and send the appropriate hexadecimal commands to operate the relays.
Q: Can I use this relay module with a Raspberry Pi or Arduino?A: Yes, the NOYITO 2-Channel Micro USB Relay Module can be used with both Raspberry Pi and Arduino. You will need to implement the appropriate code to communicate with the relay module via USB.
Q: What safety features does the NOYITO relay module include?A: The NOYITO 2-Channel Micro USB Relay Module includes overcurrent protection and relay diode freewheeling protection, ensuring safe operation and longevity of the relays.
