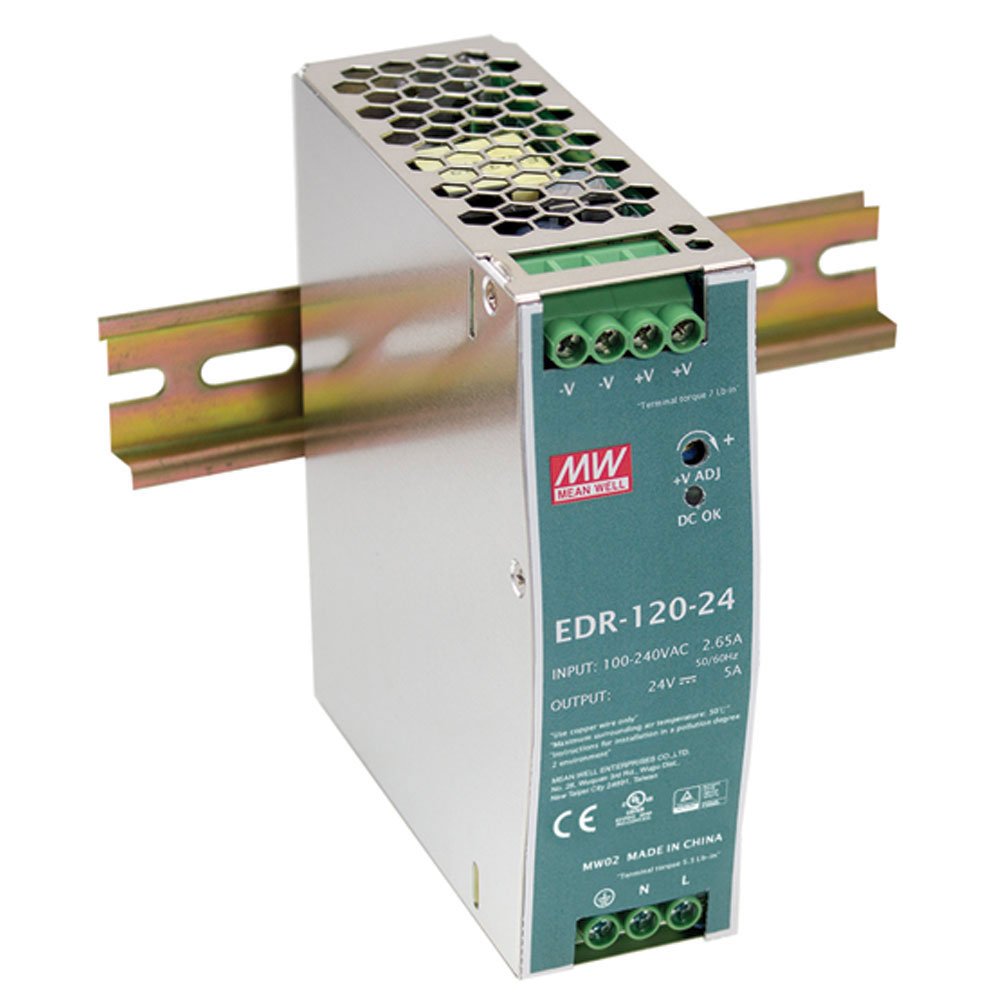

Mean Well Edr 120 24 Single Output Din Rail Power Supply 24V 5 Amp 120W

Frequently Asked Questions

• Q: What are the dimensions of the MEAN WELL EDR-120-24 power supply? A: The dimensions are four point five inches in length, one point six inches in width, and four point nine inches in height. This compact size makes it suitable for DIN rail mounting.
• Q: What materials are used in the MEAN WELL EDR-120-24? A: The power supply is constructed from aluminum. This material provides durability and efficient heat dissipation.
• Q: What is the maximum output power of the EDR-120-24? A: The maximum output power is one hundred twenty watts. It supports a primary output voltage of twenty-four volts.
• Q: How do I install the MEAN WELL EDR-120-24 power supply? A: To install, mount it onto a DIN rail and connect the input power to the screw terminal connectors. Ensure the connections are secure for optimal performance.
• Q: Is the EDR-120-24 suitable for outdoor use? A: No, the MEAN WELL EDR-120-24 is designed for indoor use only. It should be installed in a protective environment to avoid exposure to elements.
• Q: What is the operating temperature range for the EDR-120-24? A: The operating temperature range is from negative twenty degrees Celsius to sixty degrees Celsius. This range ensures reliable performance under various conditions.
• Q: How should I clean the MEAN WELL EDR-120-24 power supply? A: To clean, use a soft, dry cloth to wipe the exterior. Avoid using any liquids or abrasive materials to prevent damage.
• Q: What safety features does the EDR-120-24 include? A: Yes, the EDR-120-24 includes protections against short circuits, over voltage, overload, and over temperature. These features enhance user safety and equipment longevity.
• Q: What should I do if I receive a damaged EDR-120-24 power supply? A: Contact the seller or manufacturer immediately to report the damage. They will guide you through the return or replacement process.
• Q: What is the warranty period for the EDR-120-24? A: The warranty period is two years from the date of purchase. This warranty covers defects in materials and workmanship.
• Q: Can the EDR-120-24 be used with different input voltages? A: Yes, it can accept input voltages ranging from ninety to two hundred sixty-four volts AC. This flexibility allows it to be used in various locations.
• Q: Is the MEAN WELL EDR-120-24 energy efficient? A: Yes, it has an efficiency rating of eighty-seven point five percent. This high efficiency reduces energy consumption and operating costs.
• Q: What type of output connector does the EDR-120-24 have? A: The output connector type is screw terminal. This design allows for secure and reliable connections.
• Q: How does the EDR-120-24 handle overheating? A: The power supply includes over temperature protection, which automatically shuts down the unit to prevent damage from overheating.
• Q: Is the MEAN WELL EDR-120-24 compliant with safety standards? A: Yes, it is compliant with UL, cUL, TUV, CB, and CE safety standards. This compliance ensures it meets international safety requirements.
• Q: What is the load regulation specification for the EDR-120-24? A: The load regulation is one percent. This tight regulation ensures stable output under varying load conditions.
