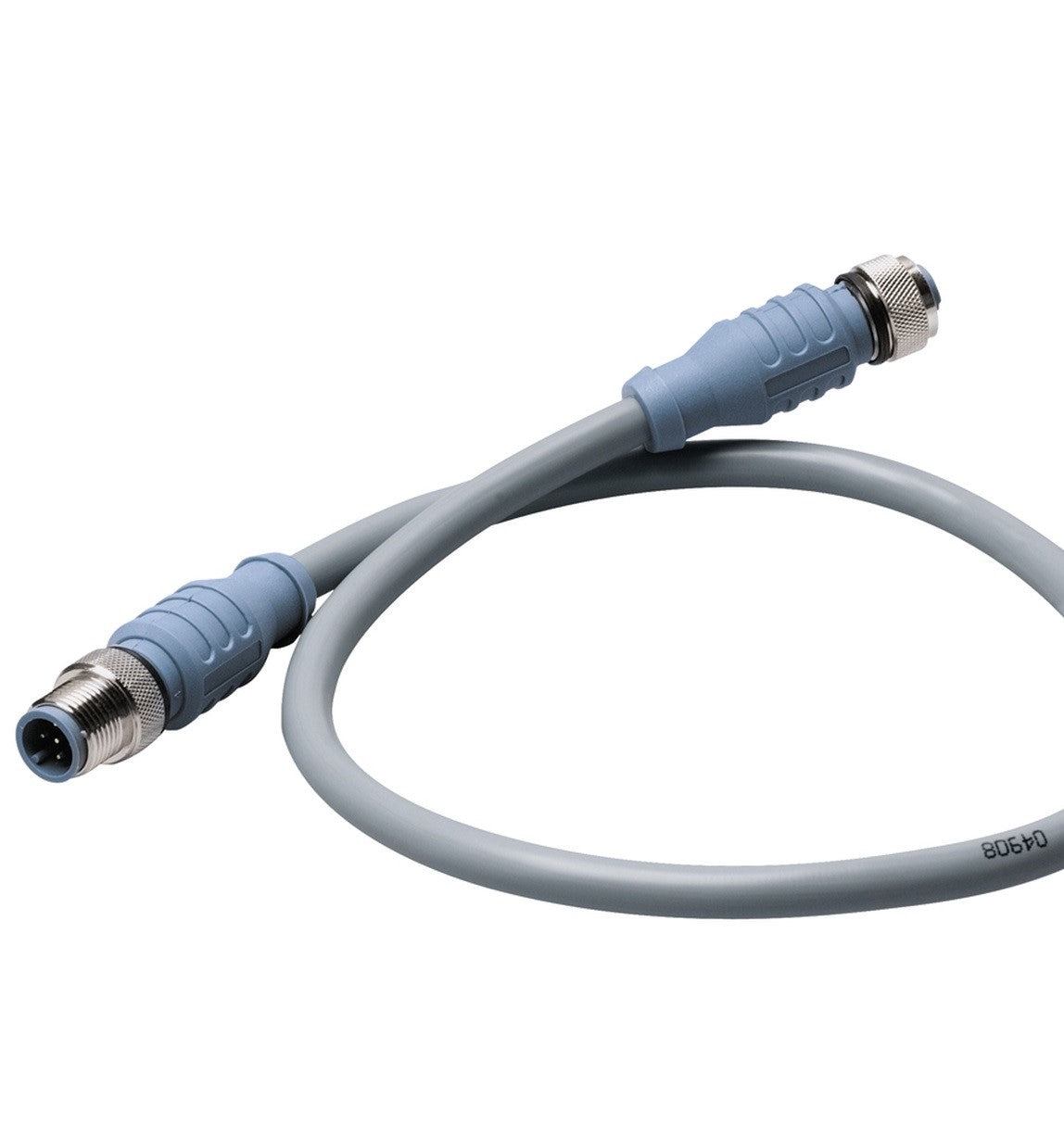

Maretron Micro Cable 4 Meter Male To Female Connectors

Frequently Asked Questions

• Q: What is the length of the Micro Double-Ended Cordset? A: The Micro Double-Ended Cordset is four meters long. This length is ideal for various marine navigation and equipment applications.
• Q: What materials are used in the construction of this cordset? A: The cordset features a thermoplastic polyurethane body and brass plating for the connectors. These materials ensure durability and resistance to environmental factors.
• Q: What is the electrical current rating of the cordset? A: The cordset has an electrical current rating of four amps. It is designed to handle up to two hundred fifty volts.
• Q: How do I properly install the Micro Double-Ended Cordset? A: To install the cordset, connect each end to the respective devices and ensure a secure fit. Refer to the user manual for detailed installation steps.
• Q: Is this cordset suitable for outdoor use? A: Yes, this cordset is suitable for outdoor use. It is rated for NEMA outdoor applications and has a high environmental protection class.
• Q: How many conductors are in the cordset? A: The cordset features four conductors with a gauge of twenty-two AWG. This configuration supports both data and power transmission.
• Q: What temperature range can this cordset withstand? A: The cordset can withstand temperatures from negative forty degrees Celsius to eighty degrees Celsius. This wide range makes it suitable for various environments.
• Q: How should I clean and maintain the cordset? A: To clean the cordset, wipe it with a damp cloth and mild detergent. Avoid using harsh chemicals to preserve the integrity of the materials.
• Q: Is this cordset safe for marine use? A: Yes, the cordset is designed specifically for marine navigation and equipment. It meets relevant safety standards and is NMEA 2000 approved.
• Q: What do I do if the cordset arrives damaged? A: If the cordset arrives damaged, contact customer support immediately for assistance with returns or exchanges. Keep the original packaging for the return process.
• Q: Can I use this cordset for other applications besides marine? A: Yes, while it's designed for marine use, the cordset can also be used in other applications requiring durable power and data connections.
• Q: What kind of shielding does the cordset have? A: The cordset features three levels of foil shielding. This design helps to minimize interference and ensures reliable data transmission.
• Q: What is the IEC protection class of this cordset? A: The cordset has an IEC protection class of IP68. This rating indicates it is dust-tight and can withstand continuous immersion in water.
• Q: Is the cordset sunlight resistant? A: Yes, the cordset is sunlight resistant. It is rated for outdoor use and can withstand exposure to UV light.
• Q: Does this cordset have any specific approvals? A: Yes, the cordset has several approvals including UL and CSA certifications for safety and performance in various electrical applications.
