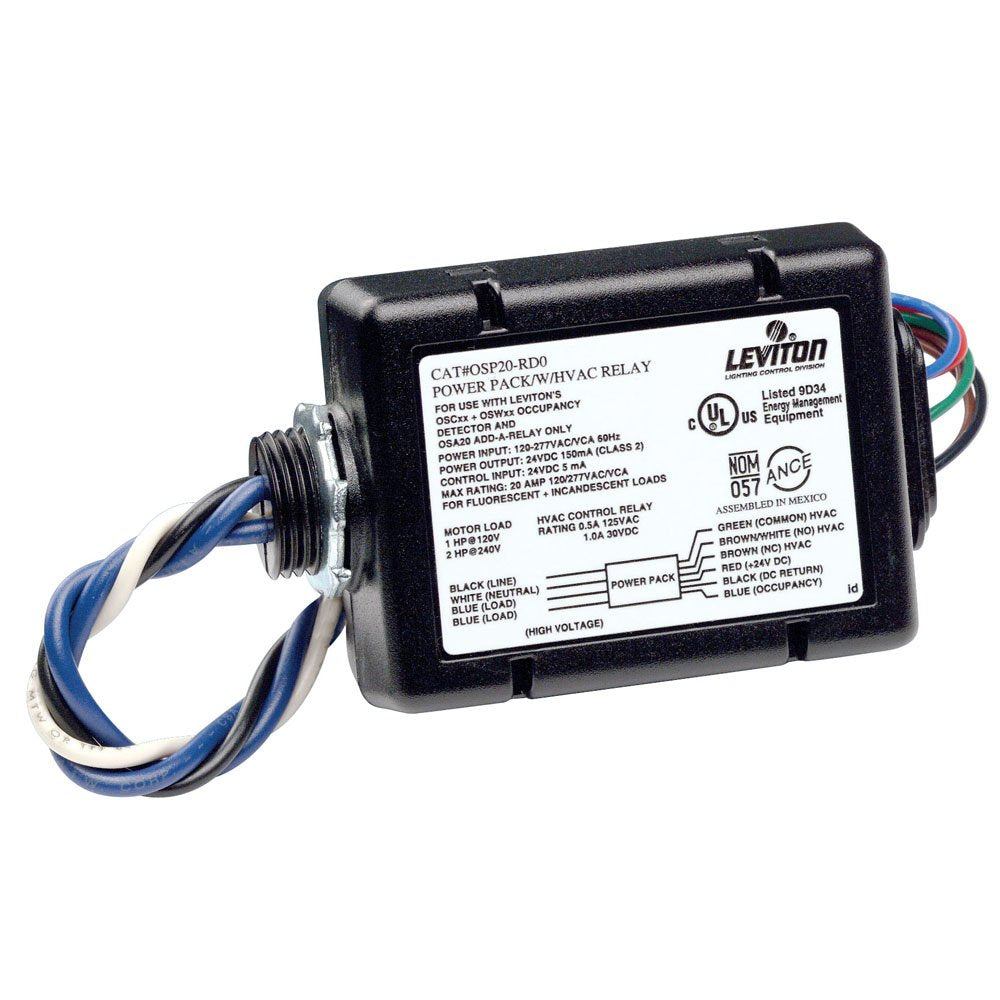

The Leviton Compact Power Pack is an essential device for enhancing energy efficiency and control in various settings. Designed to work seamlessly with Leviton Occupancy Sensors, this power pack provides reliable low voltage power and line voltage control, making it perfect for both residential and commercial applications.
This power pack features a robust 24VDC supply and a 20A line voltage relay, accommodating a variety of load types. The compact design allows for easy installation in standard junction boxes, either inside or outside, ensuring versatility in setup. With its capability to control up to 20 Amps for various ballast loads and incandescent lighting, the Leviton Compact Power Pack is a practical choice for optimizing lighting solutions in classrooms, conference rooms, offices, and other spaces where optimal lighting and energy savings are crucial.
Key Features:
Compatible with all OS Series Occupancy Sensors and Add-A-Relay models.
Switches a variety of loads including incandescent, magnetic, and electronic fluorescent lights.
Compact and lightweight design facilitates easy mounting through knockout holes in junction boxes.
Approved for mounting in ballast channel cavities, enhancing installation flexibility.
Features Hold-ON and Hold-OFF capabilities for customizable control.
Local input available for momentary or maintained dry contact switches.
Reliable performance with up to 20A control for 120, 230, 277VAC ballast loads and 15A for 347VAC.
The Leviton Compact Power Pack is ideal for those seeking to improve energy efficiency while maintaining effective lighting control. Its multifunctionality makes it suitable for various applications, from educational facilities to corporate environments. By utilizing this power pack in conjunction with Leviton Occupancy Sensors, users can significantly reduce energy consumption and ensure optimal lighting conditions, making it a valuable addition to any space focused on sustainability and energy savings.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Leviton OSP20-RD0 Power Pack?A: The dimensions are three point ninety-four inches long, zero point seventy-nine inches wide, and one point zero six inches high.
Q: What kind of materials is the Leviton OSP20-RD0 made from?A: The power pack is constructed primarily from durable plastic and metal components, ensuring reliability and longevity.
Q: What voltage does the Leviton OSP20-RD0 operate on?A: The power pack operates on one hundred twenty to two hundred seventy-seven volts AC.
Q: How do I install the Leviton OSP20-RD0 Power Pack?A: To install, simply mount the power pack in a knockout hole of a standard junction box using a twist-on nut for secure placement.
Q: Can I use the OSP20-RD0 with any occupancy sensors?A: Yes, the OSP20-RD0 is compatible with all OS Series Occupancy Sensors for efficient operation.
Q: What types of loads can the Leviton OSP20-RD0 control?A: The power pack can control up to twenty amps for fluorescent, incandescent, and various motor loads.
Q: How do I clean the Leviton OSP20-RD0 Power Pack?A: To clean, use a damp cloth and mild soap to wipe down the exterior, avoiding excess moisture on electrical components.
Q: Is the Leviton OSP20-RD0 safe for outdoor use?A: Yes, it can be used outdoors, provided it is mounted properly and protected from direct exposure to water.
Q: What is the warranty on the Leviton OSP20-RD0 Power Pack?A: The power pack comes with a limited warranty, typically covering defects in materials and workmanship for one year.
Q: Can the OSP20-RD0 be used in bi-level lighting applications?A: Yes, it is ideal for bi-level lighting applications, optimizing energy efficiency and lighting control.
Q: Does the Leviton OSP20-RD0 require special tools for installation?A: No, standard tools are sufficient for installation, typically requiring only a screwdriver for mounting.
Q: What if the Leviton OSP20-RD0 arrives damaged?A: If the power pack arrives damaged, contact customer support for assistance with returns or exchanges.
Q: How does the OSP20-RD0 handle multiple load types?A: The power pack effectively switches between incandescent, magnetic, and electronic fluorescent loads without issue.
Q: Is the Leviton OSP20-RD0 energy efficient?A: Yes, it is designed to optimize energy savings when used with occupancy sensors in various settings.
Q: What should I do if the power pack doesn’t operate correctly?A: If it malfunctions, check the connections and ensure it is compatible with your occupancy sensors; consult the manual if needed.
