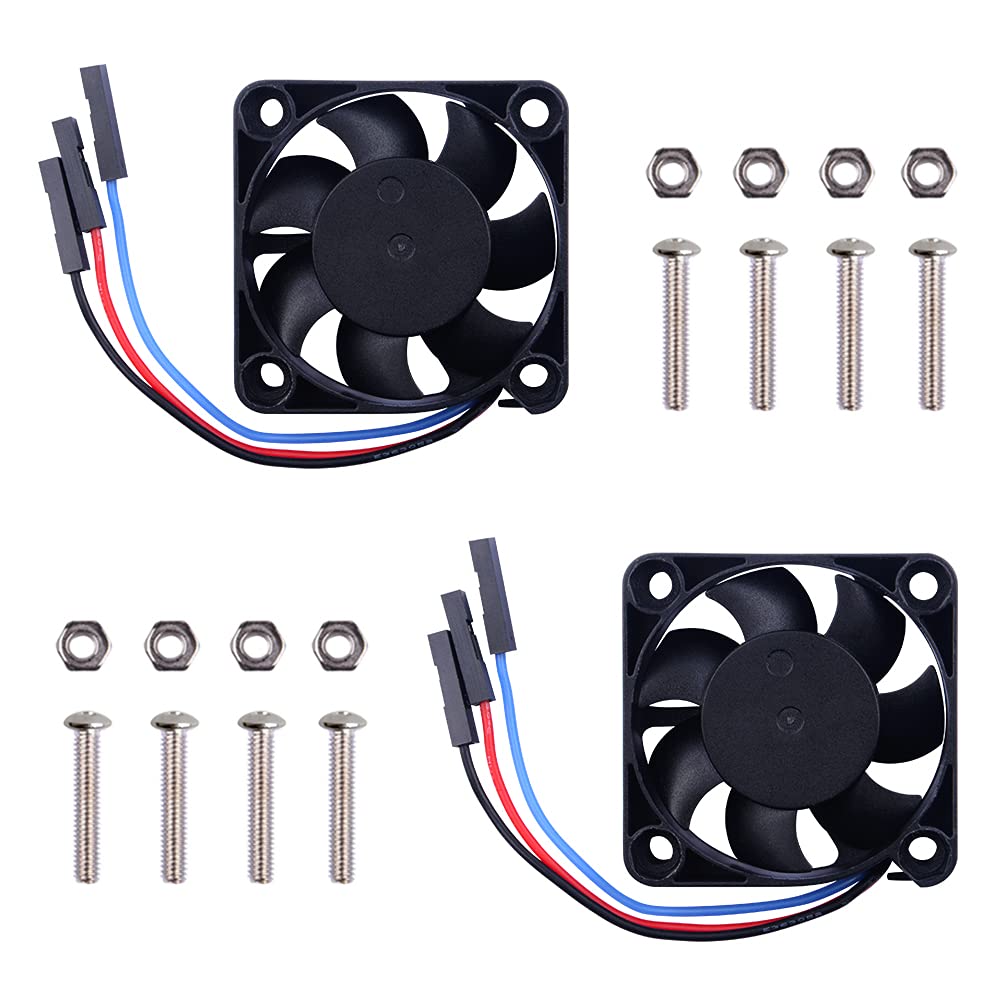

Description: This is a fan that can be adjusted by PWM. The official Raspberry Pi OS supports the speed adjustment function. You can also control the speed of the fan by controlling the GPIO pin through a third-party program. How to configure fan in Raspberry Pi OS: How to configure fan in Raspberry Pi OS,please refer to wiki:https://wiki.52pi.com/index.php/5V_Adjustable_speed_fan_for_RPi_SKU:_F-0011 Features: Support PWM speed regulation Silent fan Reliable quality Easy to configure Specification: Rated Voltage: DC 5V Operation Voltage: DC 4.5~6V Start-up Voltage: DC=4 (At 25? power on/off)V Current: 0.050.02A Operation Current: 0.070.02A Input Power:0.25W Speed(At 25?,To record speed afler fan running normal,This time about 3~5minutes): 400010%RPM Air Flow(at zero static pressure): 4.27CFM Air Pressure(at zero air flow):2.1mmH2O Acousitical Noise (AVG.):20.1dB(A) Insulation Type:CLASS A(105)NA Insulation Strength:Under the condition of 500V DC voltage, the impedance between the outer frame and the terminal line is not less than 10 Megohm Dielectric Strength:Under the condition of 600V/50Hz alternating current for one minute, the current between the outer frame and the terminal line No more than 5MA Life Expectancy:It is expected to be normal when the ambient temperature is 25? and the relative temperature is 15-65%RH 20,000 hours of work Rotation:counterclockwise Logo side Lead Wire:Black single DuPont terminal silicone black red blue wire 28# L=80mm Package Includes: 2 x 5V Adjustable speed fan for RPi 8 x M2.5 Lone screw 8 x M2.5 Nut
