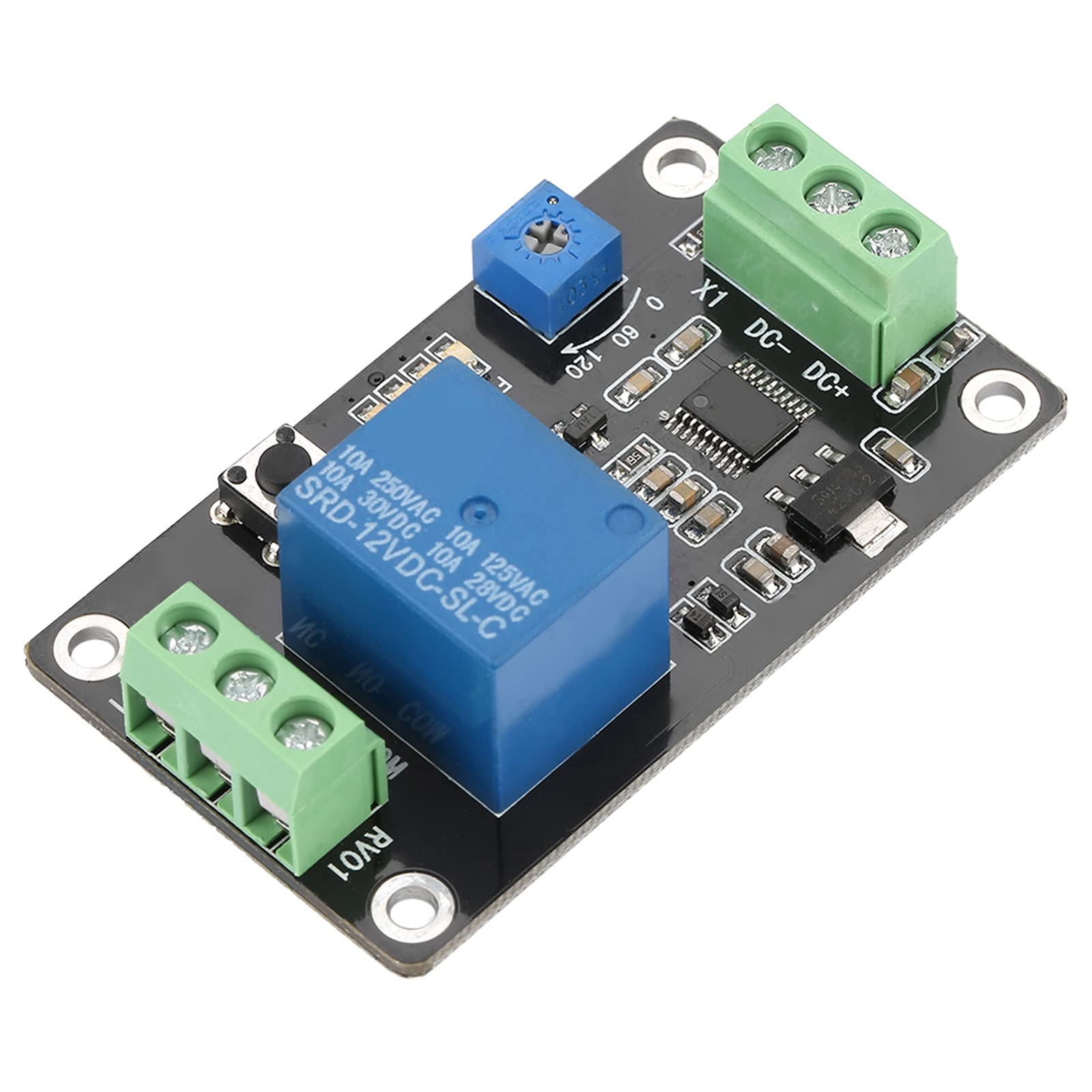

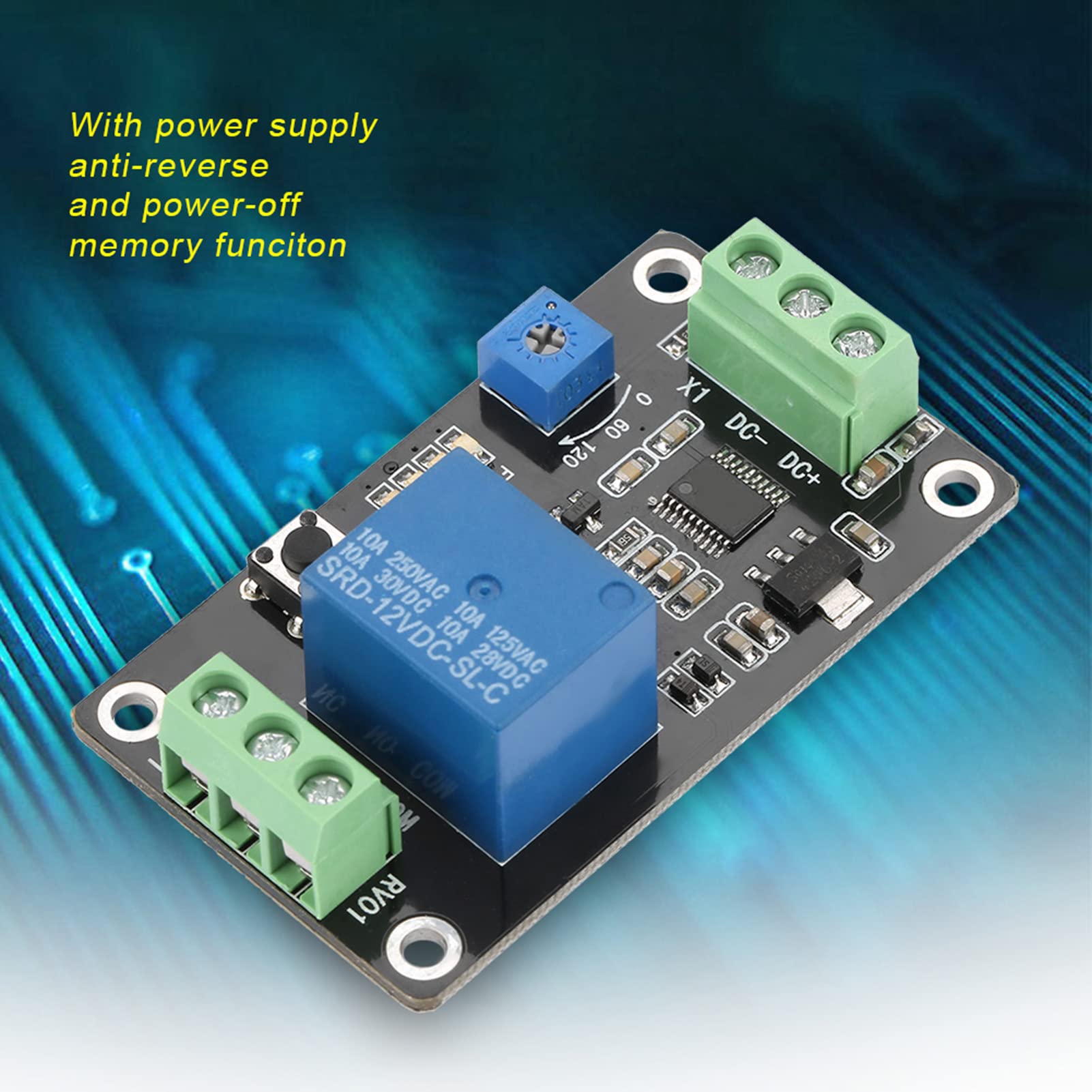

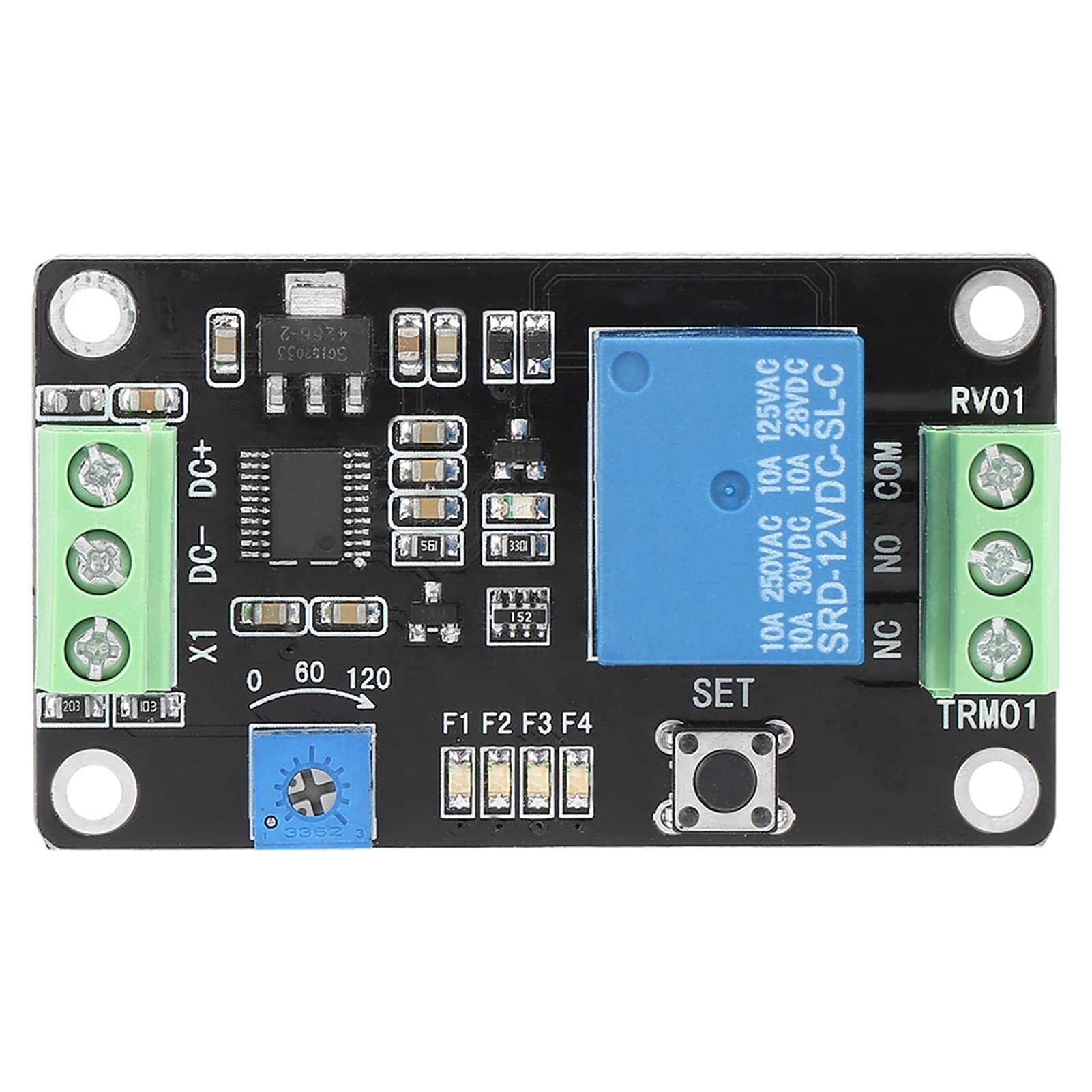

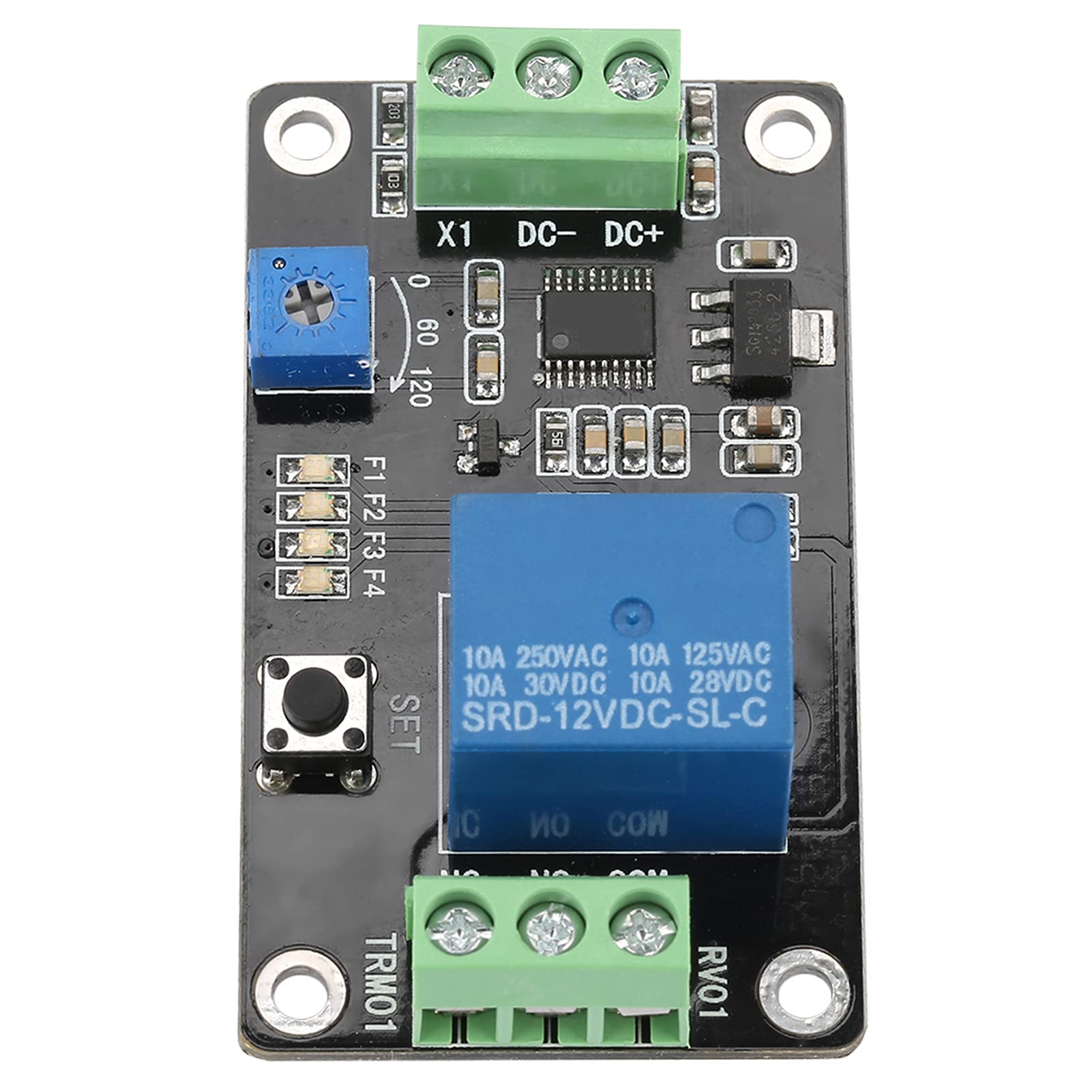

Delay Timer Relay Self Locking Delay On Off Time Switch Loop Module Super 555 Timer Dc 5V/12V/24V(Dc12V)
$13.35
Regular price
$19.07
-29%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

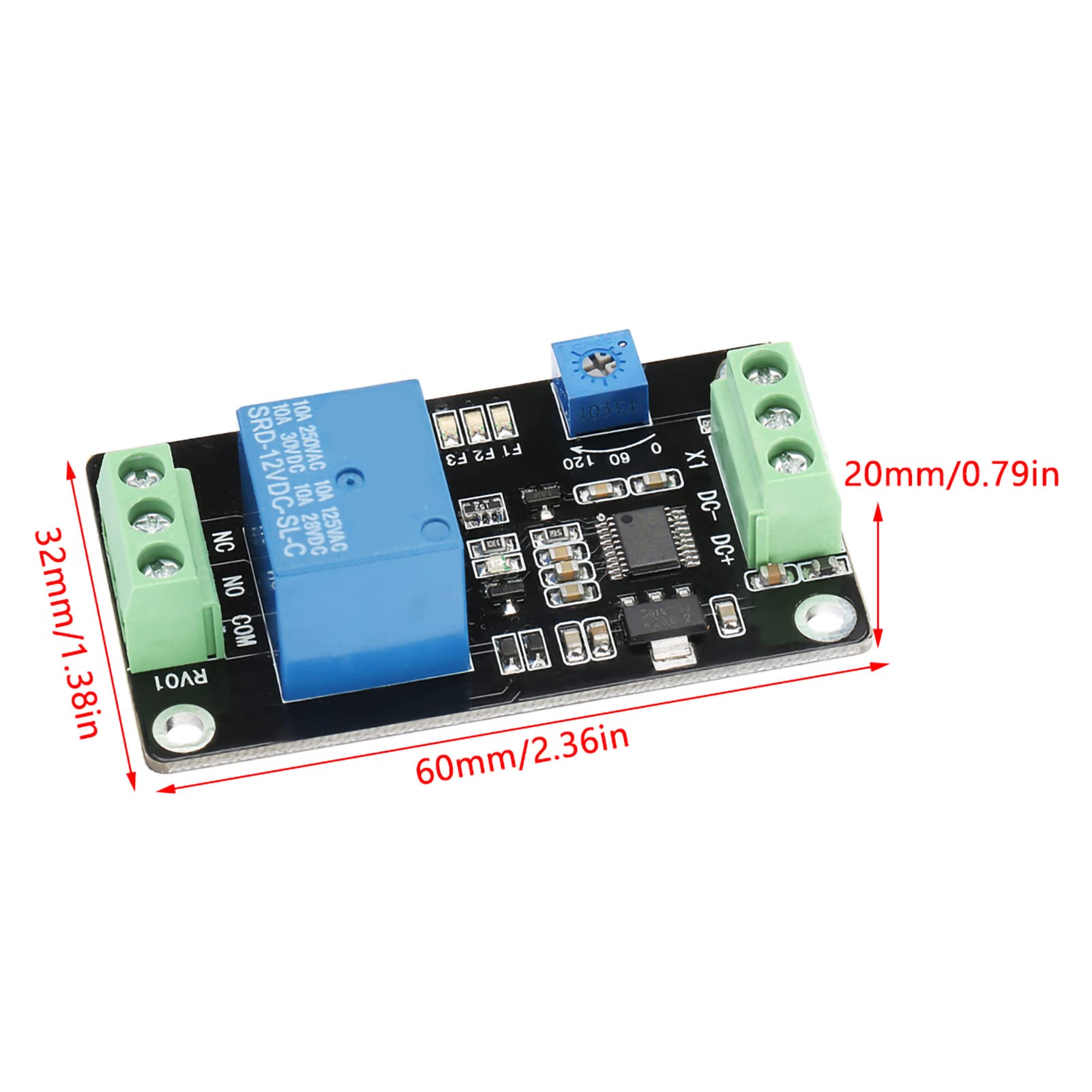

Specification: Working Voltage: Dc 5V, 12V, 24V (Optional) Working Current: ≪80Ma At 5V (≪1Ma When The Relay Is Not Operating) ≪35Ma At 12V ≪1Ma When The Relay Is Not Operating) ≪18Ma At 24V (≪1Ma When The Relay Is Not Operating) Load Capacity: -Normally Open Port: Dc 0-30V/10A, Ac 0-250V/10A -Normally Closed Port: Dc 0-28V/10A, Ac 0-125V/10A Working Temperature: -20~60? (Limit Range -30~70?) Size: 60*35*20Mm / 2.36*1.38*0.79In Package Weight: Approx. 23G Module Function: The User Can Select One Of The Following Four Functions By Pressing The Button. The Delay Time Can Be Selected By Adjusting The Potentiometer. The Delay Time T1 Can Be Adjusted Between 0.1 Second And 120 Seconds. Function F1: Power-On Delay Pull-In: After The Delay Of T1 From The Start Of Power-On, The Relay Pulls In And Sends A High-Level Pulse To The X1 Interface At Any Time. This Function Resets And Restarts. Function F2: The Power-On Delay Is Disconnected: The Relay Is Closed When The Power Is Turned On. After The T1 Time Is Closed, The Relay Is Disconnected, And A High-Level Pulse Is Given To The X1 Interface At Any Time. This Function Is Reset And Restarts. Function F3: Self-Locking Relay Mode: A High-Level Pulse Is Sent To The Relay X1 Interface, The Relay Is Closed, And A High-Level Pulse Relay Is Turned Off. Function F4: Level Mode: When The Power Is Turned On, The Relay Is Disconnected, And A High Level Is Sent To The X1 Interface. The Relay Immediately Picks Up. After The X1 Port Disappears, The Relay Still Pulls In. When The Pull-In Time T1 Arrives, The Relay Turns Off. Package List: 1 * Delay Timer Relay
