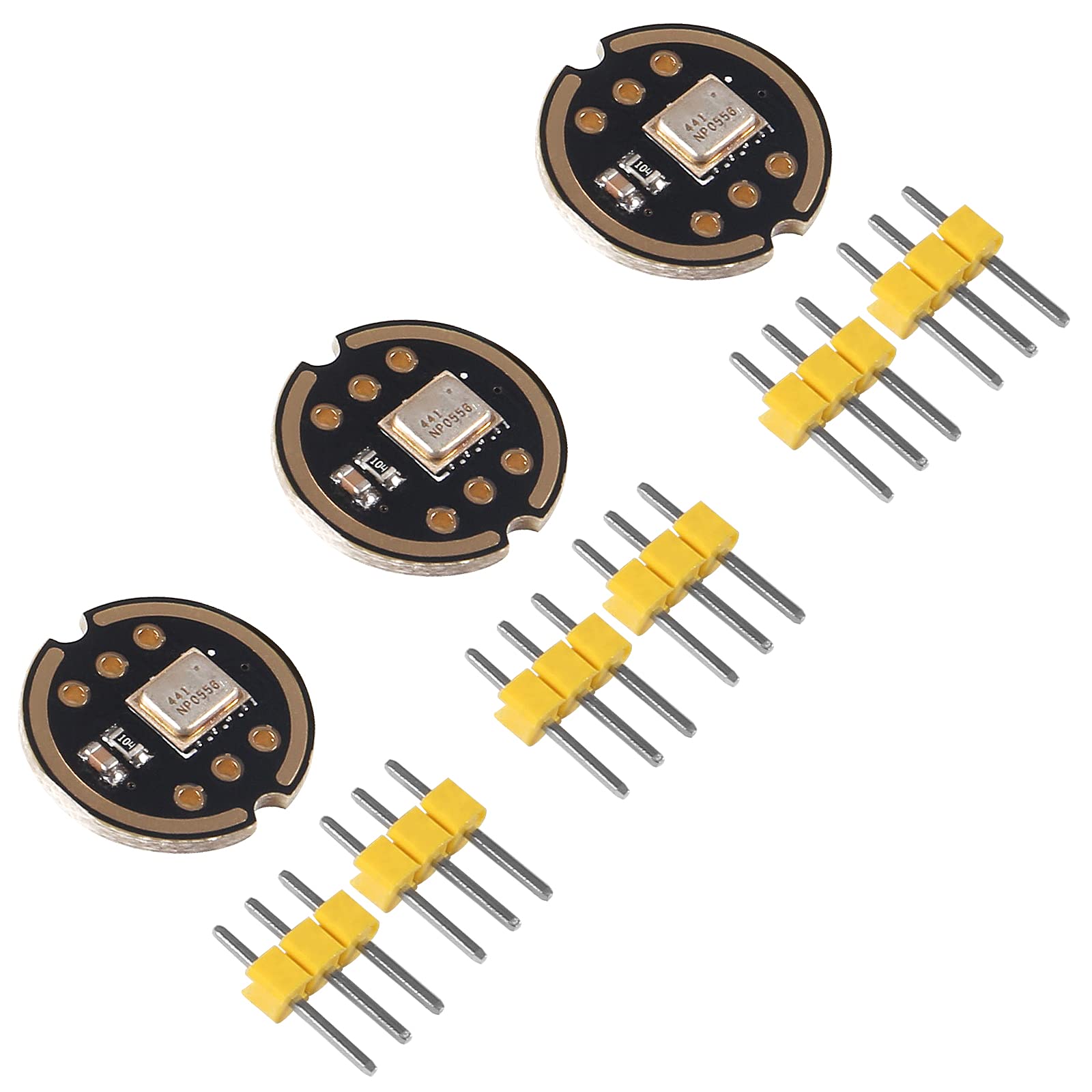

ATNSINC 3PCS INMP441 Omnidirectional Microphone Module - I2S Interface, High Precision, Low Power, Ideal for ESP32 Projects

Frequently Asked Questions

• Q: What is the output voltage range for the INMP441 microphone module? A: The output voltage range is from one point eight volts to three point three volts. This allows compatibility with various digital processors.
• Q: What is the signal-to-noise ratio of this microphone? A: The signal-to-noise ratio is sixty-one decibels A-weighted. This high ratio ensures clear audio capture for high-fidelity applications.
• Q: What is the frequency response range of the INMP441? A: The frequency response range is from sixty hertz to fifteen kilohertz. This wide range captures a variety of audio frequencies effectively.
• Q: How do I connect the INMP441 to an ESP32 module? A: Connect the INMP441 by linking SCK to GPIO fourteen, SD to GPIO thirty-two, WS to GPIO fifteen, L/R to ground, and VDD to VDD three point three volts.
• Q: Is the INMP441 microphone suitable for low-power applications? A: Yes, it has a low current consumption of one point four milliamps. This makes it ideal for battery-operated devices.
• Q: Can I use the INMP441 with a Raspberry Pi? A: Yes, the INMP441 can be used with a Raspberry Pi. You will need to connect it using the I2S interface for audio applications.
• Q: What type of applications is the INMP441 best suited for? A: The INMP441 is ideal for near-field applications such as voice recognition and audio recording in small meetings. Its omnidirectional pickup pattern makes it versatile.
• Q: Is the INMP441 microphone module easy to install? A: Yes, it is designed for easy installation with clear pin definitions for I2S connections. This user-friendly design simplifies integration into projects.
• Q: What kind of tutorials are provided for using the INMP441? A: Tutorials include detailed instructions for setting up the INMP441 with ESP32 modules and guidance on utilizing I2S functionality effectively.
• Q: What is the sensitivity rating of the INMP441 microphone? A: The sensitivity rating is negative twenty-six decibels full scale. This high sensitivity allows it to capture faint sounds clearly.
• Q: Does the INMP441 require an external audio codec? A: No, it connects directly to digital processors without needing an external audio codec. This simplifies your audio processing setup.
• Q: What is included in the package when I buy the INMP441? A: The package includes three pieces of the INMP441 microphone module. This allows for multiple applications or replacements.
• Q: What is the PSR rating of the INMP441 microphone? A: The power supply rejection ratio is negative seventy-five decibels full scale. This ensures stable performance even with voltage fluctuations.
• Q: Is the INMP441 suitable for outdoor use? A: While the INMP441 can be used outdoors, it is best suited for controlled environments due to its sensitivity to ambient noise.
• Q: What type of microphone is the INMP441? A: The INMP441 is an omnidirectional MEMS microphone. Its design allows it to pick up sound from all directions effectively.
• Q: Can I use this microphone for music recording? A: Yes, the INMP441 can be used for music recording. Its high precision and wide frequency response make it suitable for capturing musical performances.
