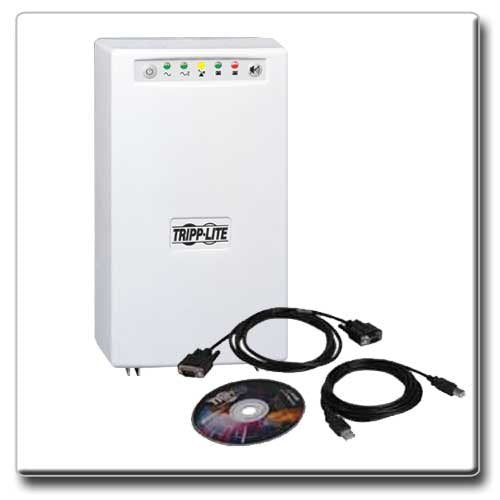

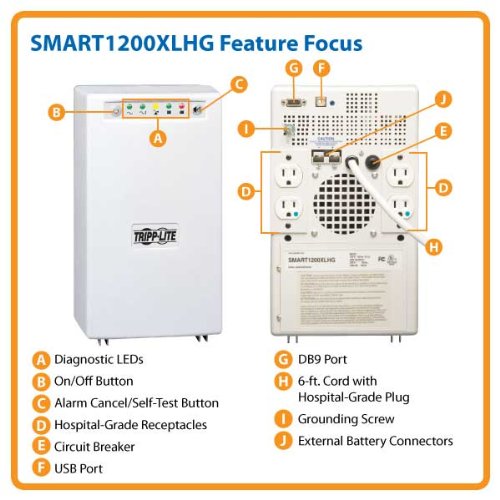

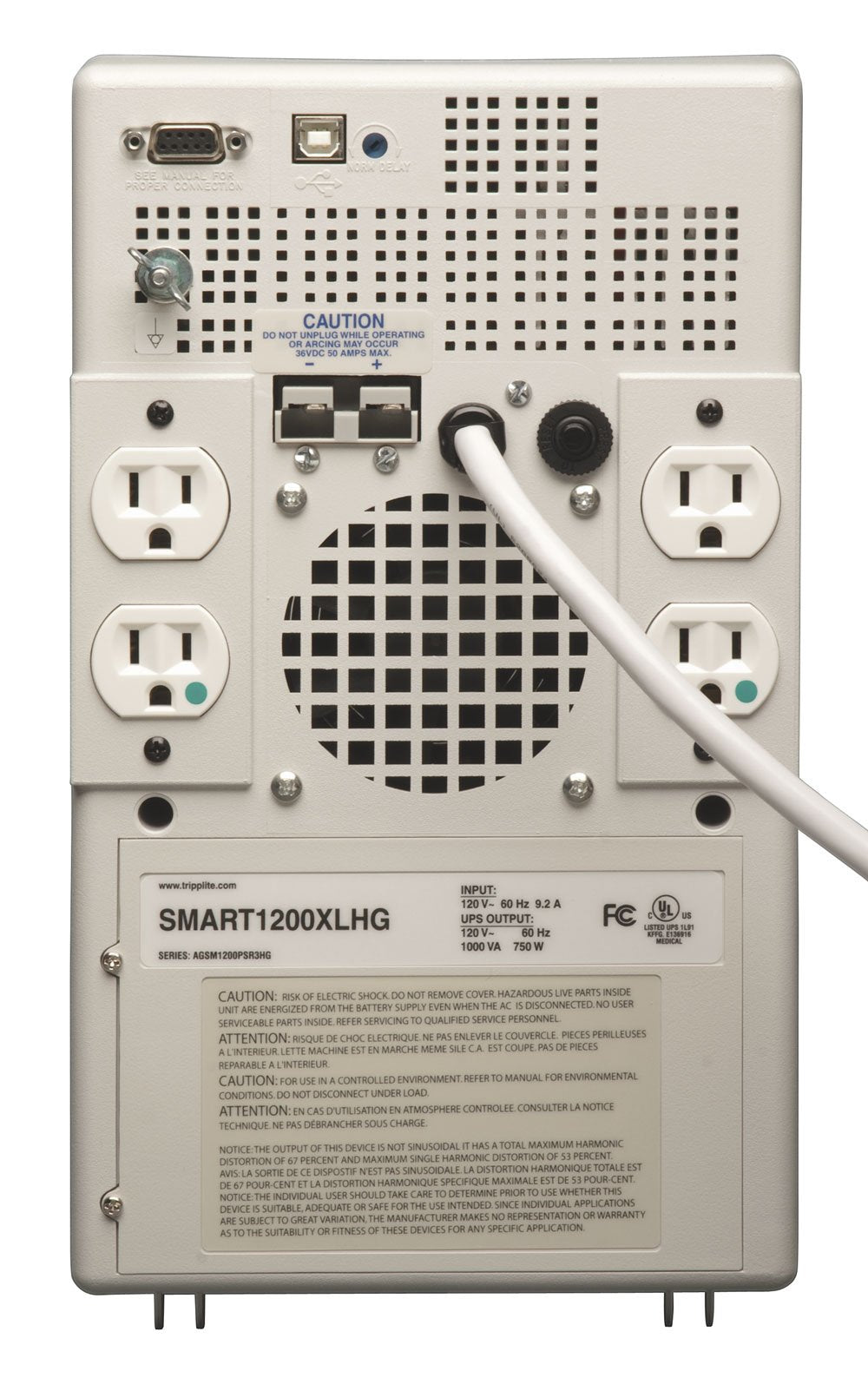

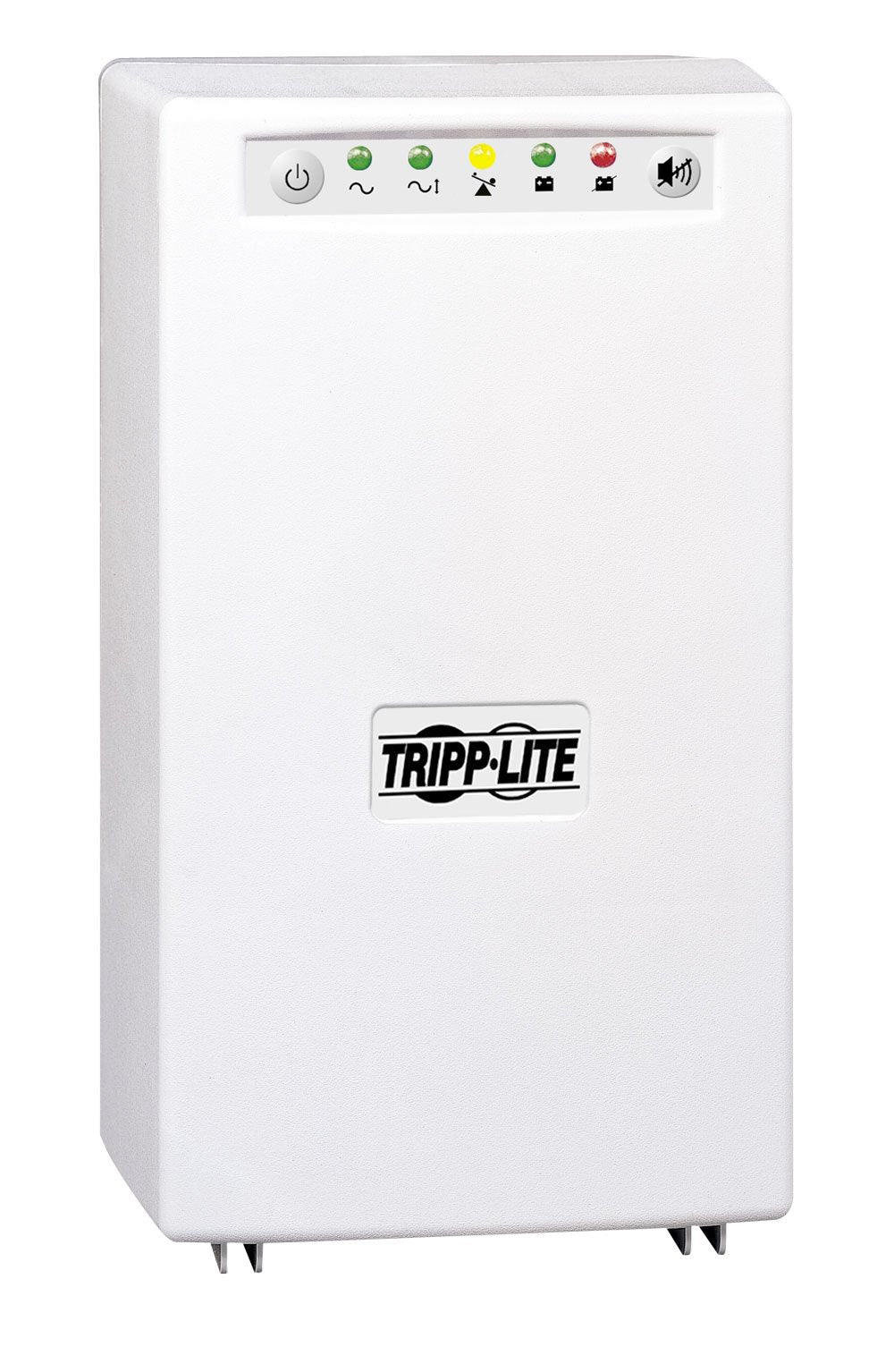

Ul 60601-1 Compliant Protection For The Patient Care Areaul 60601-1 Compliance Is Required For Ups Systems Within Patient Care Areas. Get Complete, Compliant Power Protection With Tripp Lites Smart1200Xlhg Smartpro Medical Ups System. The Smart1200Xlhg Provides Full Ul 60601-1 Compliance And Protects Connected Medical Equipment Against Data Loss, Downtime And Equipment Damage Due To Power Outages, Voltage Fluctuations And Transient Surges. The Smart1200Xlhg Is Fully Approved For Use Within Patient Care Areas And Features 4 Hospital-Grade 5-15R Outlets. Featuring A 1000Va/750W Capacity And Advanced Line-Interactive Operation, It Provides Regulated 120V Nominal Output Without Using Battery Power During Brownouts And Overvoltages. Large Internal Batteries Support Connected Equipment During Blackouts. The Smart1200Xlhg Features A Usb Communication Port That Works With Included Poweralert Software To Provide Ups And Site Power Monitoring Plus Automatic File Saves And Safe Unattended Shutdown Of Connected Equipment In The Event Of A Prolonged Power Failure. For Peace Of Mind, The Smart1200Xlhg Comes Backed By A 2-Year Warranty. Smart1200Xlhg Feature Focusview Larger Smart1200Xlhg In Useview Larger Full Isolation And Shock Preventionwith Built-In Faraday Shielding And High-Quality, Hospital-Grade Ac Receptacles, The Smart1200Xlhg Provides Full Line Isolation And Reduces The Cumulative Leakage Current Of Connected Equipment To Less Than 100 A For Optimal Safety In Patient Care Areas. Full Isolation Also Provides Continuous Noise Filtering And Enhanced Common Mode Surge Suppression. Reliable, Expandable Battery Backup And Automatic Voltage Regulationups Battery Backup Keeps Connected Equipment Operational Through Short Power Failures, And Provides Time To Save Data And Perform An Orderly System Shutdown In Case Of A Prolonged Blackout. The Smart1200Xlhg Features A Large Internal Battery That Provides 28 Minutes Of Battery Support For A Half Load (375 Watts) And 10 Minutes For A Full Load (750 Watts). During Normal Operation, Incoming Utility Power Keeps The Ups Battery Fully Charged So That Backup Power Will Always Be Available If Needed. Optional External Battery Packs (Bp36V15-2U, Bp36V42-3U And Bp36V27-2Us) Provide Extended Runtime Tailored To Your Application. The Smart1200Xlhg Also Features Automatic Voltage Regulation (Avr) That Corrects Brownouts As Low As 82V And Overvoltages As High As 142V To A Nominal 120V, Providing Safe, Computer-Grade Power To All Connected Components, Without Consuming Battery Power Needed To Support Equipment Through Blackouts. Surge Suppression And Emi/Rfi Line Noise Filteringa Sudden Power Surge Or Spike Can Damage Or Destroy Electronic Components And Wipe Out Irreplaceable Data. The Smart1200Xlhg Features A 480-Joule Surge Suppression Rating To Protect Connected Components And Data From The Harmful Effects Of Power Surges. The Smart1200Xlhg Also Incorporates Full-Isolation Technology That Filters Out Disruptive Line Noise, Preventing It From Affecting Your Equipment. Usb & Db9 Ports And Included Poweralert Softwarethe Smart1200Xlhg Features Usb And Db9 Communication Ports (Cable Included). Used With Tripp Lites Included Poweralert Software, These Ports Provide Automatic Ups And Line Power Status Messaging (On Battery, Low Battery, Power Restored, Ac Line Voltage, Dc Battery Voltage And Remaining Battery Capacity), Unattended Shutdown, Timed Inverter Shutoff After Unattended Shutdown, And Ups Output Power Control For Delayed Or Immediate Reboot Of Connected Devices. Also Included: Poweralert Software And Cabling, Warranty Information, Instruction Manualview Larger 2-Year Warranty And Environmentally Responsible Designthe Smart1200Xlhg Is Manufactured In Compliance With Strict Rohs Specifications, Reflecting Tripp Lites Commitment To Environmental Responsibility. For Peace Of Mind, It Comes Backed By A 2-Year Warranty.Tripp Lite Smart1200Xlhg Smartpro Medical-Grade Ups System: Complete, Ul 60601-1-Compliant Protection For Electrical Equipment Within Patient Care Areas Provides Full Line Isolation And Reduces The Cumulative Leakage Current Of Connected Equipment To Less Than 100A For Optimal Safety High 1000Va/750W Load Capacity Advanced Line-Interactive Operation Corrects Brownouts And Overvoltages Reliable, Expandable Battery Backup Keeps Equipment Running Through Blackouts 4 Battery-Supported, Hospital-Grade 5-15R Outlets Included Poweralert Software For Safe Unattended File Saves And Shutdown 2-Year Product Warranty And Rohs-Compliant Design
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Tripp Lite SMART1200XLHG UPS?A: The dimensions are nine point five three inches in length, seven point five two inches in width, and twelve point five inches in height.
Q: What material is the Tripp Lite SMART1200XLHG made of?A: The Tripp Lite SMART1200XLHG is made of metal, providing durability and reliability for use in critical environments.
Q: What is the load capacity of the Tripp Lite SMART1200XLHG?A: The load capacity is one thousand VA or seven hundred fifty watts, suitable for various medical and electronic devices.
Q: How do I set up the Tripp Lite SMART1200XLHG UPS?A: Simply connect the UPS to a standard outlet, plug your devices into the hospital-grade outlets, and ensure the battery is charged.
Q: Is the Tripp Lite SMART1200XLHG suitable for medical equipment?A: Yes, it is UL 60601-1 compliant, making it safe for use with medical and patient care equipment.
Q: How do I monitor the Tripp Lite SMART1200XLHG UPS?A: You can monitor it using the included PowerAlert software via the USB communication port for real-time status updates.
Q: How do I care for the Tripp Lite SMART1200XLHG UPS?A: Keep the UPS in a cool, dry place, and regularly check for dust accumulation. Ensure connections are secure to maintain performance.
Q: What is the battery life of the Tripp Lite SMART1200XLHG?A: The internal battery provides approximately twenty-eight minutes of support at half load and ten minutes at full load during outages.
Q: Can the Tripp Lite SMART1200XLHG be used outdoors?A: No, the SMART1200XLHG is designed for indoor use only to protect it from environmental damage.
Q: What is the warranty period for the Tripp Lite SMART1200XLHG?A: It comes with a two-year warranty, ensuring coverage against manufacturing defects.
Q: How does the Tripp Lite SMART1200XLHG protect against power surges?A: It features a four hundred eighty joule surge suppression rating to safeguard connected devices from electrical spikes.
Q: What additional features does the Tripp Lite SMART1200XLHG include?A: It includes automatic voltage regulation, ensuring a stable output voltage to connected equipment.
Q: Can I expand the battery backup for the Tripp Lite SMART1200XLHG?A: Yes, you can connect optional external battery packs for extended runtime tailored to your needs.
Q: What should I do if the Tripp Lite SMART1200XLHG arrives damaged?A: Contact customer support immediately to initiate a return or replacement process under warranty.
Q: Does the Tripp Lite SMART1200XLHG require special installation?A: No special installation is required; just follow the setup instructions provided in the user manual.
Q: Is the Tripp Lite SMART1200XLHG RoHS compliant?A: Yes, it is RoHS compliant, reflecting Tripp Lite’s commitment to environmental responsibility.
