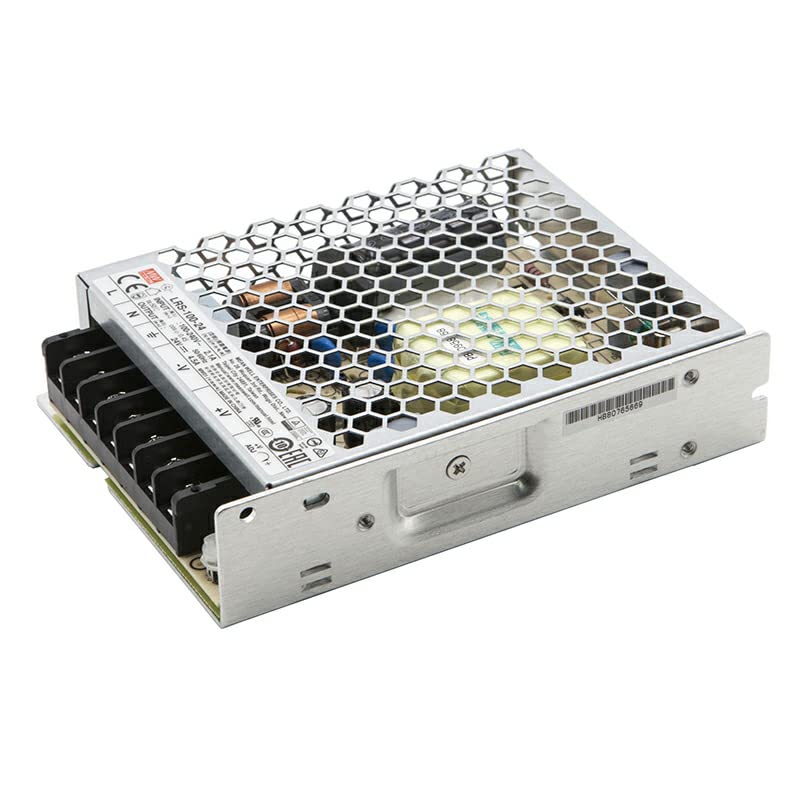

Meanwell Lrs 100 24 Power Supply 100W 24V
$27.37
Sold Out
Features:
No Load Power Consumption <0.2W For 35W/50W; <0.3W For 75W/100W
Universal Ac Input / Full Range
Withstand 300Vac Surge Input For 5 Seconds
Ultra Compact And 1U Low Profile
Withstand 5G Vibration Test
High Operating Temperature Up To 70Oc
Protections: Short Circuit / Overload / Over Voltage
Cooling By Free Air Convection
Compliance To Iec/En60335-1(Pd3) And Iec/En61558-1,-2-16 For Household Appliances
Operating Altitude Up To 5000 Meters
High Efficiency, Long Life And High Reliability
Led Indicator For Power On
Low Cost
3 Years Warranty
General Specification (Please Refer To Images Below For Detailed Datasheet)
Ac Input Voltage Range:85~264Vac; 120~370Vdc
Ac Inrush Current (Max.):Cold Start, 45A At 230Vac
Dc Adjustment Range:�10% By Potentiometer
Overload Protection Range:110%~150%
Overload Protection Type:Hiccup Mode, Auto-Recovery
Over Voltage Protection Range:115%~135% Rated Output Voltage
Over Voltage Protection Type:Shut Down O/P Voltage, Re-Power On To Recover
Withstand Voltage:3.75Kvac, I/P-Fg: 2Kvac, O/P-Fg: 1.25Kvac, 1 Minute
Working Temperature:-30~+70�C (Refer To Output Derating Curve)
Safety Standards:Ul60950-1, Iec/En60950-1, Iec/En61558-1, En61558-2-16, Iec/En60335-1, Ccc Gb4943 Approved
Emc Standards:En55022 Class B, En55014, En61000-3-2, 3, En61000-4,2,3,4,5,6,8,11, Gb9254
Connection:5P/9.5Mm Pitch Terminal Block
Dimension (Lxwxh):129X 97X 30
⚠️ WARNING (California Proposition 65):www.P65Warnings.ca.gov .
Frequently Asked Questions
Q: What are the dimensions of the MeanWell LRS-100-24 Power Supply?
A: The dimensions are one hundred twenty-nine millimeters long, ninety-seven millimeters wide, and thirty millimeters high.
Q: What is the input voltage range for this power supply?
A: The input voltage range is eighty-five to two hundred sixty-four volts AC and one hundred twenty to three hundred seventy volts DC.
Q: What is the wattage of the MeanWell LRS-100-24 Power Supply?
A: The wattage is one hundred watts at twenty-four volts.
Q: How do I install the MeanWell LRS-100-24 Power Supply?
A: To install, connect the five-pin terminal block to your device, ensuring correct voltage and polarity.
Q: Is the MeanWell LRS-100-24 Power Supply suitable for outdoor use?
A: No, this power supply is designed for indoor use only and should be kept away from moisture.
Q: What kind of protections does this power supply have?
A: It has short circuit, overload, and over voltage protections built-in.
Q: How do I keep the MeanWell LRS-100-24 Power Supply in good condition?
A: Keep it in a dry, ventilated area, and avoid exposing it to extreme temperatures.
Q: What is the warranty period for the MeanWell LRS-100-24 Power Supply?
A: The warranty period is three years from the date of purchase.
Q: Can I return the MeanWell LRS-100-24 Power Supply if it arrives damaged?
A: Yes, you can return it within the return policy period for a full refund or replacement.
Q: What is the maximum operating temperature for this power supply?
A: The maximum operating temperature is seventy degrees Celsius.
Q: Is this power supply energy efficient?
A: Yes, it is designed for high efficiency with low no-load power consumption.
Q: How do I adjust the output voltage on the MeanWell LRS-100-24 Power Supply?
A: You can adjust the output voltage by using the potentiometer within a range of plus or minus ten percent.
Q: Does the MeanWell LRS-100-24 Power Supply have an LED indicator?
A: Yes, it features an LED indicator to show when the power supply is turned on.
Q: Can this power supply be used at high altitudes?
A: Yes, it can operate at altitudes up to five thousand meters.
Q: What safety standards does the MeanWell LRS-100-24 comply with?
A: It complies with UL60950-1, IEC/EN60950-1, and other international safety standards.
