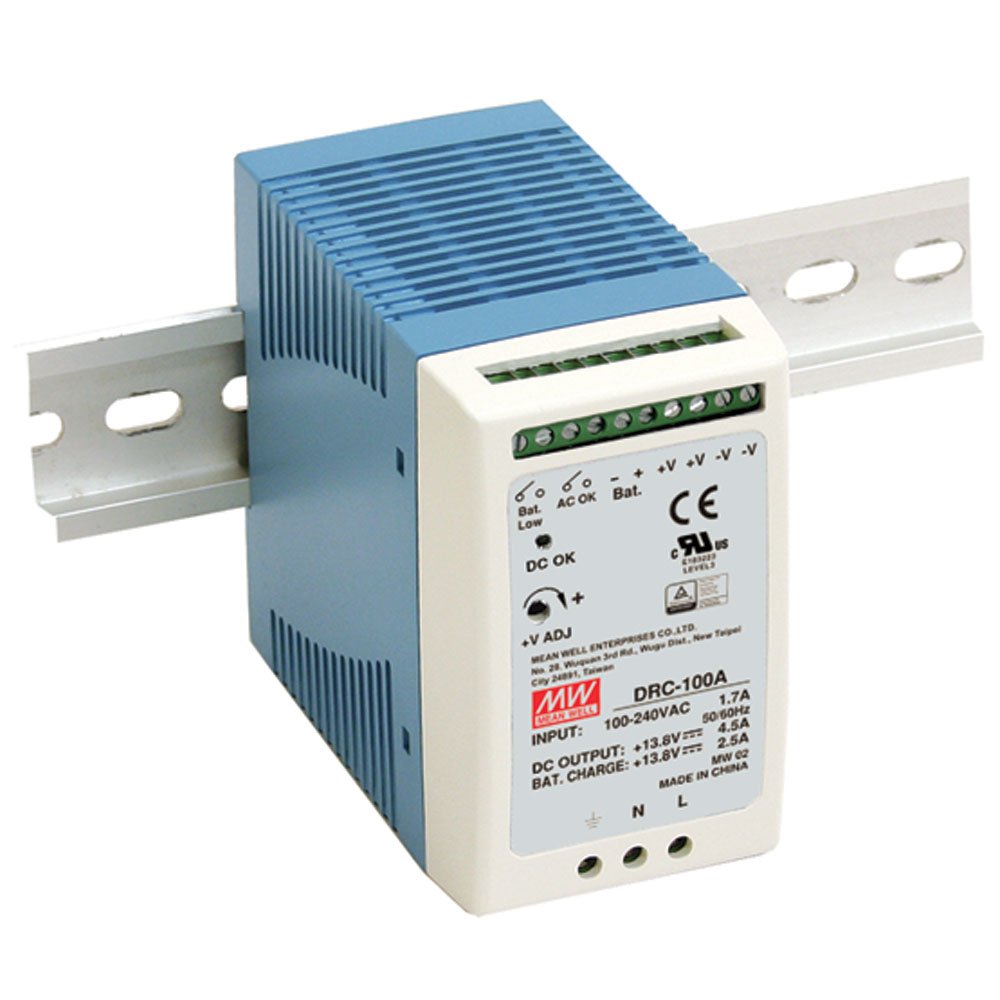

100 Watt Single Output Power Supply With Battery Charger (Ups Function) Ch1: 13.8 Volts 4.5 Amps Ch2: 13.8 Volts 2.5 Amps Drc-100 Is A 96 Watt Ac/Dc Din Rail Type Security Power Supply Series. In Addition To The Primary Output, There Is A Charger Output With A Smaller Rated Current, Enabling The Backup Power Supply Application That Security Access Systems Require. Features Universal Ac Input/Full Range Protections: Short Circuit, Overload, Over Voltage Battery Low Protection/Battery Reverse Polarity Protection By Fuse Can Be Installed On Din Rail Ts-35/7.5 Or 15 Alarm Signal For Ac Ok And Battery Low (Via Relay) Cooling By Free Air Convection Led Indicator For Power On 100 Percent Full Load Burn-In Test 3 Year Warranty Applications Security Systems Emergency Lighting Systems Alarm Systems Dc Ups System Central Monitoring System Access Systems Detailed Specifications: Primary Output Voltage (Vdc): 13.8 Output Current (A): 7 Maximum Output Power (W): 96.6 Family: Drc-100 Additional Output Voltages (Vdc): 13.8 Input Voltage (Vac): 90 To 264 Input Frequency: 47 To 63 Maximum Input Current (A): 1.8 Output Connector Type: Screw Terminal Efficiency ( Percent ): 87 Operating Temperature-Min (Cel): -30 Operating Temperature-Max (Cel): 70 Length (Inch): 2.17 Width (Inch): 3.54 Height (Inch): 3.94 Agency Approvals: Ul/Cul/Tuv/Cb/Ce Color: White Style: Din.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the MEAN WELL DRC-100A power supply?A: The dimensions are two point seventeen inches in length, three point fifty-four inches in width, and three point ninety-four inches in height.
Q: What is the maximum output power of the DRC-100A power supply?A: The maximum output power is ninety-six point six watts.
Q: What is the primary output voltage and current for this power supply?A: The primary output voltage is thirteen point eight volts and the output current is seven amps.
Q: What type of output connectors does the DRC-100A use?A: The output connector type is a screw terminal.
Q: Is the MEAN WELL DRC-100A suitable for outdoor use?A: No, the DRC-100A is designed for indoor use, typically mounted on a DIN rail.
Q: How do I install the DRC-100A power supply?A: You can install it by mounting the unit on a DIN rail, ensuring proper connections to AC power and load.
Q: What is the operating temperature range for the DRC-100A?A: The operating temperature range is from negative thirty degrees Celsius to seventy degrees Celsius.
Q: Can the DRC-100A be used for security systems?A: Yes, it is specifically designed for applications in security systems and emergency lighting.
Q: How should I care for the DRC-100A power supply?A: Keep the unit in a dry, well-ventilated area and avoid exposure to extreme temperatures.
Q: What safety features does the DRC-100A include?A: It includes short circuit protection, overload protection, and battery reverse polarity protection.
Q: Is there a warranty for the DRC-100A power supply?A: Yes, it comes with a three-year warranty from the manufacturer.
Q: What if the DRC-100A arrives damaged?A: Contact the seller or manufacturer immediately to initiate a return or exchange process.
Q: How does the DRC-100A compare to other power supplies?A: It is particularly efficient for UPS applications, providing reliable power for security and monitoring systems.
Q: Does the DRC-100A have an LED indicator?A: Yes, it features an LED indicator for power-on status.
Q: What is the efficiency rating of the DRC-100A power supply?A: The efficiency rating is eighty-seven percent.
