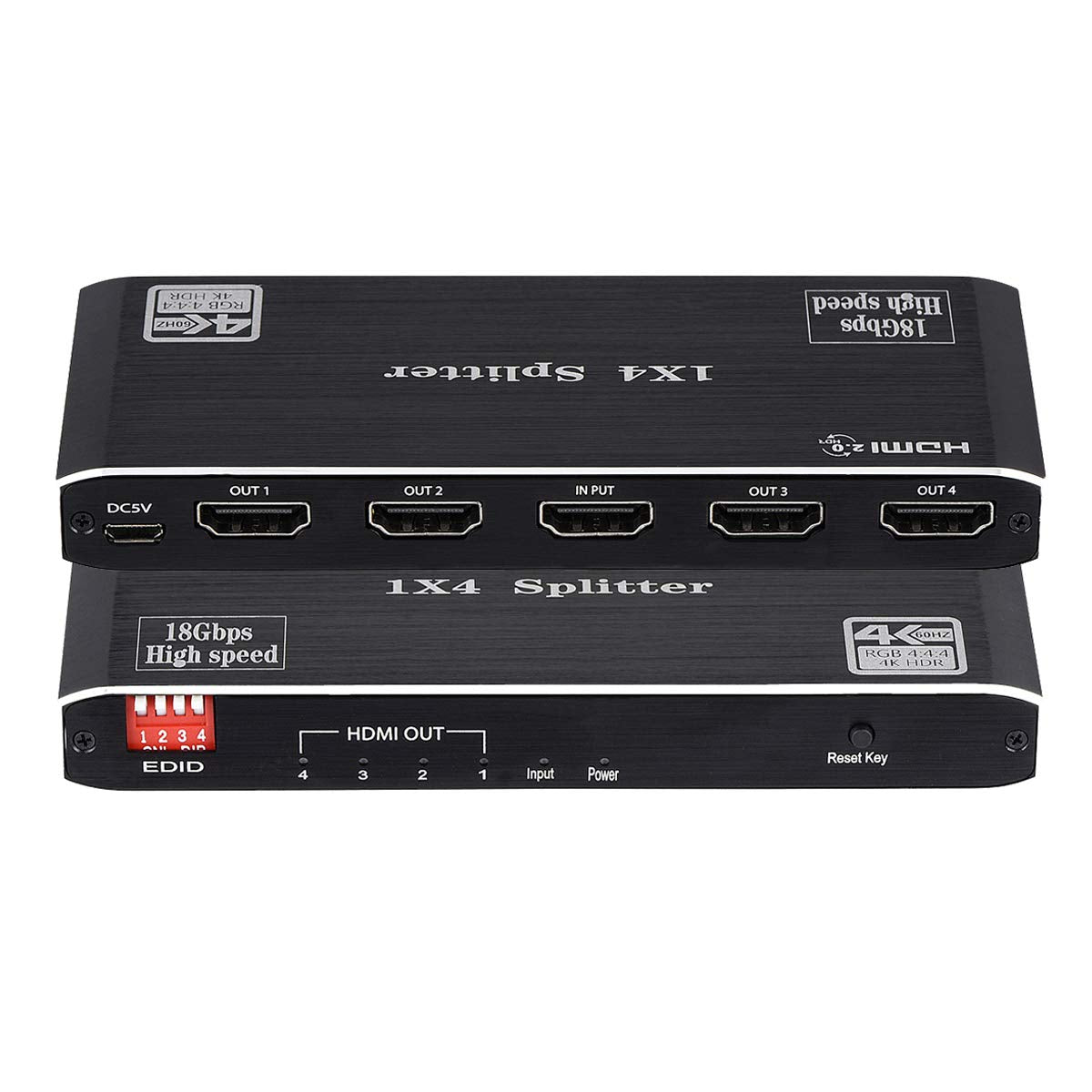

4K@60Hz 1X4 Hdmi Splitter 1X4 Hdmi Splitter Allows One Hdmi Device To Be Split Easily To Four Hdmi Compatible Monitors Or Projectors. It Can Also Be Placed At The End Of A Long Hdmi Cable To Regenerate The Hdml Signal. It Is Used For Data Center Control, Information Distribution, Conference Room Presentations, School And Corporate Training Environments Etc. Specifications - Product Type:Hdmi Splitter 1X4. - Interface Type: 1 Hdmi In, 4 Hdmi Out. - Color: Black - Power Supply: Dc 5V. - Dimension (L X W X H ): 131X54X16.3(Mm) - Weight: 200G Features - Support Hdmi 2.0B Version - Support Hdcp 1.1/1.2/1.4/2.2 - Support 3D Video Format - Support Highest Rate Of 18.2Gbps And Tmds Clock Can Be Up To 600Mhz - Support 8/10/12 Bit Deep Color Support Awg26 Hdmi Standard Cable: Input Up To 15 Meters, Output Up To 25 Meters.(When The Resolution Is 4K, Input Up To 8 Meters Output Up To 15 Meters.) - Support High Resolution Up To 3840X2160/60Hz - Support Audio Format Dts-Hd/Dolby-Truehd/Dts/Dolby-Ac3/Dsd - Support Video Format: 8/10/12 Bit Deep Color - Max Working Current: 500Ma - Power Adapter Format: Input Ac (50Hz,60Hz) 100V-240V; Output: Dc5V/1A - Operating Temperature Range: (-15 To 55? ) Package Contents 1X Hdmi Splitter 1 In 4 Out 1X 5V Dc Power Adapter 1X User Manual Note 1. This 1X4 Hdmi Splitter Just Mirror The Screen,Not Support Extend, Each Screen Will Not Show A Difference Page. 2. The Hd Hdmi Splitter Distributes The Picture According To The Lowest Resolution Standard
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the HDMI splitter?A: The dimensions of the HDMI splitter are one hundred thirty-one millimeters long, fifty-four millimeters wide, and sixteen point three millimeters high.
Q: What is the weight of the HDMI splitter?A: The weight of the HDMI splitter is two hundred grams.
Q: What power supply does the HDMI splitter require?A: The HDMI splitter requires a direct current power supply of five volts.
Q: How do I connect the HDMI splitter to my devices?A: To connect the HDMI splitter, plug the HDMI input from your device into the splitter's input port and then connect up to four HDMI cables to the output ports.
Q: Is the HDMI splitter compatible with gaming consoles?A: Yes, the HDMI splitter is compatible with gaming consoles like Xbox and PlayStation four.
Q: Can I use the HDMI splitter for presentations?A: Yes, the HDMI splitter can be used for presentations in conference rooms or training environments.
Q: How should I clean the HDMI splitter?A: To clean the HDMI splitter, use a soft, dry cloth to wipe the surface and avoid using any harsh chemicals.
Q: What is the operating temperature range of the HDMI splitter?A: The operating temperature range of the HDMI splitter is between negative fifteen to fifty-five degrees Celsius.
Q: Is it safe to use the HDMI splitter continuously?A: Yes, the HDMI splitter is designed to be used continuously without overheating, as long as it operates within the specified temperature range.
Q: How do I troubleshoot if the HDMI splitter doesn't work?A: If the HDMI splitter doesn't work, check all connections and ensure that the input device is functioning properly.
Q: What should I do if my HDMI splitter arrives damaged?A: If your HDMI splitter arrives damaged, contact customer support for assistance with returns or exchanges.
Q: Does the HDMI splitter support 4K resolution?A: Yes, the HDMI splitter supports a maximum resolution of thirty-eight hundred forty by twenty-one sixty at sixty hertz.

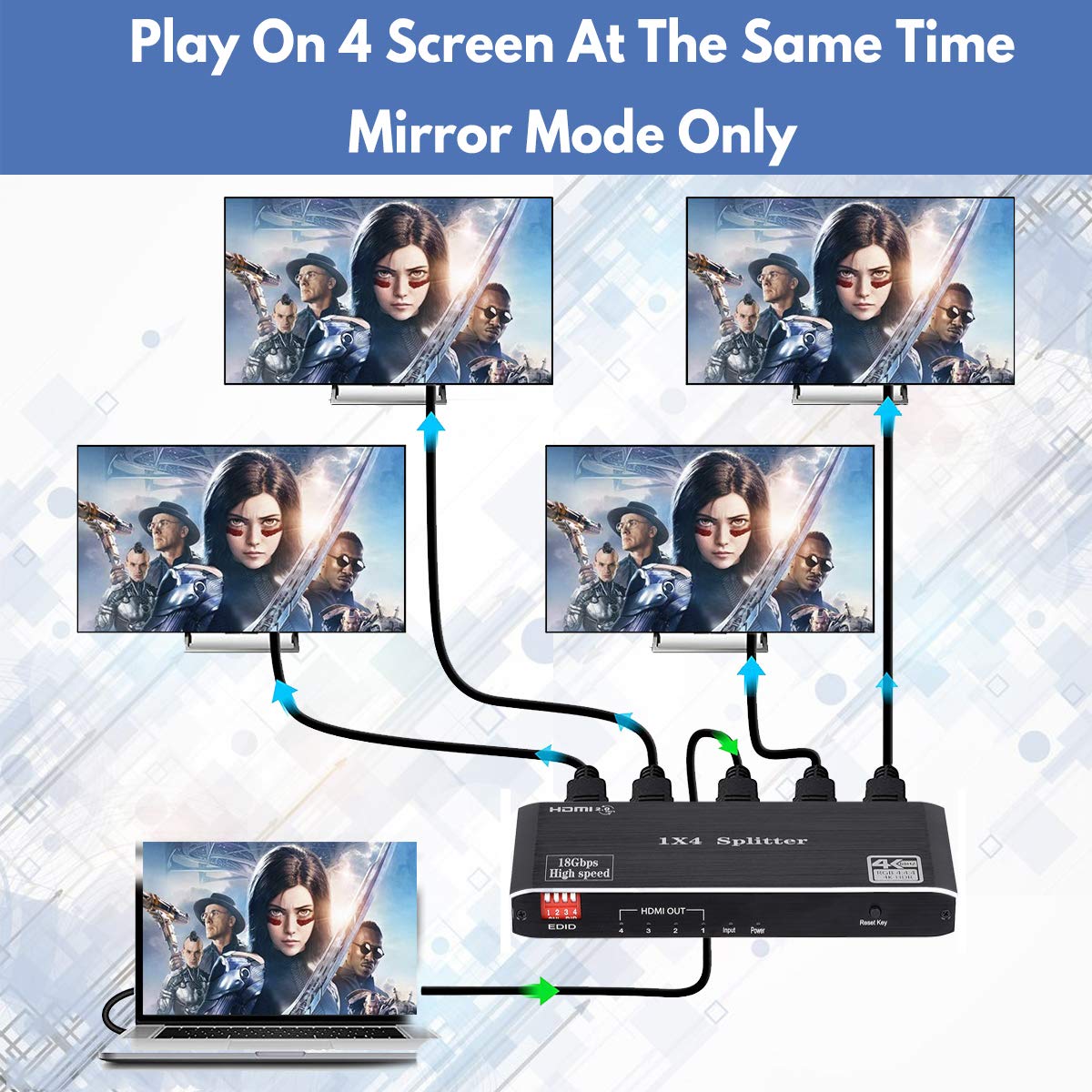

Q: Can I use the HDMI splitter for multiple monitors?A: Yes, the HDMI splitter can distribute the signal to up to four identical monitors simultaneously.
Q: What audio formats does the HDMI splitter support?A: The HDMI splitter supports various audio formats including DTS-HD, Dolby TrueHD, and Dolby AC3.
Q: Is the HDMI splitter easy to install?A: Yes, the HDMI splitter is easy to install with simple plug-and-play functionality.
Q: What type of HDMI cables should I use with the splitter?A: You should use AWG twenty-six HDMI standard cables for optimal performance with the splitter.
