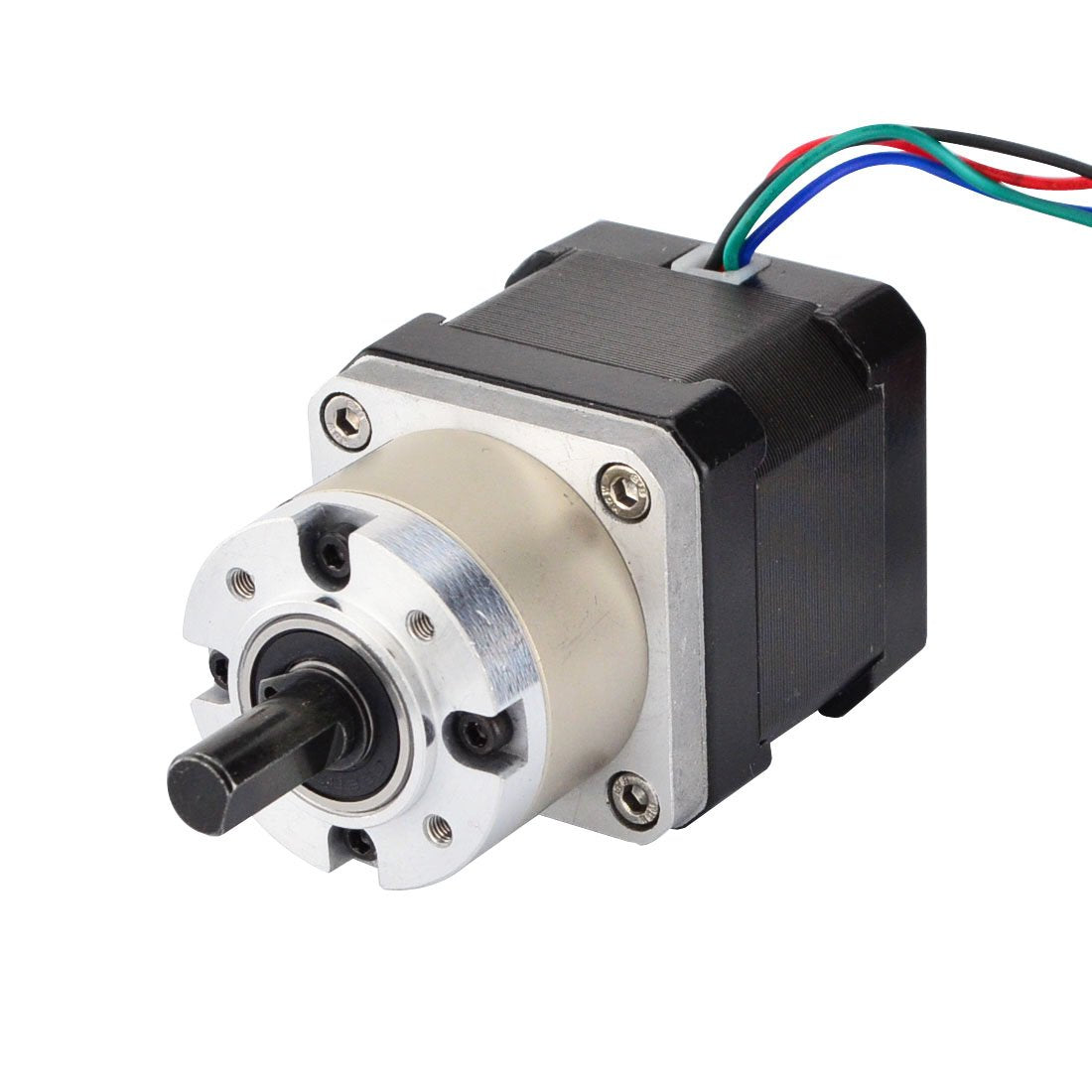

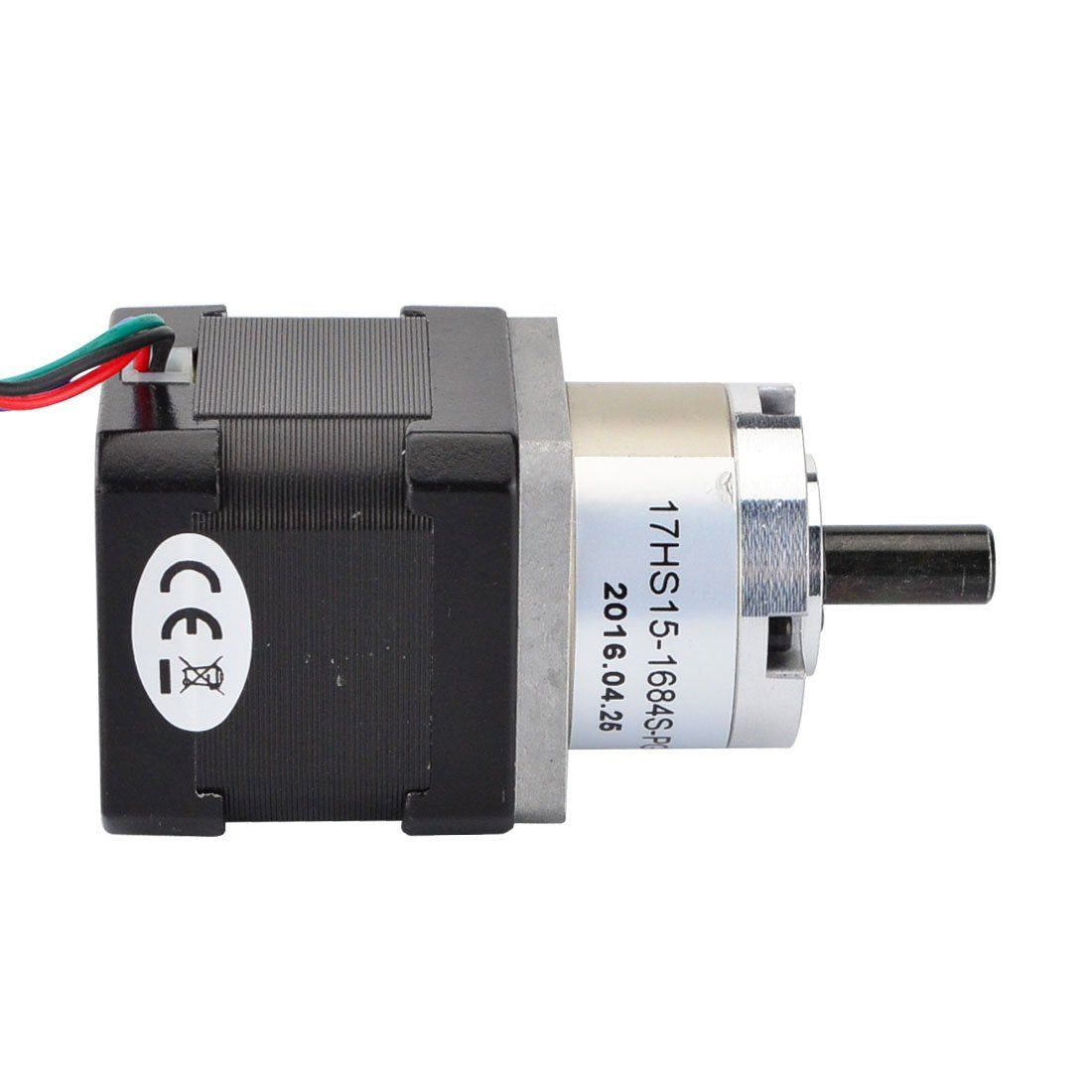

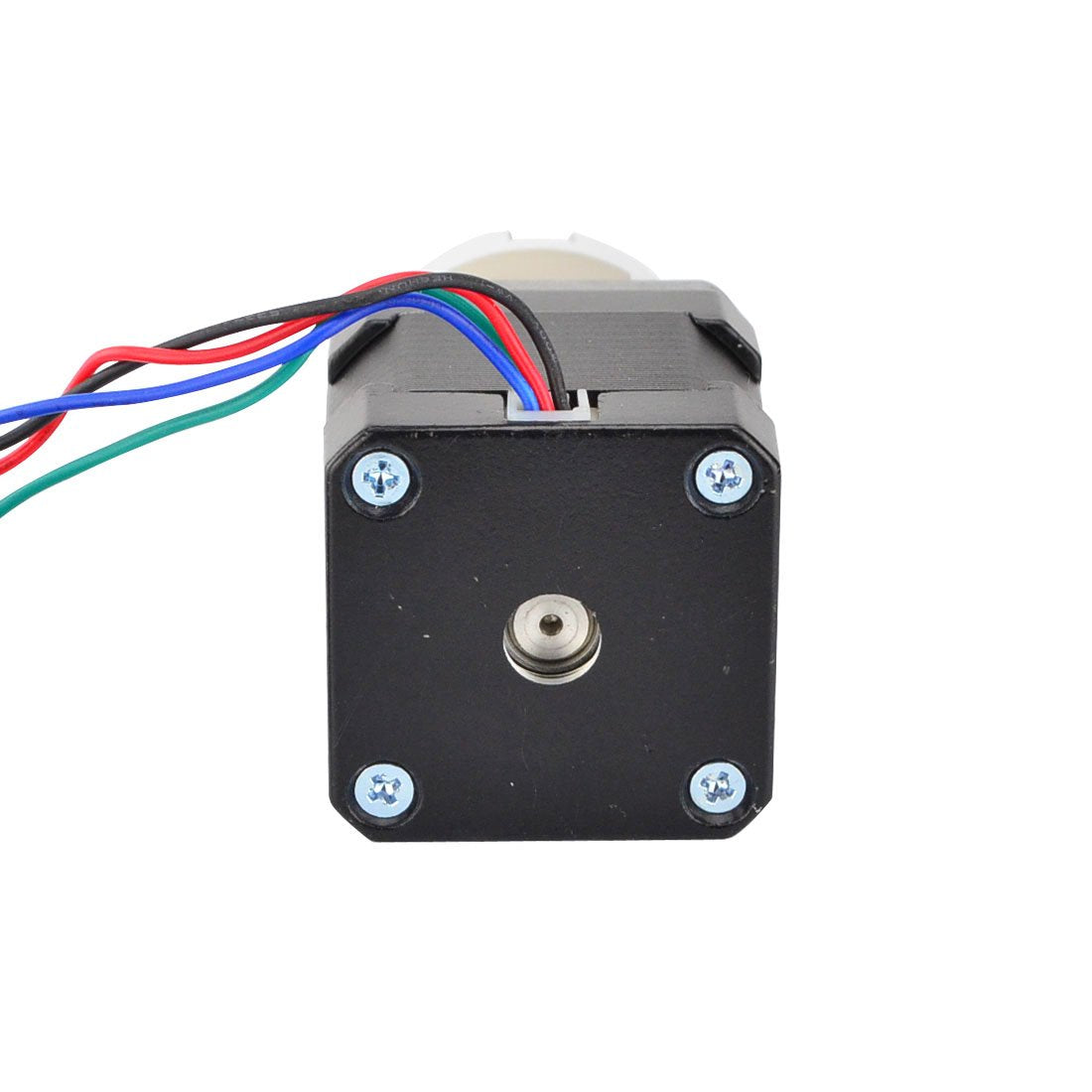

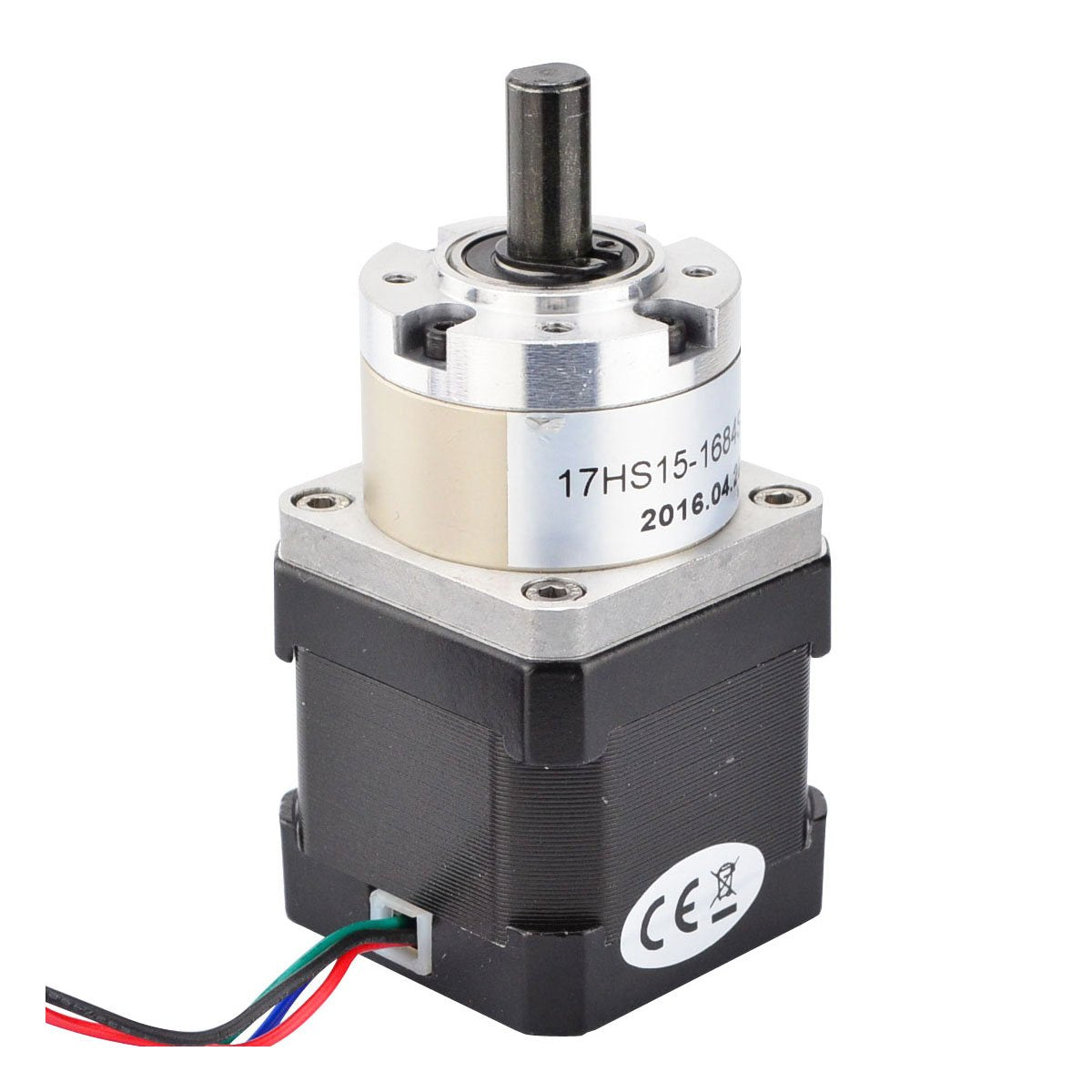

Stepperonline 5:1 Planetary Gearbox Nema 17 Stepper Motor 1.68A For Diy Cnc Robot 3D Printer
$50.49
Regular price
$72.13
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
This Is Popular Geared Nema 17 Stepper Motor With A Medium Body And Torque. It Has An Integrated Planetary Gearbox With A 5.18:1 Gear Ratio, The Resolution Reach 0.35�Step Angle. It'S A Good Solution In Applications That Need Very Low Rotation Speeds And/Or Lots Of Torque.
* Gearbox Type: Planetary * Gear Ratio : 5.18:1 * Efficiency: 90% * Backlash At No-Load : ≪=1� * Max.Permissible Torque: 2Nm(283Oz-In) * Moment Permissible Torque: 4Nm(566Oz-In) * Shaft Maximum Axial Load: 50N * Shaft Maximum Radial Load : 100N
Physical Specifications * Frame Size: 42 X 42Mm * Motor Length: 40Mm * Gearbox Length: 27.3Mm * Shaft Diameter: F8Mm * Shaft Length: 20Mm * D-Cut Length: 15Mm * Number Of Leads: 4 * Lead Length: 500Mm * Weight : 460G
Connection:
Black(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Make Sure The Motor Connect To A Constant Current Or Chopper Drive Controller Before You Test Motor. Connecting The Motor Directly To A Power Supply Will Destroy The Motor.
