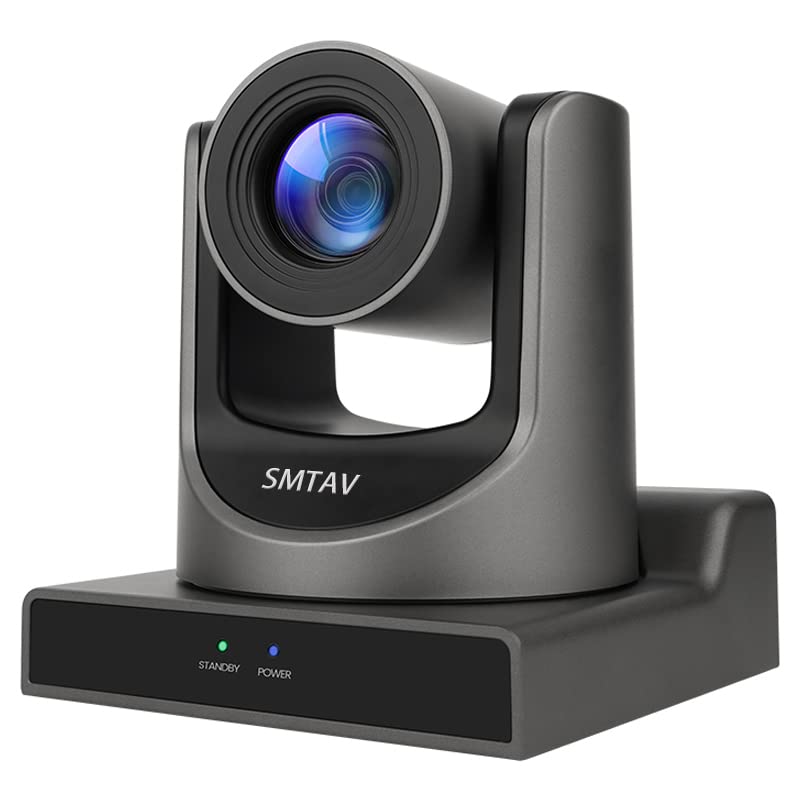

SMTAV HD30 PTZ Camera - 30x Optical + 8x Digital Zoom, 3G-SDI & HDMI Output, Gray, 1 Count

Frequently Asked Questions

• Q: What is the optical and digital zoom capability of the SMTAV camera? A: The SMTAV camera features thirty times optical zoom and eight times digital zoom. This combination allows for detailed close-ups and high-quality images from a distance.
• Q: What video resolutions does the SMTAV camera support? A: The camera supports multiple video resolutions, including one thousand ninety-two by one thousand eighty pixels. It can also output at various frame rates such as sixty frames per second.
• Q: What type of sensor does the SMTAV camera use? A: The camera is equipped with a one over two point seven inch CMOS sensor. This sensor provides two point zero seven million effective pixels for high-quality imaging.
• Q: How is the SMTAV camera powered? A: The SMTAV camera is powered through standard electrical outlets. It does not have a specified battery life, as it is designed for continuous use with stable power.

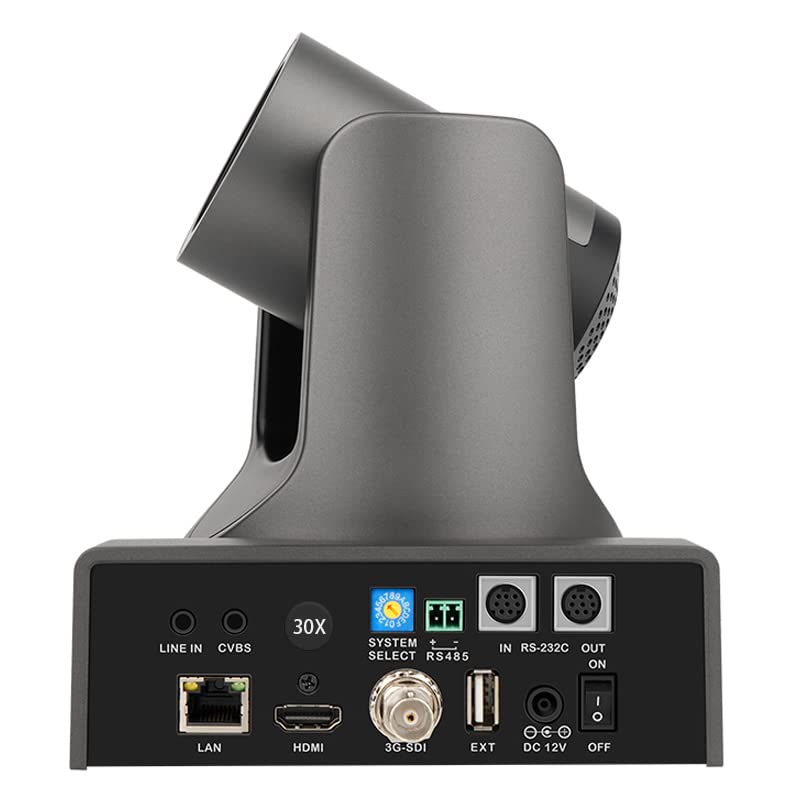

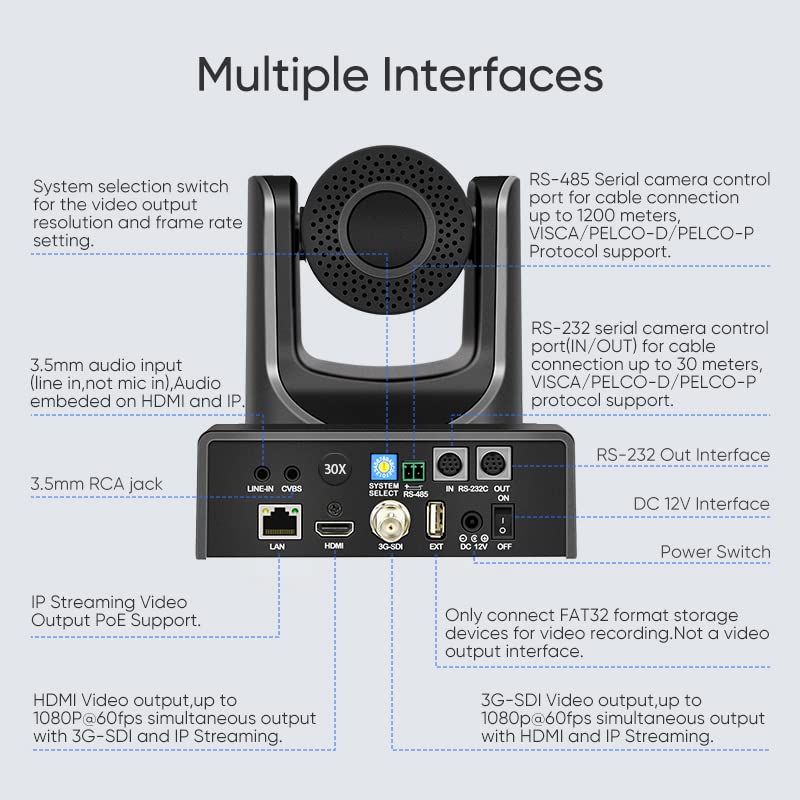

• Q: What are the available output interfaces on the SMTAV camera? A: The camera supports multiple output interfaces, including HDMI, three G-SDI, and CVBS. This allows for flexible connectivity to various devices.
• Q: How do I set up the SMTAV camera for video conferencing? A: To set up the camera, connect it to your PC or video conferencing system via HDMI or three G-SDI. Ensure the correct settings are configured in your conferencing application.
• Q: Is the SMTAV camera suitable for low-light conditions? A: Yes, the SMTAV camera performs well in low-light conditions. It combines a high signal-to-noise ratio with noise reduction algorithms to maintain image clarity.
• Q: Can the SMTAV camera record video locally? A: Yes, the camera supports local storage recording. You can directly record video to a USB flash drive without needing a network video recorder.
• Q: How do I control the SMTAV camera remotely? A: You can control the SMTAV camera remotely using the RS232 or RS485 interface. This allows access to all camera parameters via high-speed communication.
• Q: What is the recommended usage environment for the SMTAV camera? A: The SMTAV camera is designed for indoor and controlled environments. It is ideal for video conferencing, presentations, and similar applications.
• Q: How do I maintain the SMTAV camera for optimal performance? A: To maintain the camera, keep it clean and store it in a dry place. Regularly check connections and ensure firmware updates are applied when available.
• Q: What should I do if the SMTAV camera arrives damaged? A: If the camera arrives damaged, you should contact customer support immediately. They will guide you through the return or replacement process.
• Q: Is the SMTAV camera compatible with third-party video software? A: Yes, the SMTAV camera is compatible with most third-party video conferencing software. Ensure the software supports HDMI or three G-SDI inputs.
• Q: What is the maximum transmission distance for the SMTAV camera? A: The maximum transmission distance for the SMTAV camera is one hundred fifty meters when using the three G-SDI output. This distance is under specific conditions.
• Q: Does the SMTAV camera support audio encoding? A: Yes, the SMTAV camera supports AAC audio encoding. This allows for better sound quality while minimizing bandwidth usage.
• Q: What makes the SMTAV camera suitable for professional use? A: The SMTAV camera is suitable for professional use due to its high-definition capabilities, multiple output options, and robust remote control features.
