Key Features Ac Input 115V - 230V Mtbf 100,000 Hours On Maximum Load At +25 C Degree Warranty 1 Year Output Power 200 W Form Factor Flex Atx Dimensions Wxdxh 3.2'' X 6'' X 1.6'' Detail Specifications - Complied With Flex Atx And Atx12V Standard - High Efficiency And Reliability - Remote On/Off Function - Internal 12V Dc Fan Included - Noise Killer (Thermal Fan Speed Control Function) - Low Noise And Ripple - Complies With Fcc Part 15 Subpart J Class B And Cispr 22 Class B - Output Over Voltage, Short Circuit, And Over Current Protection - 100% Hi-Pot, Ate, And Burn-In Tested - Re-Settable Power Shut Down - Approved By Ul 1950, Csa C22.2 Level 3 Input Range - 90~132/180~264V Ac, Manual Selection Frequency - 47~63Hz Input Current - 5A (Rms) @115V Ac, 3A (Rms) @230V Ac Inrush Current - 50A Max For 115V Ac, 80A Max For 230V Ac Cold Start Temperature Range - Operating 0 C ~ +25 C On Full Load; Storage & Shipping -20 C ~ +80 C Humidity - 95% On Operating And 95% On Storage Dielectric Withstand - Input To Frame Ground 1800V Ac For 1 Second Efficiency - 72% At Minimum Measured At Nominal Ac Main Voltage And Frequency With Maximum Load On All Output Rise Time - Less Than 20Ms Hold-Up Time - 17Ms Minimum At Nominal Input Voltage Power Good Signal - Power On Delay Time 100 Ms To 500 Ms, Off Delay 1Ms Minimum (Ttl And Cmos Compatible) Leakage Current - Not Exceed 0.75Ma At 115V Ac, 60Hz Mtbf - 100,000 Hours On Maximum Load At +25 C Degree Dimension (Wxhxl) - 81.5X40.5X150Mm/3.2X1.6X6 Inches Weight - 3.00Lbs Warranty - 1 Year
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the SPI FSP200-50PL-B power supply?A: The dimensions are three point two inches wide, six inches long, and one point six inches high.
Q: What is the output power of this power supply?A: The output power is two hundred watts.
Q: What type of input voltage does this power supply support?A: It supports an input voltage range of ninety to one hundred thirty-two volts and one hundred eighty to two hundred sixty-four volts.
Q: What is the efficiency rating of the SPI FSP200-50PL-B?A: The efficiency rating is seventy-two percent at maximum load.
Q: Does this power supply include a fan?A: Yes, it includes an internal twelve-volt direct current fan.

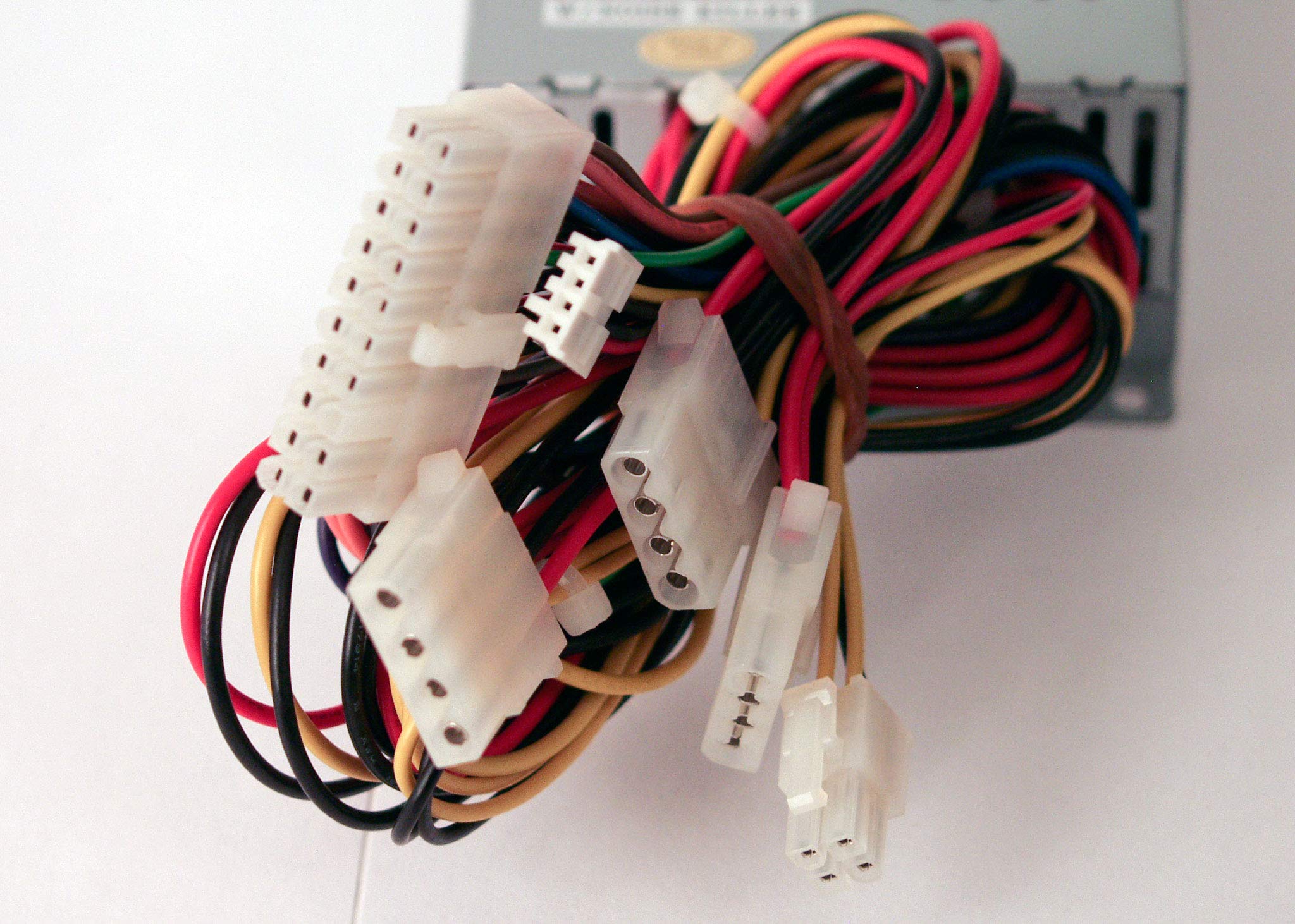

Q: How do I install the SPI FSP200-50PL-B power supply?A: To install, secure it in the computer case, connect the twenty-pin main power connector, and plug in the fan.
Q: Is the SPI FSP200-50PL-B suitable for compact cases?A: Yes, its Flex ATX form factor makes it suitable for compact cases.
Q: What is the warranty period for this power supply?A: The warranty period is one year.
Q: How should I store the SPI FSP200-50PL-B power supply?A: Store it in a dry, cool place, away from direct sunlight and moisture.
Q: Can this power supply handle overcurrent situations?A: Yes, it has over current protection to prevent damage.
Q: Is the SPI FSP200-50PL-B compliant with safety standards?A: Yes, it complies with UL 1950 and CSA C22.2 Level 3 safety standards.
Q: What should I do if the power supply arrives damaged?A: If damaged, contact customer support for a return or replacement.
Q: Does this power supply have a thermal fan speed control feature?A: Yes, it features a noise killer thermal fan speed control function.
Q: Is there a way to reset the power supply if it shuts down?A: Yes, it has a resettable power shut down feature.
Q: What should I do if I experience power issues with this supply?A: Check connections, ensure proper voltage is supplied, and consult the manual for troubleshooting steps.
