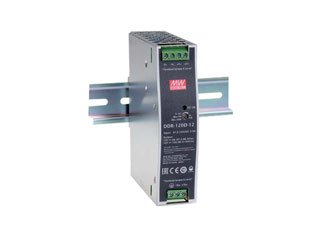

Mean Well Ddr 120D 24 120W Din Rail Dc/Dc Converter O/P +24V5A 1 Item(S)
$165.23
Regular price
$236.04
-29%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Features: Compliance To En50155 And En45545-2 Railway Standard Width Only 32Mm 2:1 Wide Input Range -40~ +70C Wide Working Temperature 150% Peak Load Capability Dc Output Adjustable Cooling By Free Air Convection Can Be Installed On Din Rail Ts-35/7.5 Or 15 Protection:Short Circuit / Overload / Over Voltage / Input Reverse Polarity / Input Under Voltage Protection 4Kvdc I/O Isolation (Reinforced Isolation) 3 Years Warranty General Specification: Ac Input Voltage Range: Ddr-120C-12,24,48 :33.6~67.2Vdc , Ddr-120D-12,24,48: 67.2~154Vdc Ac Inrush Current (Typ.): 5A@ 48Vdc Dc Adjustment Range: 12V: 9~14V , 24V: 24~28V ,48V: 48~56V Over Voltage Protection: 12V: 14.4~16.8V, 24V: 28.8~33.6V, 48V: 57.6~67.2V, Protection Type : Shut Down O/P Voltage, Re-Power On To Recover Overload Protection: Nomally Works Within 150% Rated Output Power For More Than 3 Seconds And Then Constant Current Protection 105~135% Rated Output Power With Auto-Recovery Reverse Polarity Protection:By Intemal Mosfet ,No Damage , Recovers Automatically After Fault Condition Removed Under Voltage Lockout Protection: 48Vin (C-Type):Power On = 33.6V ,Off= 33V ;110Vin (D-Type):Power On = 67.2V ,Off= 65V Withstand Voltage:I/P-O/P: 4Kvac, I/P-F/G: 2.5Kvac ,O/P-F/G: 2.5Kvac Working Temperature: -40~ +70C (Refer To ''Derating Curve'') Safety Standards:Iec62368-1(Lvd), Eac Tp Tc 004 ,As/Nzs 62368.1 Approved ;Design Refer To Ul 508 Emc Standards: En55032, Class B, En61000-3-3, En61000-4-2-3,4,5,6,8 Isolation Resistance:I/P-O/P ,I/P-F/G , O/P-F/G: >100M Ohms/500Vdc/25C/70% Rh Dimension (Wxhxd) (Mm):32X 125.2X 102
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
