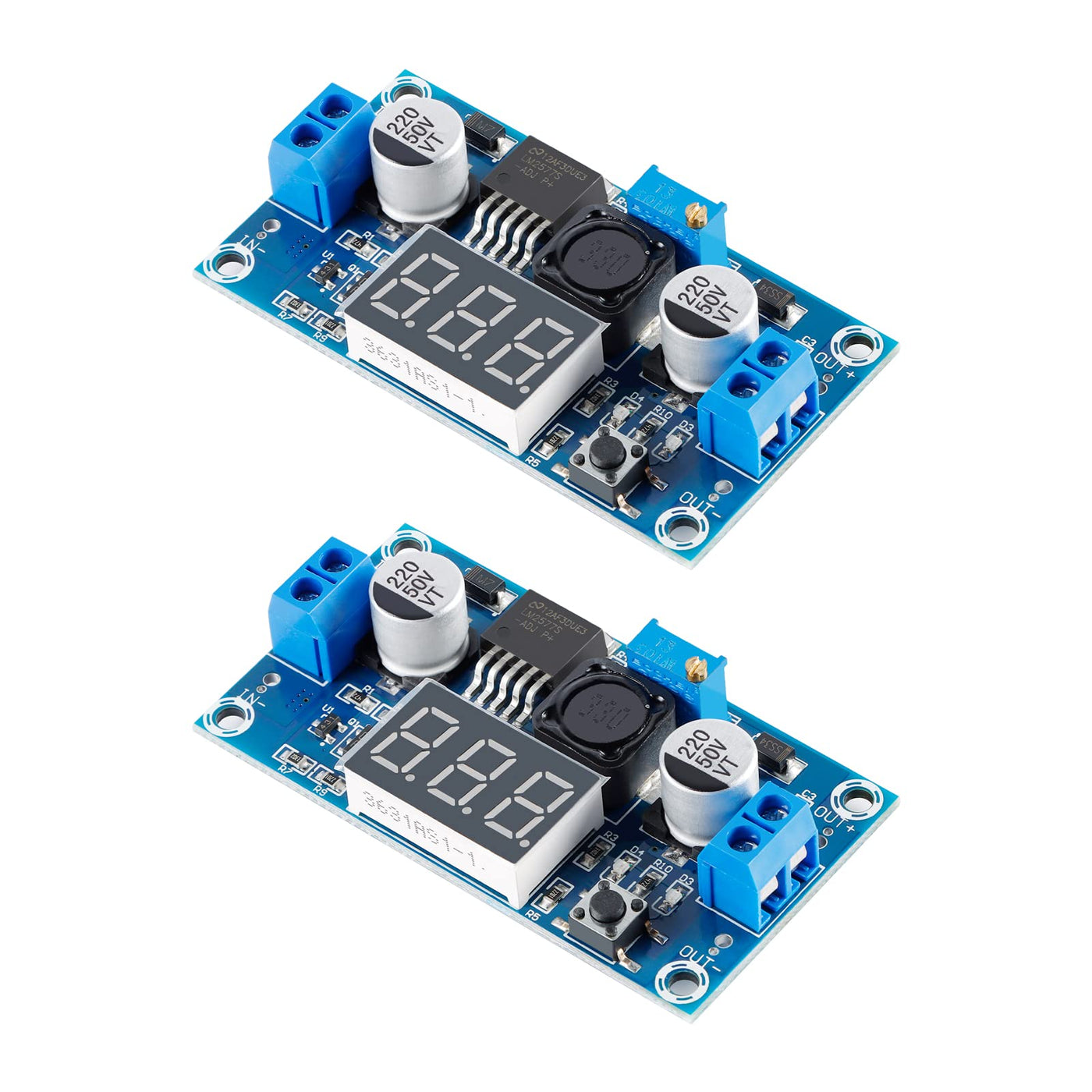

Ec Buying Lm2577 Dc Dc Boost Module, Digital Display Board Adjustable With Led Display Digital Voltmeter Boost Converter, Digita
$13.57
Regular price
$19.39
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
?Name: Lm2577 Dc-Dc Dc Boost Module (Adjustable Digital Display Led Circuit Board Output 4-35V High Current 3A Input) ?Basic Parameters: ?Module Nature: Non-Isolated Boost Module ?Input Voltage: 3-34V ?Output Voltage: Continuously Adjustable (4-35V) ?Output Current: 2.5A(Max) ?Input Current: 3A(Max) ?Module Size: 49(Mm)X26(Mm) ?Input Method: In+ Input Positive Level, In- Input Negative ?Output Mode: Out+ Output Positive Level, Out- Output Negative ?Adjustment Method: First Connect The Input Power Supply Correctly (Between 3-34V), Then Use A Multimeter To Monitor The Output Voltage And Adjust The Potentiometer ?Output Voltage: 4-35V Continuously Adjustable ? Main Features: 1. With Voltmeter Display, Voltmeter Error +0.1V, Range 0-40V. (Note: To Ensure The Accuracy Of The Voltmeter, Please Ensure That The Input Voltage Is Above 3V) 2. Touch The Button To Switch The Measurement Input Or Output Voltage, And An Indicator Light Shows Which Voltage Is Being Measured; 3. With The Power-Down Memory Function, It Will Display The Voltage Value Of The Last Measured Voltage After Power-On; 4. Press And Hold The Touch Button For 3 Seconds To Turn Off The Led Display, And Touch The Button Again To Turn On The Led Display; 5. With Terminals, It Is Easy To Use Without A Soldering Iron, And The Soldering Wire Connection Points Are Reserved; 6. The Maximum Output Current Can Be As High As 2.5A;7. At Present, The Switching Indicators Are All Red
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Related products
Frequently Asked Questions
Q: What is the input voltage range for the LM2577 DC-DC Boost Module?A: The LM2577 DC-DC Boost Module accepts an input voltage range of 3V to 34V. Ensure that the input voltage is within this range for optimal performance.
Q: How do I adjust the output voltage on the LM2577 module?A: To adjust the output voltage, first connect the input power supply correctly (between 3V and 34V). Use a multimeter to monitor the output voltage and adjust the potentiometer accordingly to set the desired output voltage between 4V and 35V.
Q: What is the maximum output current of this boost converter?A: The LM2577 DC-DC Boost Module can provide a maximum output current of 2.5A. However, ensure that the input current does not exceed 3A for safe operation.
Q: Does the LM2577 module have a display feature?A: Yes, the LM2577 module features a digital voltmeter display that shows the output voltage. It also includes a power-down memory function, which retains the last measured voltage when powered off.
Q: Is this boost module easy to use without soldering?A: Absolutely! The LM2577 DC-DC Boost Module comes with terminal blocks that allow for easy connections without the need for a soldering iron. This makes it user-friendly, especially for beginners.
