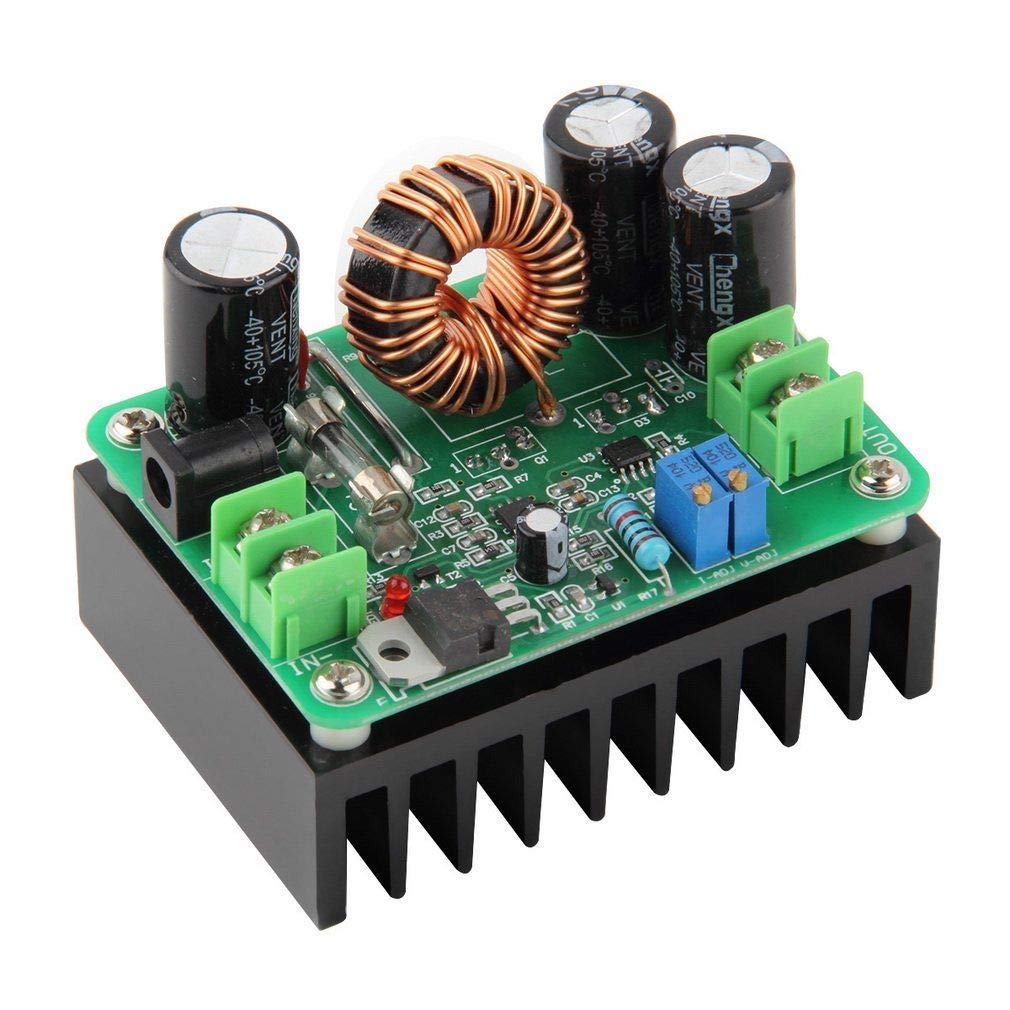

Apoesar 600W High Power Dc To Dc Boost Converter Dc 12 60V To 12 80V Boost Module Board Step Up Transformer
$24.68
Regular price
$35.26
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Specification: Input Voltage: 12V-60V Input Current: Input Current 15A Output Voltage: 12V-80V Continuously Adjustable Output Current: Maximum Output Current 10A (Adjustable) Output Power: Effective Power P = Input Voltage V * 10A Conversion Efficiency: Up To 95% (Input Voltage And Current; Output Voltage And Current Affect Conversion Efficiency) Short Circuit Protection: Fuse Module Size: 73*51Mm Weight: 265G Working Frequency: 150Khz Working Temperature: -40~+85 (Please Strengthen Heat Dissipation When The Ambient Temperature Is Too High) Static Working Current: 15Ma (Measured When 12V Rises To 20V, The Higher The Output Voltage, The Higher The Static Current Will Increase) Over-Current Protection: Yes (Input Exceeds 17A, The Output Voltage Is Automatically Reduced, And There Is A Certain Range Of Error.) Input Reverse Connection Protection: None If You Need More Power, You Can Use Two Modules In Parallel. For Example, If The Output Is 15A, You Can Use Two Modules In Parallel To Adjust The Current Of Each Module To 8A. Inductance Magnetic Ring Adopts 27Mm Iron Silicon Aluminum Magnetic Ring, 1Mm Double Wire Wound Inductor, High Quality Filter Capacitor, Input One 1000Uf63V Electrolytic Capacitor, Output Two 470Uf100V Electrolytic Capacitors, Boost Output Power Quality Is Better, Onboard Power Supply The Switch, Power Supply Indicator Light, And Voltage Adjustment And Current Adjustment Potentiometers Make The Output More Convenient. The Output Voltage And Current Can Be Adjusted At Any Time. The Input And Output Adopt 8500 Terminal Blocks. The Strong Current Capability Ensures Reliable Operation For A Long Time. Package Included: 1 X Dc To Dc Boost Converter Notice: Using This Kit Require Professional Electrician Knowledge,Please Make Sure You Know That Before Use.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Related products
Frequently Asked Questions
Q: What is the input voltage range for the Dasiter 600W DC to DC Boost Converter?A: The Dasiter 600W DC to DC Boost Converter accepts an input voltage range from 12V to 60V.
Q: Can I use this boost converter for high-power applications?A: Yes, the Dasiter boost converter is designed for high power applications, offering an output voltage adjustable up to 80V and a maximum output current of 10A.
Q: How do I adjust the output voltage and current on this module?A: The output voltage and current can be adjusted using the onboard potentiometers, allowing you to customize the performance according to your specific needs.
Q: Is there any protection mechanism in place for over-current situations?A: Yes, the Dasiter boost converter features over-current protection that automatically reduces the output voltage if the input current exceeds 17A.
Q: Can I connect multiple Dasiter modules in parallel?A: Yes, you can connect two or more Dasiter modules in parallel for increased output power, but ensure to adjust the current of each module accordingly to avoid current limit issues.
