Air Compressor Unloader Control/Throttle Control Pilot Valve 125 150 Psi
$29.94
Regular price
$42.77
-29%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

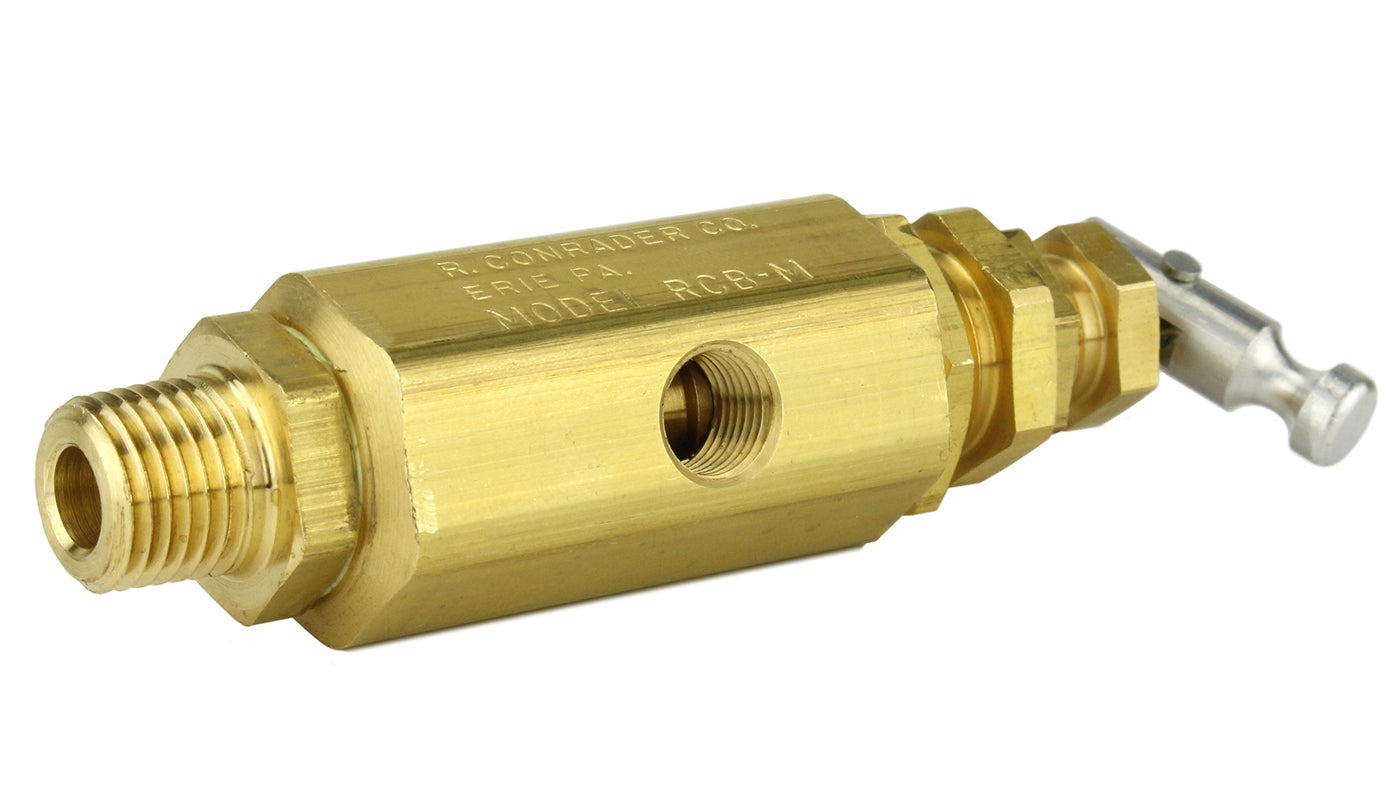

New Air Compressor Unloader Pilot Valve, Made In The Usa. This Valve Is Used To Operate A Compressed Air System At A Constant Run With A Preset Pressure Operating Range To Actuate Throttle Controls, Intake Unloaders Or Air Actuated Discharge Valves. The Valves Preset Operating Range Is 125-150 Psi, It Has 1/4'' Male Npt Threads That Would Be Used For Air Hook-Up Or Screwed Into The Air Compressor Tank And Has 1/8'' Female Npt Threads On The Side Of The Valve As Shown In The Picture Which Is The Port Used To Control A Throttle Valve Or Cable, Intake Unloaders Or Discharge Valves. If More Than One Outlet Is Needed It Is Common To Use A ''Tee'' To Make Multiple Ports Which Can Be Purchased At A Local Hardware Store. This Valves Preset Pressure Can Be Adjusted, Below The Manual Unloader Lever On The Top Of The Valve There Are Two Screw Settings That Can Be Adjusted There Are Lock-Nuts Holding Each One In Place The Bottom One Which Is Larger Than The Top One ''You Do Not Want To Adjust'' It Controls The Valve Itself, The Top One Which Is The Smaller One Right Below The Manual Lift Lever Controls The Pressure Setting, When Screwed In It Will Increase Both Cut In And Cut Out Pressure And When Screwed Out It Will Decrease Both Cut In And Cut Out Pressure, It Is Not Recommended To Be Adjusted More Than About 15 Psi In Either Direction. Also The Aluminum Lift Lever On The Top Of The Valve Is A Manual Unloader / Control Lever. If Lifted In Straight Up Position It Opens The Valve And Puts Pressure To The Throttle Control, Head Unloaders Or Discharge Valve. Click On The Technical Specs Tab For More Information.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Related products
Frequently Asked Questions
Q: What is the operating pressure range of the Air Compressor Unloader Control Valve?A: The Air Compressor Unloader Control Valve operates within a preset pressure range of 125-150 PSI, allowing for efficient control of your compressed air system.
Q: How do I adjust the pressure settings on the unloader valve?A: To adjust the pressure settings, locate the two screw settings below the manual unloader lever. The smaller screw adjusts the pressure, while the larger one controls the valve itself. It's recommended not to adjust the pressure more than 15 PSI in either direction.
Q: Is this valve compatible with all air compressors?A: This valve is designed for use with most air compressors that have a 1/4" male NPT connection. Always check your compressor’s specifications to ensure compatibility.
Q: What materials is the Air Compressor Unloader Control Valve made from?A: The valve is constructed from durable aluminum and features brass components, ensuring longevity and reliability in air compressor applications.
Q: Can I use multiple outlets with this valve?A: Yes, if you need multiple outlets, you can use a 'tee' fitting to create additional ports. These fittings are readily available at most hardware stores.
