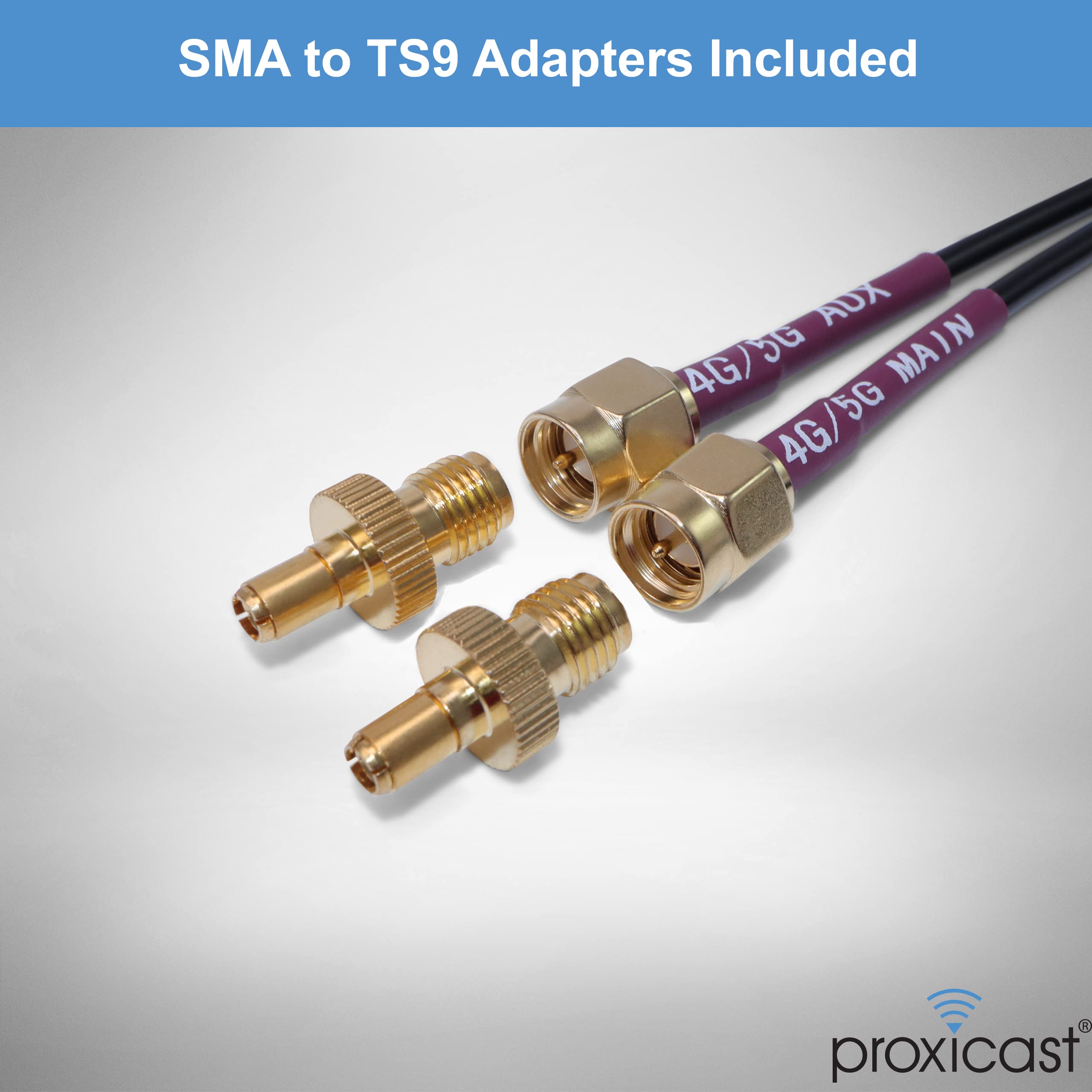

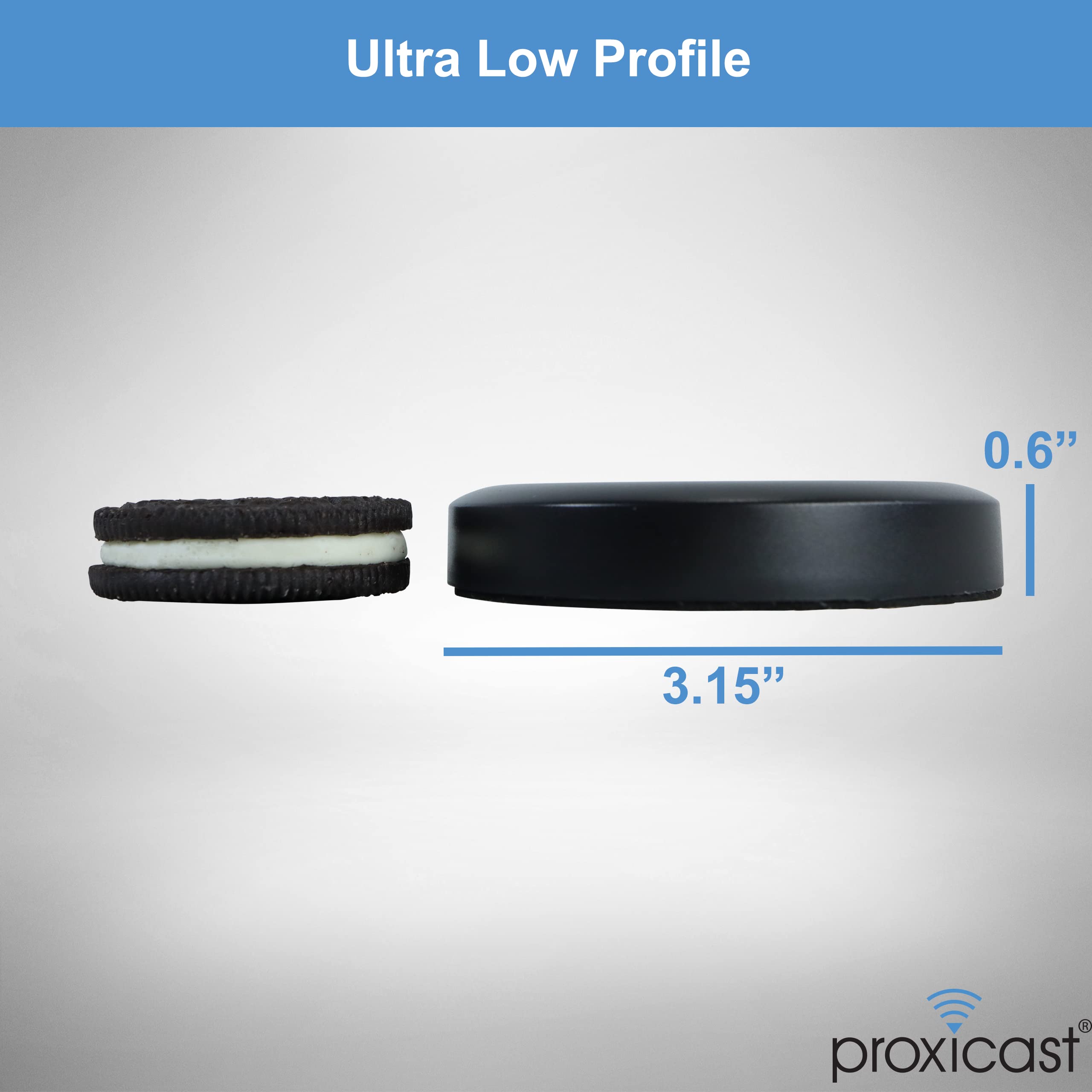

This Extremely Low Profile (< 0.6 Inches Tall) Fixed Mount Omni-Directional Antenna Provides Up To 2.5 Dbi Of Gain And Works On All 4G & 5G Cellular Frequency Bands Worldwide (All Cdma, Gsm, Wcdma/Umts And Lte Carriers).Includes 3M Adhesive Pad And Strong Internal Magnet For Flexible Mounting Options. Ip67 Waterproof.Similar In Gain To Rubber-Duck Style Antennas Often Included With Cellular Modems, This Antenna Is Designed For M2M Applications Such As Vending Machines, Meter Housings, Equipment Sheds, Or Other Locations Requiring An Inconspicuous Low-Profile External Antenna That Can Be Placed In A More Favorable Location. Can Also Be Vehicle Mounted For Buses, Vans, Trucks Or Other Mobile Installations. Dual Integrated Sma Male Plug Connectors Mate With Sma Female Jacks On Mimo Capable Modems, Routers, Etc. Includes 2 Sma To Ts9 Adapters For Ts9-Based Hotspots.This Antenna Performs Best When Installed On A Horizontal Metal Surface Of At Least 8X8 Inches.Key Specifications • Frequencies: 698~960 & 1710~6000 Mhz • Impedance: 50 Ohms • Peak Gain: 2.5 Dbi • Radiation Pattern: Omni • Polarization: Linear• Coax Cable: 6.5 Ft (2M) Low-Loss Lmr100• Connectors: Sma Male + Ts9 Adapters • Operating Temp: -40C To +85C • Radome Material: Abs• Ingress Protection: Ip67 • Height: 0.6 Inches / 15 Mm • Diameter: 3.15 Inches / 80 Mm Buy With Confidence: Usa-Based Proxicast Has Been Designing And Building Innovative Electronic Products Since 2000 -- Includes 12 Month Warranty & Us-Based Technical Support.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What types of cellular networks is the Proxicast Ultra Low Profile MIMO antenna compatible with?A: The Proxicast Ultra Low Profile MIMO antenna works on all major 4G and 5G cellular networks, including Verizon, AT&T, T-Mobile, and others. It is designed to function with any modem or router equipped with SMA or TS9 antenna jacks.
Q: Can this antenna be used for mobile installations?A: Yes, the Proxicast antenna is suitable for mobile installations. Its compact design allows for easy mounting on vehicles such as buses, vans, and trucks, ensuring reliable connectivity while on the move.

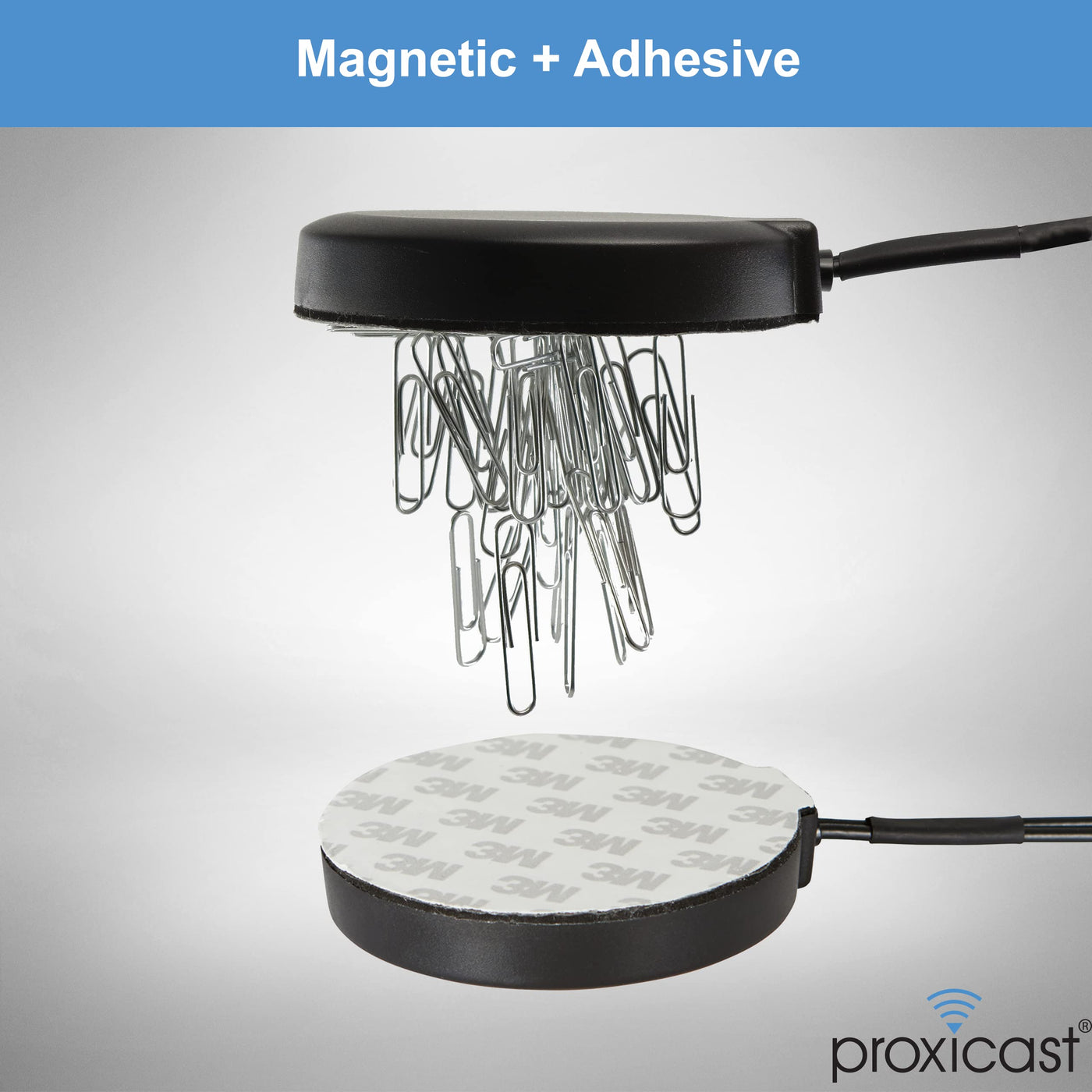

Q: What mounting options are available for this antenna?A: The antenna features a strong internal magnet and a 3M adhesive pad, offering flexible mounting options. It can be mounted on a variety of surfaces, including horizontal metal surfaces for optimal performance.
Q: What is the gain and frequency range of this antenna?A: The Proxicast antenna provides up to 2.5 dBi of gain and operates across a wide frequency range from 698 MHz to 6000 MHz, making it compatible with all CDMA, GSM, WCDMA/UMTS, and LTE carriers worldwide.

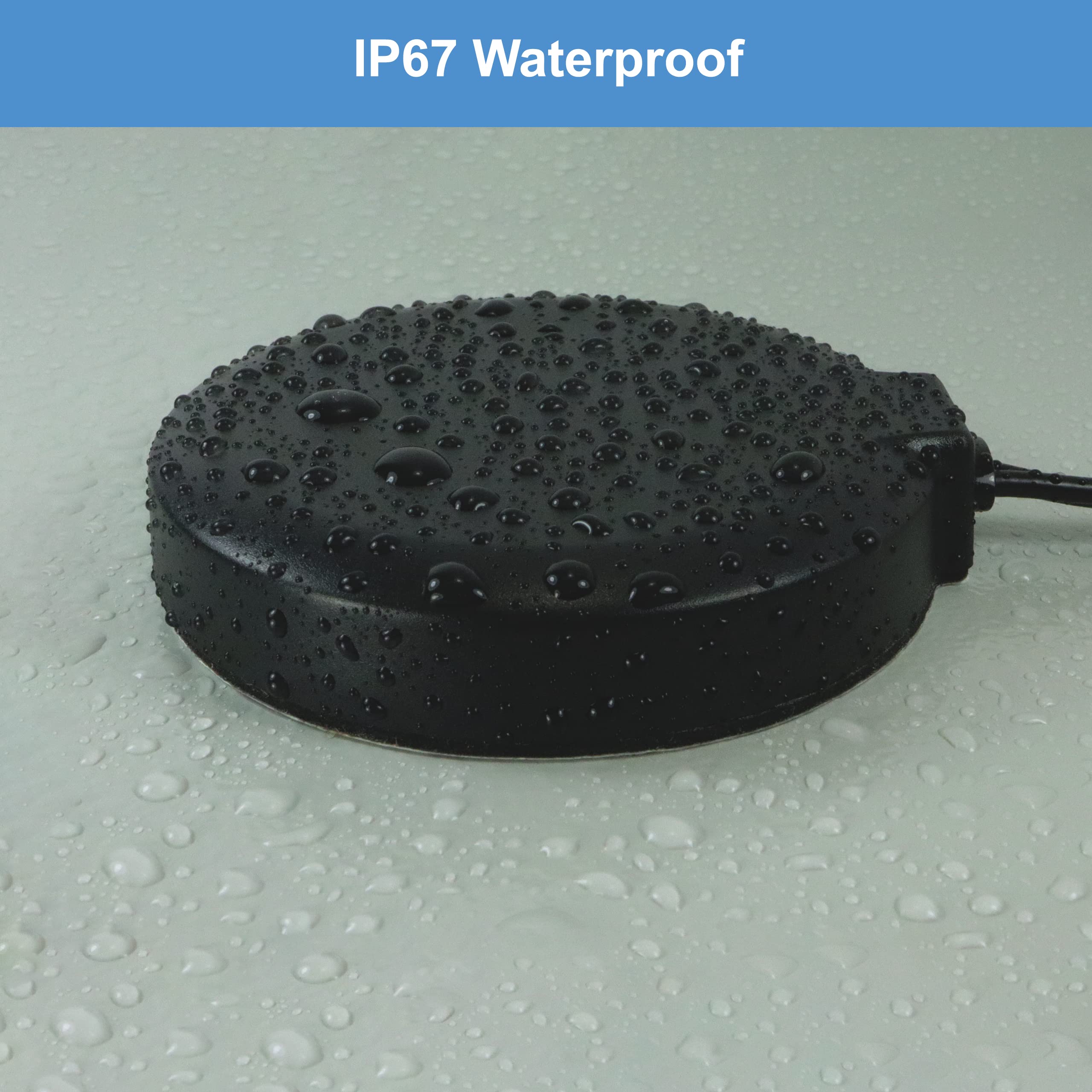

Q: Is the Proxicast antenna waterproof?A: Yes, this antenna has an IP67 rating, which means it is waterproof and can withstand harsh environmental conditions, making it ideal for outdoor or M2M applications.
