Bigtreetech Manta M8P V1.1 Control Board 32Bit, Integrated Motherboard Uses With Cb1 V2.2 Support Klipper Firmware, Compatible T
Couldn't load pickup availability
⭐
Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
- Processing Time: Orders are processed within 1-3 business days
- Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page.
For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Vendor: Bigtreetech
Type: 3D Printers
Sku: WBEEAB0B7W53JSY
Availability: Sold Out
Guarantee safe checkout
Bigtreetech Manta M8P V1.1 Control Board 32Bit, Integrated Motherboard Uses With Cb1 V2.2 Support Klipper Firmware, Compatible T
$91.35
Frequently Asked Questions

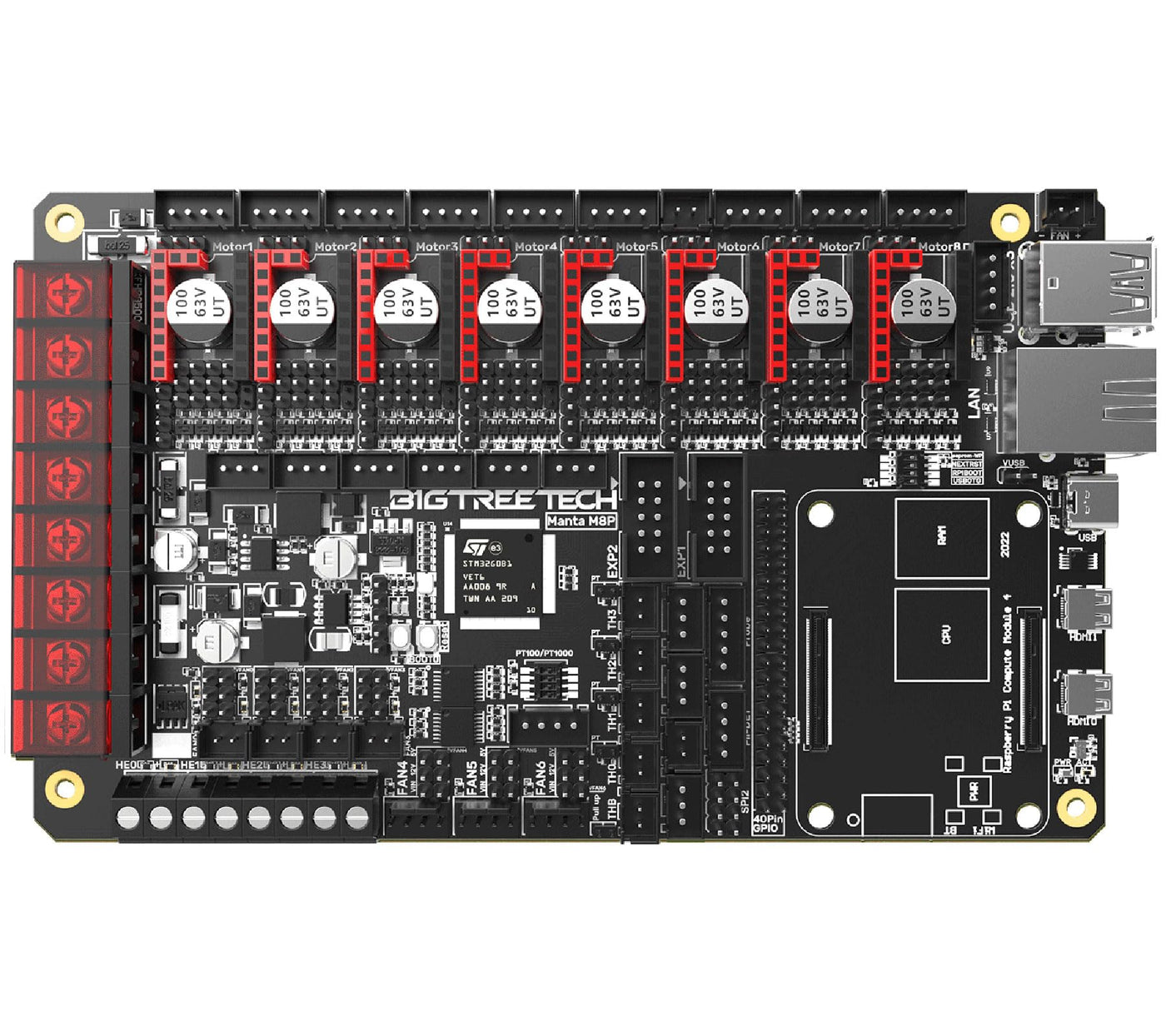

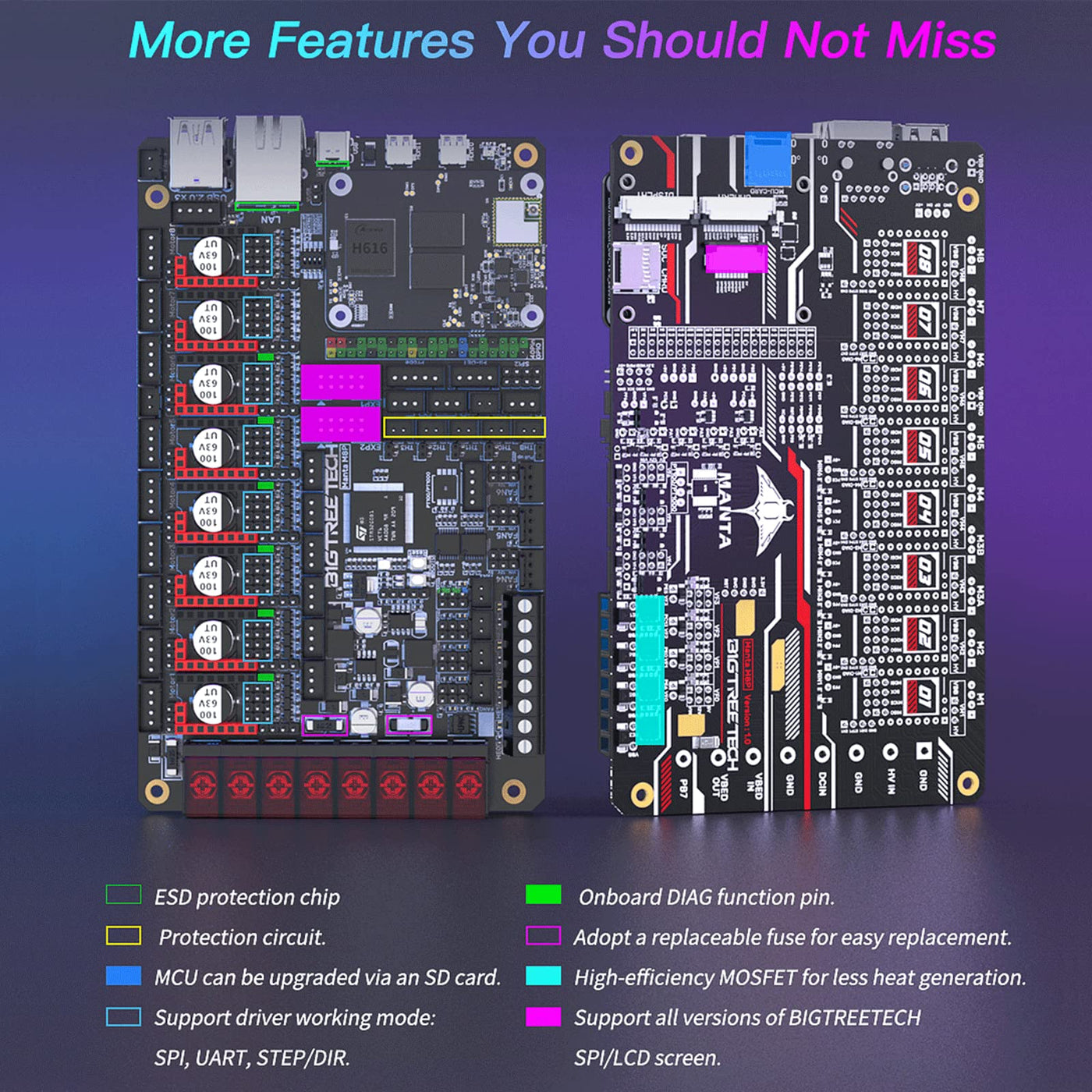

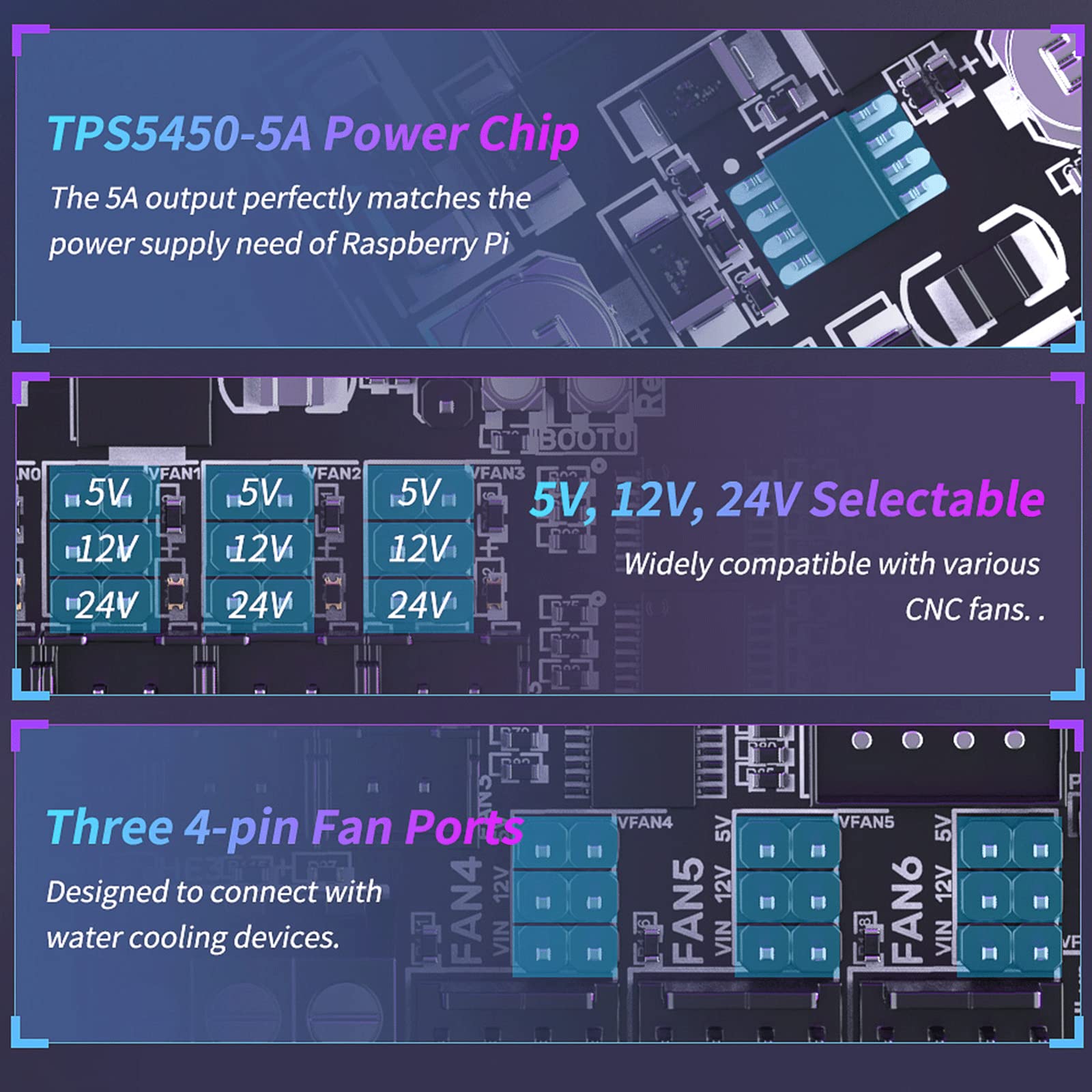

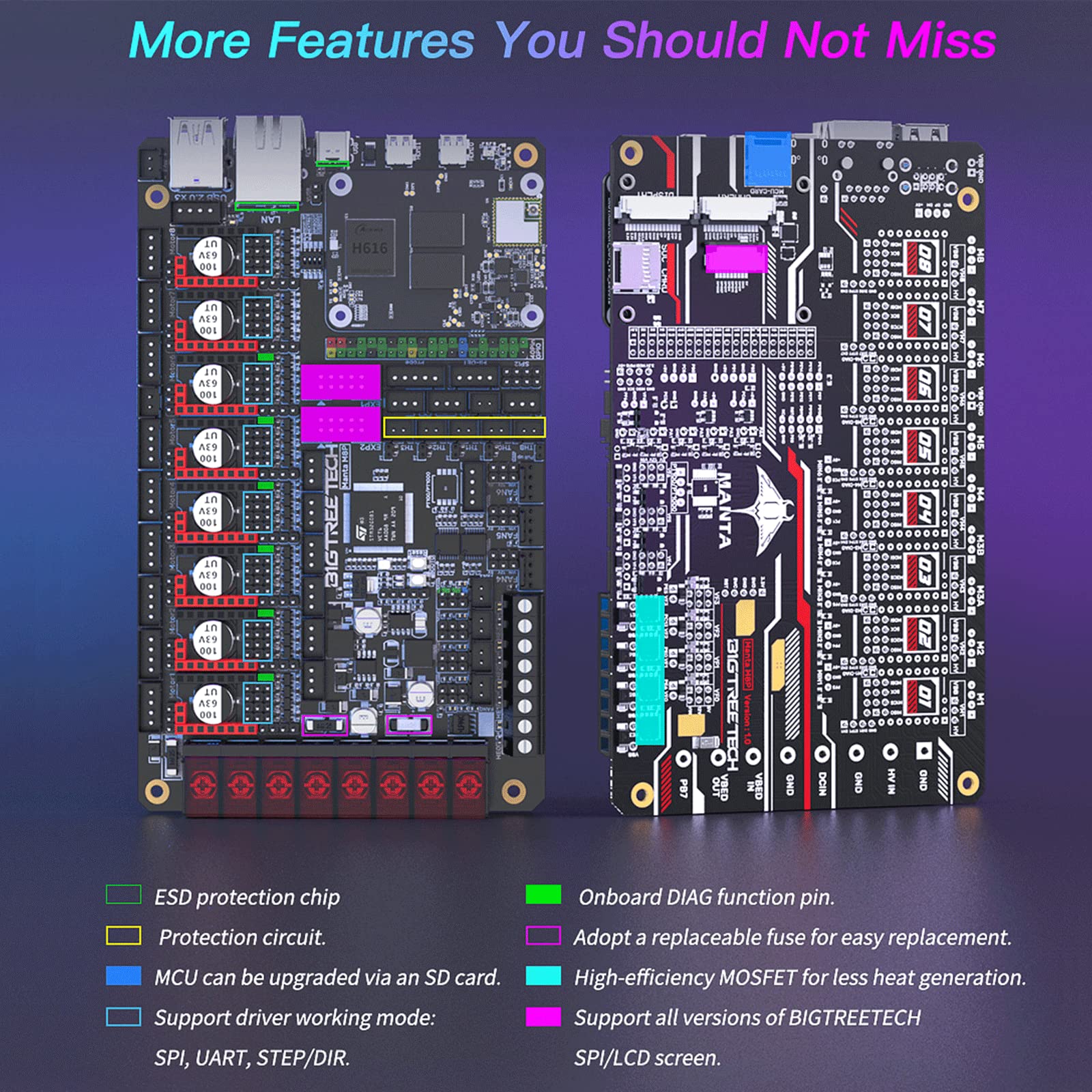

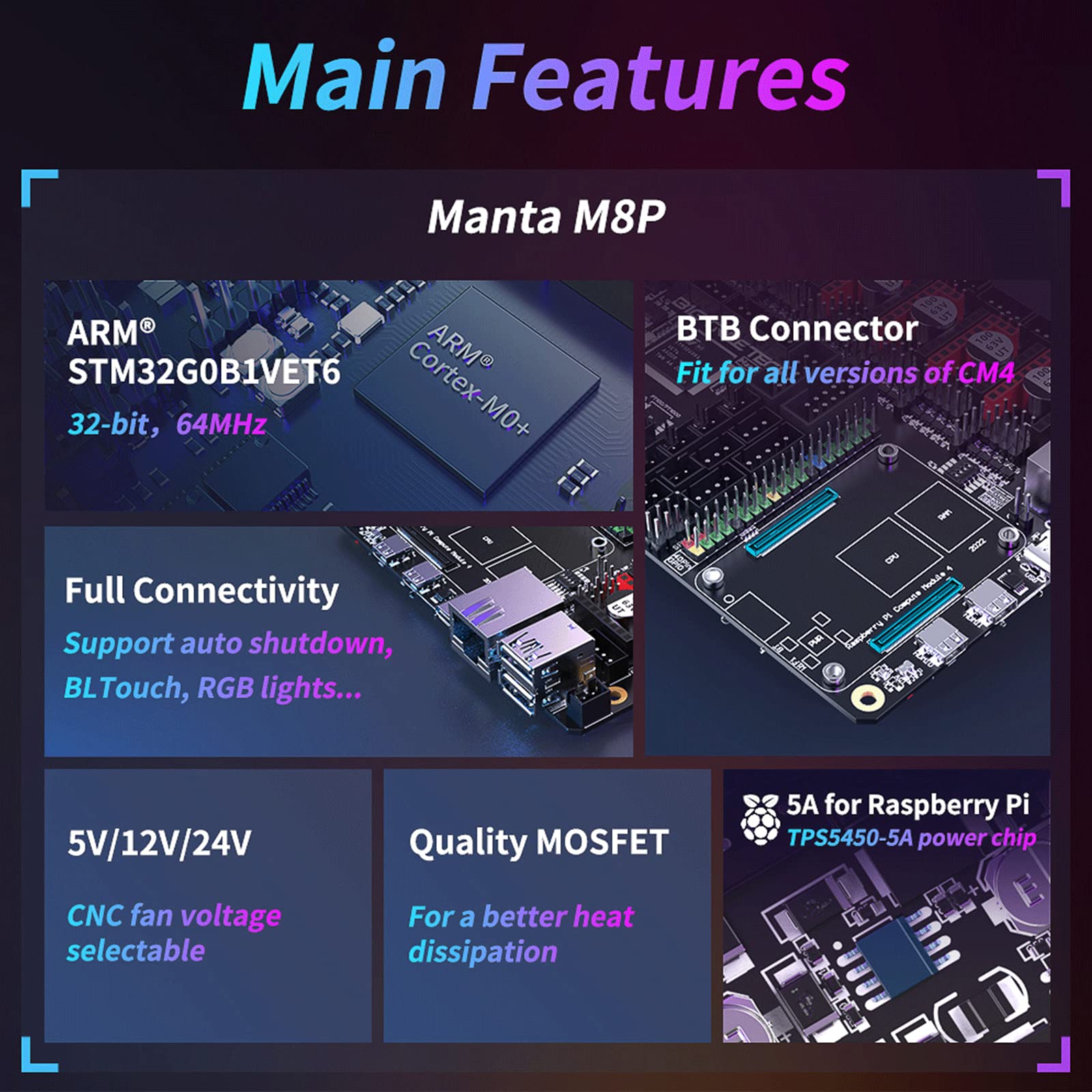

- Q: What are the key features of the BIGTREETECH Manta M8P V1.1 Control Board? A: The BIGTREETECH Manta M8P V1.1 Control Board features a 32-bit ARM Cortex-M0+ series STM32G0B1VET6 main control chip, high-performance MOSFETs for reduced heat generation, and supports DC12/24V power input with an output current of up to 5A. It also includes functionalities like firmware upgrades via SD card or DFU, protection circuits for thermistors, and multiple fan interfaces.
- Q: Is the Manta M8P compatible with Klipper firmware? A: Yes, the BIGTREETECH Manta M8P V1.1 Control Board is fully compatible with Klipper firmware. It reserves an SPI expansion interface for connecting external sensors and offers various upgrade options for the MCU firmware via SD card or through Klipper's make flash command.
- Q: What types of stepper motor drivers can be used with this control board? A: The Manta M8P V1.1 Control Board is compatible with TMC5160 V1.3, TMC2209, and TMC2130 stepper motor drivers. This compatibility allows users to select the driver best suited for their specific application and performance needs.
- Q: How does the Manta M8P handle temperature sensor connections? A: The Manta M8P V1.1 Control Board features five channels for 100K NTC temperature sensors, with four optional ports for NTC and PT1000 types. This flexibility allows for easy integration and customization of temperature monitoring solutions.
- Q: Can I upgrade the firmware on the Manta M8P easily? A: Yes, upgrading the firmware on the BIGTREETECH Manta M8P V1.1 Control Board is straightforward. Users can perform upgrades via an SD card or utilize the DFU method through Klipper's make flash command, ensuring that the board stays up-to-date with the latest features and improvements.
