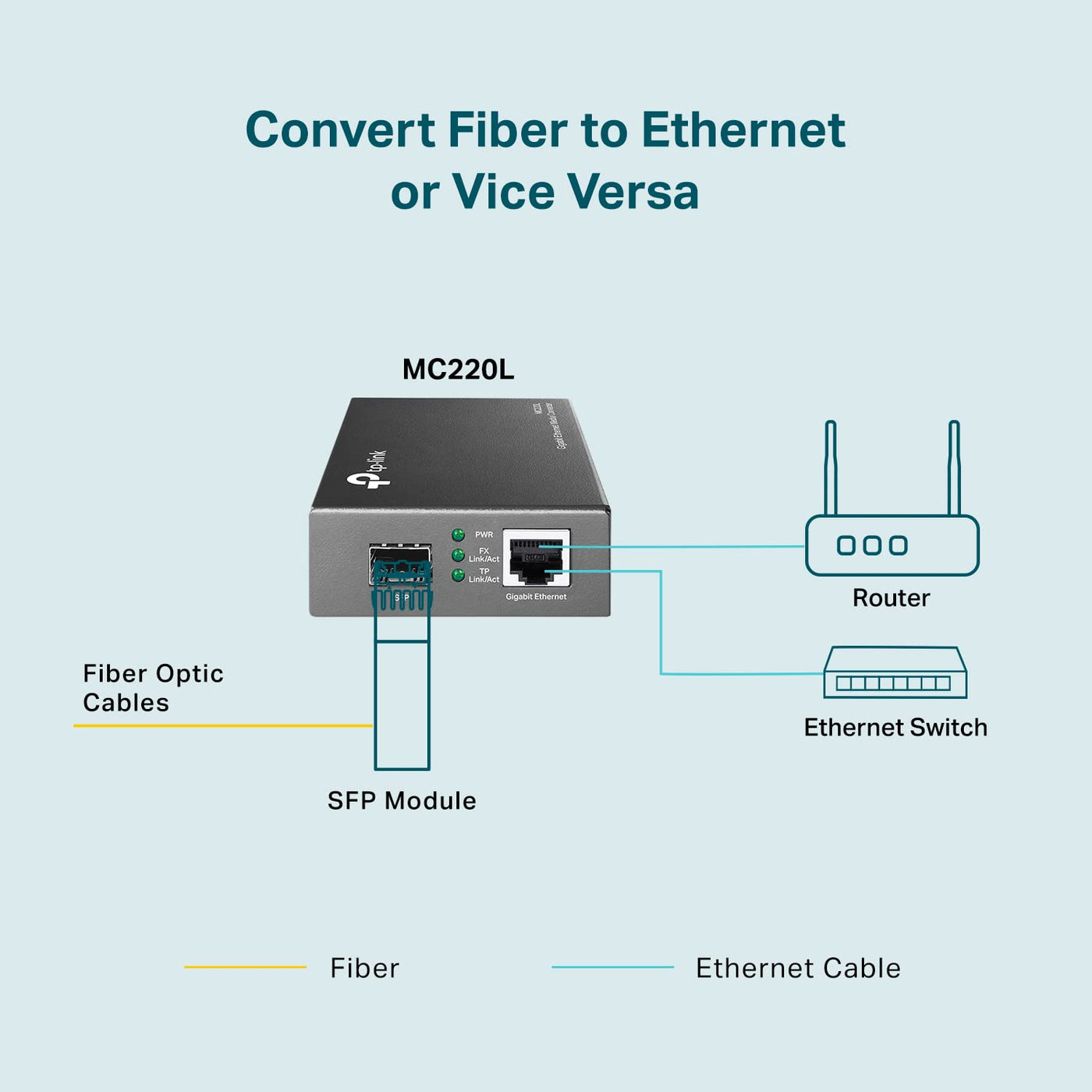

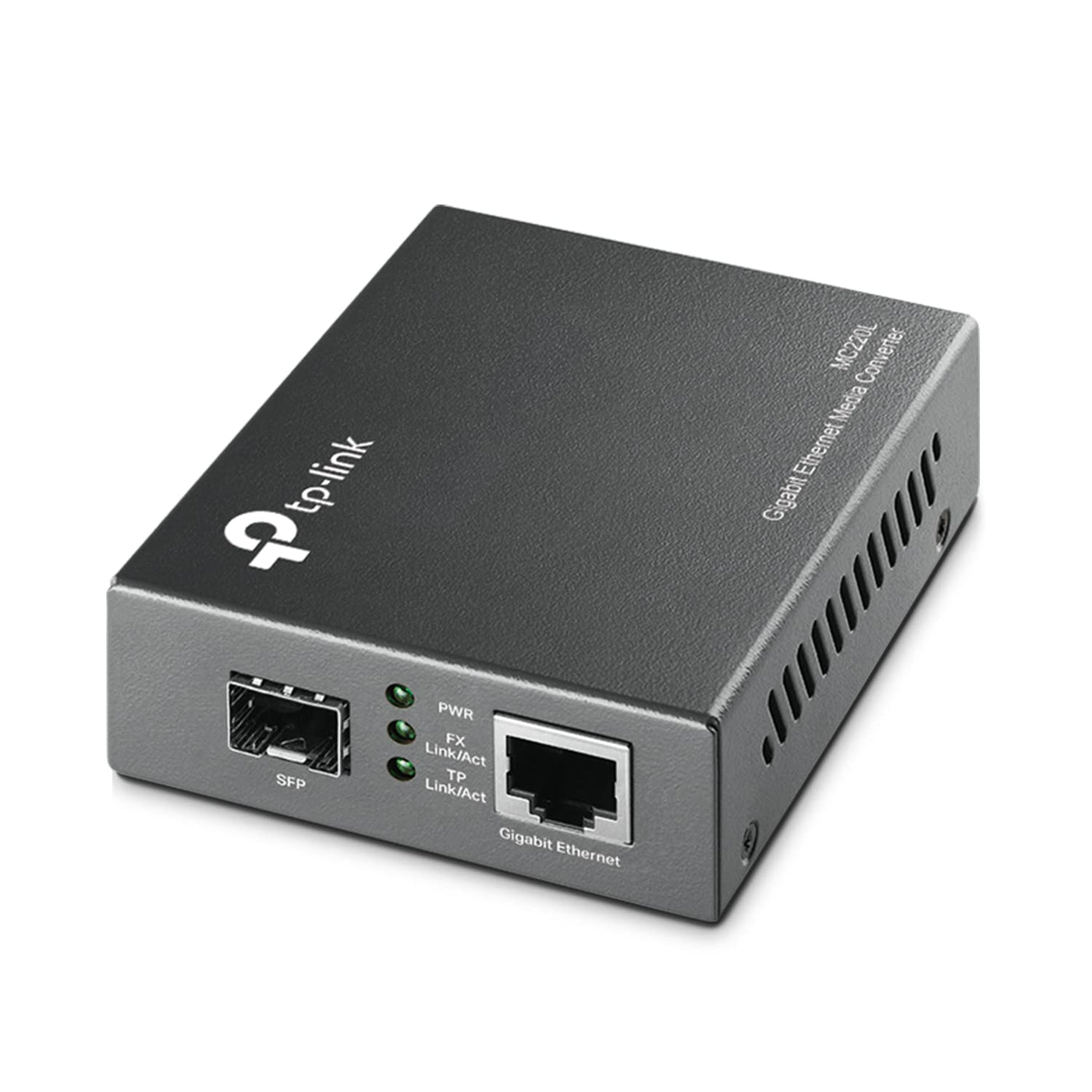

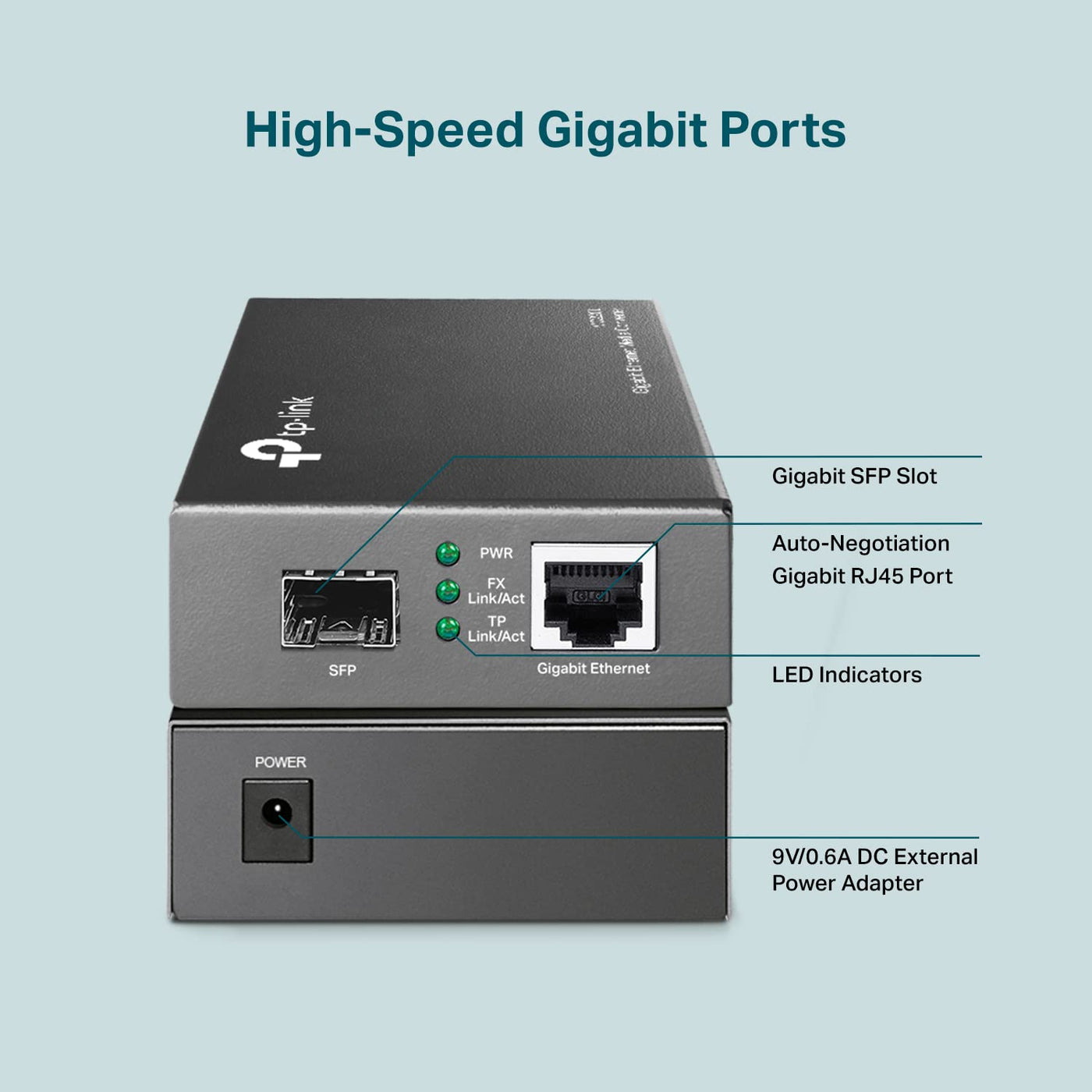

The Mc220L Is A Media Converter Designed To Convert 1000Base-Sx/Lx/Lh Fiber To 1000Base-T Copper Media Or Vice Versa. Designed Under Ieee802.3Ab 1000Base-T And Ieee802.3Z 1000Base-Sx/Lx/Lh Standards, The Mc220L Is Designed For Use With Multi-Mode/Single-Mode Fiber Cable Utilizing The Sc/Lc-Type Connector. It Works At 850Nm On Both Transmitting And Receiving Data When Adopting Multi-Mode Fiber And 1310Nm On Both Transmitting And Receiving Data When Adopting Single-Mode. Other Features Of This Module Include The Ability To Be Used As A Stand Alone Device (No Chassis Required) Or With Tp-Link'S 19''System Chassis, Auto Mdi/Mdi-X For Tx Port, And Front Panel Status Leds. The Mc220L Will Transmit At Extended Fiber Optic Distances Utilizing Multi-Mode Fiber Up To 0.55 Kilometers(0.342 Miles) And 10 Kilometers (6.2 Miles) When Utilizing Single-Mode Fiber. Protocols Supported: Ieee 802.3Ab Ieee 802.3Z Ieee 802.3X
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions

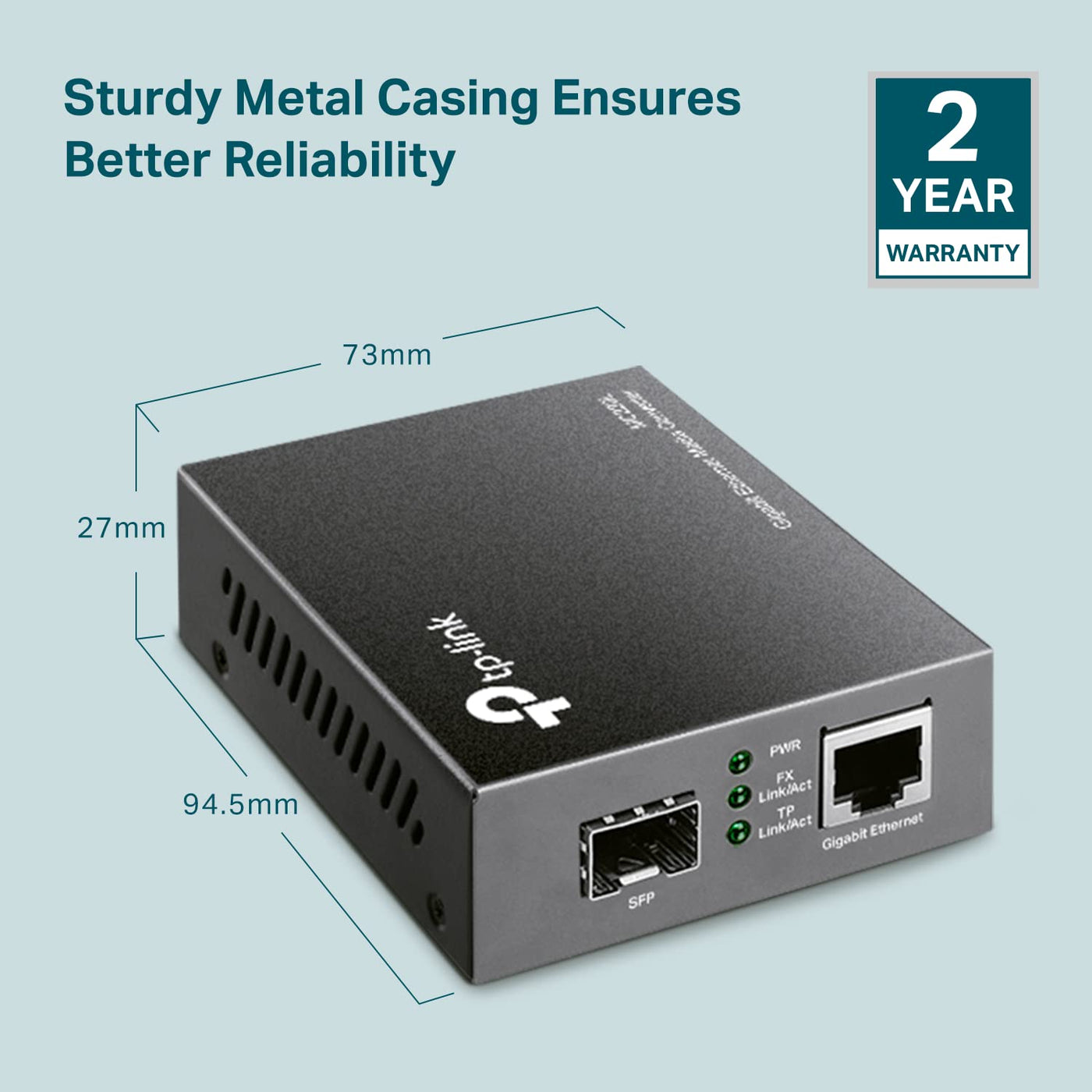

Q: What are the dimensions of the TP-Link MC220L?A: The dimensions are three point seventy-two inches by two point eighty-seven inches by one point six inches.
Q: What materials are used in the TP-Link MC220L?A: The TP-Link MC220L is made of a durable metal casing and copper.
Q: What type of connector does the MC220L use?A: The MC220L uses SC/LC-Type connectors for fiber media.
Q: How do I install the TP-Link MC220L?A: Simply plug in the fiber and Ethernet cables, and the device will automatically configure itself.
Q: Is the MC220L suitable for long-range transmission?A: Yes, it supports transmission distances of up to ten kilometers for single-mode and zero point five five kilometers for multi-mode.
Q: Can I use the MC220L as a stand-alone device?A: Yes, it can function as a stand-alone device without requiring a chassis.
Q: How do I clean the TP-Link MC220L?A: Use a soft, dry cloth to wipe the exterior and avoid using any harsh chemicals.
Q: Is the MC220L UL certified?A: Yes, the TP-Link MC220L is UL certified for safety.
Q: What warranty does the TP-Link MC220L have?A: The product typically comes with a one-year warranty against manufacturing defects.
Q: What if the MC220L arrives damaged?A: Contact customer support for assistance with returns or replacements if the product is damaged upon arrival.
Q: Is the MC220L compatible with different fiber types?A: Yes, it is compatible with both single-mode and multi-mode fiber types.
Q: What kind of Ethernet connections does the MC220L support?A: It supports ten, one hundred, and one thousand Base-T Ethernet connections.
Q: Does the MC220L require software installation?A: No, it is a plug-and-play device that requires no software installation.
Q: Can the MC220L be used with TP-Link's chassis?A: Yes, it can be installed in TP-Link's nineteen-inch system chassis.
Q: What is the maximum distance for multi-mode transmission?A: The maximum distance for multi-mode transmission is one thousand eight hundred feet.
