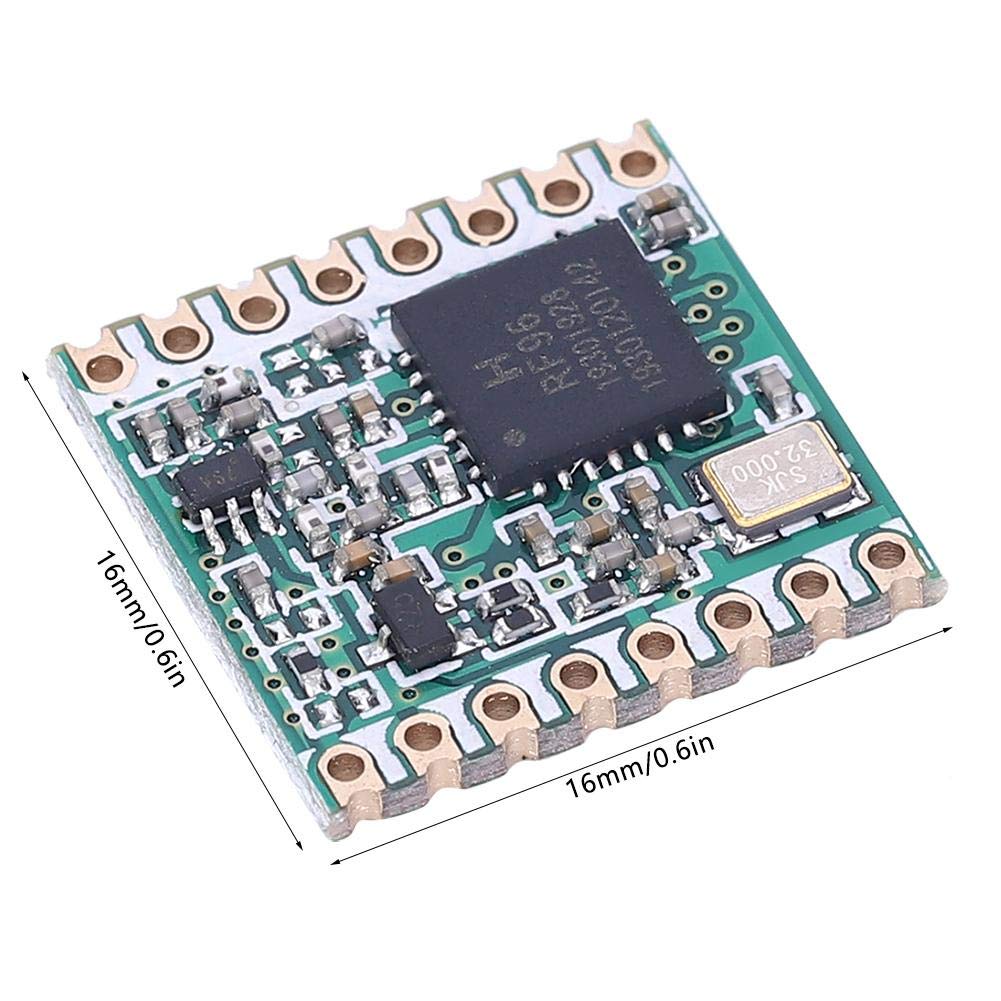

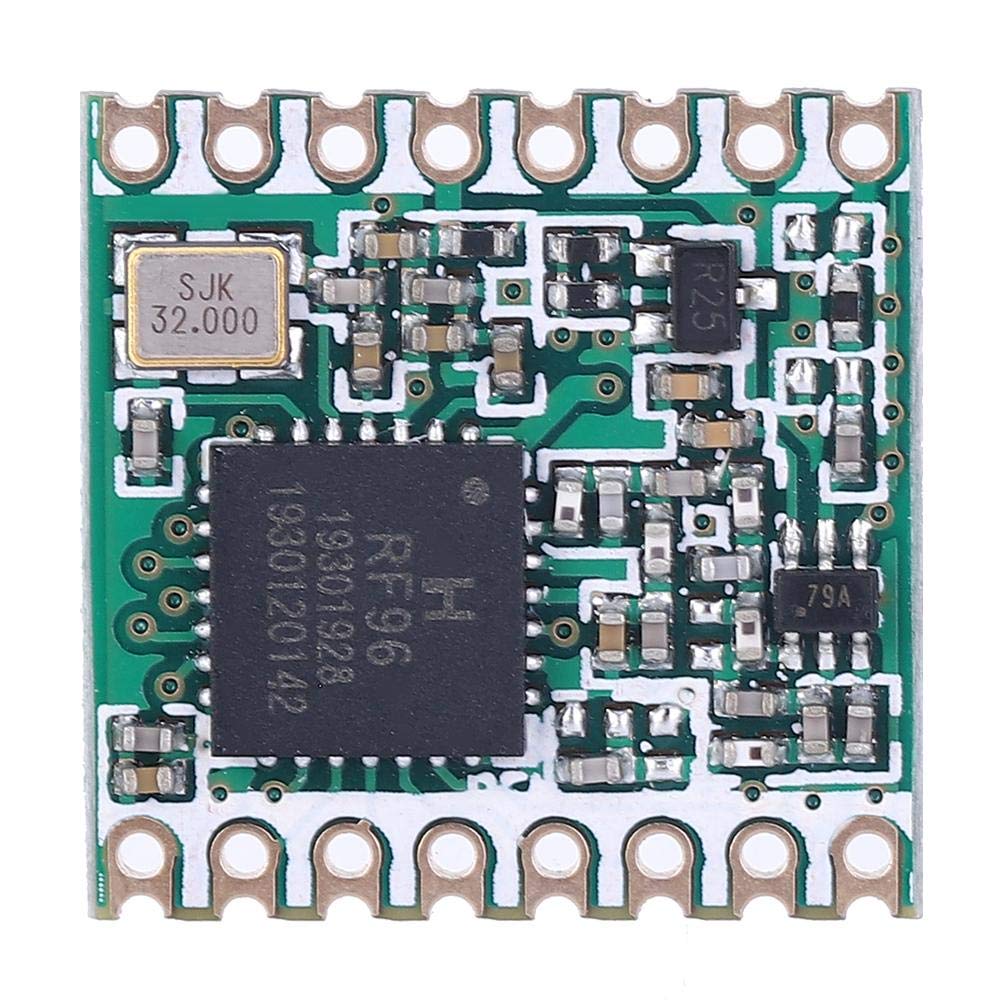

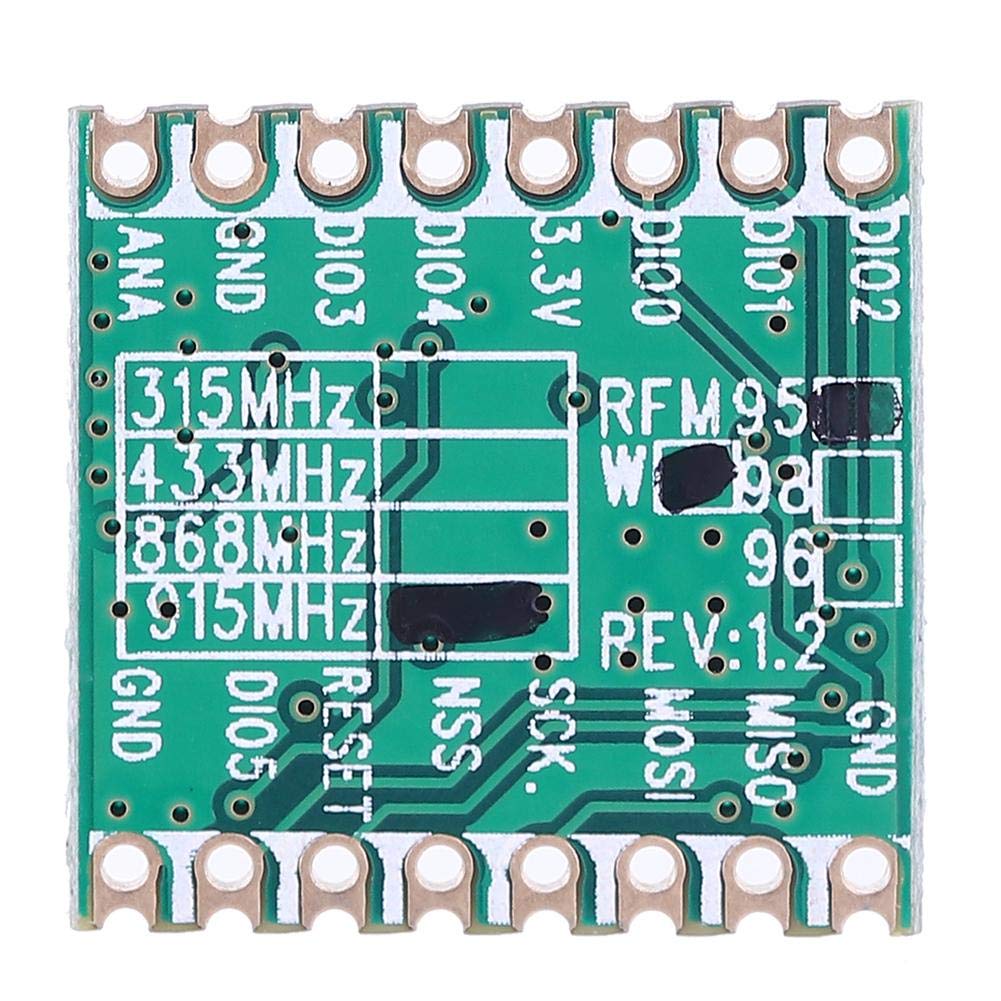

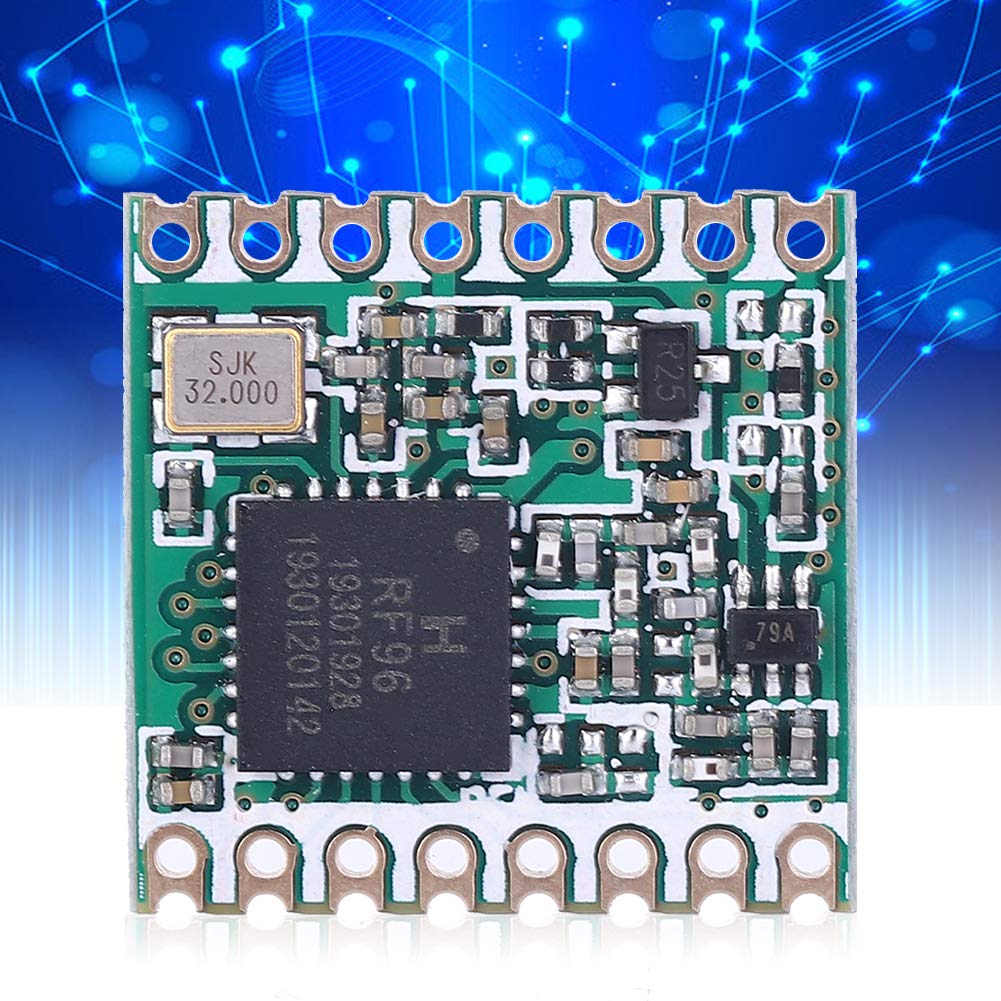

Feature: 1. Combination Of High Sensitivity And Integrated +20Dbm Power Amplifier Reduces The Industry'S Leading Link Budget, Making It An Excellent Choice For Long-Distance And Stable Performance Applications. 2. Strong Anti-Interference,Rfm95 With High-Performance (G) Fsk Modulation Mode, Support For Wmbus / Ieee802.15.4G And Other Systems. Specification:Item Type: Wireless Transceiver Loratm: Remote Communication Module Maximum Link Budget: 168Db Stable Rf Transmit Power And Operating Voltage: +20 Dbm-100 Mw High Efficiency Pa: +14 Dbm Programmable Rate: Up To 300Kbps High Sensitivity: Minimum -148 Dbm Bulletproof Front End: Iip3=-12.5Dbm Receive Current Low: 10.3 Ma, In Register Save State: 200 Na Highly Integrated Synthesizer Resolution: 61Hz Modulation Mode: For Fsk / Gfsk / Msk / Gmsk / Loratm / Ook Modulation Mode Built-In Bit Synchronization Equipment: Achieve Clock Recovery Detection: Support Rssi Dynamic Range: 127Db Automatic Rf: Detection And Cad, Ultra-Fast Automatic Frequency Control Data Packet For Buffer: Up To 256B, Comes With Crc Built-In: Temperature Sensor And Low Battery Detection Indication Module Size: Approx. 16 X 16Mm / 0.6 X 0.6In Package List:1 X Wireless Transceiver Module
