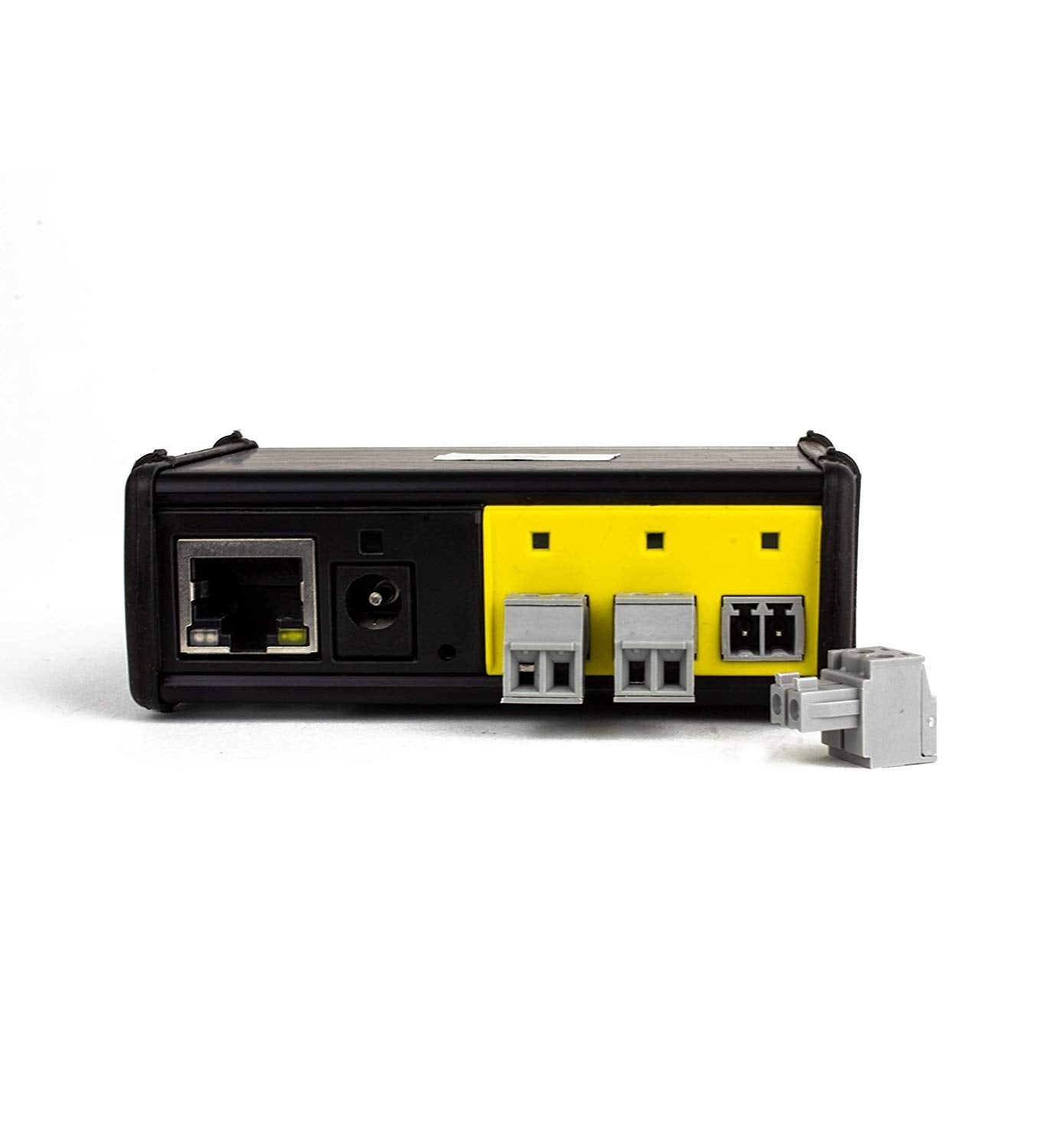

Global Cach Ip2Cc-P Itach Tcp/Ip To Contact Closure Converter With Power Over Ethernetthe Global Cach Ip2Cc-P Itach Lets You Connect, Monitor, And Control Relay-Activated Devices Over A Network Using The Internet. You Can Connect Up To 3 Contact Closure Devices On The Ip2Cc-P. By Linking Ip-Enabled Devices To The Internet Through The Itach, You Can Now Access Them Over The Internet.The Onboard Web Server Simplifies The Setup, Download The Free Ihelp Software At Global Cach 'S Website. The Ip2Cc-P Is Based On Open-Network So It Integrates With Most 3Rd-Party Systems Seamlessly. This Device Even Offers Ir Learning. Simply Download The Latest Ilearn Software At Global Cach 'S Website. Ilearn Allows The Ip2Cc-P To Capture And Playback Ir Commands For Control Usage.Note: Ethernet Cable Is Not Includedtechnical Specs:Network Connection: Rj45 Connector | 100/10 Mbits Ethernet Protocol | Adheres To Tcp, Dhcp And Http Standardssetup: Integrated Web Server For Easy Configuration | Configure Through Tcp/Ip Set Up Commandscontact Closure/Relay: 3 Integrated Contact Closure Relays With Transient Voltage Suppression | Pluggable Screw Terminal 24V Ac/Dc At 0.5A N.O. Contact | Allows For Isolated Switching Of Low Voltage Wiringcompatible Control Software/Apps (But Not Limited To): Comfortclick, Control4, Demopad, Hc-Skipper, Iridium, Isimplex, Mbh Remote, Melloware, Myuremote, Tin:B Software, Touchcontrol, Touch Squid, Worried Cat Motepower Input: 5~16V Dc At 300Ma | Power Over Ethernet Enabledcasing: Aluminum Extrusion Case, Rubber End Caps And Plastic Face Platescertifications: Fcc (Part 15, Class B), C-Tick, Ce, Rohs Compliantdimensions (Lxdxh): 3.3 X 2.3 X 1.3''Weight: 3.25 Ozwhat'S In The Box?Ip2Cc Itach For Contact Closure Devices (Wired)Power Adapteruser Guide
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Global Caché IP2CC-P?A: The dimensions are three point three inches in length, two point two eight inches in width, and one point three inches in height.
Q: What type of network connection does the IP2CC-P use?A: The IP2CC-P uses an RJ45 connector and adheres to one hundred megabits or ten megabits Ethernet protocols.
Q: How much does the Global Caché IP2CC-P weigh?A: The weight of the device is three point twenty-five ounces.
Q: How do I connect the IP2CC-P to my network?A: You can connect the IP2CC-P using a wired Ethernet connection through its RJ45 port, and it supports Power over Ethernet.
Q: Can I connect multiple devices to the IP2CC-P?A: Yes, you can connect up to three contact closure relay devices to the IP2CC-P.
Q: What software do I need to set up the IP2CC-P?A: You need the iHelp software for setup, which can be downloaded from Global Caché's website.
Q: How can I control devices connected to the IP2CC-P?A: You can control connected devices remotely using various compatible control software and apps.
Q: Is the IP2CC-P compatible with third-party systems?A: Yes, the IP2CC-P integrates seamlessly with most third-party systems due to its open-network design.
Q: What do I do if my IP2CC-P is not functioning?A: If the device is not functioning, ensure that it is properly connected to the network and check your power source.
Q: What warranty comes with the Global Caché IP2CC-P?A: The product typically comes with a standard warranty; please check with the retailer for specific warranty details.
Q: How do I clean the Global Caché IP2CC-P?A: You can clean the device with a soft, damp cloth; avoid using harsh chemicals or abrasive materials.
Q: Is the IP2CC-P safe for indoor use?A: Yes, the IP2CC-P is safe for indoor use and complies with FCC, CE, and RoHS certifications.
Q: How do I handle a damaged IP2CC-P upon arrival?A: If your device arrives damaged, contact the retailer immediately to initiate a return or exchange.
Q: Does the IP2CC-P support IR learning?A: Yes, the device offers IR learning capabilities, allowing it to capture and playback IR commands.
Q: Can I use the IP2CC-P with mobile apps?A: Yes, the IP2CC-P is compatible with various mobile control apps, allowing remote management of connected devices.
Q: What power input does the Global Caché IP2CC-P require?A: The IP2CC-P requires a power input of five to sixteen volts DC at three hundred milliamps.
