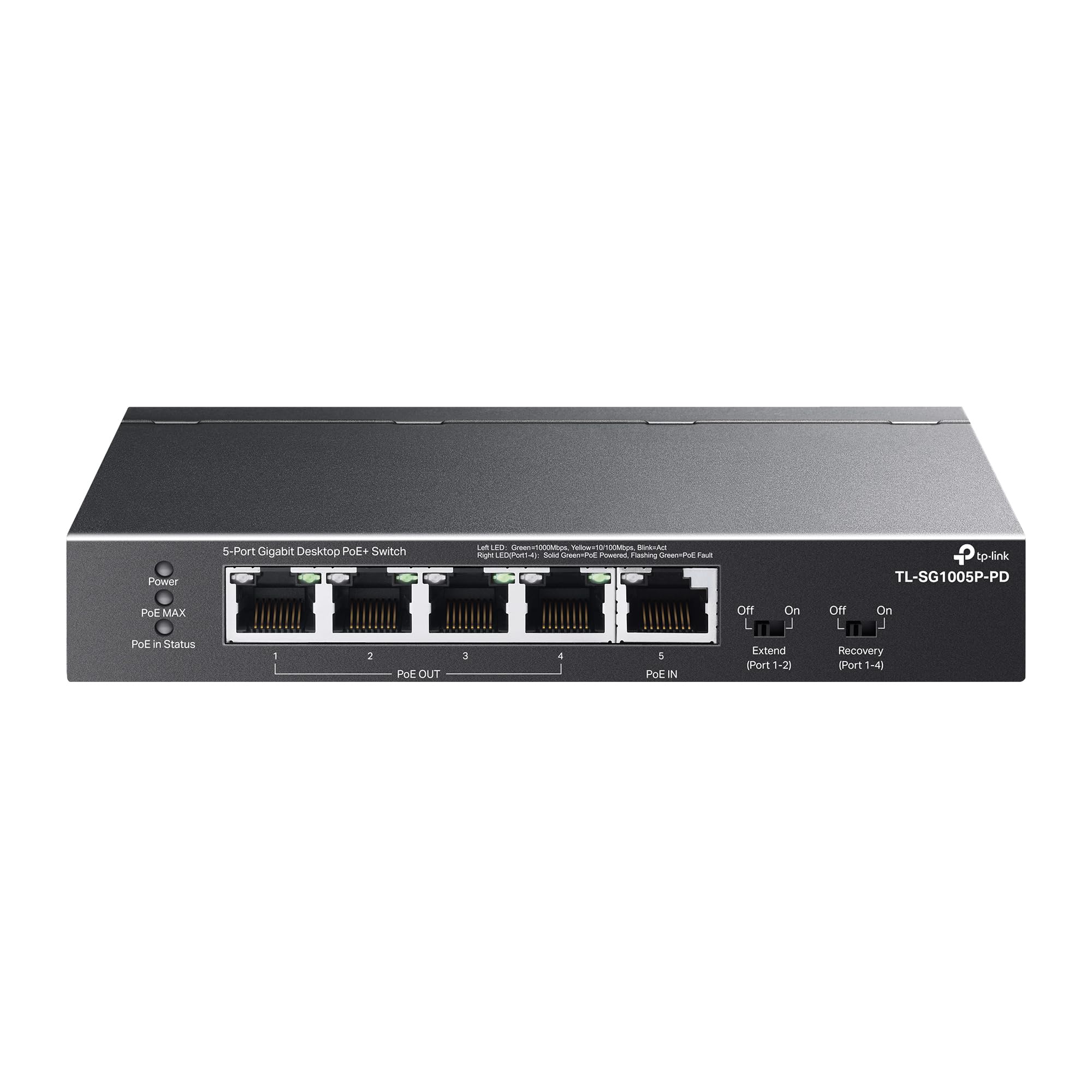

Tp Link Tl Sg1005P Pd | 5 Port Poe Passthrough Gigabit Ethernet Switch | 1 Poe++ In@90W, 4 Poe+ Output Up To 66W | Plug & Play |

Frequently Asked Questions

• Q: What are the dimensions of the TP-Link TL-SG1005P-PD switch? A: The TP-Link TL-SG1005P-PD switch measures one inch in height, six point two inches in length, and three point nine six inches in width.
• Q: What is the input power capacity for this switch? A: The TP-Link TL-SG1005P-PD switch has one port for PoE++ input with a total power budget of ninety watts.
• Q: How many output ports does this switch have? A: This switch features four PoE+ output ports, which can provide up to sixty-six watts of power.
• Q: How do I set up the TP-Link TL-SG1005P-PD switch? A: The switch is plug and play, meaning you can simply connect it to power and your network without any software installation or configuration.
• Q: Is this switch suitable for surveillance systems? A: Yes, the TP-Link TL-SG1005P-PD is ideal for surveillance systems, especially when using the extend mode for data and power transmission.
• Q: What is the maximum transmission range in extend mode? A: In extend mode, the switch can provide data and power transmission for up to two hundred fifty meters or eight hundred twenty feet.
• Q: How do I maintain the TP-Link TL-SG1005P-PD switch? A: To maintain the switch, ensure it’s placed in a well-ventilated area and clean it periodically to prevent dust accumulation on its metal casing.
• Q: Does this switch have a fan for cooling? A: No, the TP-Link TL-SG1005P-PD has a fanless design, ensuring quiet operation while maintaining efficient performance.
• Q: How should I store the TP-Link TL-SG1005P-PD switch? A: Store the switch in a cool, dry place, away from moisture and extreme temperatures to ensure its longevity.
• Q: What is the warranty period for the TP-Link TL-SG1005P-PD? A: The TP-Link TL-SG1005P-PD typically comes with a limited warranty, often lasting up to five years, but please check with the retailer for specifics.
• Q: What if the switch does not power on? A: If the switch does not power on, ensure it is connected correctly to a PoE source and check for any visible damage to the connectors.
• Q: Can I use this switch for non-PoE devices? A: Yes, you can connect non-PoE devices to the switch; however, they will not receive power through the Ethernet cable.
• Q: How does the PoE auto-recovery feature work? A: The PoE auto-recovery feature automatically reboots any unresponsive PoE-powered devices when activated, eliminating the need for manual resets.
• Q: Is this switch compatible with older PoE standards? A: Yes, the switch is compatible with various PoE standards, including 802.3bt Type 4, Type 3, 802.3at, and 802.3af.
• Q: What is QoS in the context of this switch? A: Quality of Service (QoS) on this switch prioritizes network traffic, ensuring better performance for video and voice communications.
