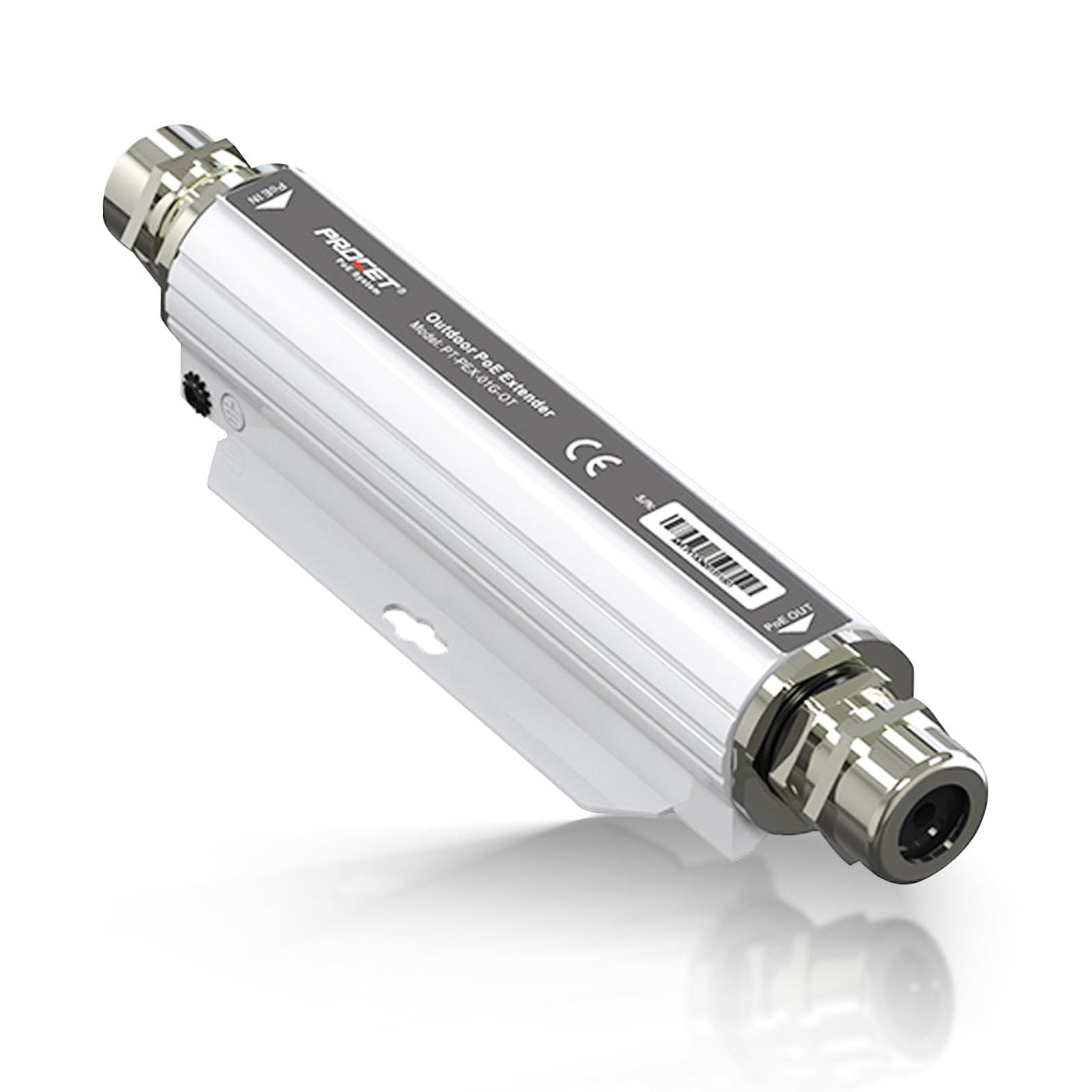

The Procet PT-PEX-01G-OT is a single-port PoE extender designed for outdoor use. It features a waterproof aluminum alloy shell and internal sealing gasket, offering robust protection for network extensions. This extender delivers 55Vdc (typical), 1.1A power from a PoE Injector/switch to remote Powered Devices (PDs) over full 4 pairs, with 4KV (10/700us) surge protection and 6KV lightning protection. It supports 10/100/1000Mbps data speeds (Gigabit Ethernet) and is compliant with IEEE802.3af/at and PoE++ standards, supporting up to 60W PoE PDs.
Key Features:

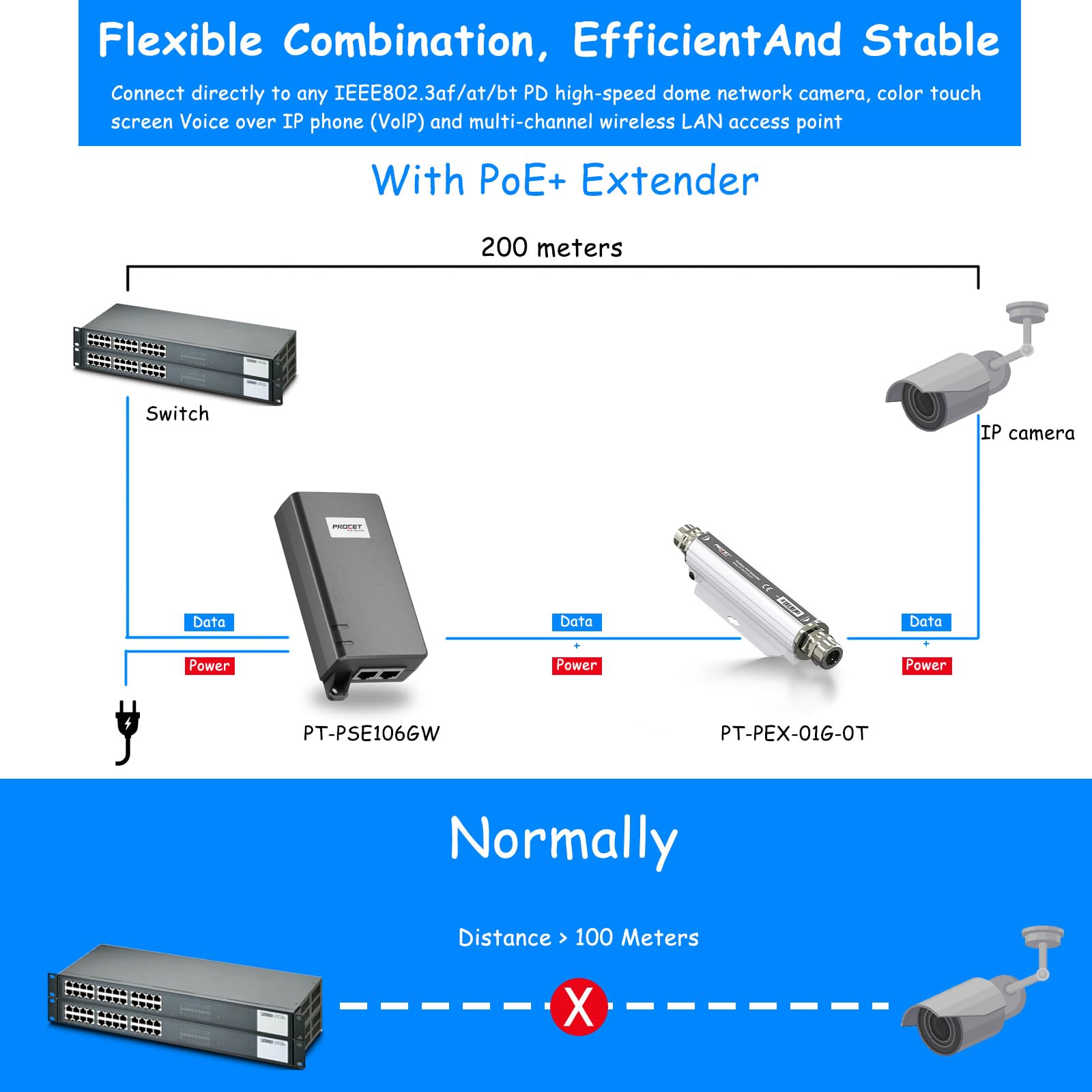

- Extends power and network signal up to 100 meters (328ft) per extender.
- Maximum extension distance of up to 500 meters with additional extenders.
- Reliable power output with built-in protection against overvoltage, overcurrent, and short circuit.
- Ideal for surveillance systems, wireless APs, base stations, network cameras, and other high-power Ethernet terminals.
- Operates in extreme temperatures from -40℃ to +65℃.
- Easy plug-and-play installation with no software or configuration required.
- Wall-mountable design with two mounting holes.
- ROHS compliant materials for durability and longevity.
Product Specifications:
- Operating Voltage: 44-57Vdc (Max 60Vdc)
- Maximum Operating DC Current: 1.1A for 4 pairs, max 60W
- Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
- Data Speed: 10/100/1000Mbps
- Common Mode Protection Level (10/700us): 6KV
- Operating Humidity: 20% to 80%, non-condensation

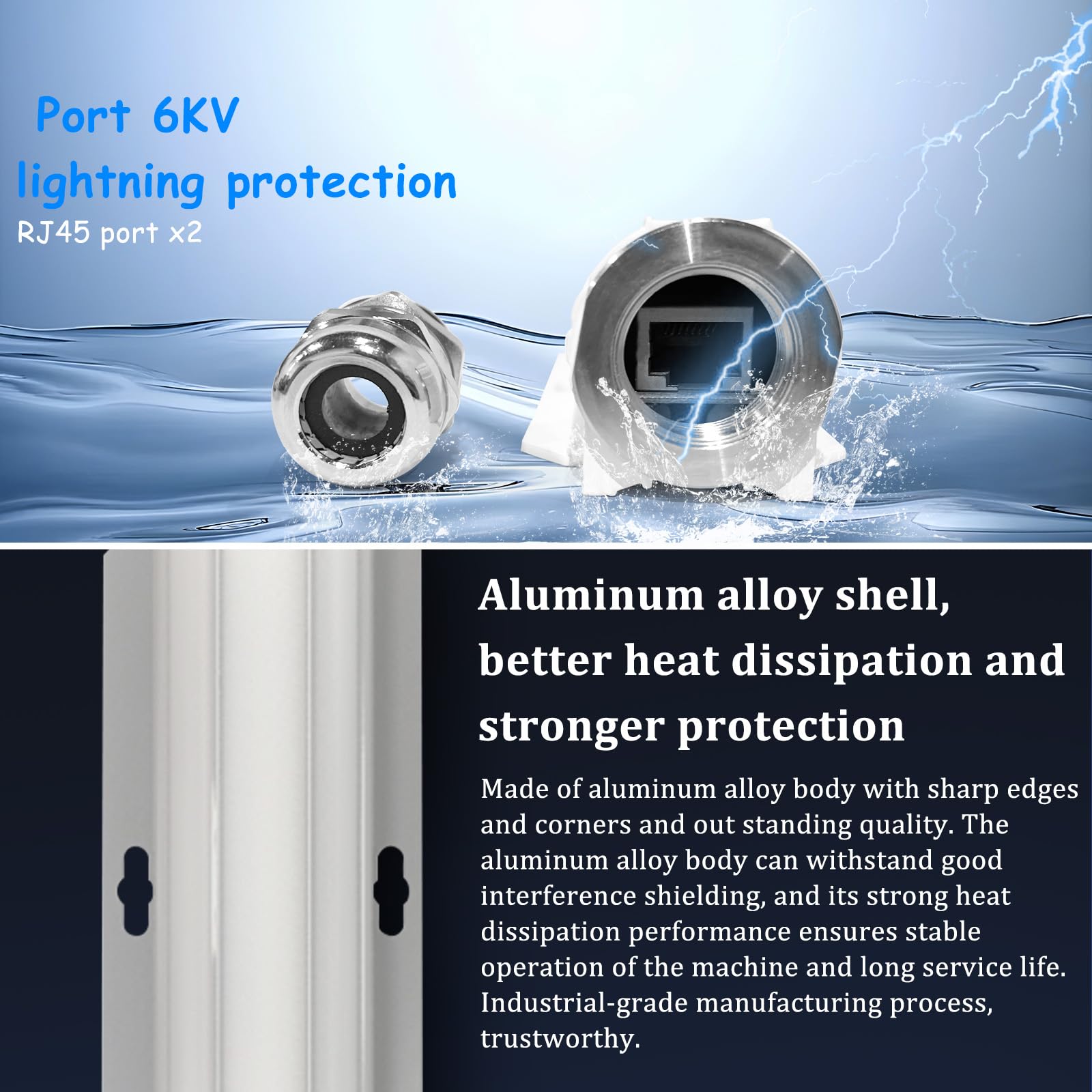

- Case Material: Aluminium alloy
- Color: White
- IP Rating: IP67
- Dimensions: 209mm X 53mm X 37.5mm
- Weight: 410g
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Procet POE60W Gigabit Outdoor IP67 Waterproof PoE+ Extender?A: The dimensions are two hundred nine millimeters by fifty-three millimeters by thirty-seven point five millimeters.
Q: What is the weight of the Procet POE60W Gigabit Outdoor PoE extender?A: The weight is four hundred ten grams.
Q: What materials are used in the construction of the PoE extender?A: The case is made of aluminum alloy, providing durability and weather resistance.

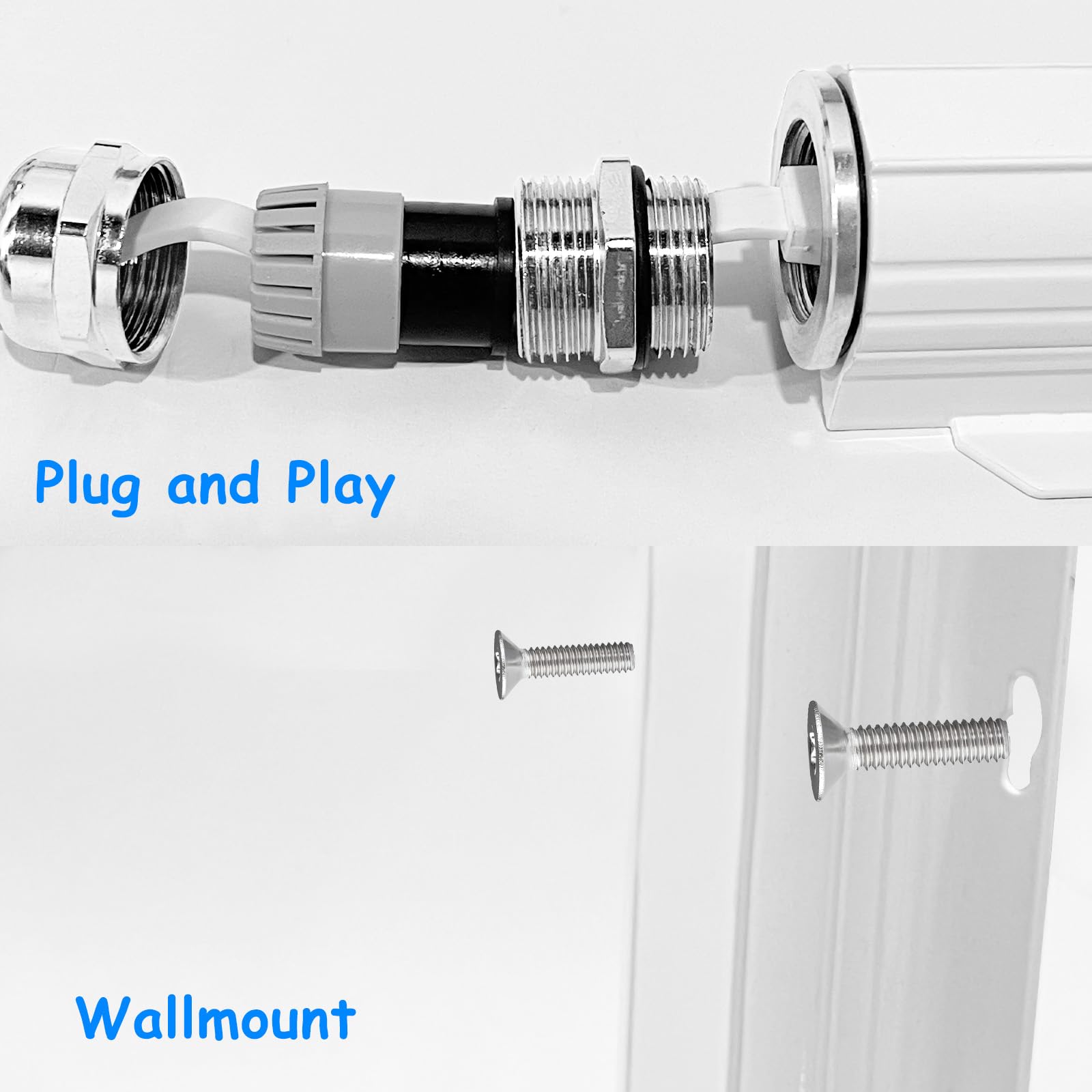

Q: How do I install the Procet POE60W Gigabit Outdoor PoE extender?A: The extender is designed for wall mounting and includes two mounting holes for easy installation.
Q: Can I use this extender with any PoE injector or switch?A: Yes, it is compatible with PoE injectors and switches that supply voltage between forty-four to fifty-seven volts.
Q: What is the maximum distance this PoE extender can cover?A: The maximum distance is two hundred meters without local power, and up to five hundred meters with additional extenders.
Q: How should I clean and maintain the PoE extender?A: Wipe the exterior with a damp cloth and avoid exposing it to harsh chemicals to maintain its condition.
Q: Is the Procet POE60W extender weatherproof?A: Yes, it is rated IP67, making it waterproof and suitable for outdoor use.
Q: What is the operating temperature range for the PoE extender?A: The operating temperature range is from negative forty degrees Celsius to sixty-five degrees Celsius.
Q: Is the PoE extender safe for outdoor use?A: Yes, it is designed for outdoor use and has surge protection levels of six kilovolts.
Q: How does the PoE extender handle power loss with multiple extenders?A: Power loss may occur when adding multiple extenders, but one extender can still provide up to sixty watts of output power.
Q: Is this extender suitable for surveillance systems?A: Yes, it is specifically designed for surveillance systems, supporting high power Ethernet devices like cameras.
Q: What type of protection does the extender provide against electrical surges?A: The extender has a common mode protection level of six kilovolts for surge protection.
Q: What kind of technical support is available for this product?A: The manufacturer offers one year of technical support and assistance for installation and use.
Q: What data speeds does the Procet PoE extender support?A: It supports data speeds of ten, one hundred, and one thousand megabits per second.
