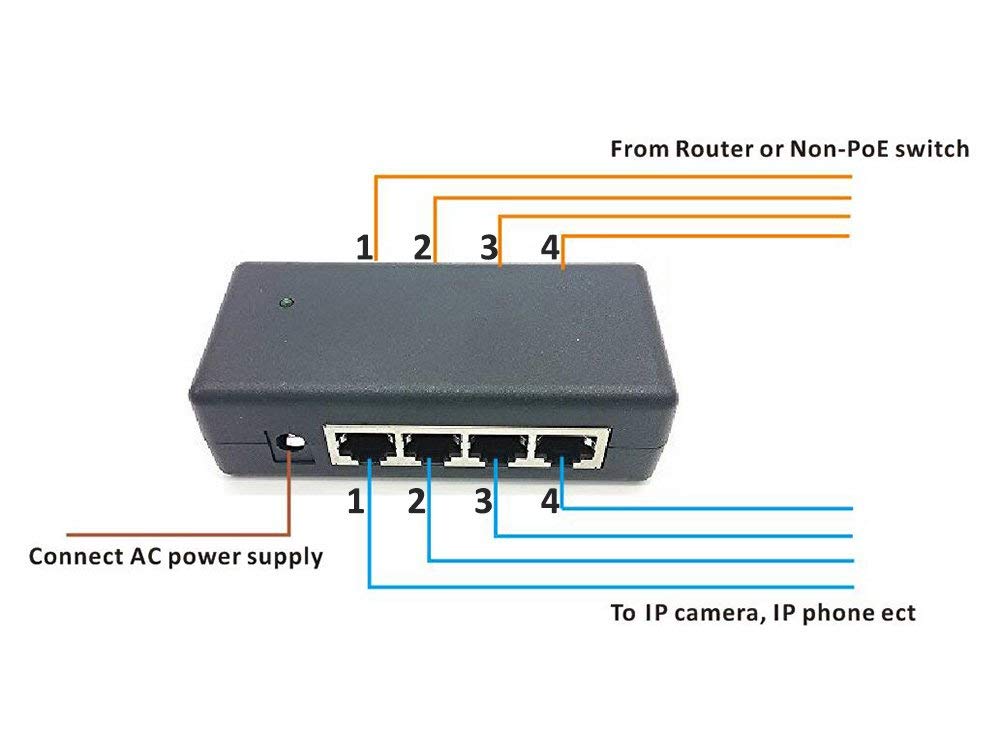

Steps To Install The Device: 1. Connect The Internet Lan To The Data In Ports Of Poe Injector By Cat 5,6,7 Cable, 2. Then, Connect The Poe Enabled Devices To The Poe Ports Of Poe Injector By Cat 5,6,7 Cable, 3. Connect The Dc Plug Of Power Supply To The Poe Injector. 4. Connect The Power Supply To Mains Supply (100-240Vac)
This Poe Kit Only Work For 10\100Mbps And Poe Enabled Devices ! Please Make Sure Your Device Has Poe Function!
Features: 4 Port Power Injector Module With 48V 65W Power Supply Input 4 Lan Ports, Output 4 Lan+Power Ports, Shielded 650 Ma Resettable Fuse On Each Port Power Voip Phones, Ip Cameras, Wifi Access Points, And More Same Voltage To All Ports, Share Available Power Equally Dc Plug Size : 2.1Mm X 5.5Mm Display Indicator:Led Power Status Compatiable With All Ethernet Switch Or Router Compatiable With All Power Supply No More Than 48 Volts Power For 802.3Af Devices
What In Box? 1X 4 Port Poe Power Over Ethernet Injector [With Plastic Case] 1X 48V 65Watt Ul Listedpower Adapter 1X Us Plug Power Cord
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the iCreatin PoE Injector?A: The iCreatin PoE Injector measures seven point eight inches in length, five point eight inches in width, and two point four inches in height.
Q: What is the power output of the PoE Injector?A: The PoE Injector provides a power output of forty-eight volts and sixty-five watts, suitable for powering multiple devices.
Q: Is the iCreatin PoE Injector compatible with all Ethernet devices?A: Yes, the iCreatin PoE Injector is compatible with all Ethernet switches, routers, and devices that support Power over Ethernet.
Q: How do I install the iCreatin PoE Injector?A: To install, connect the Internet LAN to the data in ports using a Cat five, six, or seven cable, then connect the PoE devices to the PoE ports.
Q: Does the PoE Injector require a specific type of cable?A: Yes, you need to use Cat five, six, or seven cables for both data and power connections.
Q: Can the PoE Injector power devices from a distance?A: Yes, it can power devices up to three hundred twenty-eight feet away, or one hundred meters, over Ethernet wiring.
Q: What safety features does the PoE Injector have?A: The injector includes a six hundred fifty milliamp resettable fuse on each port to protect against overload.
Q: How do I keep the iCreatin PoE Injector in good condition?A: To maintain the injector, ensure it is kept dry and free from dust, and avoid exposing it to extreme temperatures.
Q: Is the iCreatin PoE Injector safe for outdoor use?A: No, the iCreatin PoE Injector is designed for indoor use only and should not be exposed to outdoor elements.
Q: What devices can I power with the PoE Injector?A: You can power various devices including IP cameras, VoIP phones, and WiFi access points with this PoE Injector.

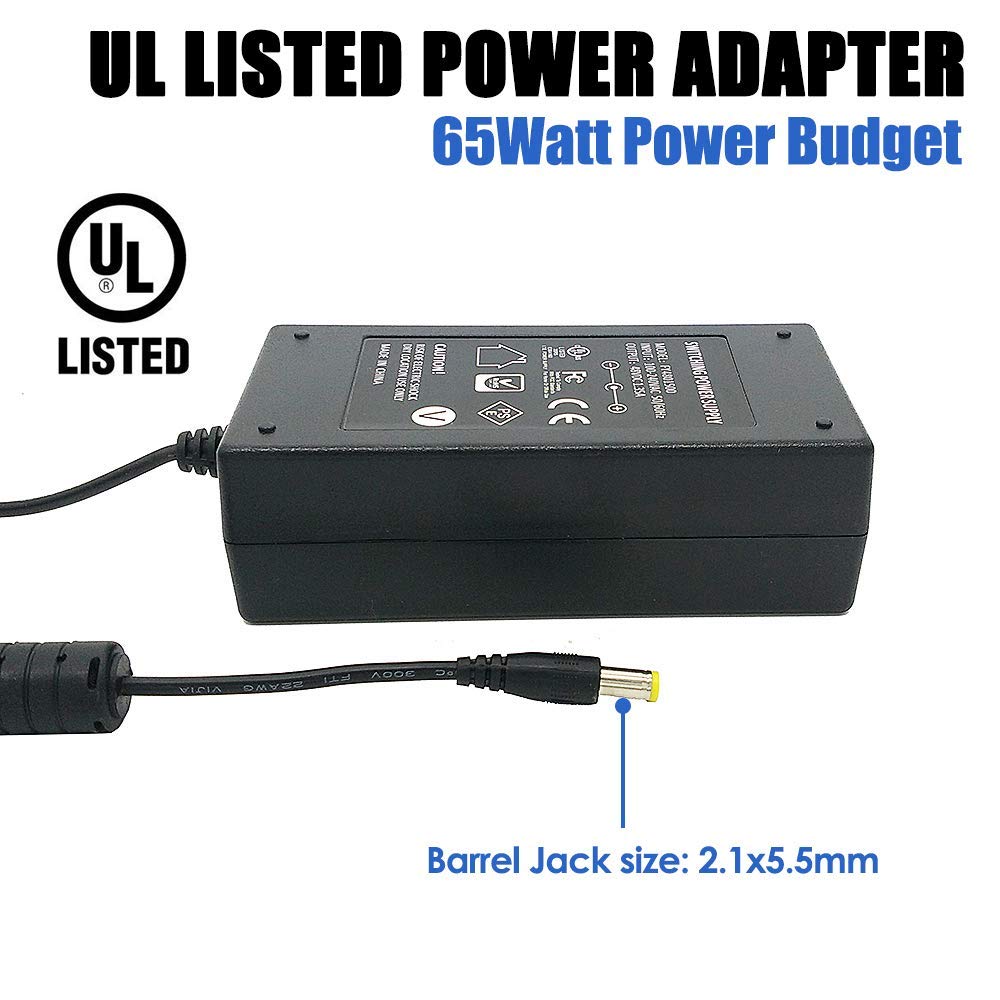

Q: Is the power adapter included with the injector?A: Yes, the package includes a forty-eight volt sixty-five watt UL listed power adapter.
Q: What should I do if the PoE Injector does not power my devices?A: Check the connections to ensure they are secure and confirm that your devices are compatible with Power over Ethernet.
Q: What is the warranty on the iCreatin PoE Injector?A: Warranty details can vary, but typically the product comes with a standard one-year warranty against manufacturing defects.
Q: Can I use the PoE Injector with non-PoE devices?A: No, the PoE Injector is specifically designed for Power over Ethernet devices only.
Q: How can I return the iCreatin PoE Injector if I'm not satisfied?A: If you're not satisfied, you can initiate a return through the retailer's return policy within the specified timeframe.
