Centopto Mini Industrial 5 Ports Gigabit Poe Switch Hardened Rj45 10/100/1000Mbps 802.3At 30W/Port Ethernet Switch Din Rail Moun
$101.01
Regular price
$144.30
-30%
Will be in stock after
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

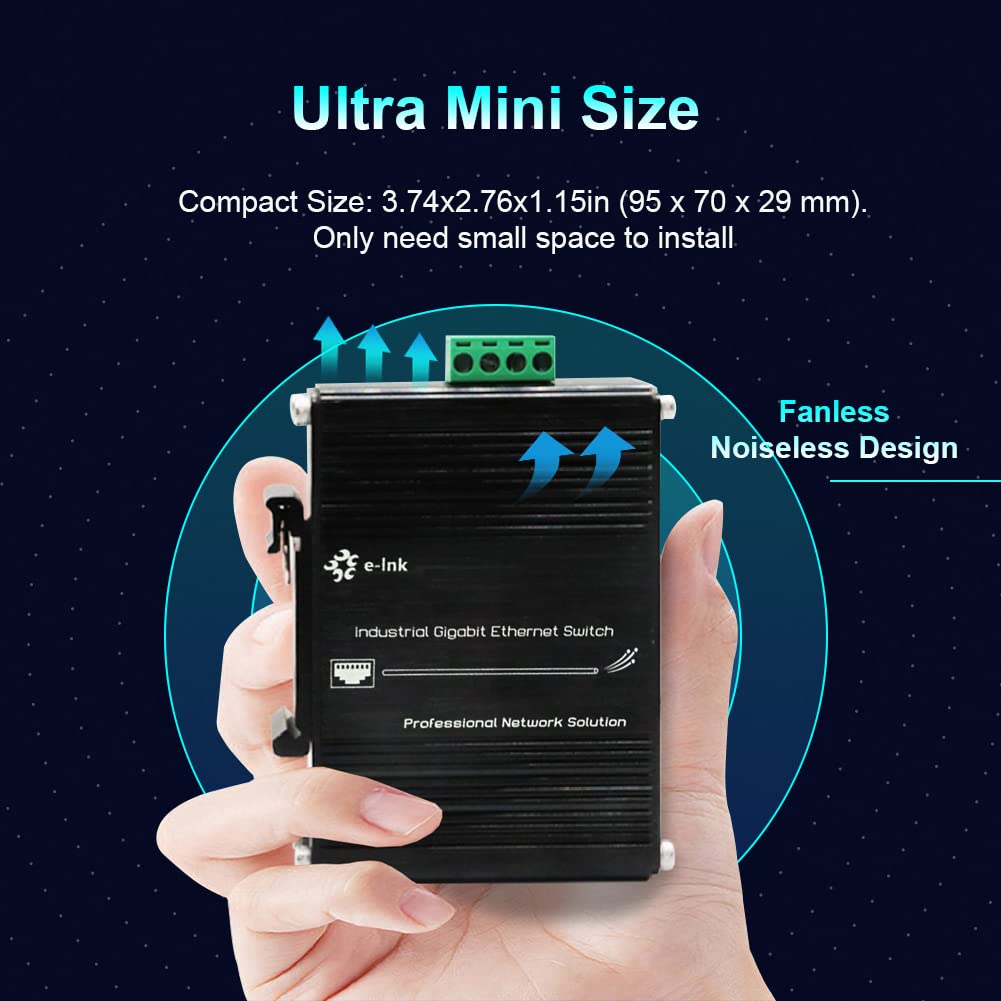

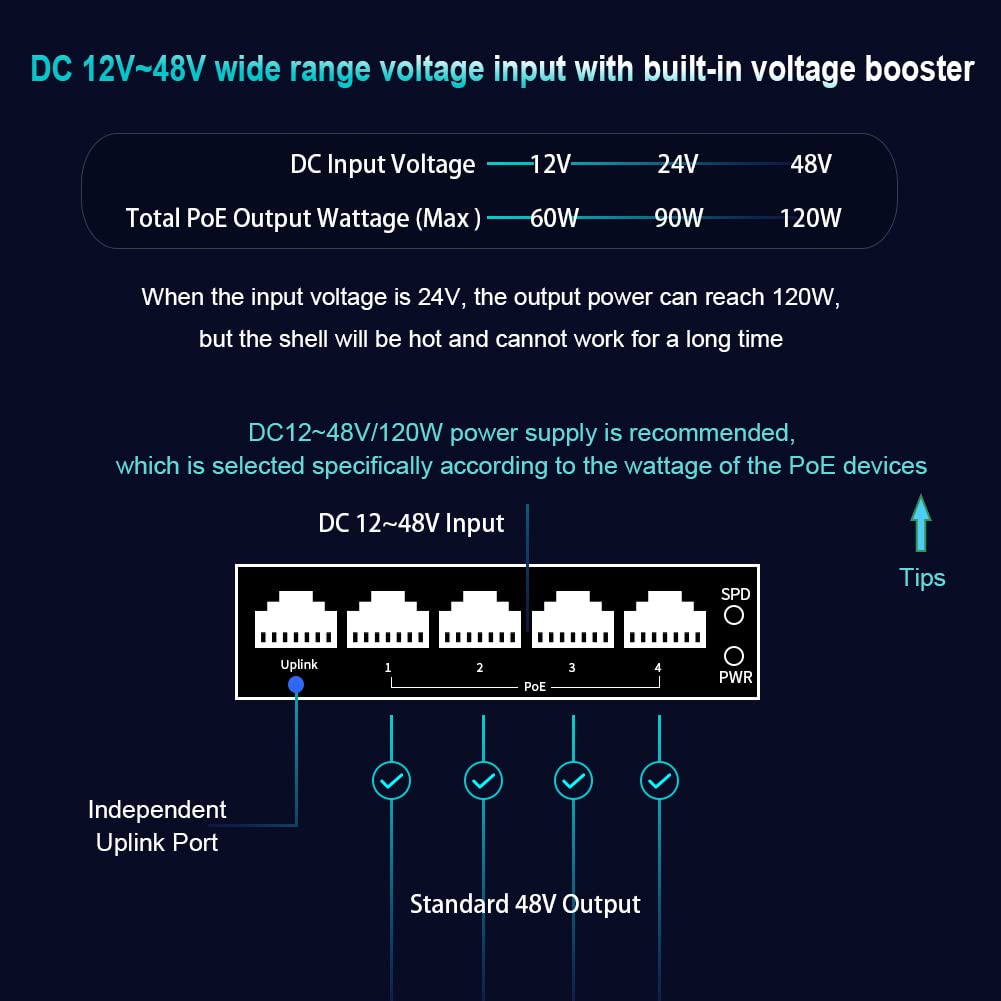

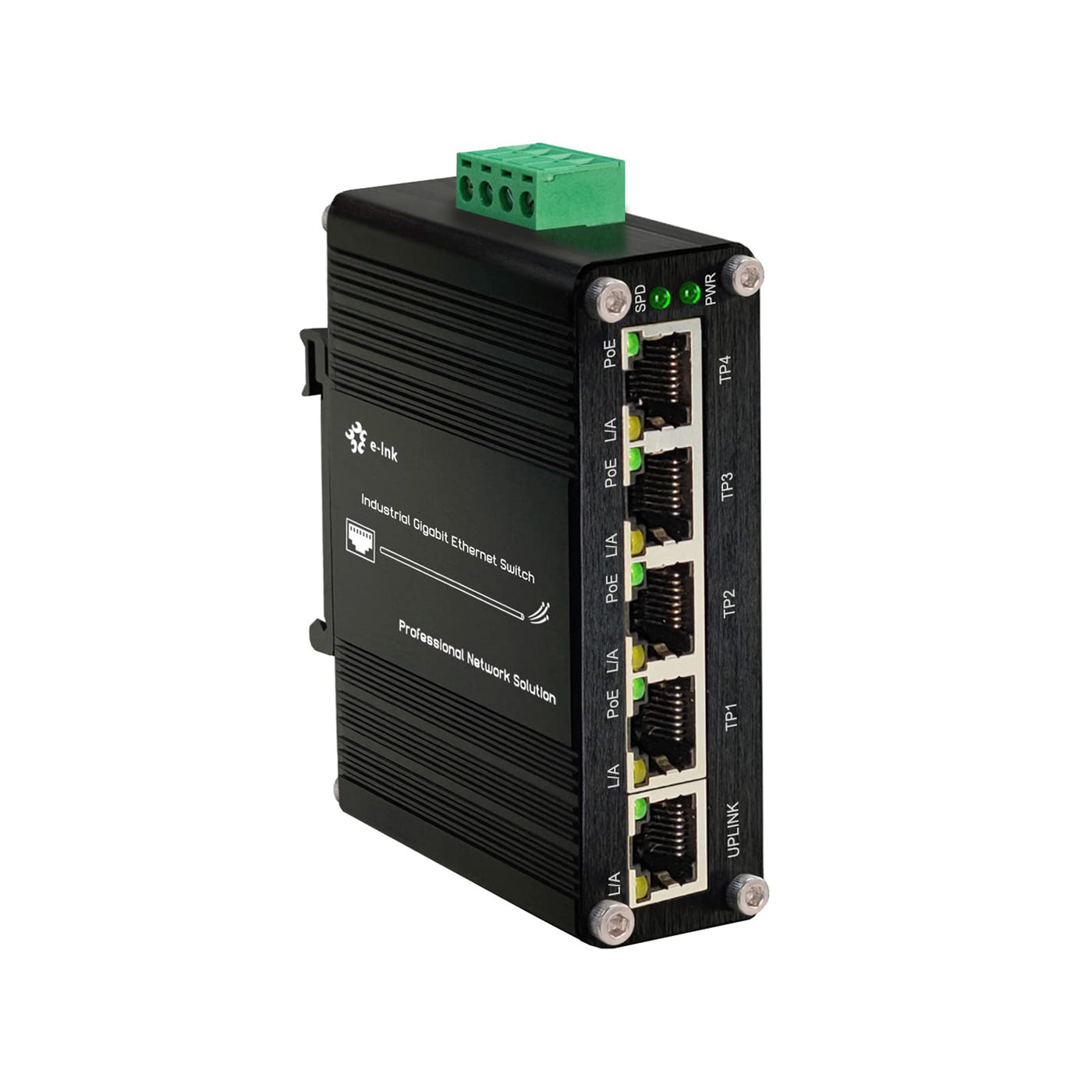

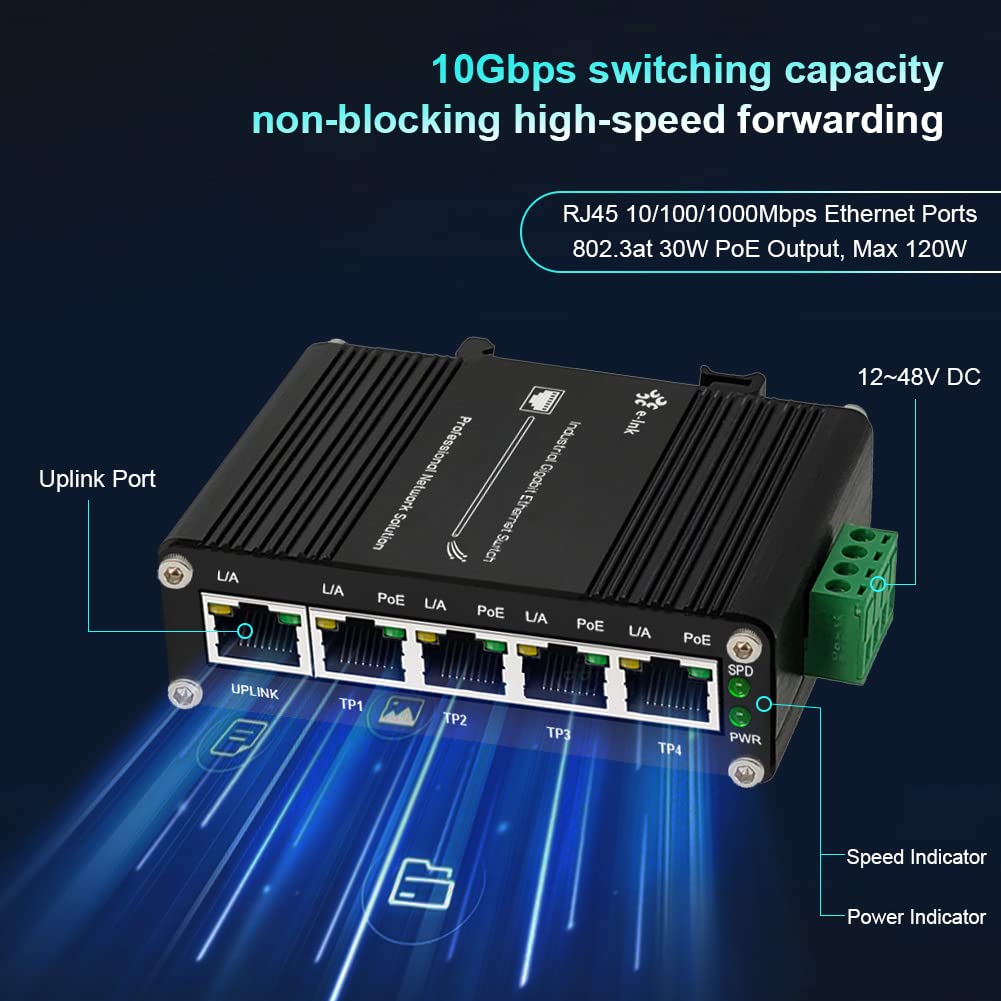

Features: 5-Port 10/100/1000Base-T Rj45 With Auto-Mdi/Mdi-X Function Supports Auto-Negotiation And 10/100Mbps Half/Full Duplex And 1000Mbps Full Duplex Supports 802.3X Flow Control Supports Din-Rail And Wall-Mount Installation 1248V Dc Wide Range Power Input Industry Standard Design, Dustproof And Close Design Ip40, Rugged High-Strength Metal Case -40C To 75C (-40F To 167F) Operating Temperature Specifications: Standard: Ieee802.3 10Base-T Ethernet, Ieee802.3U 100Base-Tx Fast Ethernet, Ieee 802.3X Flow Control, Ieee802. 3Af (Poe), Ieee802. 3At (Poe+) Packet Buffer Memory: 1Mbit Max Packet Length: 9K Bytes. Address Table Size: 4K Mac Address Switch Capacity:&Nbsp;10Gbps/Non-Blocking Ethernet Port: Rj45 10/100/1000Mbps Ethernet Transmission Distance: 100M (328Ft) Input Power: 1248Vdc(Power Supply Not Included) Casing Material: Aluminum&Nbsp;Case Mounting Options:&Nbsp;Din-Rail / Wall-Mount Operating Temperature: -40C To 75C (-40F To 167F) Power Consumption: ≪6W Mini Size (Wxdxh): 3.74X2.76X1.15In (95 X 70 X 29&Nbsp;Mm) Note:&Nbsp;If You Have Any Questions Or Find The&Nbsp;Ethernet&Nbsp;Switch&Nbsp;Dont Work, Please Contact Us. Our Professional Technical Staff Will Teach You How To Use Or Help You Find The Problem And Solve It. Package: 5-Port Mini Industrial Poe Switch X1 Wall&Nbsp;Mounting Kit&Nbsp;X1 Gigabit Ethernet Switch&Nbsp;User Manual
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Related products
Frequently Asked Questions

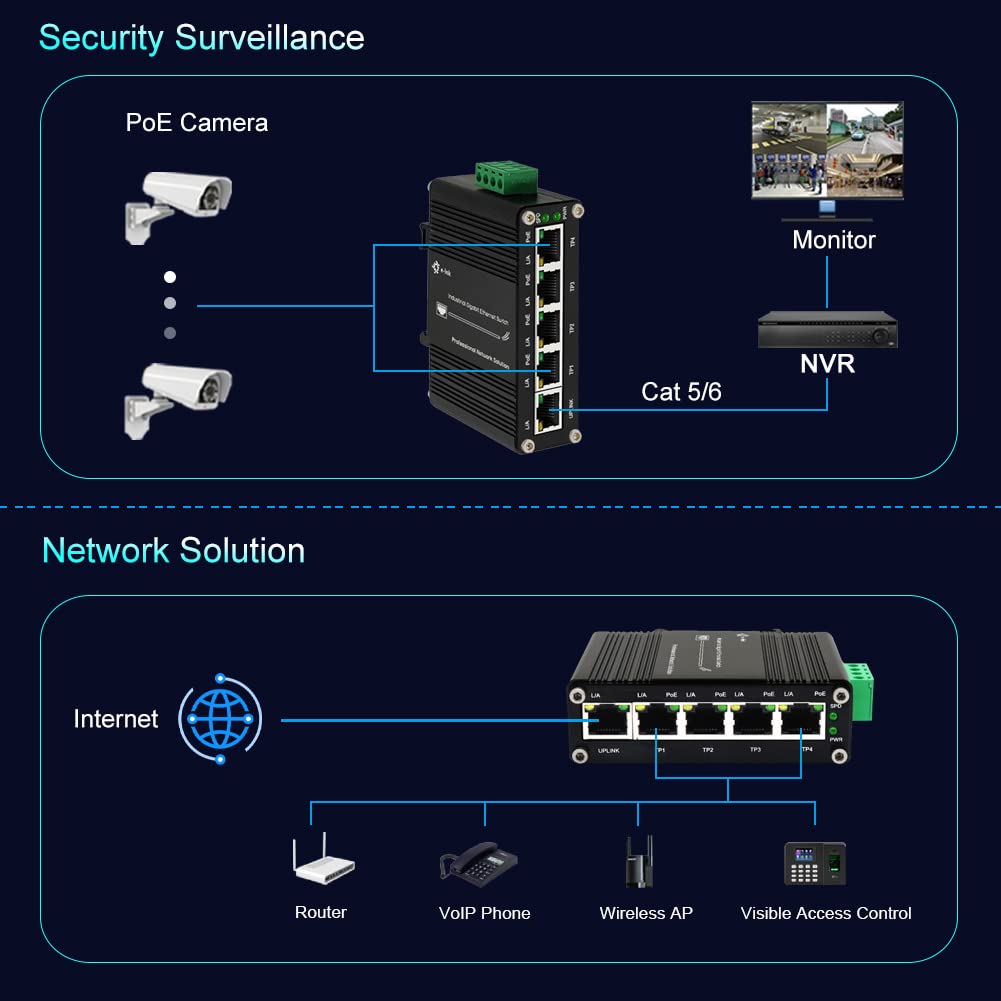

Q: What types of devices can I connect to the Centopto Mini Industrial PoE Switch?A: You can connect a variety of devices to the Centopto Mini Industrial PoE Switch, including IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices that require a 10/100/1000Mbps Ethernet connection.
Q: Is the Centopto Mini Industrial PoE Switch suitable for outdoor use?A: Yes, the Centopto Mini Industrial PoE Switch is designed for industrial-grade quality and can operate in extreme temperatures ranging from -40°C to 75°C (-40°F to 167°F), making it suitable for outdoor use in harsh environments.
Q: How do I install the Centopto Mini Industrial PoE Switch?A: The switch can be easily installed using the included DIN-rail mounting bracket or wall mount accessories. Its compact size (3.74x2.76x1.15in) allows for convenient placement in various settings.
Q: What is the maximum Power over Ethernet (PoE) output of this switch?A: The Centopto Mini Industrial PoE Switch supports a maximum PoE output of 30W per port, with a total power budget of up to 120W, allowing you to power multiple devices simultaneously.
Q: What should I do if I encounter issues with the switch?A: If you experience any issues with the Centopto Mini Industrial PoE Switch, please contact our professional technical support team. They are available to assist you with troubleshooting and resolving any problems you may have.
