The PROCET PT-PSE104GB-60-10 is a single-port 10Gbps midspan PoE injector, providing up to 60 watts of power (55VDC at 1.1A) over 4 pairs. Designed for PoE++ powered devices, including WiFi 6 routers and 10GbE devices. It supports data rates of 10/100/1000Mbps, 2.5G, 5G, and 10GbE NBase-T. This injector fully complies with IEEE802.3bt and is backward compatible with IEEE802.3af/at standards.
Key Features:
* Built-in detection chip actively classifies and powers devices, protecting non-PoE equipment.
* UL, CE, FCC, CB certified; RoHS compliant materials.
* Supports 10/100/1000Mbps, 2.5G, 5G, and 10Gbps data transmission for Wi-Fi 6 routers.
* Protects output against over voltage, over current, and short circuit.

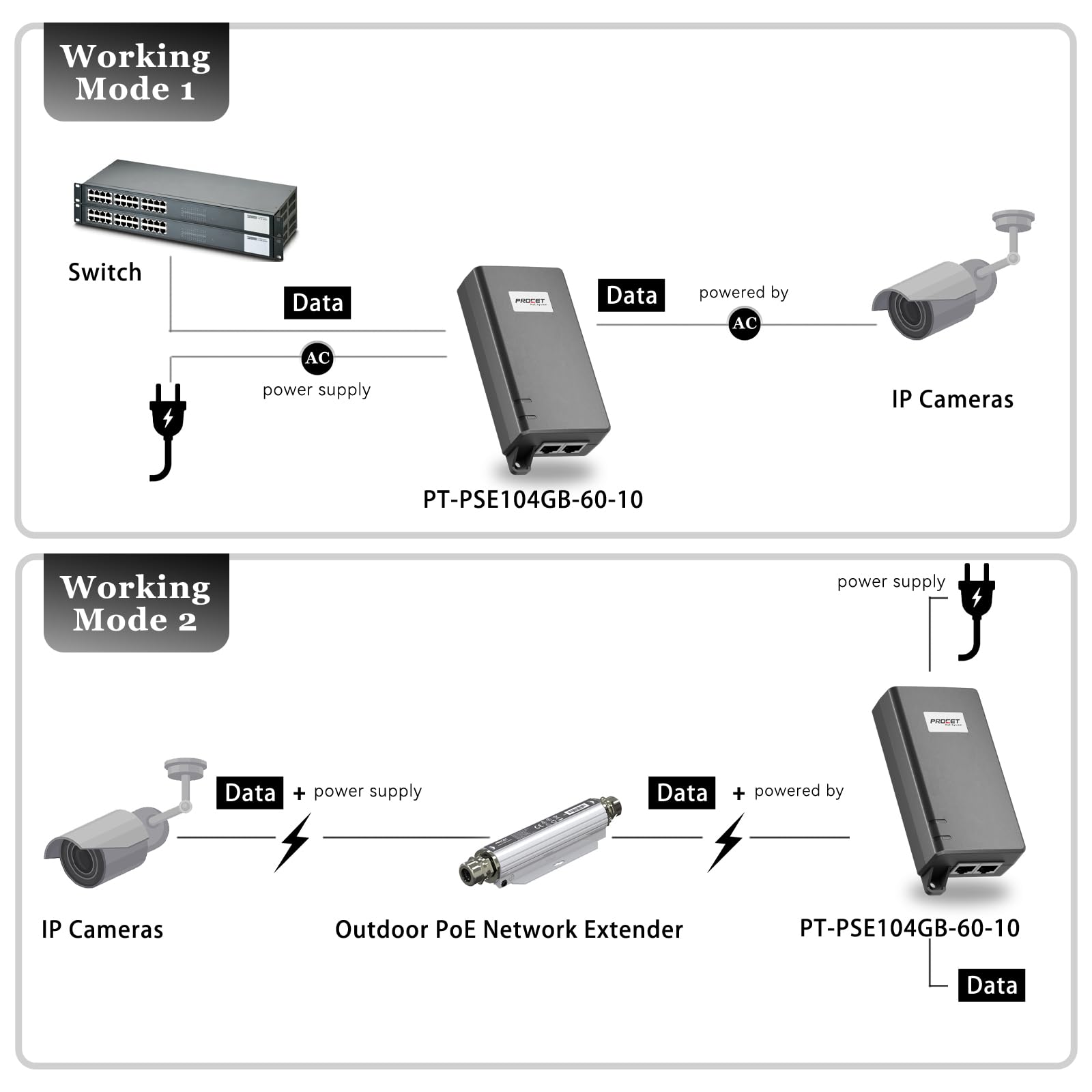

* Connects with normal switches to exchange data and provides stable power up to 100 meters (109 yards) over Cat5e/Cat6 cables.
* Enclosed in an IP40 fire-retardant plastic case, suitable for indoor installation.
* Wall-mountable design with included bracket, or can be placed on a desk.
* Operates with a wide input voltage of 100-240Vac.
Specifications:
* Input: 100-240Vac 1.5A 50/60Hz
* Output: 55Vdc 1100mA
* Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
* Data Speed: 10/100/1000Mbps & 2.5/5/10GbE
* Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-Tx, IEEE802.3ab 1000Base-T, IEEE802.3bz 2.5GbE/5/10GbE NBASE-T
* PoE Compliance: IEEE802.3bt, backward compatible with IEEE802.3af/at, PoE++
* Certifications: RoHS, WEEE
* Operating Temperature: 0℃ to 40℃
* Operating Humidity: 20% to 80%, non-condensation
* Storage Temperature: -20℃ to 70℃
* Storage Humidity: 10% to 90%, non-condensation
* Operating Altitude: up to 2000 meters
* Case Material: Plastic
* Color: Black
* Mounting: Wall-mounted
* IP Rating: IP40

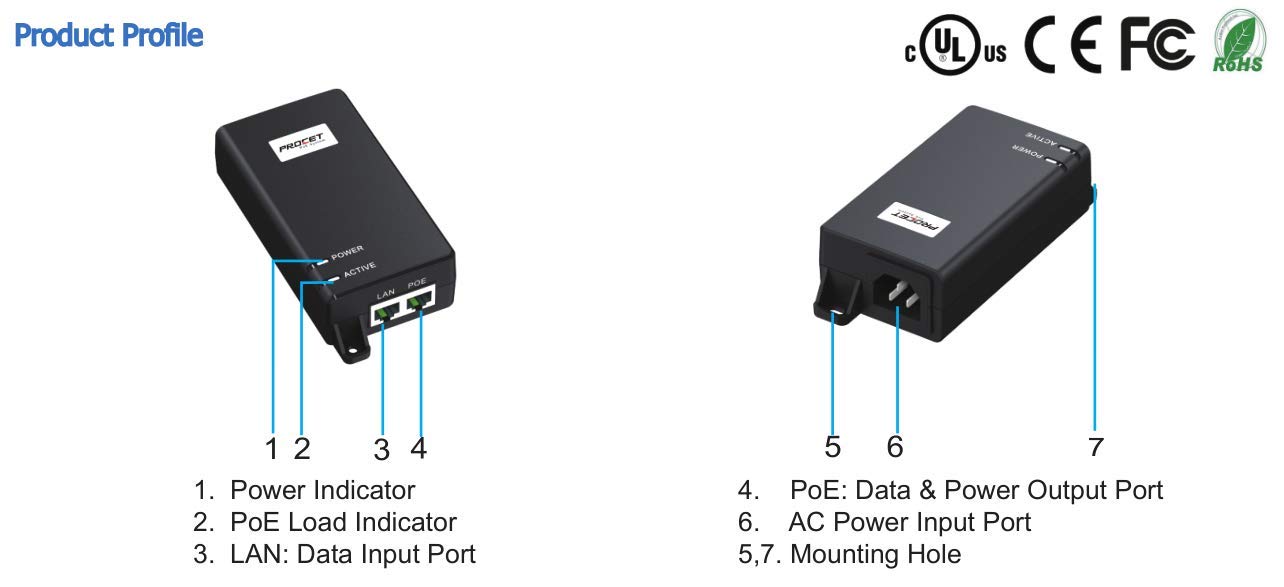

* Dimensions: 145.51mm x 65.8mm x 33.5mm
* Weight: 255g
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Procet Power Injector?A: The Procet Power Injector measures five point seven three inches long, two point five nine inches wide, and one point three inches high.
Q: What is the weight of the Procet Power Injector?A: The weight of the Procet Power Injector is two hundred fifty-five grams, making it easy to handle and install.
Q: What input voltage does the Procet Power Injector require?A: The Procet Power Injector operates on an input voltage of one hundred to two hundred forty volts AC.
Q: How do I install the Procet Power Injector?A: To install the Procet Power Injector, you can mount it on a wall using the included bracket or place it on a desk.
Q: Is the Procet Power Injector suitable for outdoor use?A: No, the Procet Power Injector is designed for indoor installation only, enclosed in an IP40 rated plastic case.
Q: What devices can I use with the Procet Power Injector?A: You can use the Procet Power Injector with PoE powered devices, specifically designed for WiFi six routers and ten Gigabit Ethernet devices.
Q: How do I clean the Procet Power Injector?A: To clean the Procet Power Injector, use a damp cloth to wipe the exterior, avoiding any liquid exposure to electrical components.
Q: What is the operating temperature range for the Procet Power Injector?A: The operating temperature range for the Procet Power Injector is zero degrees Celsius to forty degrees Celsius.
Q: Can I return the Procet Power Injector if I'm not satisfied?A: Yes, the Procet Power Injector comes with a two-year warranty that covers defects and unsatisfactory performance.
Q: What should I do if the Procet Power Injector arrives damaged?A: If the Procet Power Injector arrives damaged, contact customer support for a return or exchange process.
Q: Is the Procet Power Injector compliant with safety standards?A: Yes, the Procet Power Injector is UL, CE, FCC, and RoHS compliant, ensuring it meets safety and environmental standards.
Q: What kind of power output can I expect from the Procet Power Injector?A: The Procet Power Injector provides a power output of sixty watts at fifty-five volts DC.
Q: How far can I run cables with the Procet Power Injector?A: You can run cables up to one hundred meters over Cat five E or Cat six cables with the Procet Power Injector.
Q: Does the Procet Power Injector have any built-in protection features?A: Yes, the Procet Power Injector includes a built-in detection chip that protects against overvoltage and short circuits.
Q: Is there technical support available for the Procet Power Injector?A: Yes, unlimited technical support is available directly from the manufacturer for the Procet Power Injector.
