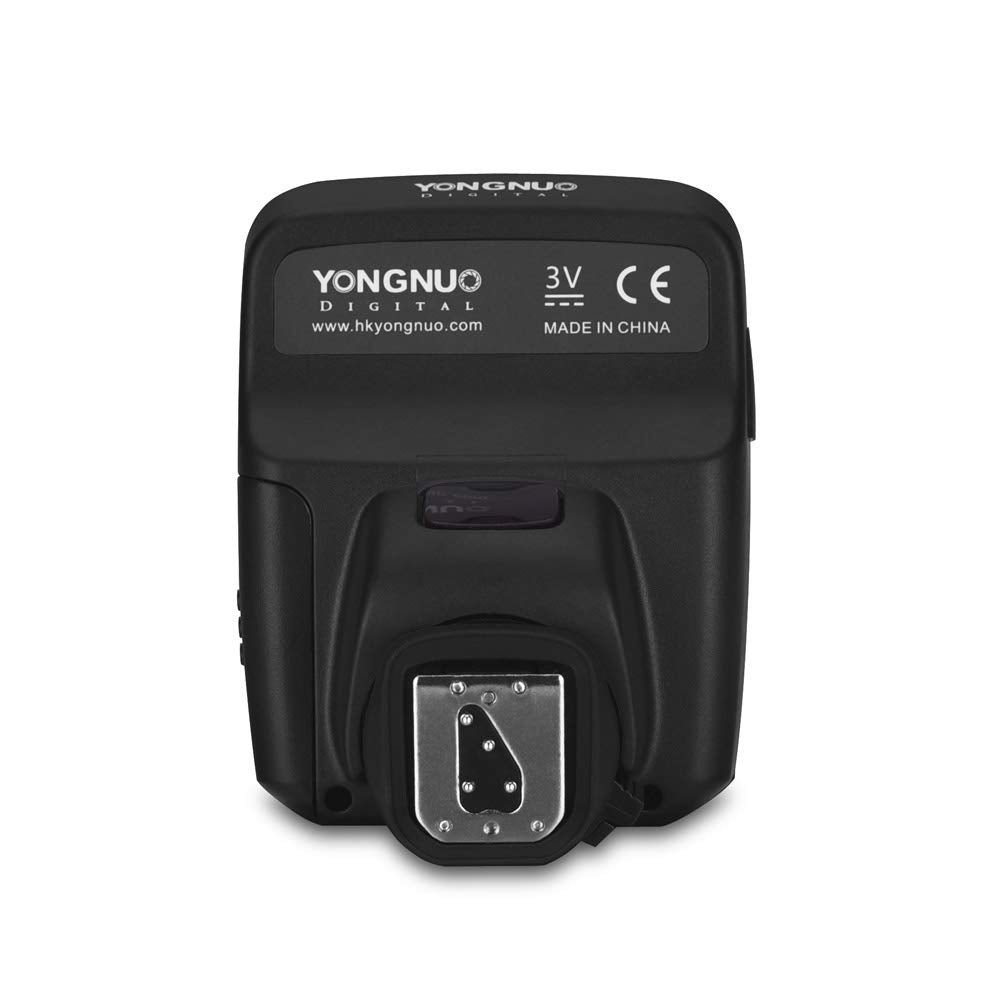

The YONGNUO YN560-TX PRO N is an advanced 2.4G wireless flash transmitter designed for Nikon cameras, offering comprehensive control over YONGNUO speedlites. It is an upgraded version of the YN560TX II, featuring TTL and high-speed sync functions.
Key Features:
- Supports TTL, Manual, Multi, and GR flash modes.
- Controls up to 5 flash groups (A/B/C/D/E).
- High-speed sync up to 1/8000s.
- TTL light ratio, exposure compensation, and exposure lock.
- Remote control focal settings for compatible YONGNUO flashes.
- 2.4G radio communication with over 100m range, 16 channels, and 10,000 customizable IDs.
- Firmware upgradeable via Micro-USB.
- High-resolution dot-matrix LCD with backlight for keys and fast lock mechanism.
- Custom function and auto-save settings for convenient operation.

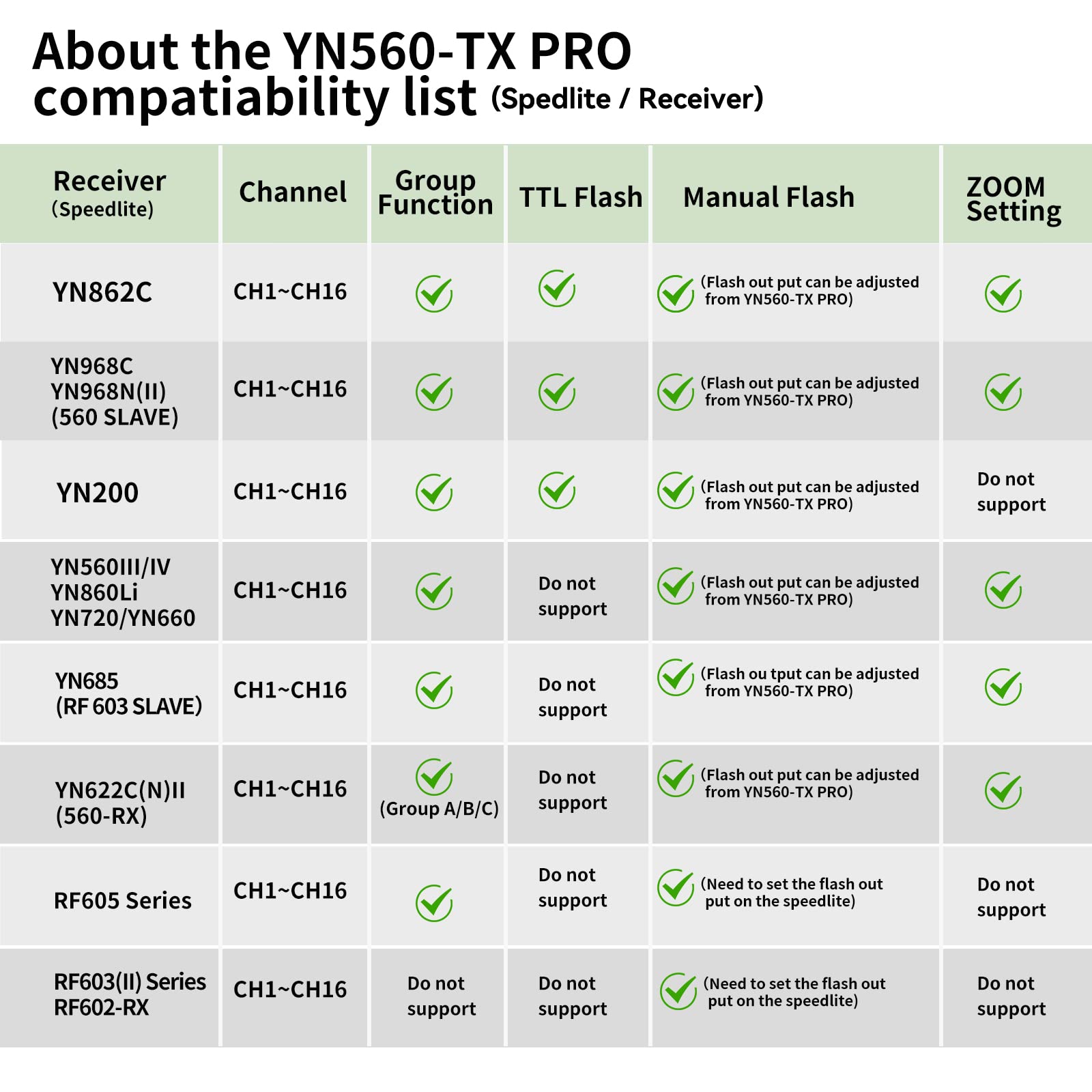

- Fully compatible with YONGNUO YN200 (TTL), YN560 III, YN560 IV, YN720, YN860Li, RF603 II, RF605 (Manual/Multi).
- Additional functions: front-curtain sync, second-curtain sync (M mode), ETTL ratio, flash exposure compensation, flash exposure lock, flash exposure bracketing, modeling flash.
- Built-in AF assist beam emitter.
Specifications:
- Type: 2.4G On-camera Speedlite transmitter
- Exposure control system: E-TTL II/E-TTL Autoflash, Manual flash, Multi flash, Gr flash
- Channel: Ch1 - 16
- ID: 0000-9999
- Slave unit control: Up to 5 groups (A/B/C/D/E)
- Transmission distance: Approx. 100 m
- Flash ratio control: 1:8 - 1:1 - 8:1, 1/2-stop increments
- Flash exposure FEC: ±3 stops in 1/3-increments
- Manual flash: 1/1 - 1/128 power (1/3-stop increments)
- Stroboscopic flash: Provided (1 - 500 Hz)
- Power source: 2 AA/LR6 alkaline or Ni-MH batteries
- Dimensions: Approx. 67.7x 66.7x 81.3mm
- Weight: Approx. 110 g (transmitter only)
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the YONGNUO YN560-TX PRO?A: The dimensions are approximately two point six inches in height, two point seven inches in width, and three point six inches in length.
Q: What is the weight of the YONGNUO YN560-TX PRO transmitter?A: The weight of the transmitter is approximately three point nine ounces.
Q: What type of batteries does the YONGNUO YN560-TX PRO use?A: It uses two AA or LR6 alkaline batteries or Ni-MH batteries for power.
Q: How do I use the YONGNUO YN560-TX PRO with my camera?A: To use it, mount the transmitter on your camera's hot shoe and set the appropriate flash mode for your shooting needs.
Q: Is the YONGNUO YN560-TX PRO compatible with all Nikon cameras?A: No, it is compatible with specific Nikon models, including D7000, D5100, D90, and D60.
Q: Can I adjust the flash exposure compensation on the YONGNUO YN560-TX PRO?A: Yes, you can adjust the flash exposure compensation up to plus or minus three stops in one-third increments.
Q: How do I clean and maintain the YONGNUO YN560-TX PRO?A: To clean it, use a soft, dry cloth and avoid using harsh chemicals to maintain its condition.
Q: Is the YONGNUO YN560-TX PRO safe to use with high-speed sync?A: Yes, it supports high-speed sync with a maximum speed of one over eight thousand seconds.
Q: What should I do if the YONGNUO YN560-TX PRO does not work?A: If it does not work, check the battery installation and ensure the transmitter is properly mounted on the camera.
Q: Can the YONGNUO YN560-TX PRO be upgraded via firmware?A: Yes, the firmware can be upgraded via a micro USB connection.
Q: Does the YONGNUO YN560-TX PRO support multiple flash groups?A: Yes, it supports up to five flash groups, labeled A through E.
Q: What is the maximum transmission distance of the YONGNUO YN560-TX PRO?A: The maximum transmission distance is approximately one hundred meters.
Q: Is there a warranty for the YONGNUO YN560-TX PRO?A: Yes, it typically comes with a manufacturer's warranty, which may vary by retailer.
Q: How does the YONGNUO YN560-TX PRO compare to previous models?A: It is an upgraded version of the YN560TX II, featuring enhanced compatibility and additional functions.
Q: What flash modes are supported by the YONGNUO YN560-TX PRO?A: It supports TTL, manual, multi, and group flash modes.
