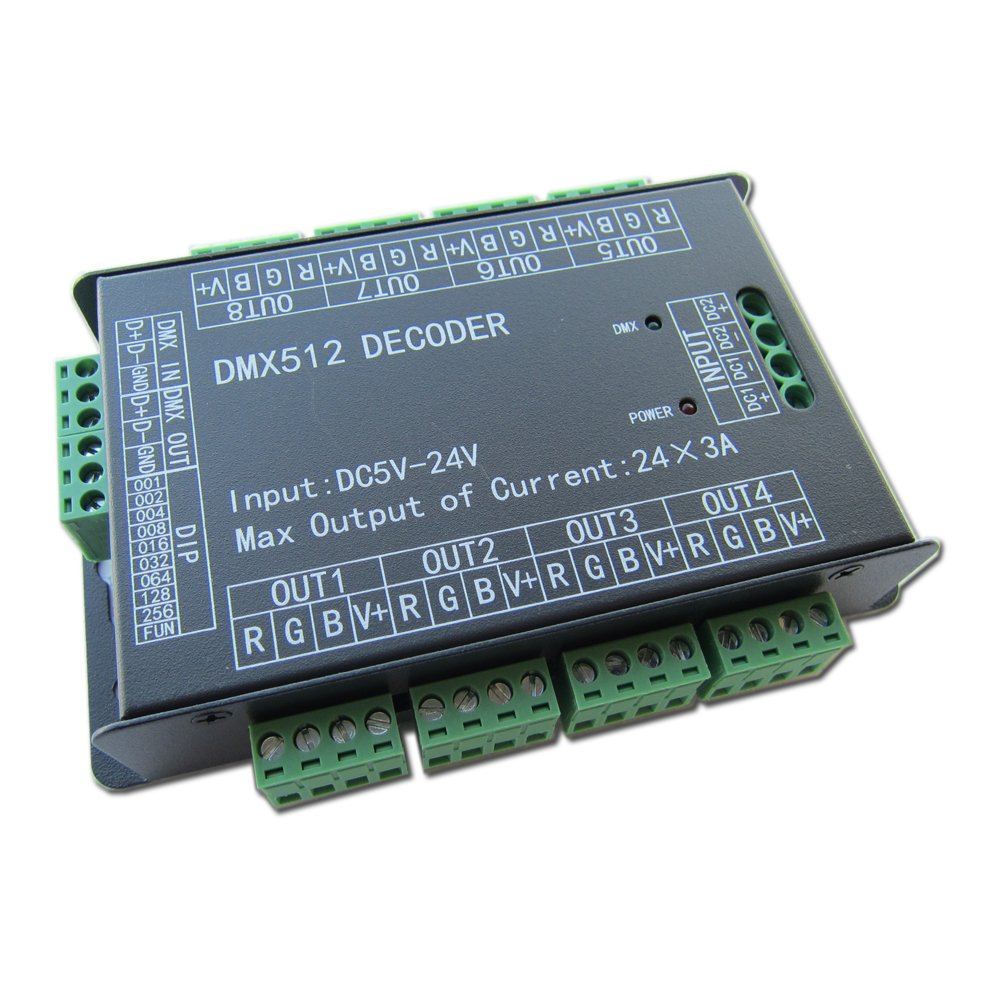

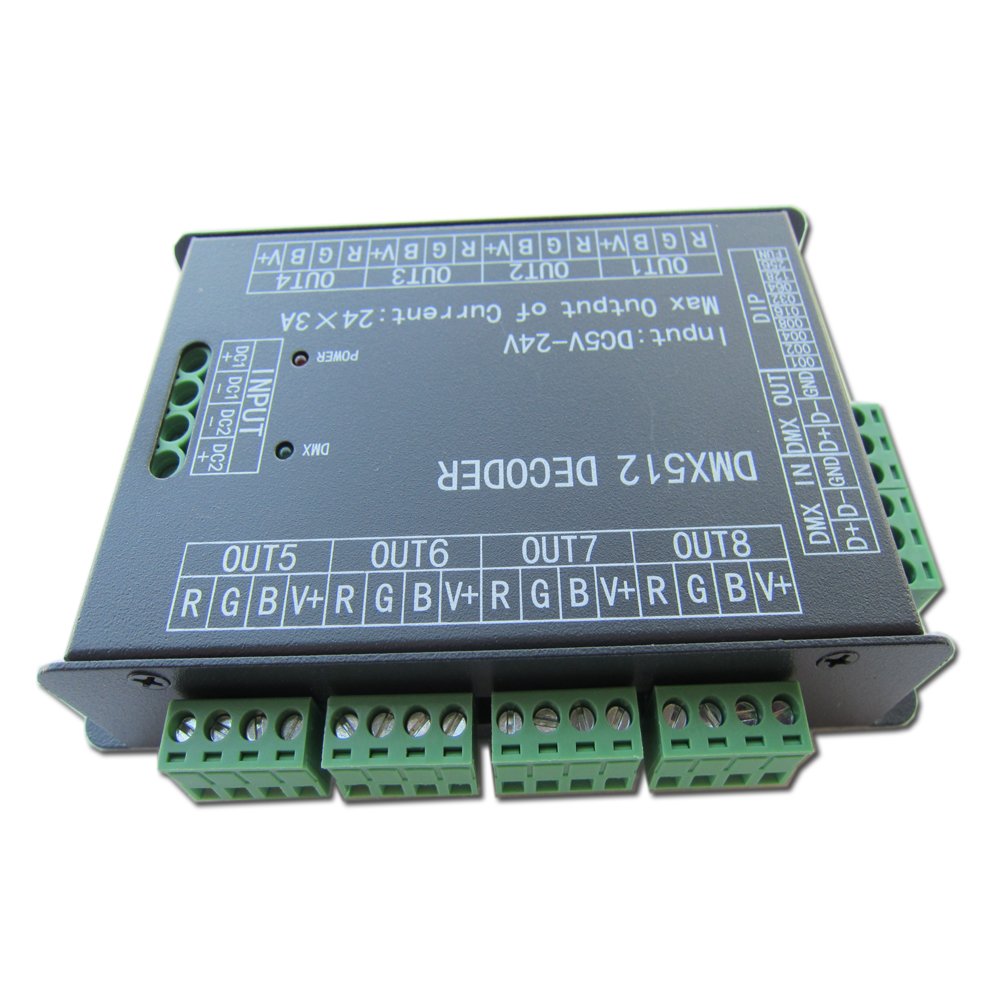

High Power 24 Channel Rgb 3A/Ch Dmx512 Controller Led Decoder Dimmer 500Hz Flicker Free Smoother Dimming Dmx Signal Indicator Fl

Frequently Asked Questions

• Q: What are the dimensions of the High Power 24 Channel RGB DMX512 Controller? A: The dimensions are five point seven one inches long, three point zero seven inches wide, and one point two two inches high.
• Q: What is the input voltage range for this DMX controller? A: The input voltage range is from five volts to twenty-four volts DC.
• Q: How many output channels does this controller have? A: It has twenty-four output channels, arranged in groups of three for RGB.
• Q: What material is the High Power DMX controller made of? A: The controller is made of plastic.
• Q: How do I set the DMX channel on this controller? A: The DMX channel is set using DIP switches located on the side of the device.
• Q: Is there a memory function for power loss? A: Yes, there is a power loss memory function included in this controller.
• Q: How do I install this DMX controller? A: You can install it by connecting the input and output wires to the plug-in terminal blocks provided.

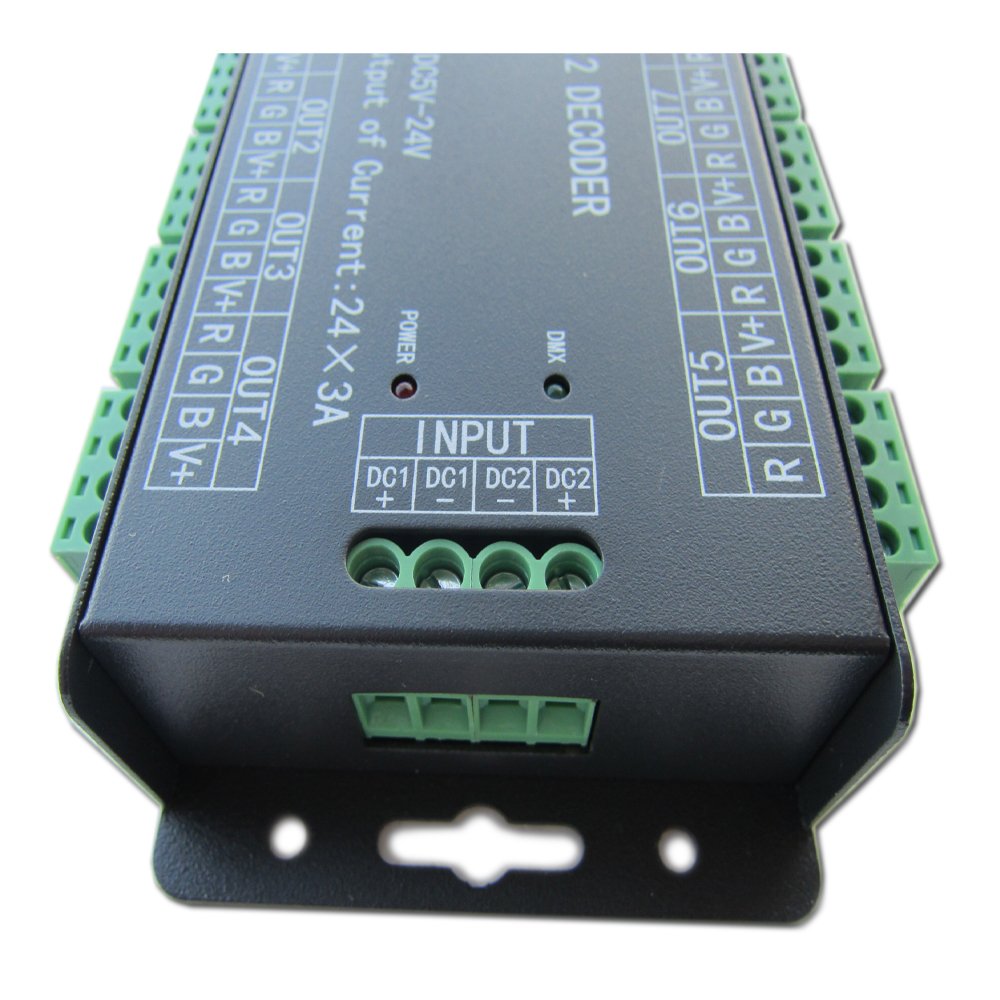

• Q: Can this controller be used for high-current applications? A: Yes, it can be used for high-current applications, as it has two DC power inputs for splitting the outputs.
• Q: What are the operating temperature limits for this controller? A: The operating temperature range is from negative twenty degrees to fifty degrees Celsius.
• Q: How many built-in programs does the controller offer? A: The controller offers ten built-in programs for testing or simple displays.
• Q: What speeds are available for the built-in programs? A: Eight different speeds are available for the built-in programs.
• Q: What kind of brightness control does this DMX controller provide? A: It provides zero to one hundred percent smooth brightness control with two hundred fifty-six steps per channel.
• Q: Is this controller suitable for beginners? A: Yes, it is suitable for beginners due to its straightforward installation and operation using DIP switches.
• Q: What should I do if my DMX controller arrives damaged? A: If your controller arrives damaged, contact customer support for return or replacement options.
• Q: What warranty does this DMX controller come with? A: The product typically comes with a manufacturer's warranty; please check with the seller for specific details.
